Security Horn Circuit

Security Horn Circuit

DESCRIPTION

When the theft deterrent system is changed from the armed state to the alarm sounding state, the certification ECU can control the security horn.

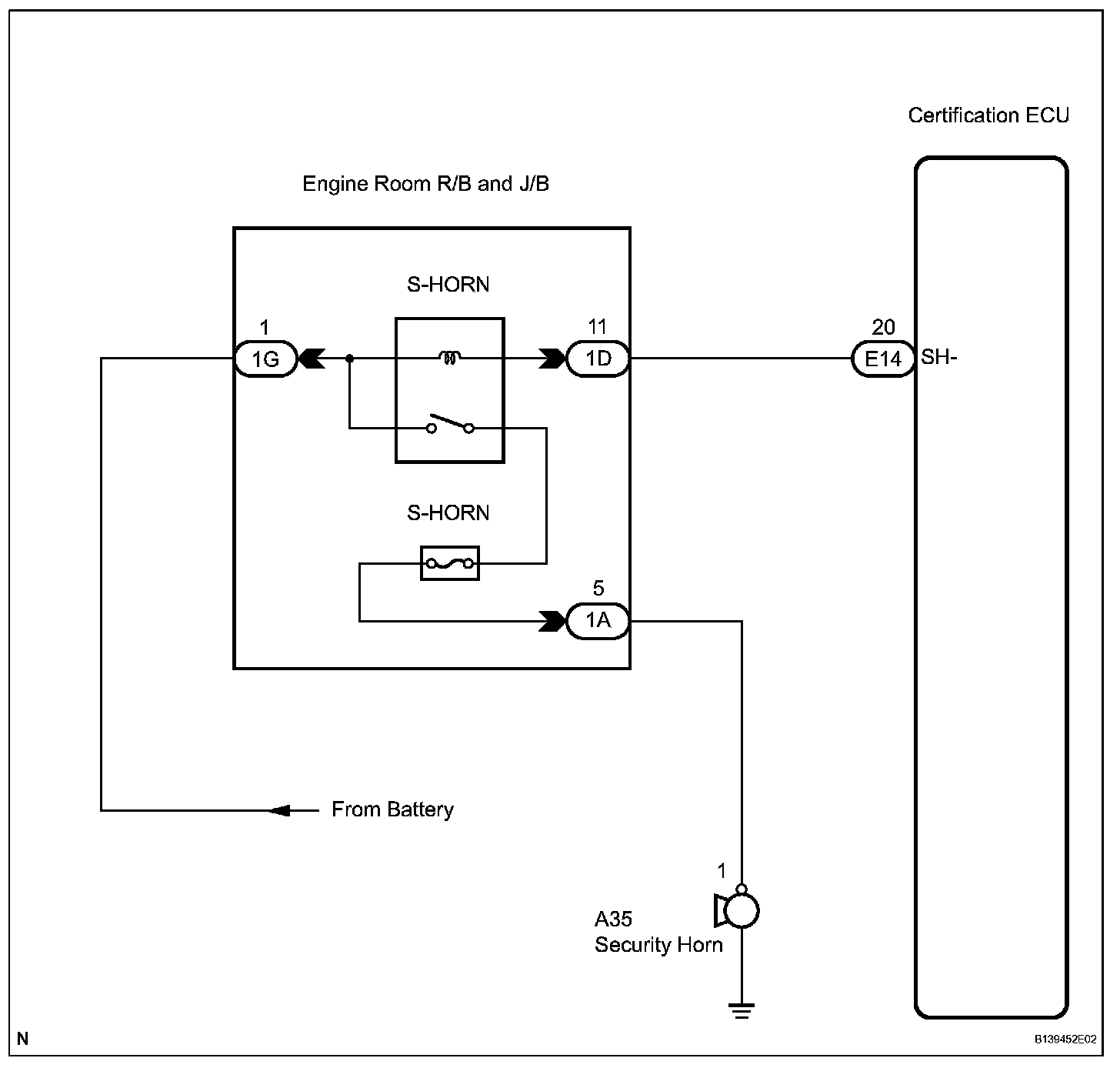

Wiring Diagram:

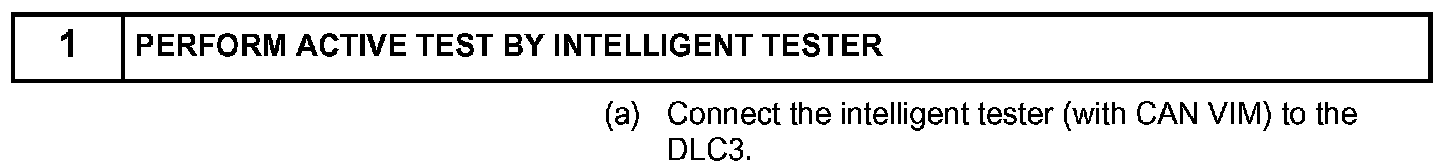

Step 1:

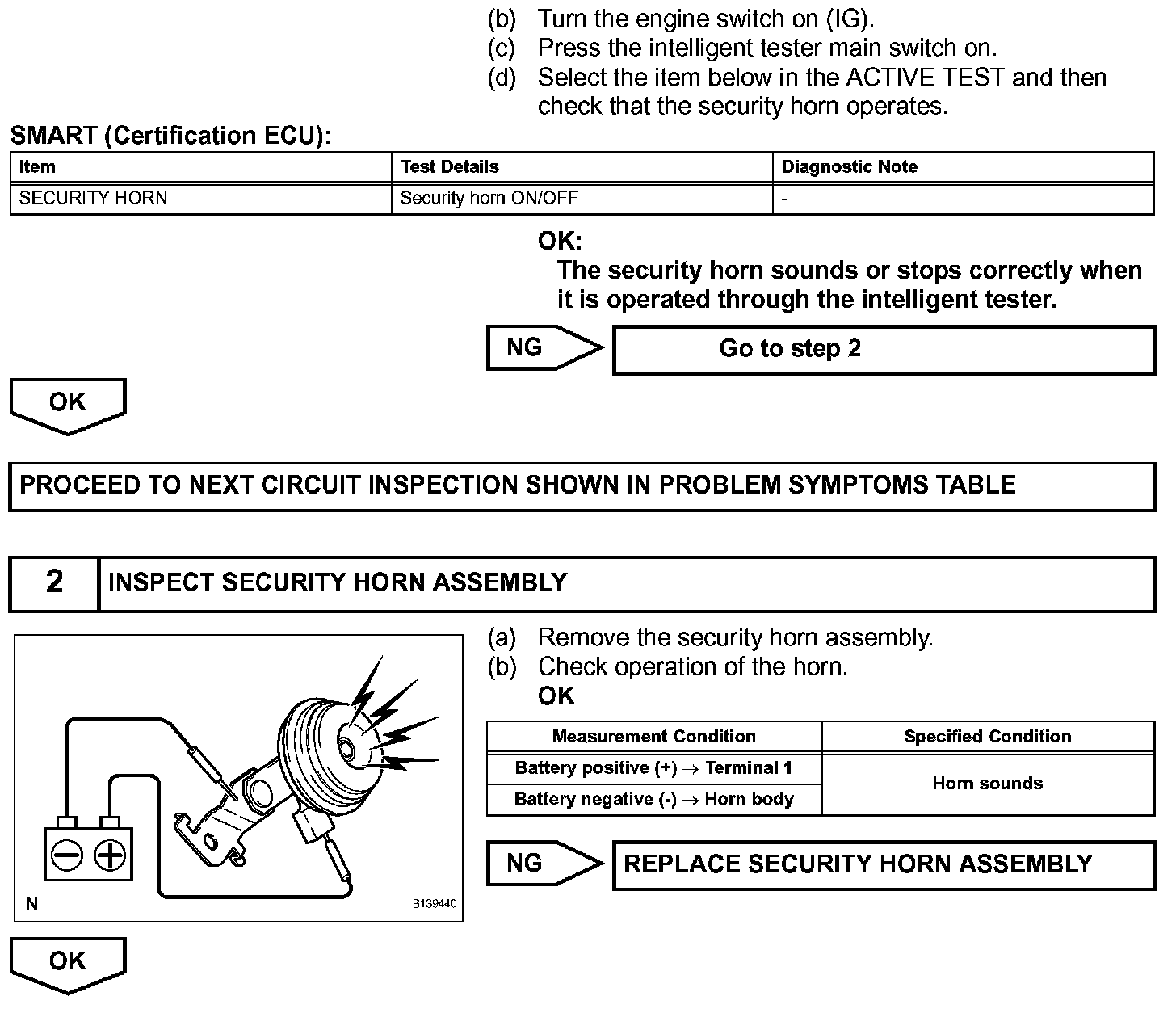

Step 1 (Continued)-2:

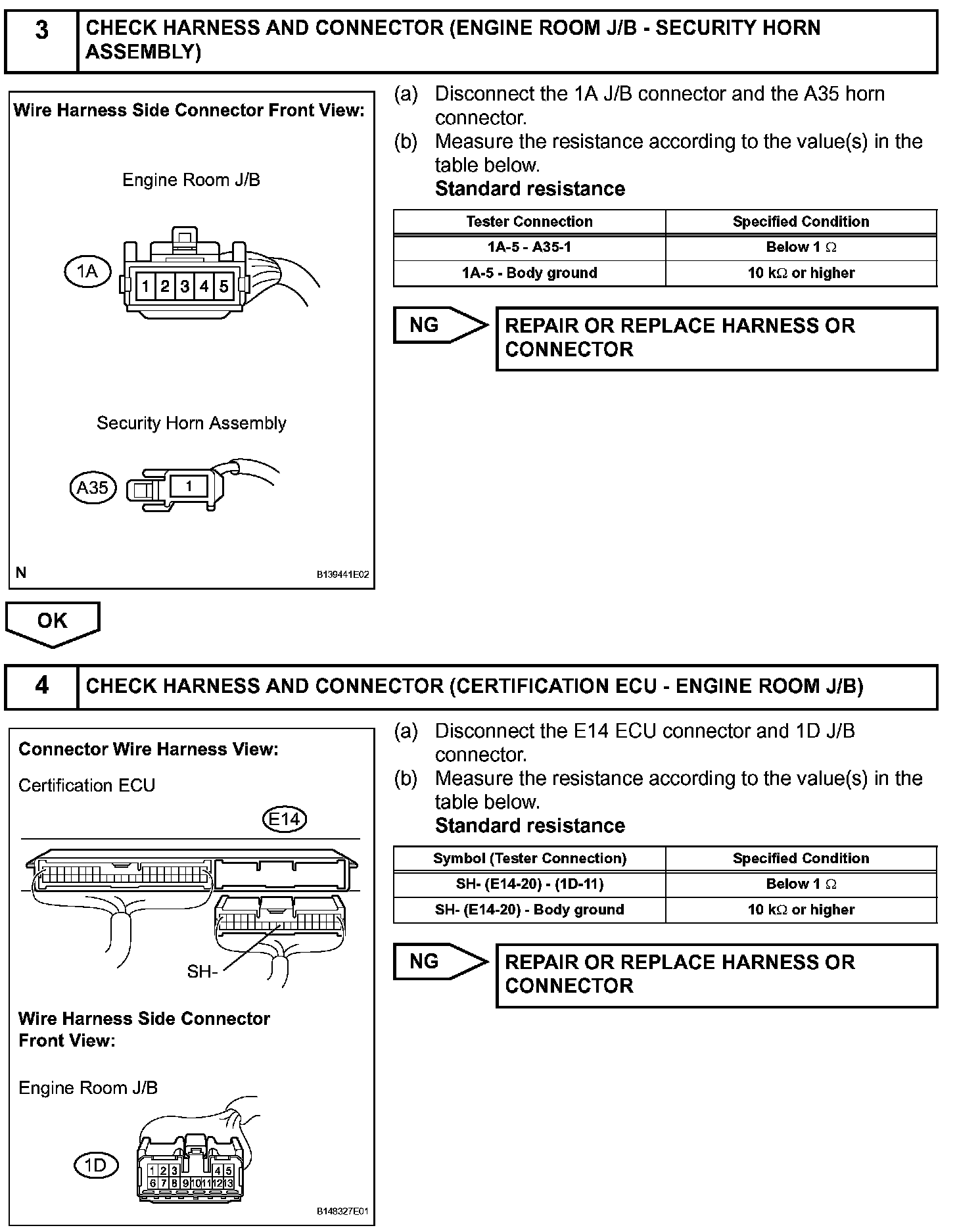

Step 3-4:

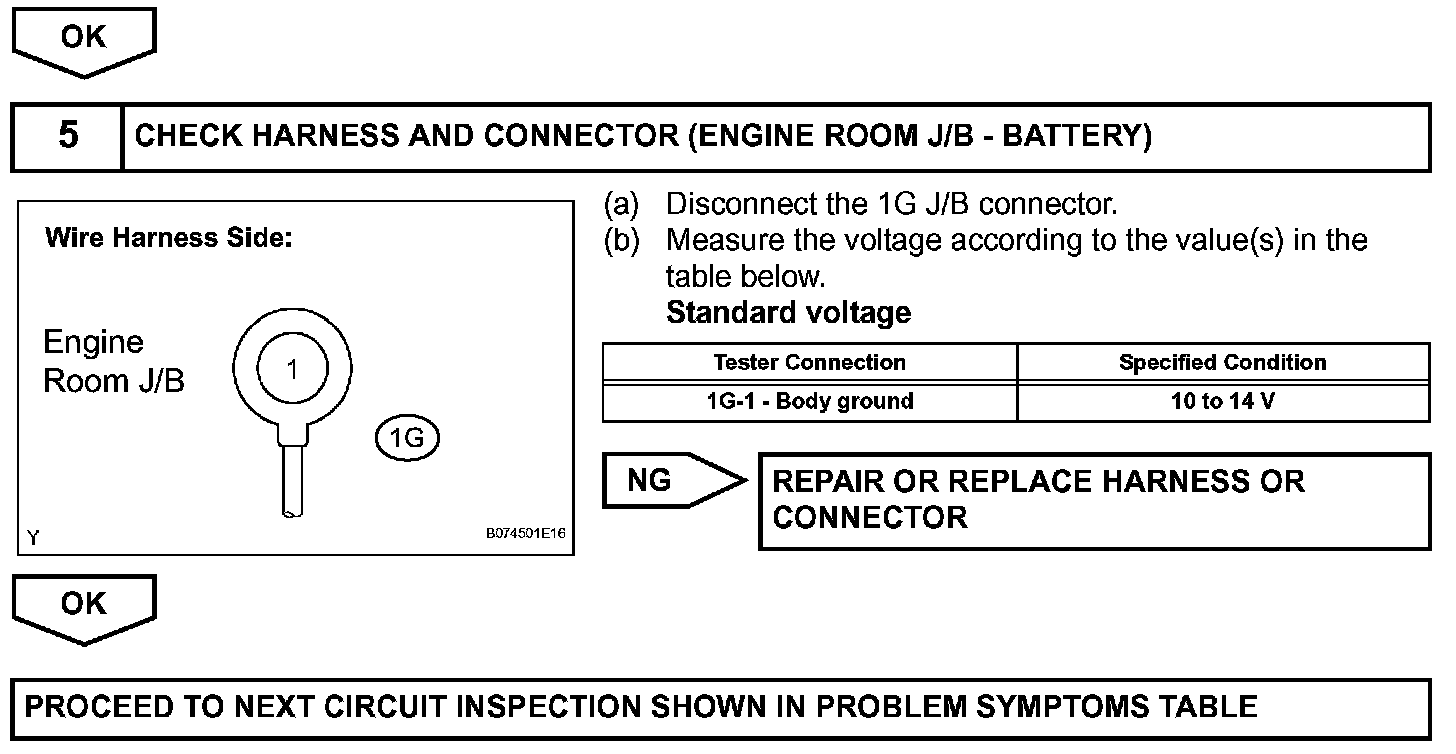

Step 4 (Continued)-5:

INSPECTION PROCEDURE
