Alarm Horn: Service and Repair

Security Horn Assembly:

SECURITY HORN ASSEMBLY

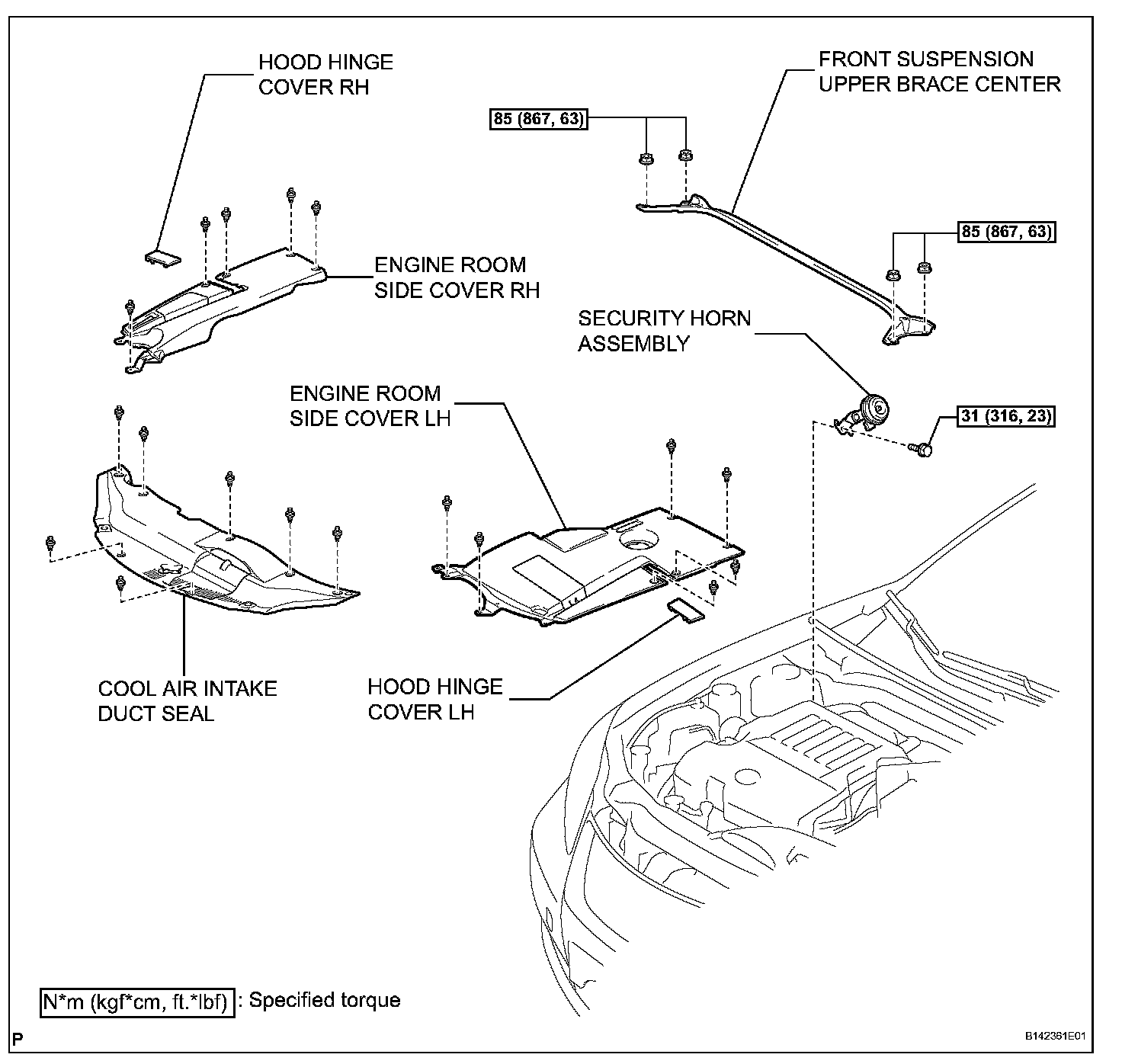

REMOVAL

1. REMOVE COOL AIR INTAKE DUCT SEAL
2. REMOVE HOOD HINGE COVER LH
3. REMOVE ENGINE ROOM SIDE COVER LH
4. REMOVE HOOD HINGE COVER RH
5. REMOVE ENGINE ROOM SIDE COVER RH
6. REMOVE FRONT SUSPENSION UPPER BRACE CENTER

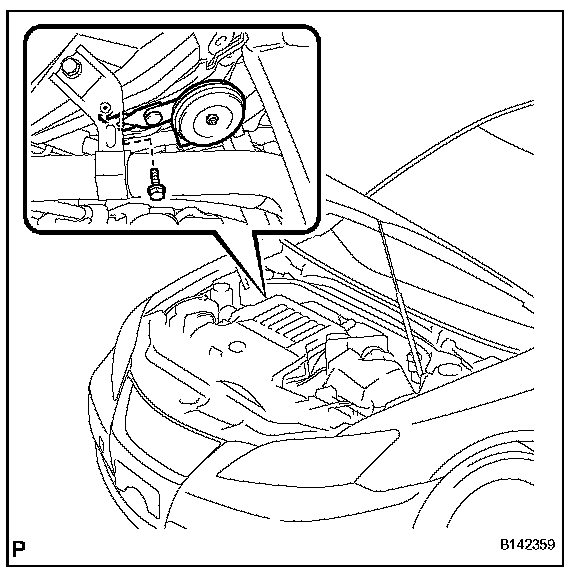

7. REMOVE SECURITY HORN ASSEMBLY




a. Remove the bolt.
b. Disconnect the connector and remove the security horn assembly.

INSTALLATION

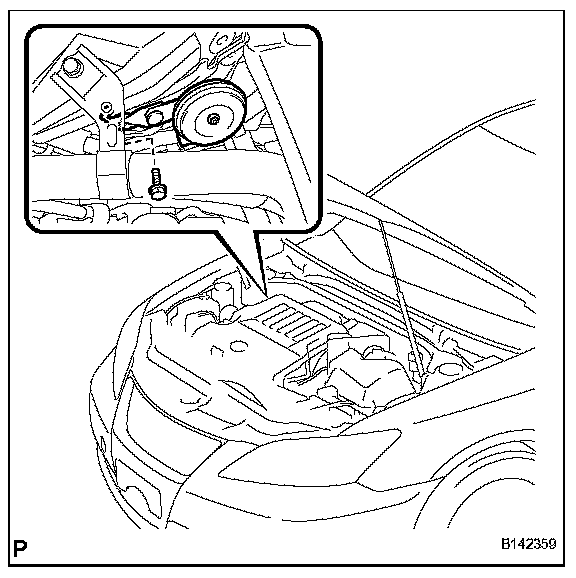

1. INSTALL SECURITY HORN ASSEMBLY

a. Connect the connector.




b. Install the security horn assembly with the bolt.

Torque: 31.m (316 kgf.cm, 23 ft.lbf)

2. INSTALL FRONT SUSPENSION UPPER BRACE CENTER
3. INSTALL ENGINE ROOM SIDE COVER RH
4. INSTALL HOOD HINGE COVER RH
5. INSTALL ENGINE ROOM SIDE COVER LH
6. INSTALL HOOD HINGE COVER LH
7. INSTALL COOL AIR INTAKE DUCT SEAL
