Antenna Cable: Service and Repair

Radio Antenna Cord:

RADIO ANTENNA CORD

REMOVAL

1. PRECAUTION
2. ALIGN FRONT WHEELS FACING STRAIGHT AHEAD

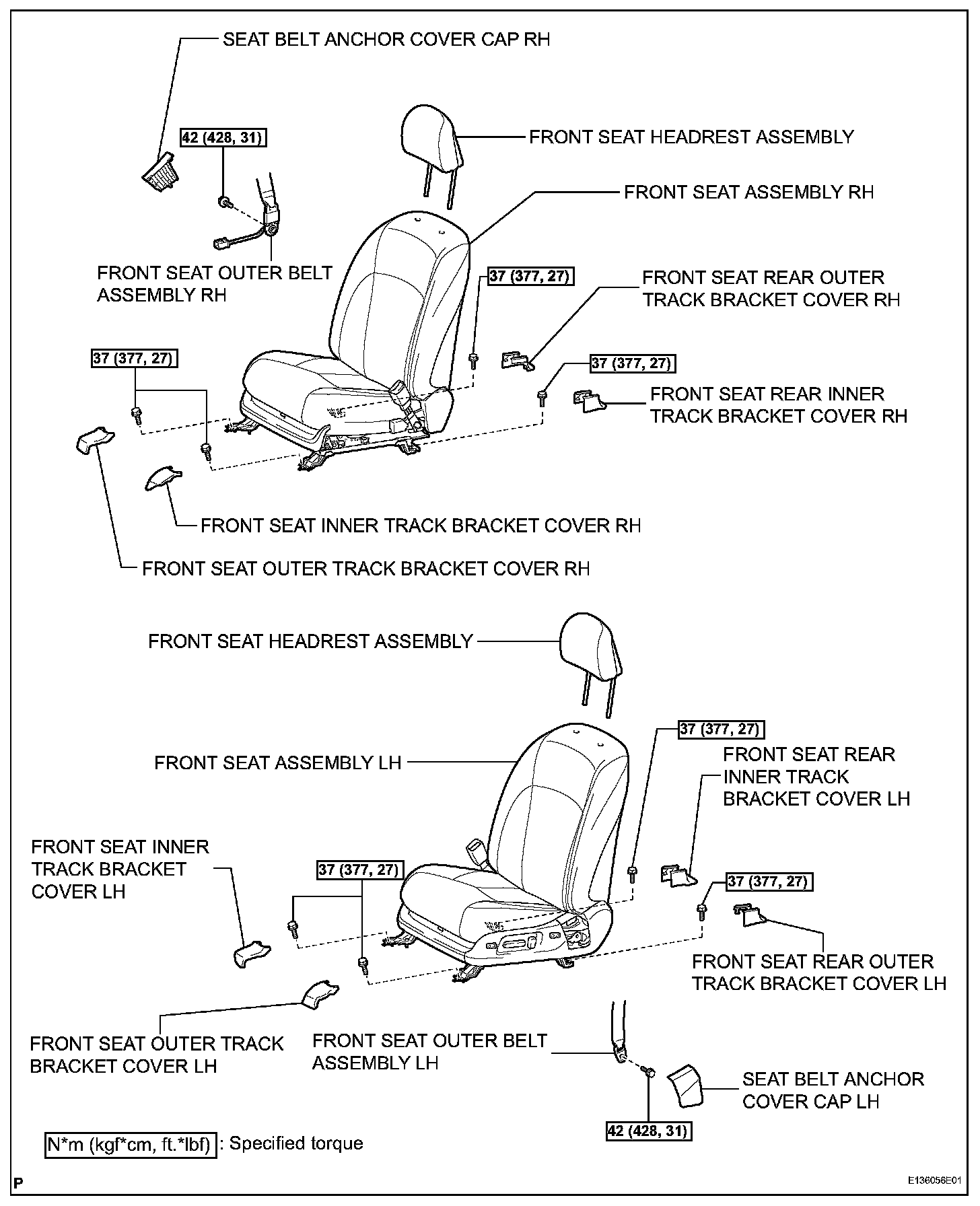

3. REMOVE SEAT BELT ANCHOR COVER CAP LH
4. DISCONNECT FRONT SEAT OUTER BELT ASSEMBLY LH
5. REMOVE FRONT SEAT HEADREST ASSEMBLY (for Driver Seat)
6. REMOVE FRONT SEAT OUTER TRACK BRACKET COVER LH
7. REMOVE FRONT SEAT INNER TRACK BRACKET COVER LH
8. REMOVE FRONT SEAT REAR OUTER TRACK BRACKET COVER LH
9. REMOVE FRONT SEAT REAR INNER TRACK BRACKET COVER LH
10. REMOVE FRONT SEAT ASSEMBLY LH
11. REMOVE SEAT BELT ANCHOR COVER CAP RH
12. DISCONNECT FRONT SEAT OUTER BELT ASSEMBLY RH
13. REMOVE FRONT SEAT HEADREST ASSEMBLY (for Front Passenger Seat)
14. REMOVE FRONT SEAT OUTER TRACK BRACKET COVER RH
15. REMOVE FRONT SEAT INNER TRACK BRACKET COVER RH
16. REMOVE FRONT SEAT REAR OUTER TRACK BRACKET COVER RH
17. REMOVE FRONT SEAT REAR INNER TRACK BRACKET COVER RH
18. REMOVE FRONT SEAT ASSEMBLY RH

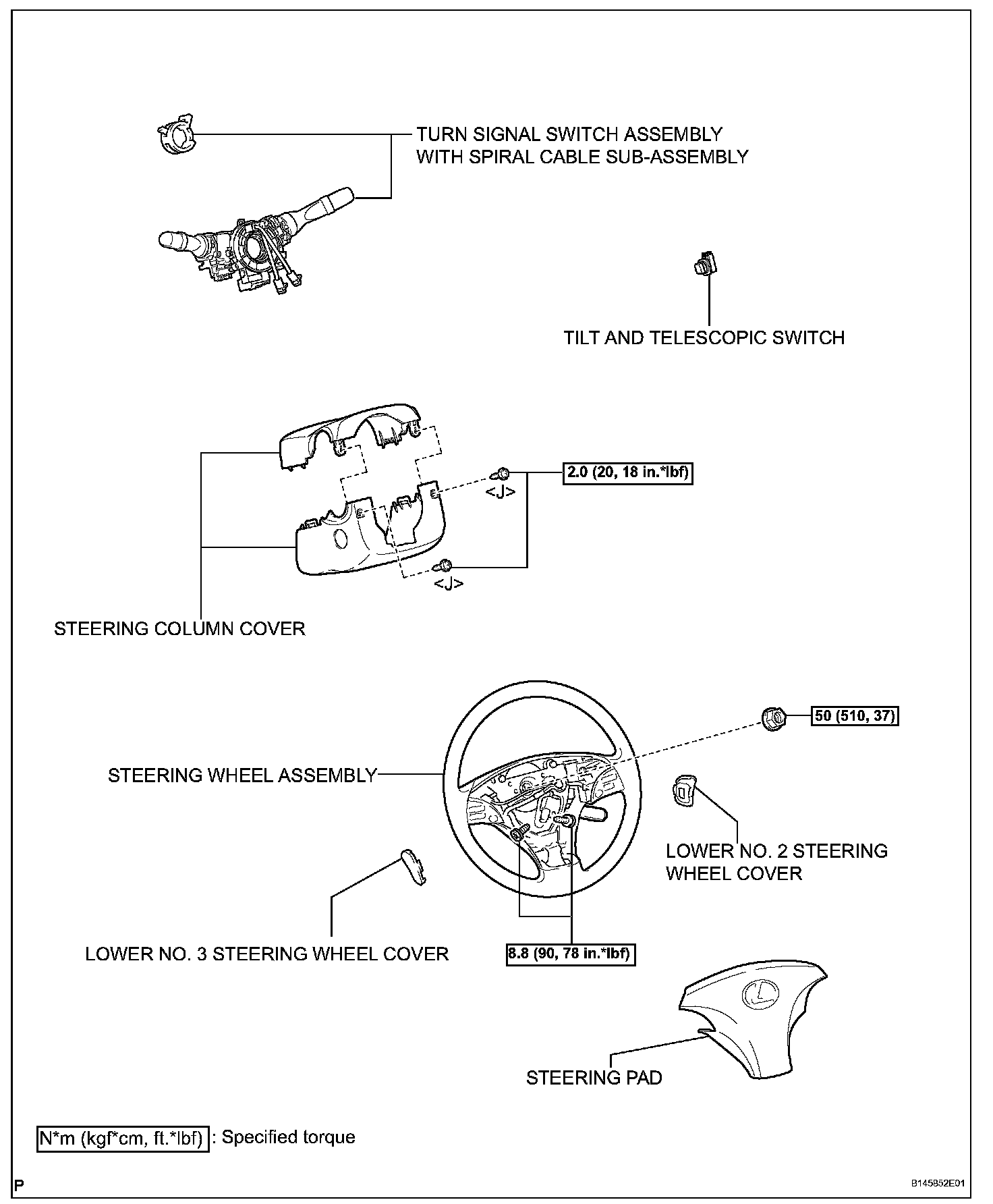

19. REMOVE LOWER NO. 3 STEERING WHEEL COVER
20. REMOVE LOWER NO. 2 STEERING WHEEL COVER
21. REMOVE STEERING PAD
22. REMOVE STEERING WHEEL ASSEMBLY
23. REMOVE FRONT DOOR SCUFF PLATE LH
24. REMOVE FRONT DOOR OPENING TRIM COVER LH
25. REMOVE SIDE INSTRUMENT PANEL LH
26. REMOVE INSTRUMENT PANEL FINISH PANEL END LH
27. REMOVE LOWER INSTRUMENT PANEL SUB-ASSEMBLY
28. REMOVE STEERING COLUMN COVER
29. REMOVE TILT AND TELESCOPIC SWITCH
30. REMOVE TURN SIGNAL SWITCH ASSEMBLY WITH SPIRAL CABLE SUB-ASSEMBLY

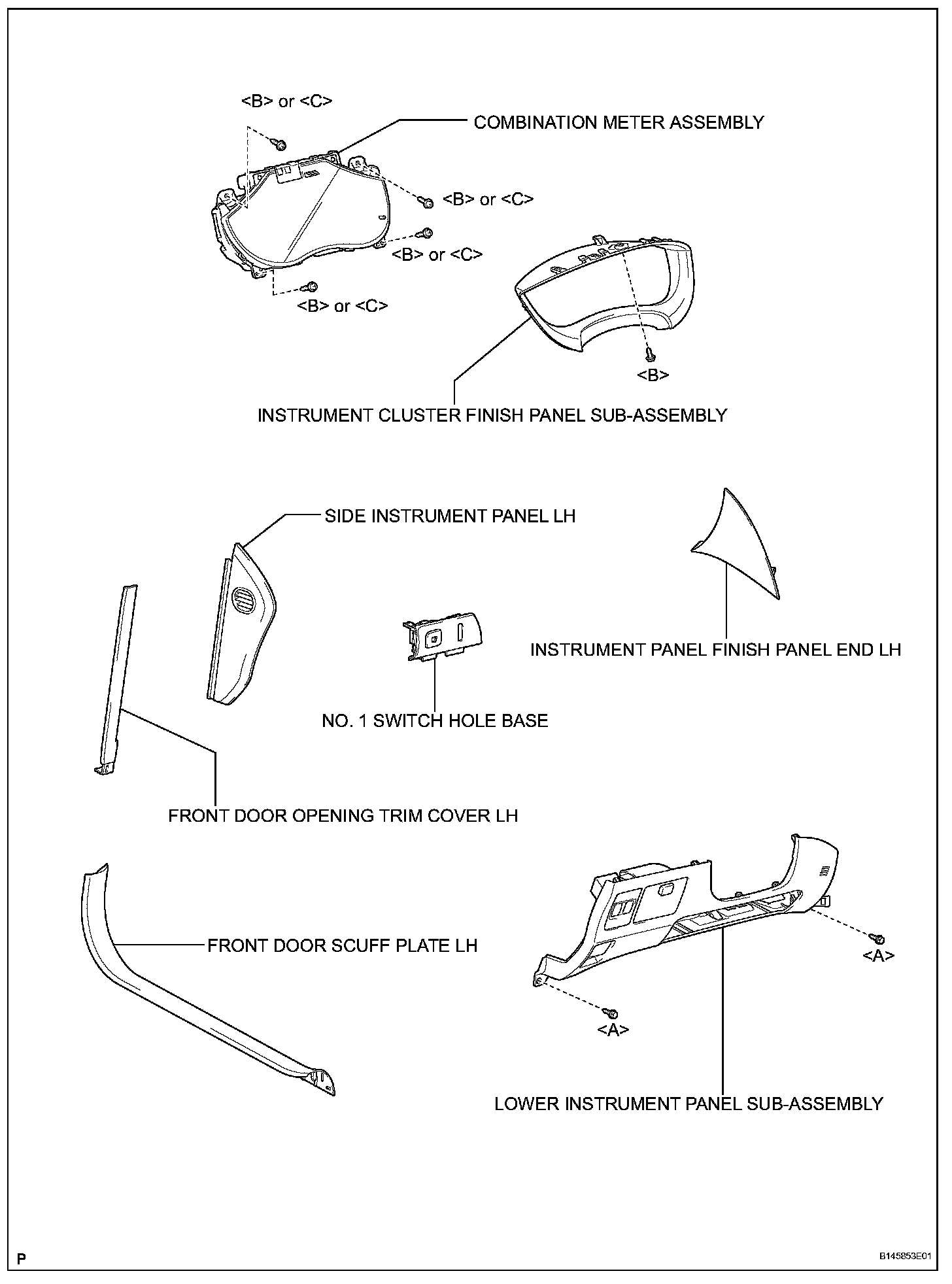

31. REMOVE INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY
32. REMOVE COMBINATION METER ASSEMBLY
33. REMOVE NO. 1 SWITCH HOLE BASE
34. REMOVE INSTRUMENT PANEL FINISH PANEL END RH
35. REMOVE FRONT DOOR SCUFF PLATE RH
36. REMOVE FRONT DOOR OPENING TRIM COVER RH

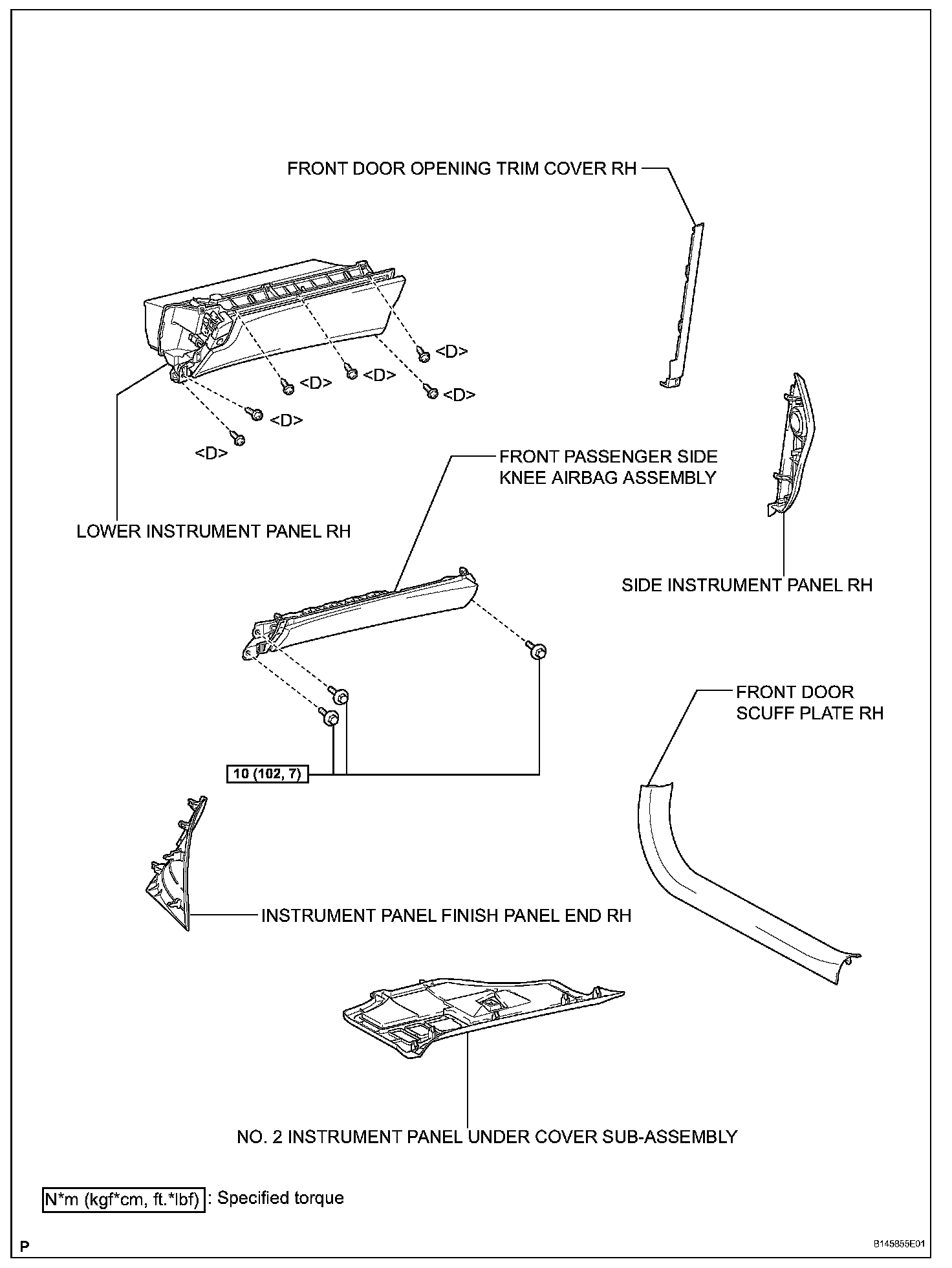

37. REMOVE NO. 2 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY
38. REMOVE SIDE INSTRUMENT PANEL RH
39. REMOVE FRONT PASSENGER SIDE KNEE AIRBAG ASSEMBLY
40. REMOVE LOWER INSTRUMENT PANEL RH
41. REMOVE SHIFT LEVER KNOB SUB-ASSEMBLY
42. REMOVE UPPER CONSOLE PANEL ASSEMBLY WITH FRONT ASH RECEPTACLE

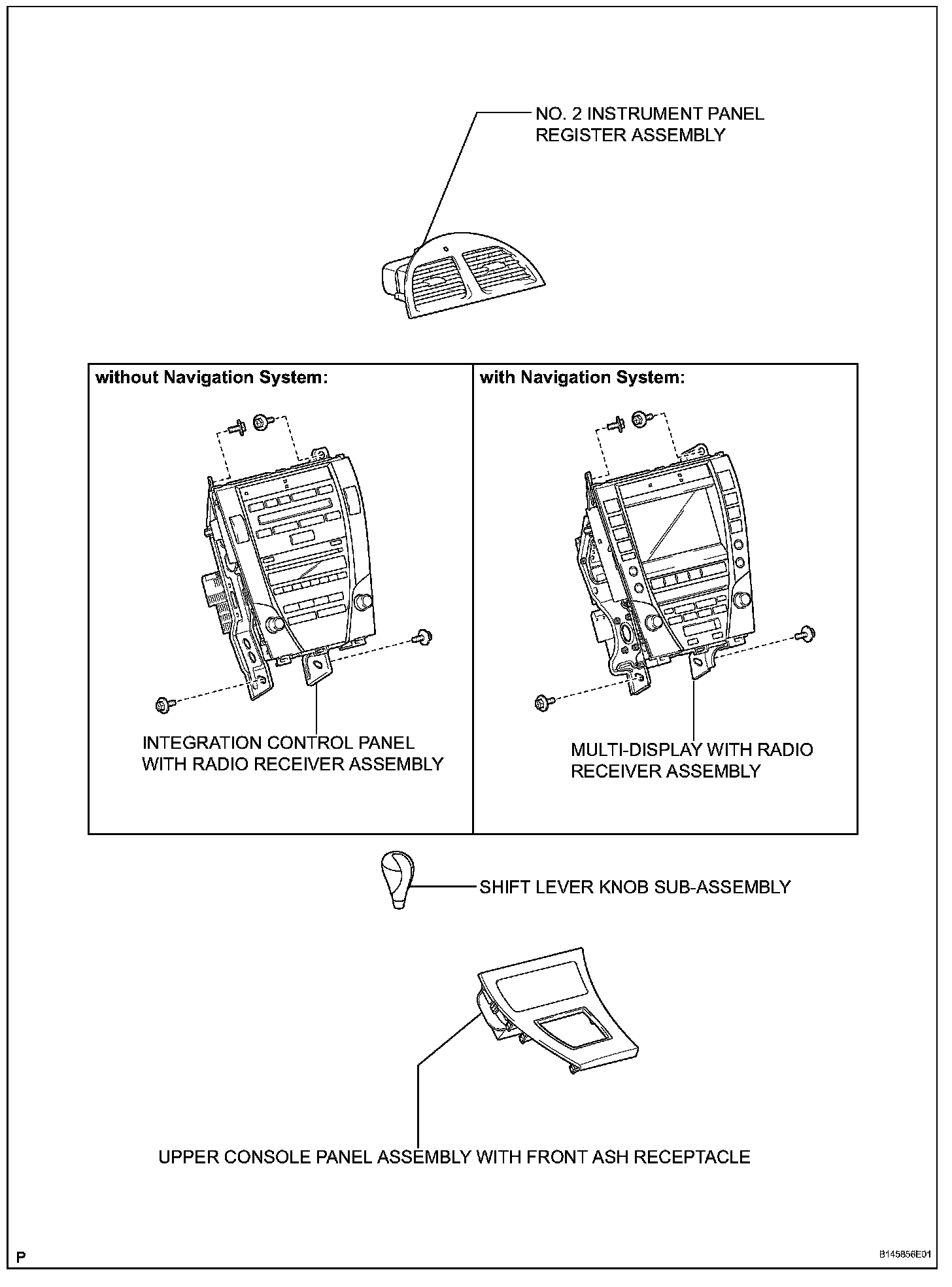

43. REMOVE NO. 2 INSTRUMENT PANEL REGISTER ASSEMBLY
44. REMOVE INTEGRATION CONTROL PANEL WITH RADIO RECEIVER ASSEMBLY (w/o Navigation System)
45. REMOVE MULTI-DISPLAY WITH RADIO RECEIVER ASSEMBLY (w/ Navigation System)

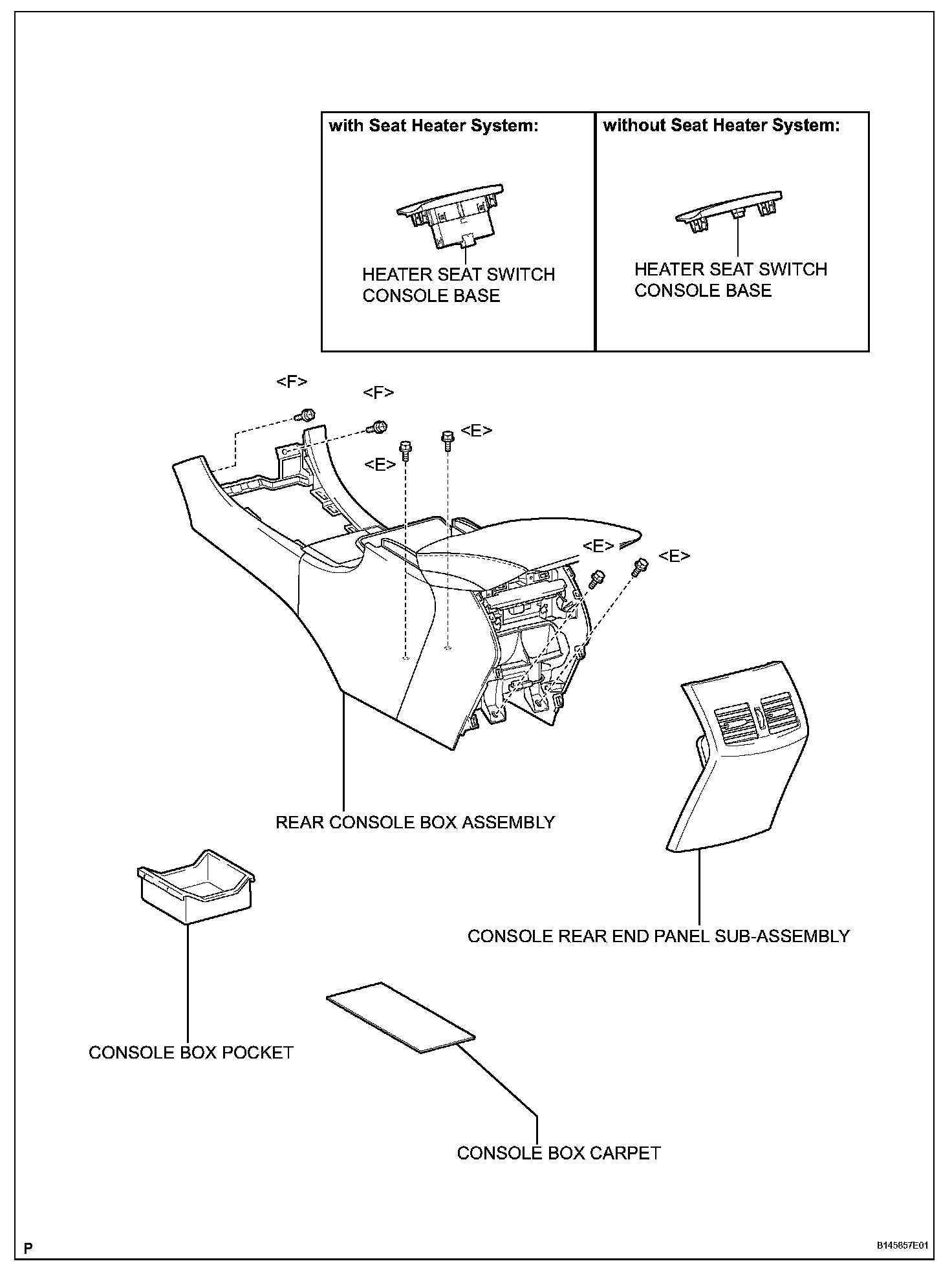

46. REMOVE HEATER SEAT SWITCH CONSOLE BASE (w/o Seat Heater System)
47. REMOVE HEATER SEAT SWITCH CONSOLE BASE (w/ Seat Heater System)
48. REMOVE CONSOLE BOX POCKET
49. REMOVE CONSOLE BOX CARPET
50. REMOVE CONSOLE REAR END PANEL SUB-ASSEMBLY
51. REMOVE REAR CONSOLE BOX ASSEMBLY
52. REMOVE FRONT PILLAR GARNISH LH

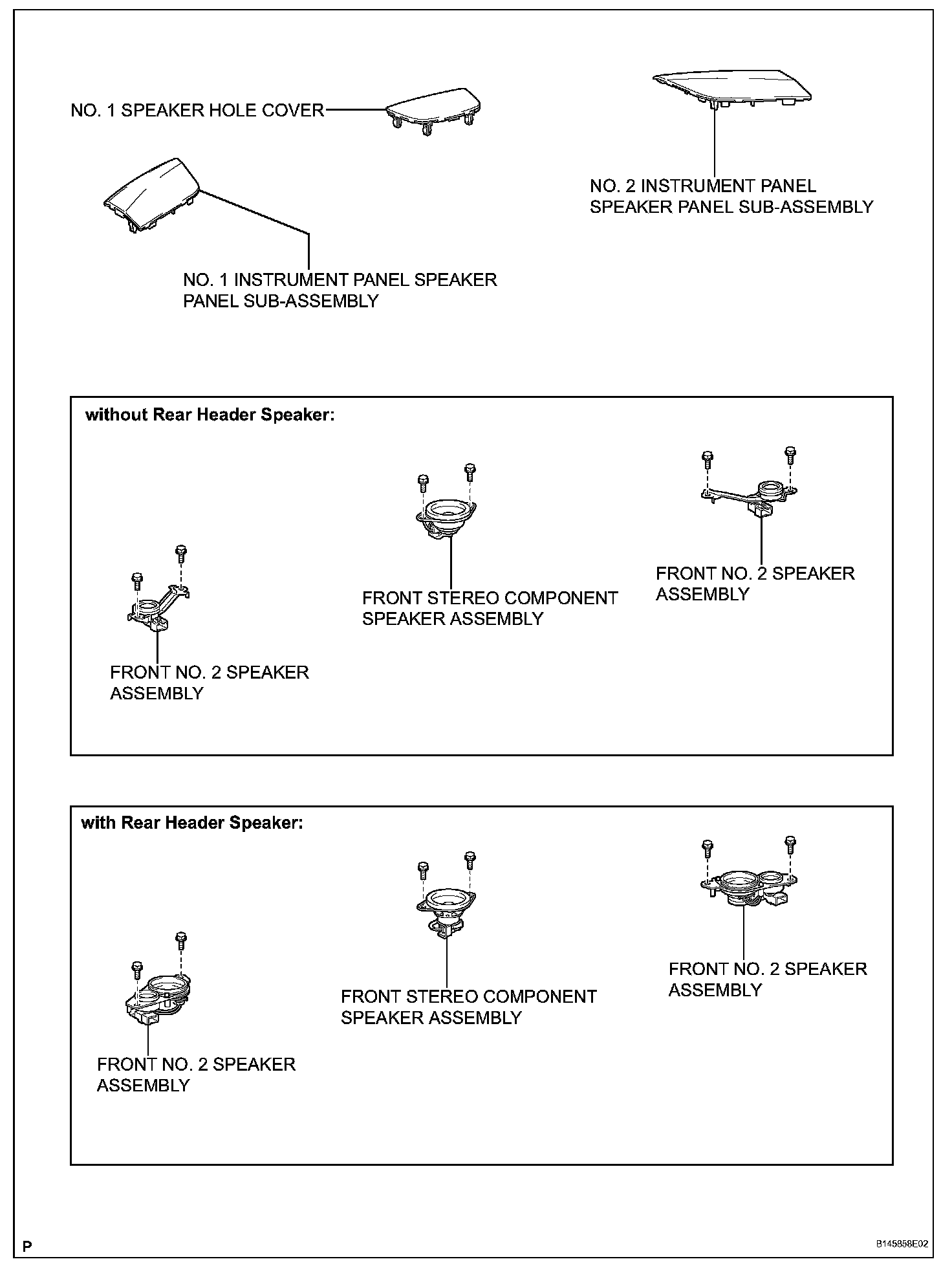

53. REMOVE NO. 1 INSTRUMENT PANEL SPEAKER PANEL SUB-ASSEMBLY
54. REMOVE FRONT NO. 2 SPEAKER ASSEMBLY (for LH Side)
55. REMOVE NO. 1 INSTRUMENT PANEL REGISTER ASSEMBLY
56. REMOVE FRONT PILLAR GARNISH RH
57. REMOVE NO. 2 INSTRUMENT PANEL SPEAKER PANEL SUB-ASSEMBLY
58. REMOVE FRONT NO. 2 SPEAKER ASSEMBLY (for RH Side)
59. REMOVE NO. 3 INSTRUMENT PANEL REGISTER ASSEMBLY
60. REMOVE NO. 1 SPEAKER HOLE COVER
61. REMOVE FRONT STEREO COMPONENT SPEAKER ASSEMBLY
62. REMOVE NO. 1 INSTRUMENT PANEL MOUNTING BRACKET
63. REMOVE PUSH START SWITCH
64. DISCONNECT INSTRUMENT PANEL WIRE ASSEMBLY
65. REMOVE ROOM TEMPERATURE SENSOR
66. REMOVE INSTRUMENT PANEL SAFETY PAD ASSEMBLY (w/o DVD Player)
67. REMOVE INSTRUMENT PANEL SAFETY PAD ASSEMBLY (w/ DVD Player)
68. REMOVE SIDE NO. 1 DEFROSTER NOZZLE DUCT
69. REMOVE SIDE NO. 2 DEFROSTER NOZZLE DUCT
70. REMOVE DEFROSTER NOZZLE ASSEMBLY
71. REMOVE NO. 1 HEATER TO REGISTER DUCT
72. REMOVE NO. 2 HEATER TO REGISTER DUCT

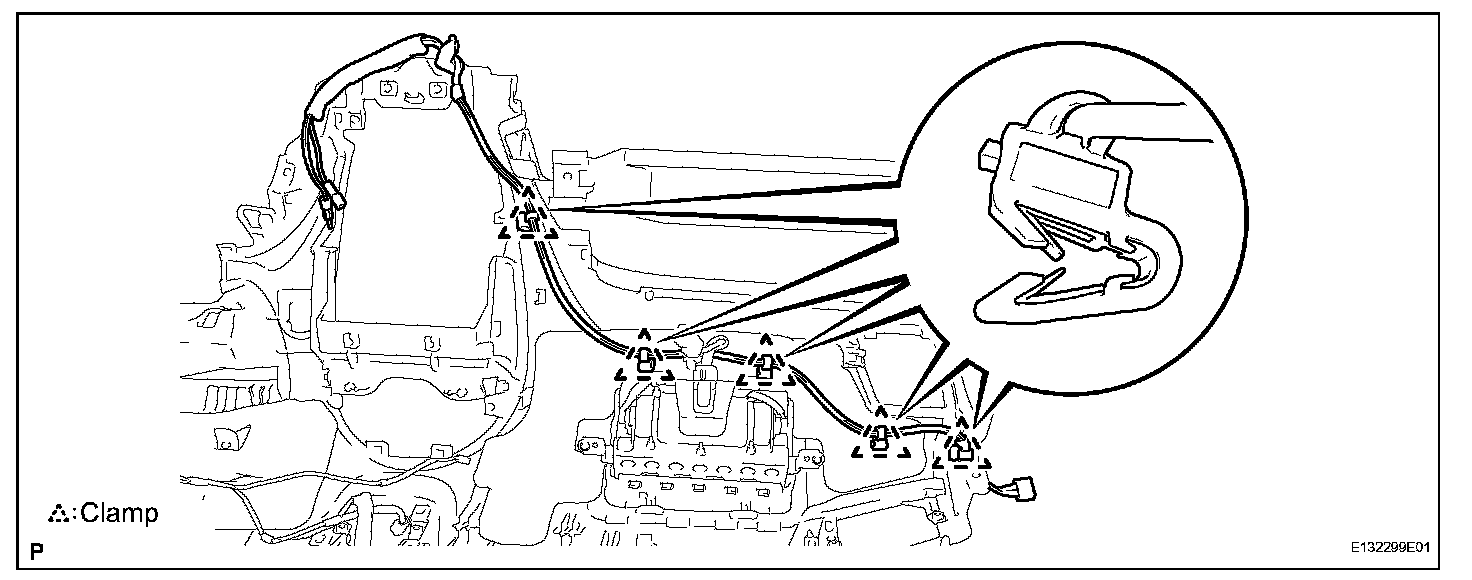

73. REMOVE NO. 2 ANTENNA CORD SUB-ASSEMBLY

a. Disengage the 5 clamps and remove the No. 2 antenna cord sub-assembly.

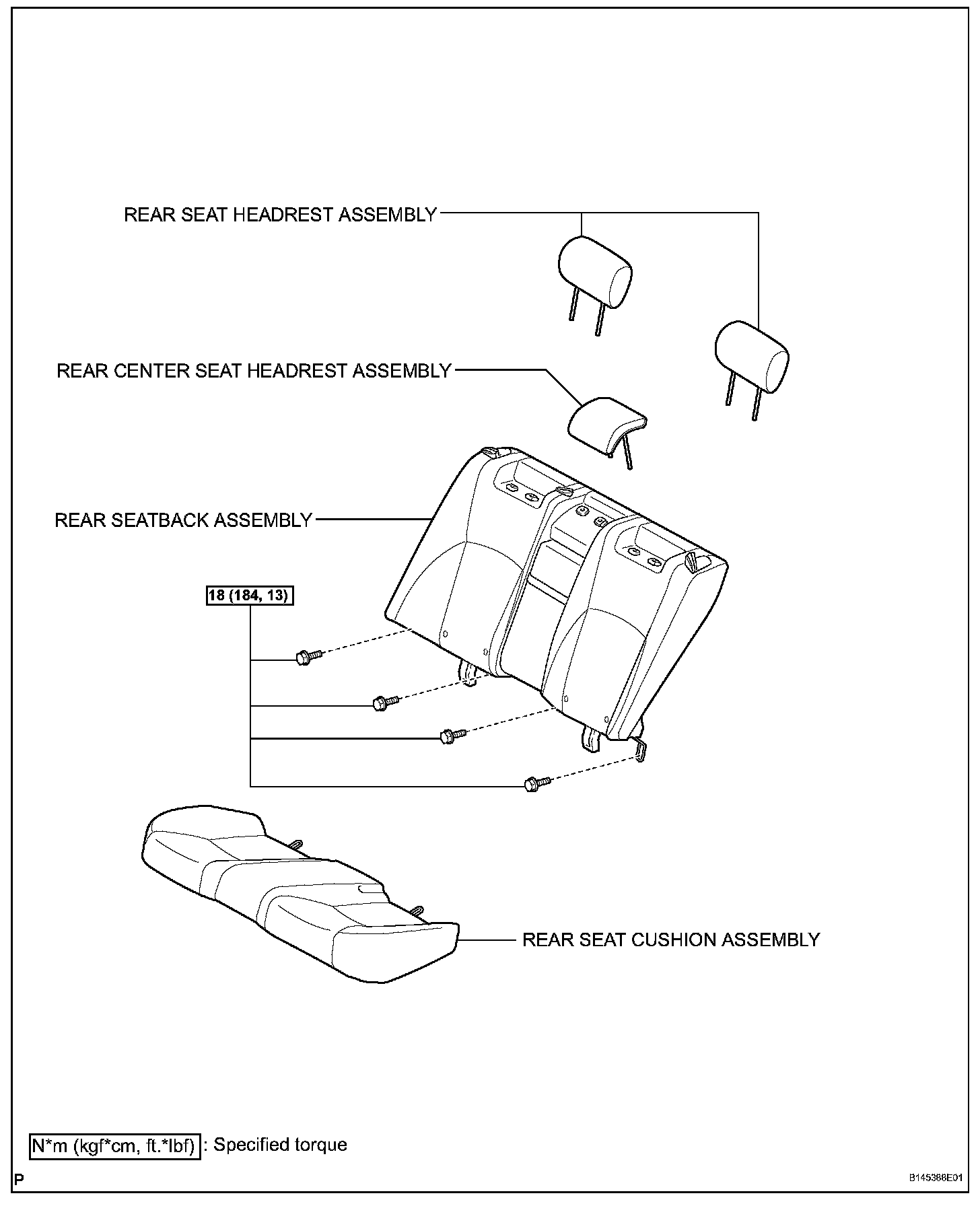

74. REMOVE REAR SEAT CUSHION ASSEMBLY
75. REMOVE REAR SEAT HEADREST ASSEMBLY
76. REMOVE REAR CENTER SEAT HEADREST ASSEMBLY
77. REMOVE REAR SEATBACK ASSEMBLY

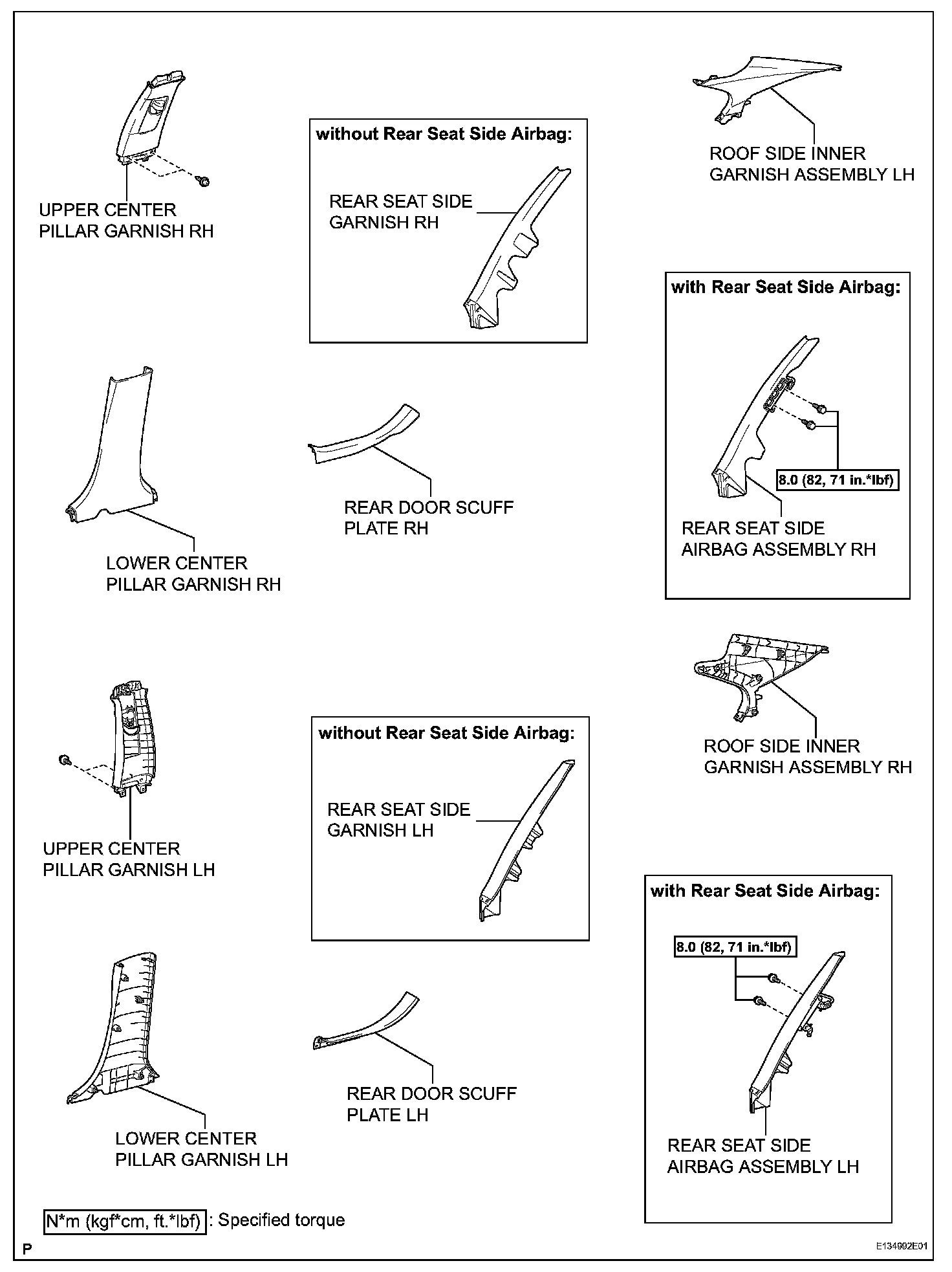

78. REMOVE REAR DOOR SCUFF PLATE LH
79. REMOVE LOWER CENTER PILLAR GARNISH LH
80. REMOVE UPPER CENTER PILLAR GARNISH LH
81. REMOVE REAR SEAT SIDE GARNISH LH (w/o Rear Seat Side Airbag)
82. REMOVE REAR SEAT SIDE AIRBAG ASSEMBLY LH (w/ Rear Seat Side Airbag)
83. REMOVE ROOF SIDE INNER GARNISH ASSEMBLY LH
84. REMOVE REAR DOOR SCUFF PLATE RH
85. REMOVE LOWER CENTER PILLAR GARNISH RH
86. REMOVE UPPER CENTER PILLAR GARNISH RH
87. REMOVE REAR SEAT SIDE GARNISH RH (w/o Rear Seat Side Airbag)
88. REMOVE REAR SEAT SIDE AIRBAG ASSEMBLY RH (w/ Rear Seat Side Airbag)
89. REMOVE ROOF SIDE INNER GARNISH ASSEMBLY RH
90. REMOVE NO. 2 CONSOLE BOX DUCT
91. REMOVE NO. 3 CONSOLE BOX DUCT
92. DISCONNECT TRANSMISSION CONTROL CABLE ASSEMBLY
93. REMOVE SHIFT LEVER ASSEMBLY
94. REMOVE FLOOR CARPET BRACKET LH
95. REMOVE FLOOR CARPET BRACKET RH

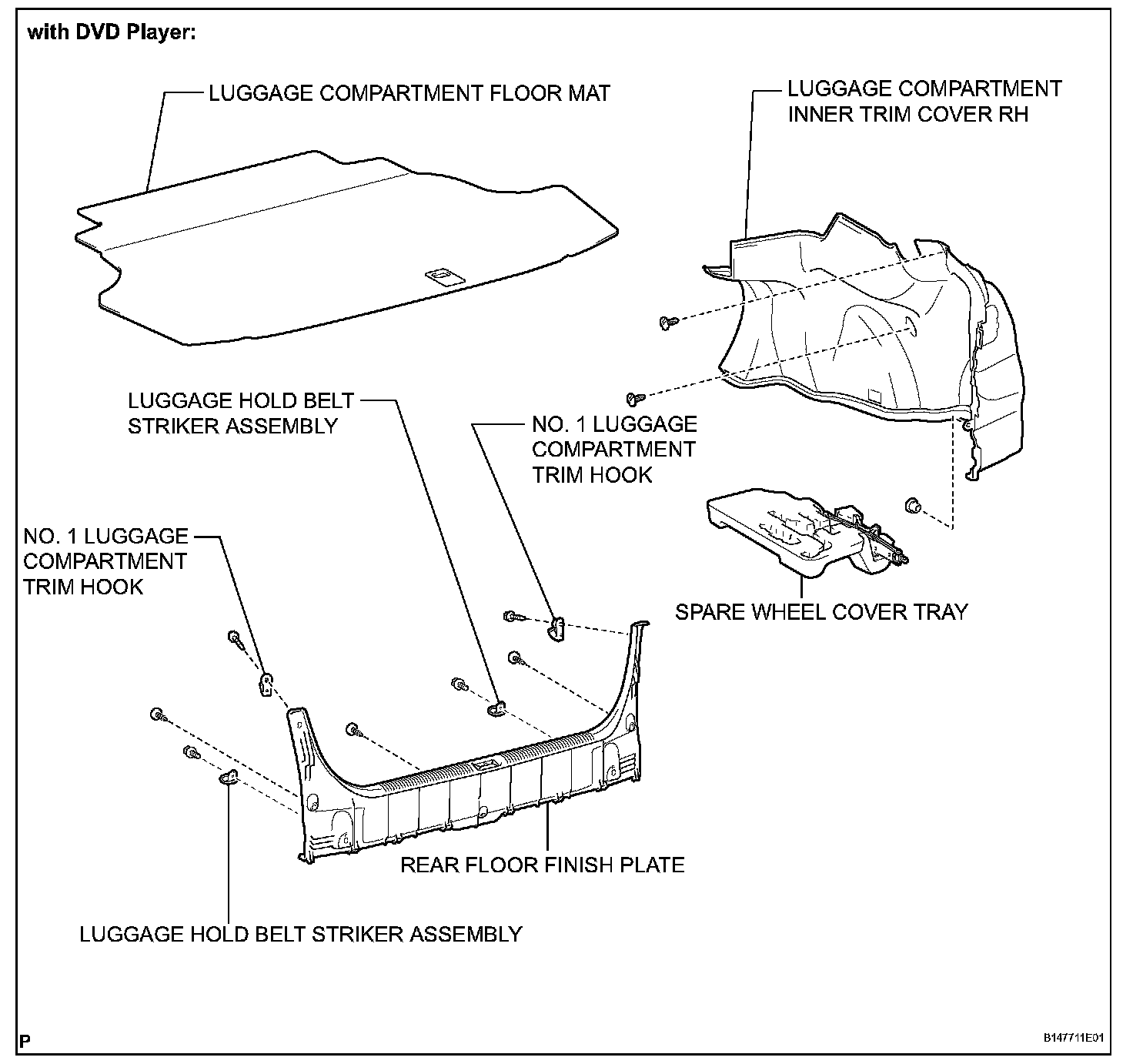

96. REMOVE LUGGAGE COMPARTMENT FLOOR MAT (w/ DVD Player)
97. REMOVE SPARE WHEEL COVER TRAY (w/ DVD Player)
98. REMOVE LUGGAGE HOLD BELT STRIKER ASSEMBLY (w/ DVD Player)
99. REMOVE NO. 1 LUGGAGE COMPARTMENT TRIM HOOK (w/ DVD Player)
100. REMOVE REAR FLOOR FINISH PLATE (w/ DVD Player)
101. REMOVE LUGGAGE COMPARTMENT INNER TRIM COVER RH (w/ DVD Player)
102. DISCONNECT STEREO COMPONENT AMPLIFIER ASSEMBLY CONNECTOR (w/ DVD Player)

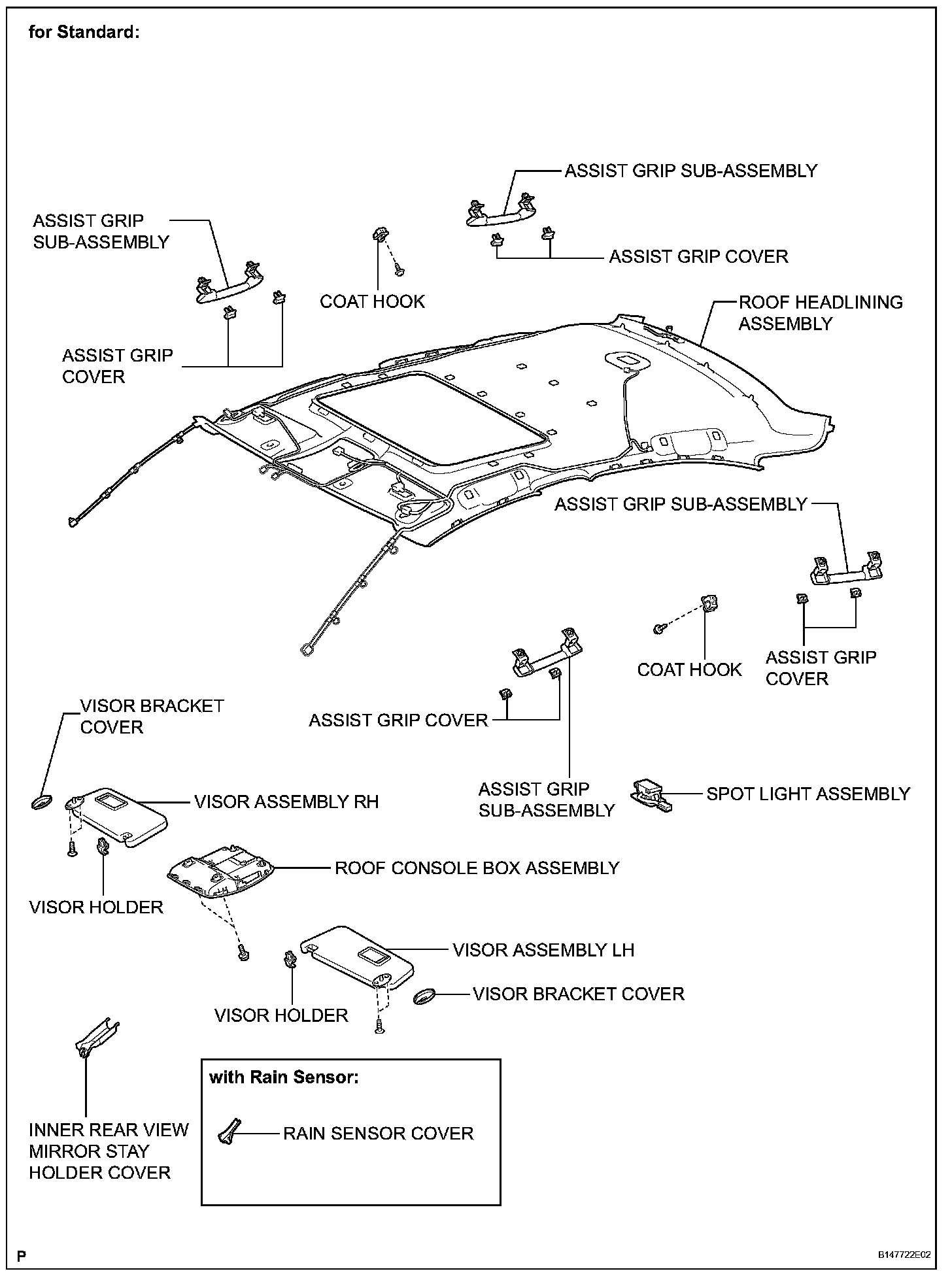

103. REMOVE INNER REAR VIEW MIRROR STAY HOLDER COVER
104. REMOVE RAIN SENSOR COVER (w/ Rain Sensor)
105. REMOVE ROOF CONSOLE BOX ASSEMBLY
106. REMOVE VISOR BRACKET COVER
107. REMOVE VISOR ASSEMBLY LH
108. REMOVE VISOR ASSEMBLY RH
109. REMOVE VISOR HOLDER
110. REMOVE COAT HOOK
111. REMOVE SPOT LIGHT ASSEMBLY (for Standard)
112. REMOVE SPOT LIGHT ASSEMBLY (for Glass Roof)
113. REMOVE ASSIST GRIP SUB-ASSEMBLY
114. REMOVE ROOF HEADLINING ASSEMBLY (for Standard)

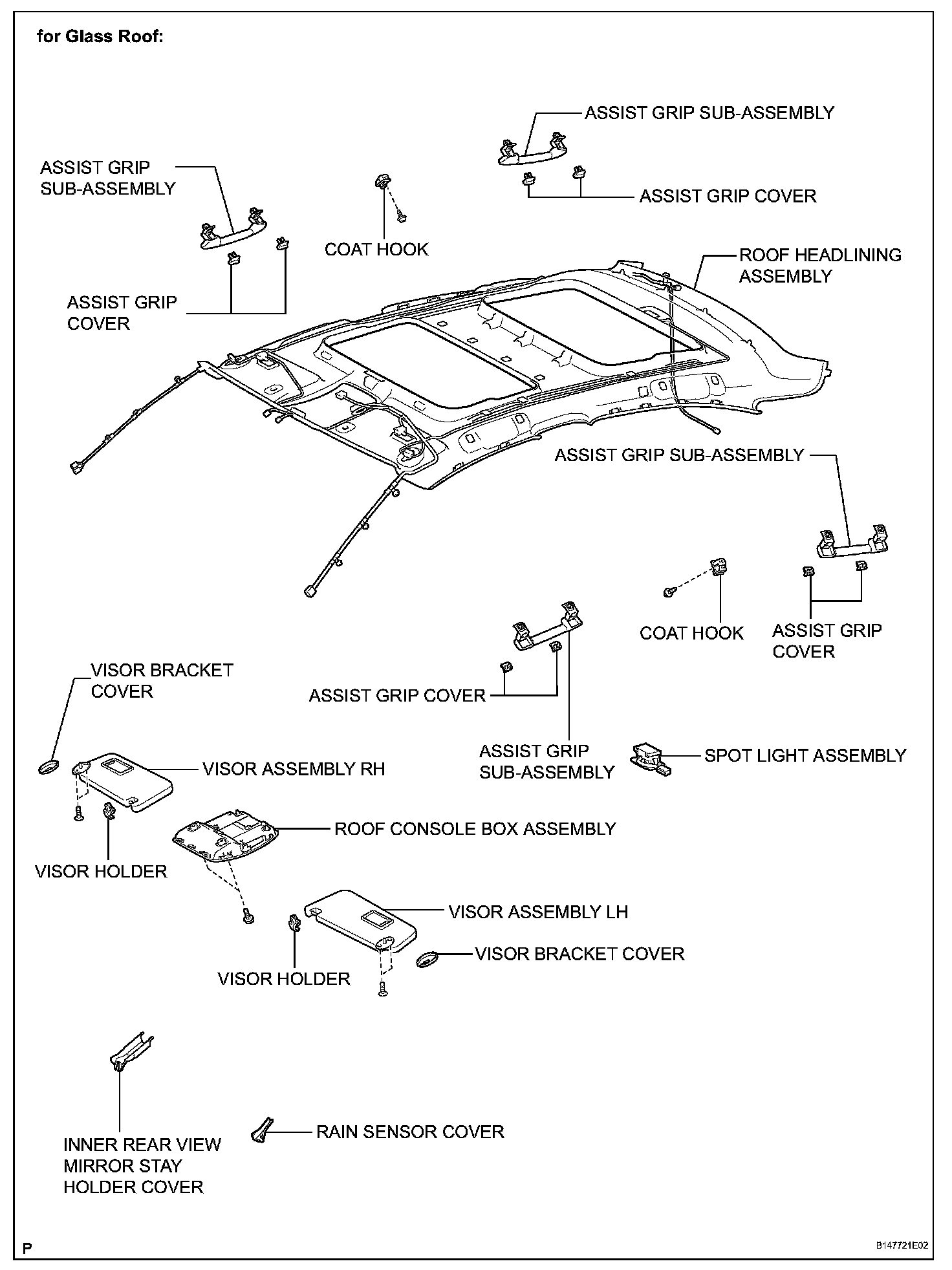

115. REMOVE ROOF HEADLINING ASSEMBLY (for Glass Roof)

116. REMOVE ANTENNA CORD SUB-ASSEMBLY

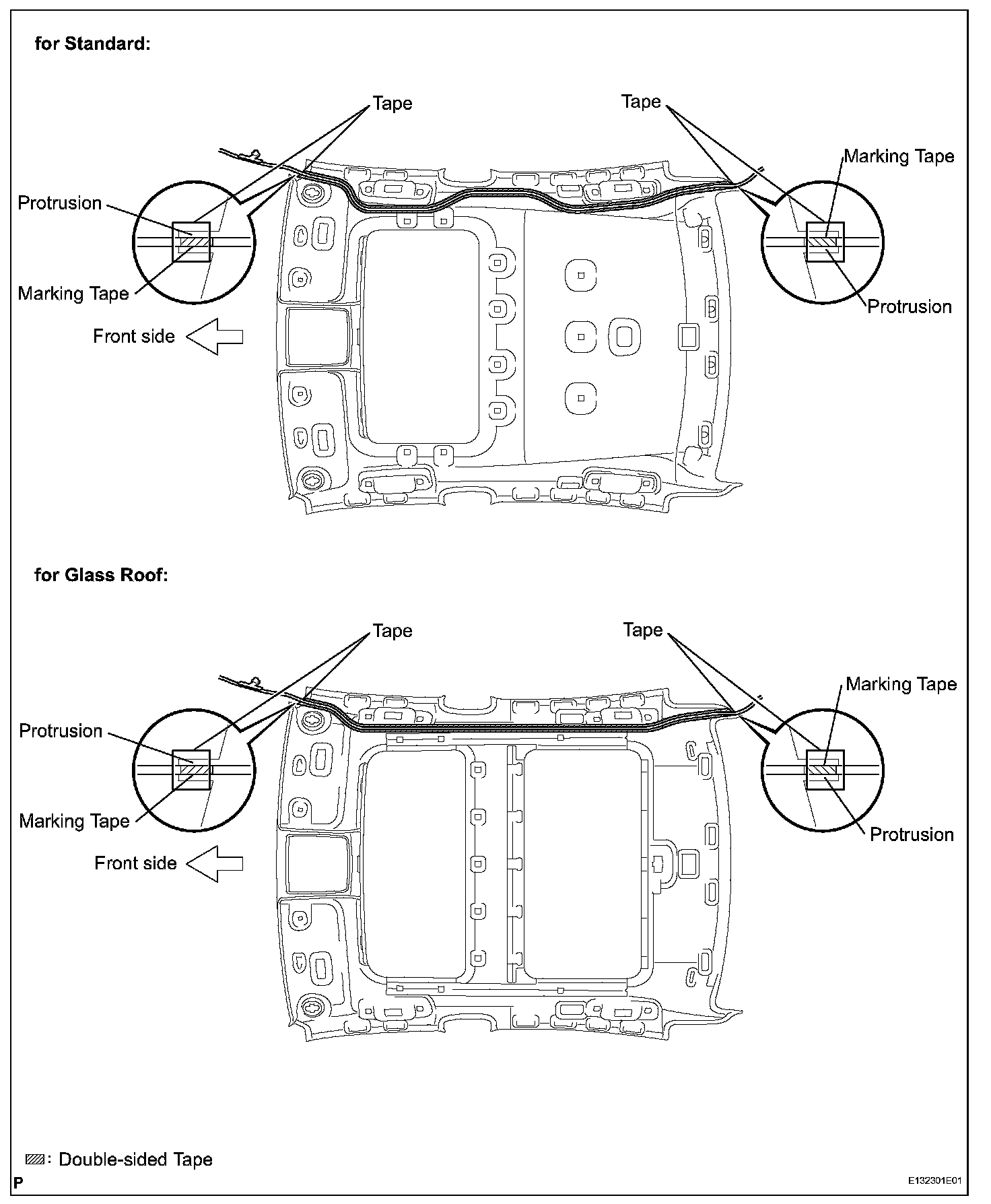

a. Peel the strips of the tape used to secure the antenna cord only to the extent that allows removal of the antenna cord.

HINT: Tape is not available as a supply part. Try to leave as much tape as possible on the roof headlining so that the tape can be reused.

b. Remove the antenna cord from the roof headlining.

INSTALLATION

1. INSTALL ANTENNA CORD SUB-ASSEMBLY

HINT: The double-sided tape and tape are not available as supply parts. If these tapes still have enough adhesion to secure the roof headlining and antenna cord, reuse the tapes. If the roof headlining has been replaced with a new one, or if the tape and/or the double-sided tape is no longer sticky, apply new tape following the procedures below.

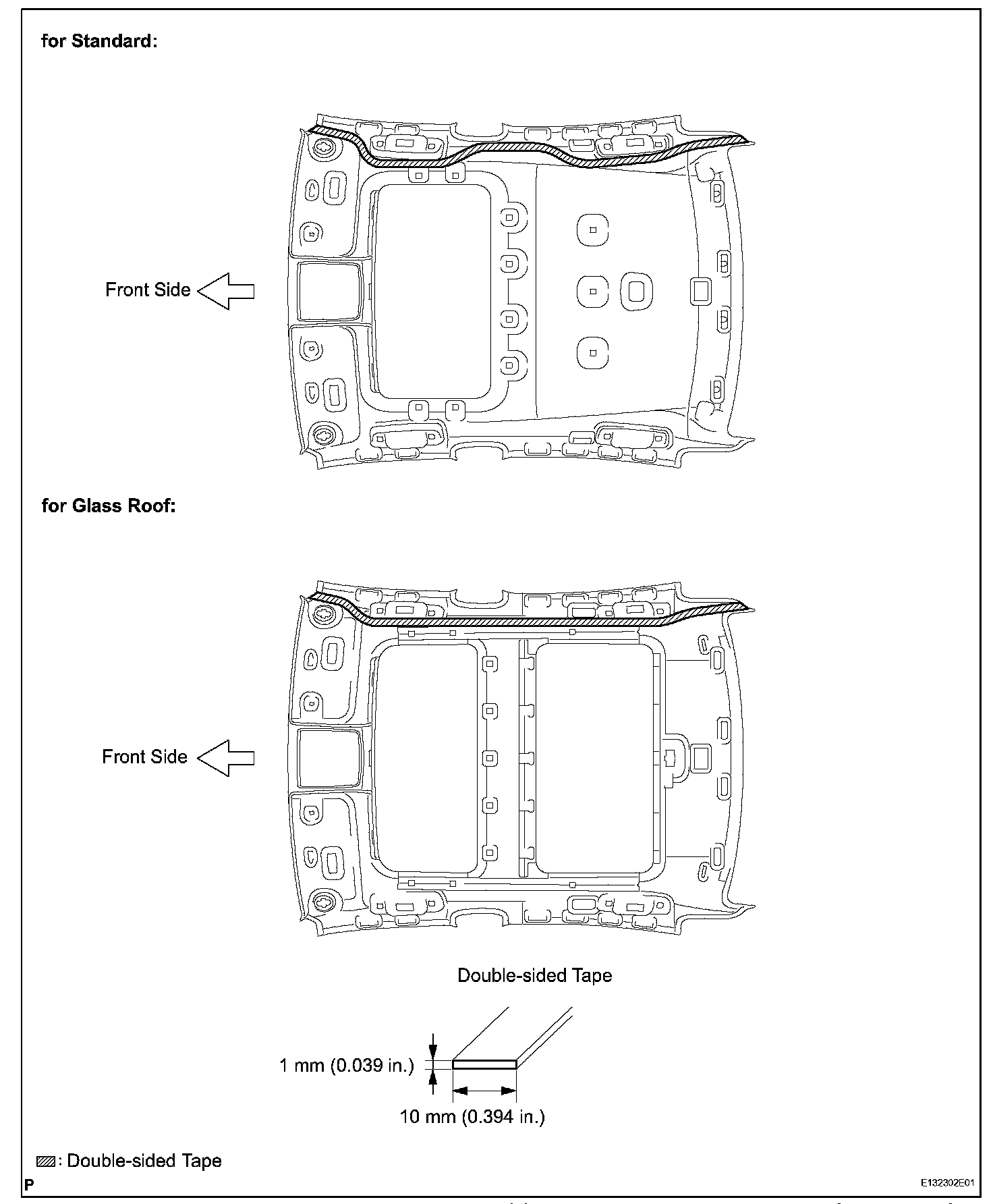

a. Apply new double-sided tape.
1. Remove the double-sided tape from the roof headlining assembly.
2. Peel off the appropriate amount of new double sided tape. Be careful not to touch the adhesive surface.
3. Apply the double-sided tape to the roof headlining while aligning the tape with the markings on the roof headlining assembly.
4. Peel off the backing sheet from the double-sided tape.

b. Install the antenna cord to the roof headlining assembly from the front of the vehicle.

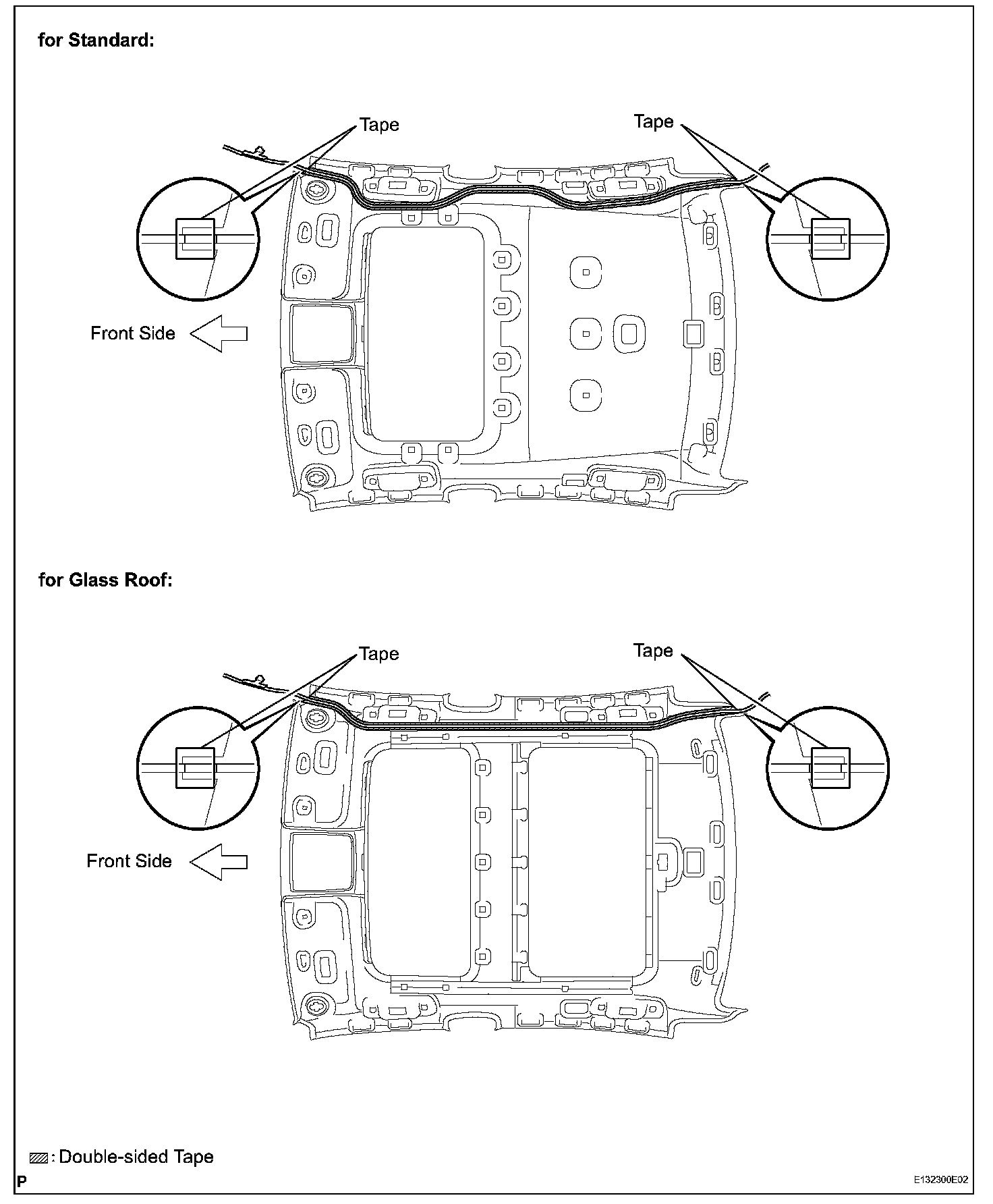

c. Put the strips of the tape back to the positions given in the illustration in order to secure the antenna cord to the roof headlining assembly.

HINT:
- If the tape is no longer sticky, use other tape, such as packing tape, that has enough adhesion to secure the antenna cord to the roof headlining assembly.
- For the right front corner of the roof headlining assembly, align the marking tape on the antenna cord with the protrusion of the roof headlining, and wrap tape around the antenna cord and roof headlining assembly once or twice to securely hold them.
- For the right rear corner of the roof headlining assembly, align the marking tape on the antenna cord with the rear edge of the roof headlining, and secure the antenna cord to the roof headlining assembly with tape.

2. INSTALL ROOF HEADLINING ASSEMBLY (for Standard)
3. INSTALL ROOF HEADLINING ASSEMBLY (for Glass Roof)
4. INSTALL ASSIST GRIP SUB-ASSEMBLY
5. INSTALL SPOT LIGHT ASSEMBLY (for Standard)
6. INSTALL SPOT LIGHT ASSEMBLY (for Glass Roof)
7. INSTALL COAT HOOK
8. INSTALL VISOR HOLDER
9. INSTALL VISOR ASSEMBLY LH
10. INSTALL VISOR ASSEMBLY RH
11. INSTALL VISOR BRACKET COVER
12. INSTALL ROOF CONSOLE BOX ASSEMBLY
13. INSTALL RAIN SENSOR COVER (w/ Rain Sensor)
14. INSTALL INNER REAR VIEW MIRROR STAY HOLDER COVER
15. CONNECT STEREO COMPONENT AMPLIFIER ASSEMBLY CONNECTOR (w/ DVD Player)
16. INSTALL LUGGAGE COMPARTMENT INNER TRIM COVER RH (w/ DVD Player)
17. INSTALL REAR FLOOR FINISH PLATE (w/ DVD Player)
18. INSTALL NO. 1 LUGGAGE COMPARTMENT TRIM HOOK (w/ DVD Player)
19. INSTALL LUGGAGE HOLD BELT STRIKER ASSEMBLY (w/ DVD Player)
20. INSTALL SPARE WHEEL COVER TRAY (w/ DVD Player)
21. INSTALL LUGGAGE COMPARTMENT FLOOR MAT (w/ DVD Player)
22. INSTALL FLOOR CARPET BRACKET LH
23. INSTALL FLOOR CARPET BRACKET RH
24. INSTALL SHIFT LEVER ASSEMBLY
25. CONNECT TRANSMISSION CONTROL CABLE ASSEMBLY
26. INSTALL NO. 2 CONSOLE BOX DUCT
27. INSTALL NO. 3 CONSOLE BOX DUCT
28. INSTALL ROOF SIDE INNER GARNISH ASSEMBLY LH
29. INSTALL REAR SEAT SIDE GARNISH LH (w/o Rear Seat Side Airbag)
30. INSTALL REAR SEAT SIDE AIRBAG ASSEMBLY LH (w/ Rear Seat Side Airbag)
31. INSTALL UPPER CENTER PILLAR GARNISH LH
32. INSTALL LOWER CENTER PILLAR GARNISH LH
33. INSTALL REAR DOOR SCUFF PLATE LH
34. INSTALL ROOF SIDE INNER GARNISH ASSEMBLY RH
35. INSTALL REAR SEAT SIDE GARNISH RH (w/o Rear Seat Side Airbag)
36. INSTALL REAR SEAT SIDE AIRBAG ASSEMBLY RH (w/ Rear Seat Side Airbag)
37. INSTALL UPPER CENTER PILLAR GARNISH RH
38. INSTALL LOWER CENTER PILLAR GARNISH RH
39. INSTALL REAR DOOR SCUFF PLATE RH
40. INSTALL REAR SEATBACK ASSEMBLY
41. INSTALL REAR CENTER SEAT HEADREST ASSEMBLY
42. INSTALL REAR SEAT HEADREST ASSEMBLY
43. INSTALL REAR SEAT CUSHION ASSEMBLY

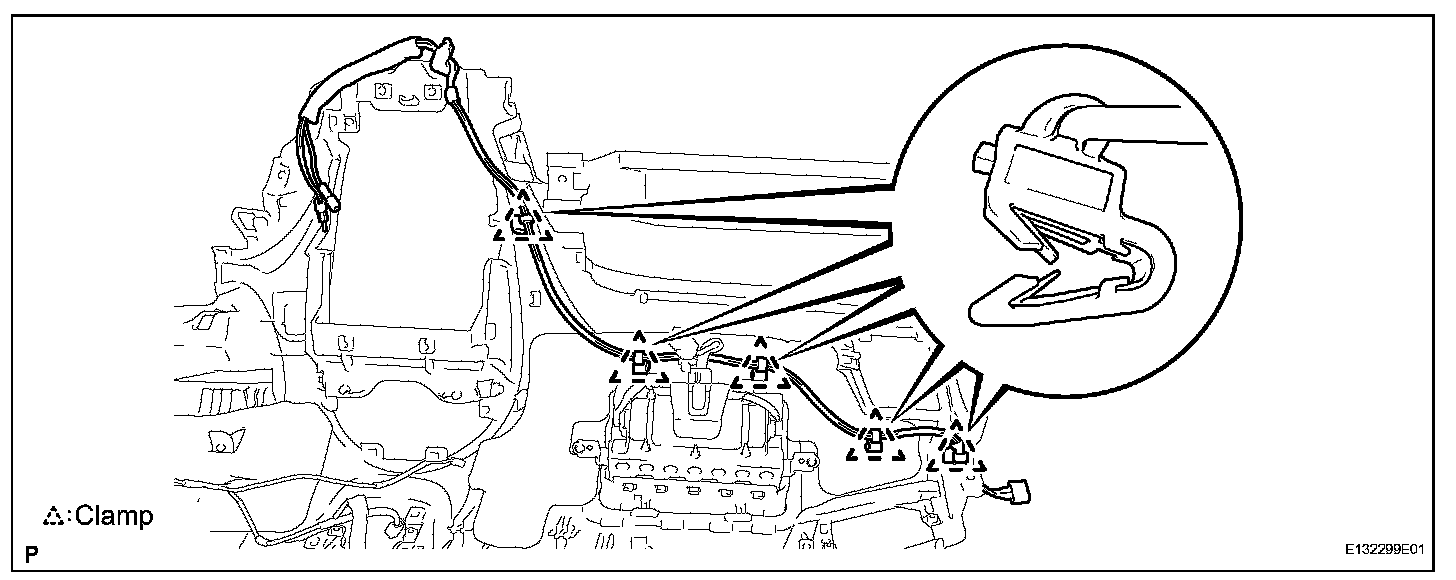

44. INSTALL NO. 2 ANTENNA CORD SUB-ASSEMBLY

a. Engage the 5 clamps and install the No. 2 antenna cord sub-assembly.

45. INSTALL NO. 2 HEATER TO REGISTER DUCT
46. INSTALL NO. 1 HEATER TO REGISTER DUCT
47. INSTALL DEFROSTER NOZZLE ASSEMBLY
48. INSTALL SIDE NO. 2 DEFROSTER NOZZLE DUCT
49. INSTALL SIDE NO. 1 DEFROSTER NOZZLE DUCT
50. INSTALL INSTRUMENT PANEL SAFETY PAD ASSEMBLY (w/o DVD Player)
51. INSTALL INSTRUMENT PANEL SAFETY PAD ASSEMBLY (w/ DVD Player)
52. INSTALL ROOM TEMPERATURE SENSOR
53. CONNECT INSTRUMENT PANEL WIRE ASSEMBLY
54. INSTALL PUSH START SWITCH
55. INSTALL NO. 1 INSTRUMENT PANEL MOUNTING BRACKET
56. INSTALL FRONT STEREO COMPONENT SPEAKER ASSEMBLY
57. INSTALL NO. 1 SPEAKER HOLE COVER
58. INSTALL NO. 1 INSTRUMENT PANEL REGISTER ASSEMBLY
59. INSTALL FRONT NO. 2 SPEAKER ASSEMBLY (for LH Side)
60. INSTALL NO. 1 INSTRUMENT PANEL SPEAKER PANEL SUB-ASSEMBLY
61. INSTALL FRONT PILLAR GARNISH LH
62. INSTALL NO. 3 INSTRUMENT PANEL REGISTER ASSEMBLY
63. INSTALL FRONT NO. 2 SPEAKER ASSEMBLY (for RH Side)
64. INSTALL NO. 2 INSTRUMENT PANEL SPEAKER PANEL SUB-ASSEMBLY
65. INSTALL FRONT PILLAR GARNISH RH
66. INSTALL REAR CONSOLE BOX ASSEMBLY
67. INSTALL CONSOLE REAR END PANEL SUB-ASSEMBLY
68. INSTALL CONSOLE BOX CARPET
69. INSTALL CONSOLE BOX POCKET
70. INSTALL HEATER SEAT SWITCH CONSOLE BASE (w/o Seat Heater System)
71. INSTALL HEATER SEAT SWITCH CONSOLE BASE (w/ Seat Heater System)
72. INSTALL INTEGRATION CONTROL PANEL WITH RADIO RECEIVER ASSEMBLY (w/o Navigation System)
73. INSTALL MULTI-DISPLAY WITH RADIO RECEIVER ASSEMBLY (w/ Navigation System)
74. INSTALL NO. 2 INSTRUMENT PANEL REGISTER ASSEMBLY
75. INSTALL UPPER CONSOLE PANEL ASSEMBLY WITH FRONT ASH RECEPTACLE
76. INSTALL SHIFT LEVER KNOB SUB-ASSEMBLY
77. INSTALL LOWER INSTRUMENT PANEL RH
78. INSTALL FRONT PASSENGER SIDE KNEE AIRBAG ASSEMBLY
79. INSTALL SIDE INSTRUMENT PANEL RH
80. INSTALL NO. 2 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY
81. INSTALL FRONT DOOR OPENING TRIM COVER RH
82. INSTALL FRONT DOOR SCUFF PLATE RH
83. INSTALL INSTRUMENT PANEL FINISH PANEL END RH
84. INSTALL NO. 1 SWITCH HOLE BASE
85. INSTALL COMBINATION METER ASSEMBLY
86. INSTALL INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY
87. INSTALL TURN SIGNAL SWITCH ASSEMBLY WITH SPIRAL CABLE SUB-ASSEMBLY
88. INSTALL TILT AND TELESCOPIC SWITCH
89. INSTALL STEERING COLUMN COVER
90. ADJUST SPIRAL CABLE SUB-ASSEMBLY
91. INSTALL LOWER INSTRUMENT PANEL SUB-ASSEMBLY
92. INSTALL INSTRUMENT PANEL FINISH PANEL END LH
93. INSTALL SIDE INSTRUMENT PANEL LH
94. INSTALL FRONT DOOR OPENING TRIM COVER LH
95. INSTALL FRONT DOOR SCUFF PLATE LH
96. INSTALL STEERING WHEEL ASSEMBLY
97. INSTALL STEERING PAD
98. INSTALL LOWER NO. 3 STEERING WHEEL COVER
99. INSTALL LOWER NO. 2 STEERING WHEEL COVER
100. INSTALL FRONT SEAT ASSEMBLY LH
101. INSTALL FRONT SEAT REAR OUTER TRACK BRACKET COVER LH
102. INSTALL FRONT SEAT REAR INNER TRACK BRACKET COVER LH
103. INSTALL FRONT SEAT OUTER TRACK BRACKET COVER LH
104. INSTALL FRONT SEAT INNER TRACK BRACKET COVER LH
105. INSTALL FRONT SEAT HEADREST ASSEMBLY (for Driver Seat)
106. CONNECT FRONT SEAT OUTER BELT ASSEMBLY LH
107. INSTALL SEAT BELT ANCHOR COVER CAP LH
108. INSTALL FRONT SEAT ASSEMBLY RH
109. INSTALL FRONT SEAT REAR OUTER TRACK BRACKET COVER RH
110. INSTALL FRONT SEAT REAR INNER TRACK BRACKET COVER RH
111. INSTALL FRONT SEAT OUTER TRACK BRACKET COVER RH
112. INSTALL FRONT SEAT INNER TRACK BRACKET COVER RH
113. INSTALL FRONT SEAT HEADREST ASSEMBLY (for Front Passenger Seat)
114. CONNECT FRONT SEAT OUTER BELT ASSEMBLY RH
115. INSTALL SEAT BELT ANCHOR COVER CAP RH
116. PERFORM INITIALIZATION

NOTE: Some systems need initialization after reconnecting the cable to the negative battery terminal.

117. INSPECT SHIFT LEVER POSITION
118. ADJUST SHIFT LEVER POSITION
119. INSPECT FRONT SEAT ASSEMBLY
120. INSPECT STEERING PAD
121. INSPECT FRONT PASSENGER SIDE KNEE AIRBAG ASSEMBLY
122. INSPECT SRS WARNING LIGHT
