Antenna Amplifier: Service and Repair

Amplifier Antenna:

AMPLIFIER ANTENNA

REMOVAL

1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL (w/ Rear Seat Side Airbag)

CAUTION: Wait for 90 seconds after disconnecting the cable to prevent airbag deployment.

2. REMOVE REAR SEAT CUSHION ASSEMBLY
3. REMOVE REAR SEAT HEADREST ASSEMBLY

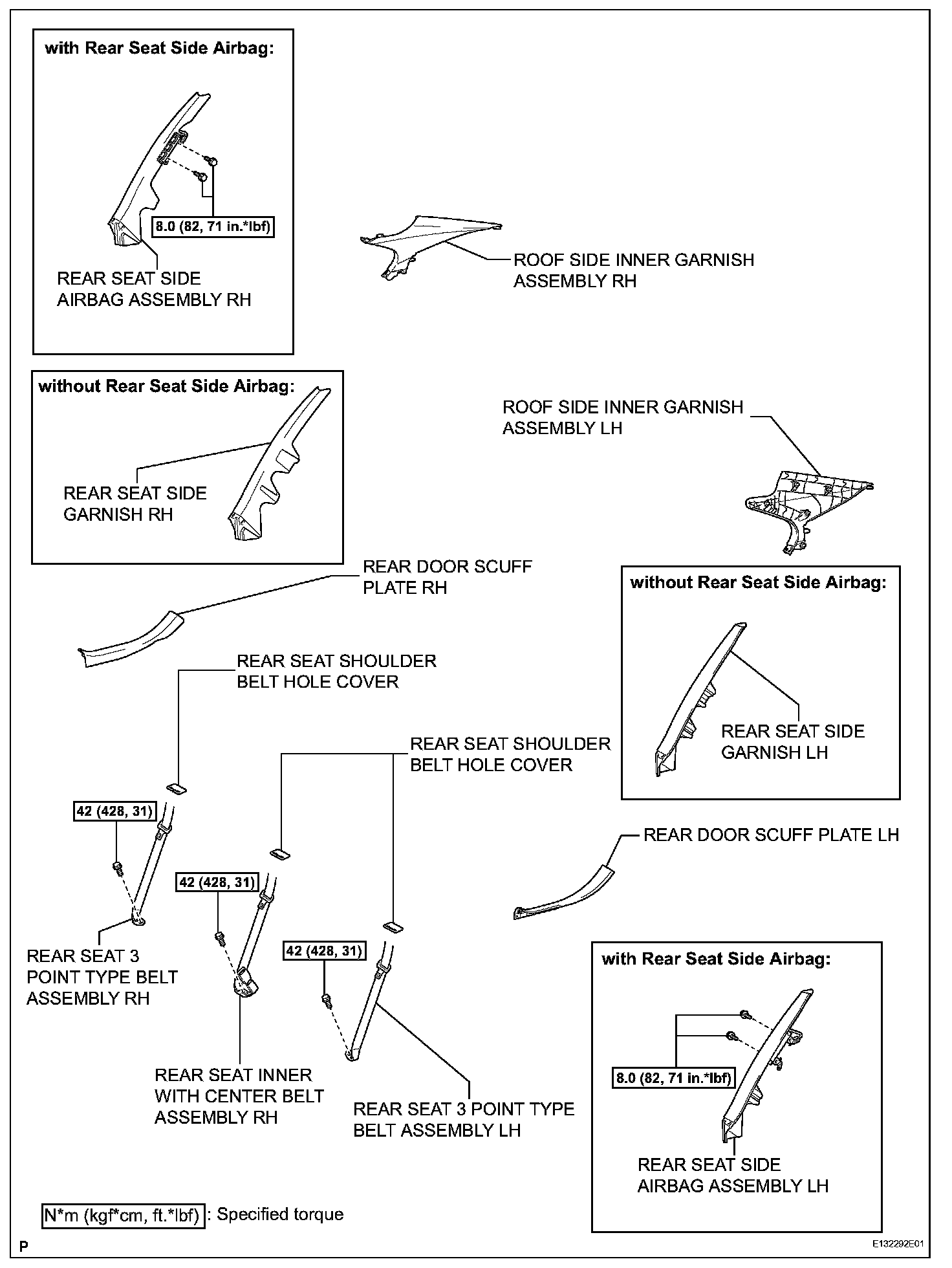

4. REMOVE REAR CENTER SEAT HEADREST ASSEMBLY
5. REMOVE REAR SEATBACK ASSEMBLY
6. REMOVE REAR DOOR SCUFF PLATE LH
7. REMOVE REAR DOOR SCUFF PLATE RH
8. REMOVE REAR SEAT SIDE GARNISH LH (w/o Rear Seat Side Airbag)
9. REMOVE REAR SEAT SIDE AIRBAG ASSEMBLY LH (w/ Rear Seat Side Airbag)
10. REMOVE REAR SEAT SIDE GARNISH RH (w/o Rear Seat Side Airbag)
11. REMOVE REAR SEAT SIDE AIRBAG ASSEMBLY RH (w/ Rear Seat Side Airbag)
12. REMOVE ROOF SIDE INNER GARNISH ASSEMBLY LH
13. REMOVE ROOF SIDE INNER GARNISH ASSEMBLY RH
14. DISCONNECT REAR SEAT 3 POINT TYPE BELT ASSEMBLY LH
15. DISCONNECT REAR SEAT 3 POINT TYPE BELT ASSEMBLY RH
16. DISCONNECT REAR SEAT INNER WITH CENTER BELT ASSEMBLY RH
17. REMOVE REAR SEAT SHOULDER BELT HOLE COVER
18. REMOVE CENTER STOP LIGHT SET
19. REMOVE PACKAGE TRAY TRIM PANEL ASSEMBLY (w/o Rear Sunshade)
20. REMOVE PACKAGE TRAY TRIM PANEL ASSEMBLY (w/ Rear Sunshade)
21. REMOVE NO. 2 PACKAGE TRAY TRIM PANEL ASSEMBLY (w/ Rear Sunshade)

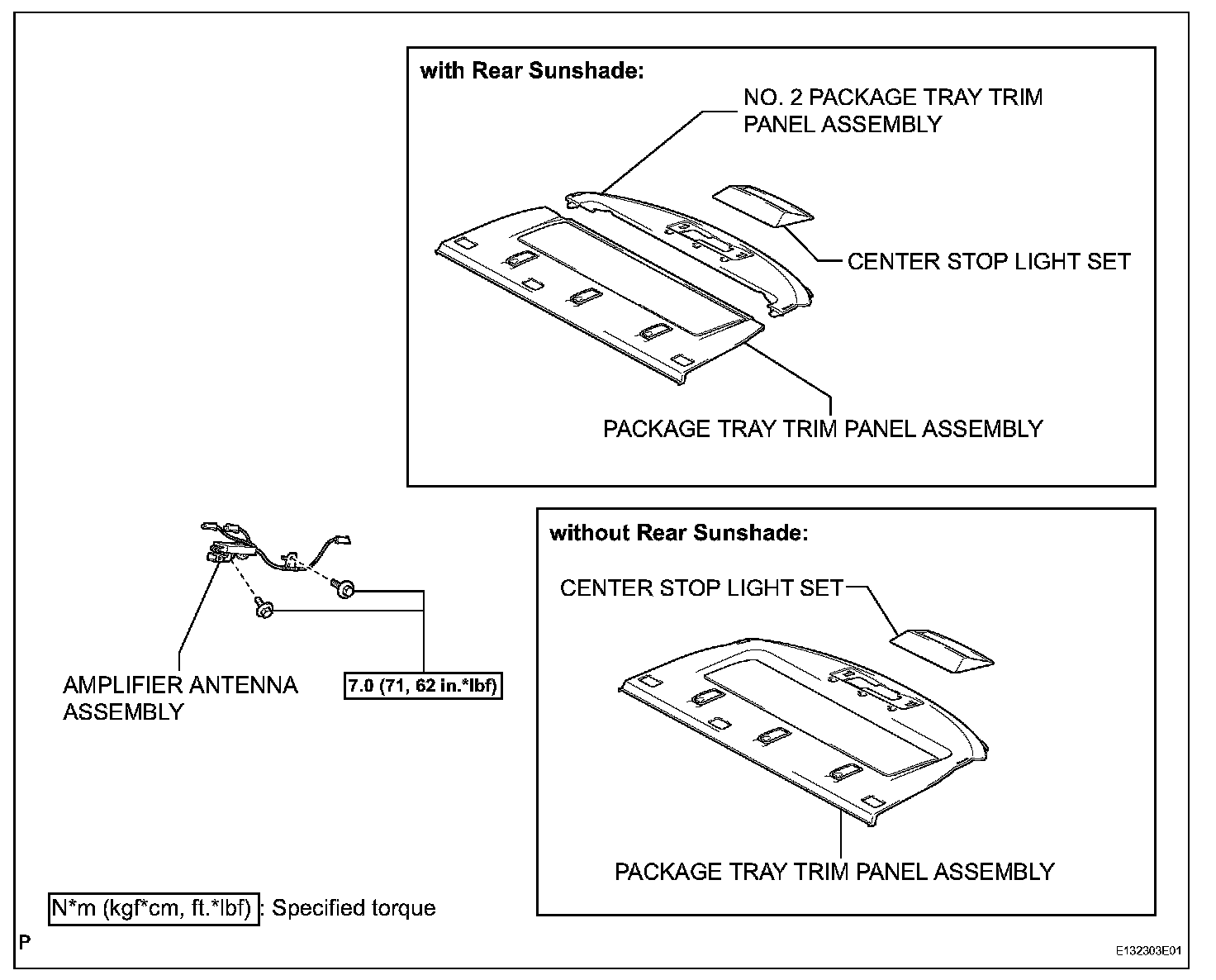

22. REMOVE AMPLIFIER ANTENNA ASSEMBLY

a. Disconnect each connector.
b. Remove the 2 bolts and the amplifier antenna assembly.

NOTE: If reusing the removed amplifier antenna assembly, do not touch the contact terminals.

INSTALLATION

1. INSTALL AMPLIFIER ANTENNA ASSEMBLY

a. Install the 2 bolts and the amplifier antenna assembly.

Torque: 7.0 N.m (71 kgf.cm, 62 in.lbf)

NOTE:
- Clean the antenna conductors on the rear window with a non-residue solvent where the contact terminals touch.
- When installing a new amplifier antenna assembly, do not remove the protective cover before installation.
- Do not touch the contact terminals.

b. Connect each connector.

2. INSTALL PACKAGE TRAY TRIM PANEL ASSEMBLY (w/o Rear Sunshade)
3. INSTALL NO. 2 PACKAGE TRAY TRIM PANEL ASSEMBLY (w/ Rear Sunshade)
4. INSTALL PACKAGE TRAY TRIM PANEL ASSEMBLY (w/ Rear Sunshade)
5. INSTALL CENTER STOP LIGHT SET
6. INSTALL REAR SEAT SHOULDER BELT HOLE COVER
7. CONNECT REAR SEAT INNER WITH CENTER BELT ASSEMBLY RH
8. CONNECT REAR SEAT 3 POINT TYPE BELT ASSEMBLY LH
9. CONNECT REAR SEAT 3 POINT TYPE BELT ASSEMBLY RH
10. INSTALL ROOF SIDE INNER GARNISH ASSEMBLY LH
11. INSTALL ROOF SIDE INNER GARNISH ASSEMBLY RH
12. INSTALL REAR SEAT SIDE GARNISH LH (w/o Rear Seat Side Airbag)
13. INSTALL REAR SEAT SIDE AIRBAG ASSEMBLY LH (w/ Rear Seat Side Airbag)
14. INSTALL REAR SEAT SIDE GARNISH RH (w/o Rear Seat Side Airbag)
15. INSTALL REAR SEAT SIDE AIRBAG ASSEMBLY RH (w/ Rear Seat Side Airbag)
16. INSTALL REAR DOOR SCUFF PLATE LH
17. INSTALL REAR DOOR SCUFF PLATE RH
18. INSTALL REAR SEATBACK ASSEMBLY
19. INSTALL REAR CENTER SEAT HEADREST ASSEMBLY
20. INSTALL REAR SEAT HEADREST ASSEMBLY
21. INSTALL REAR SEAT CUSHION ASSEMBLY
22. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL (w/ Rear Seat Side Airbag)
23. PERFORM INITIALIZATION (w/ Rear Seat Side Airbag)

NOTE: Some systems need initialization after reconnecting the cable to the negative battery terminal.

24. INSPECT SRS WARNING LIGHT (w/ Rear Seat Side Airbag)
