Vehicle Stability Control Systen
DTC U0126/63 Lost Communication with Steering Angle Sensor ModuleDESCRIPTION

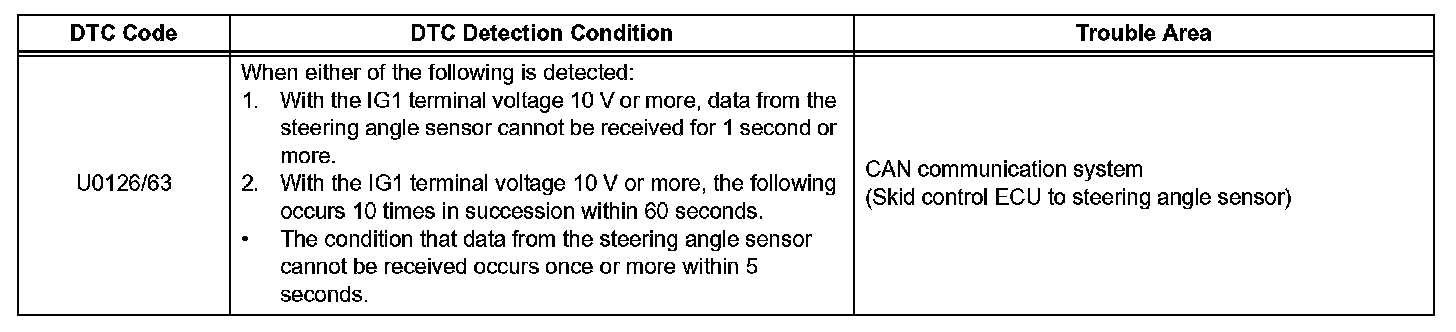

DTC Detection Condition (Part 1):
DTC Detection Condition (Part 2):
The skid control ECU receives the signals from the ECM, steering angle sensor, and yaw rate and acceleration sensor via the CAN communication system.

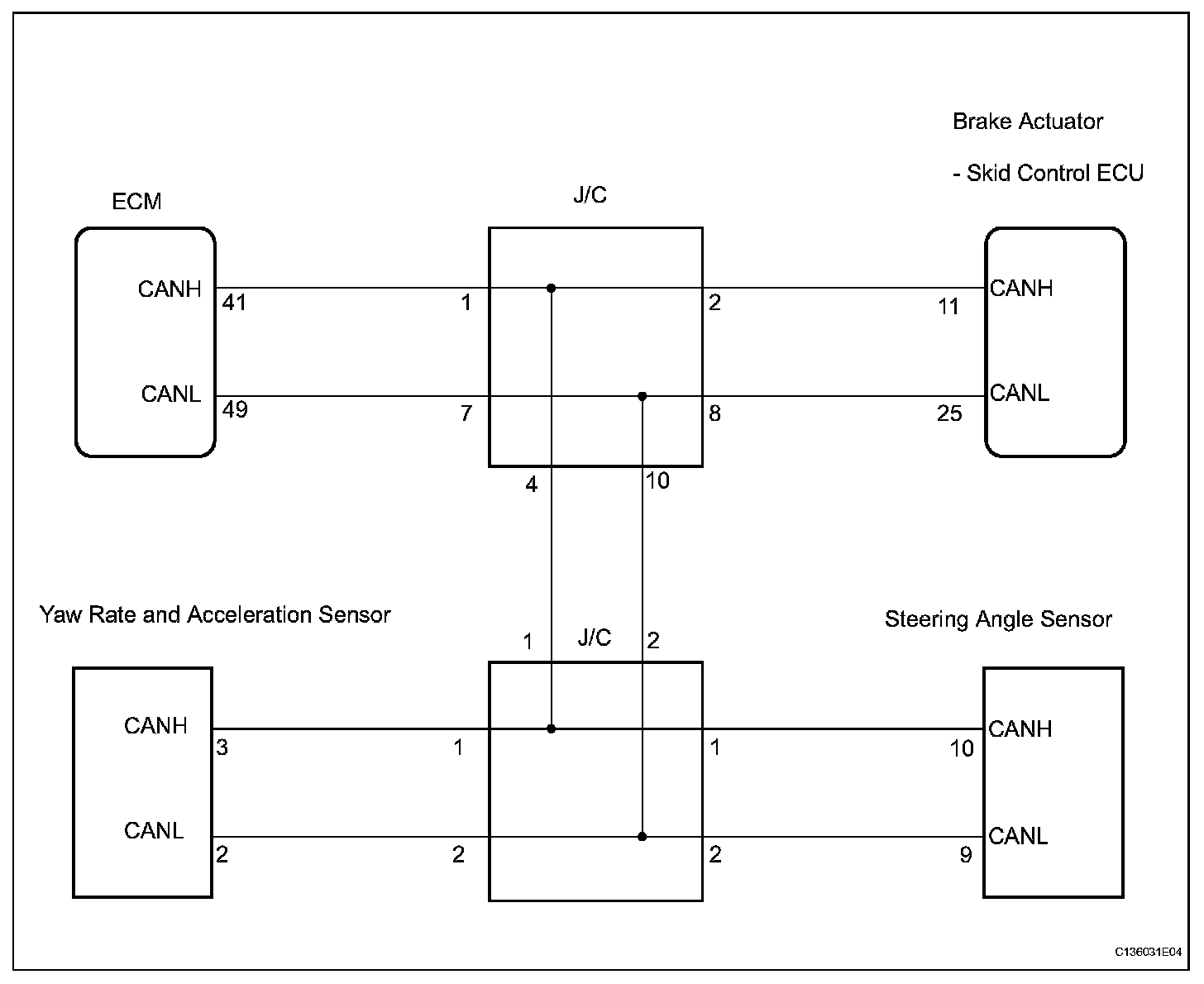

Wiring Diagram:
INSPECTION PROCEDURE

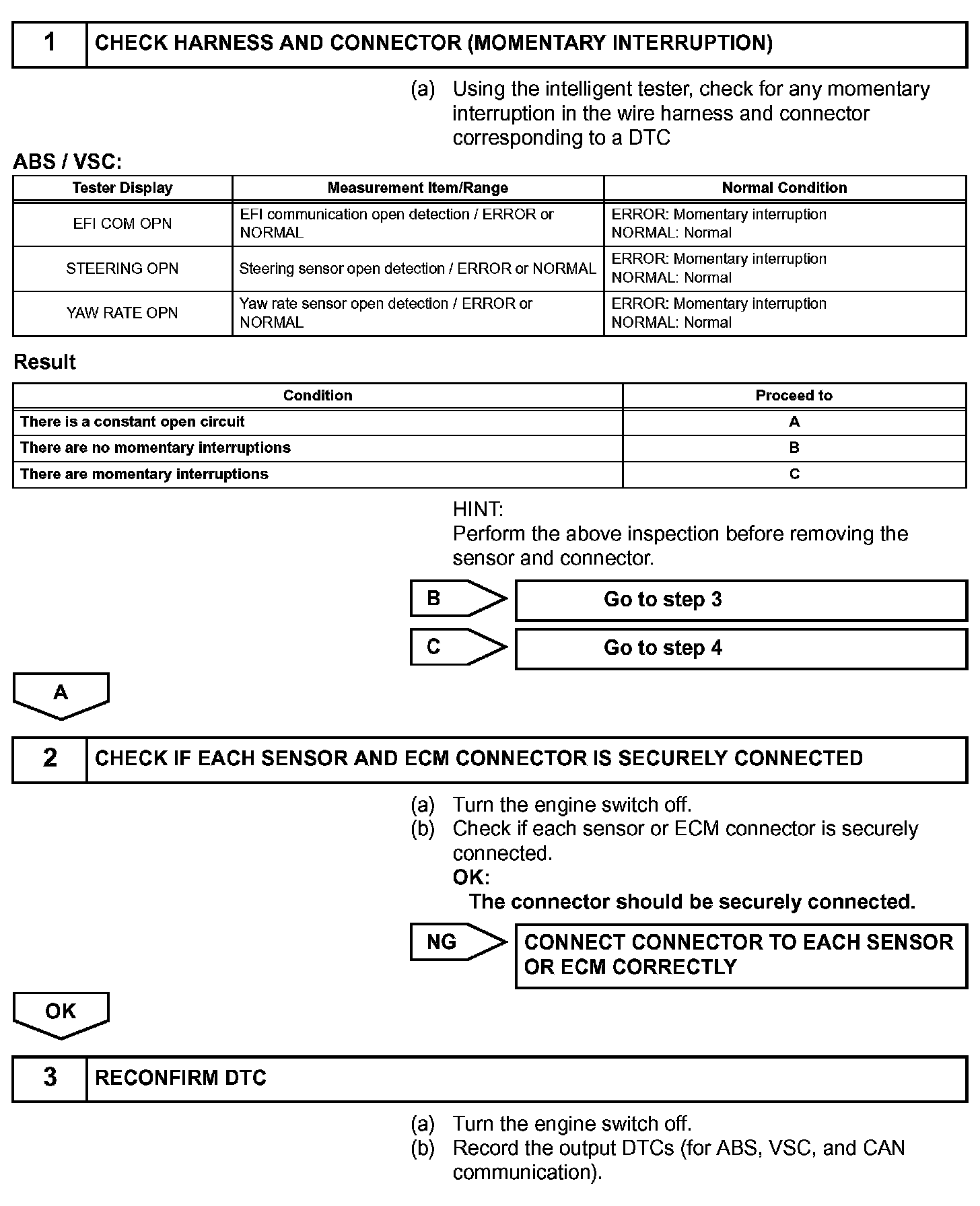

Step 1-3:

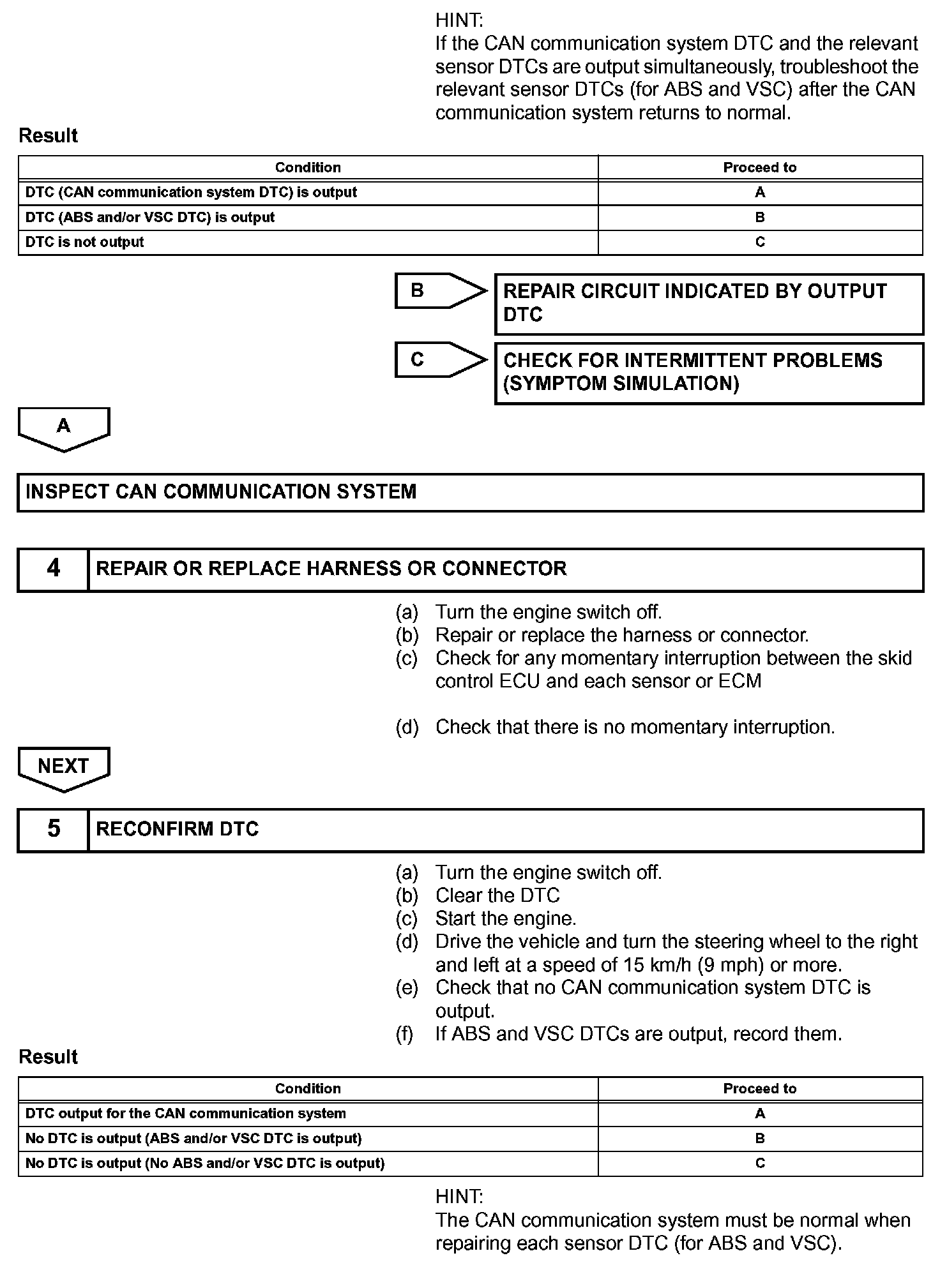

Step 3(Continued)-5:

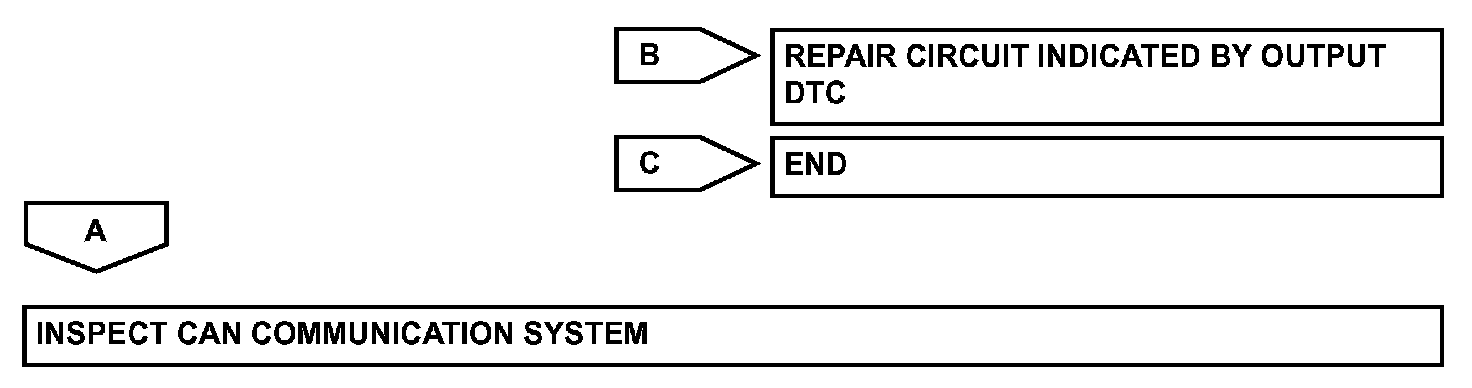

Step 5(Continued):
