U0100 Lost Communication With ECM/PCM "A"

DTC U0100 Lost Communication with ECM/PCM "A"

DESCRIPTION

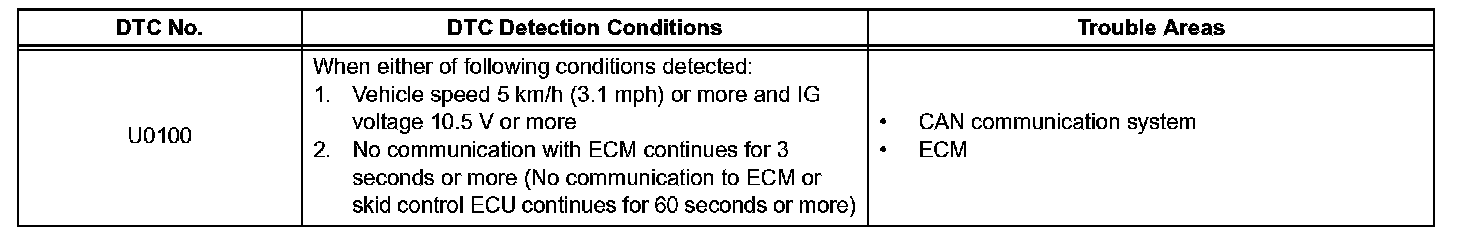

DTC Detection Conditions:

The combination meter assembly communicates with the ECM via the CAN communication lines (CAN No. 1 Bus).

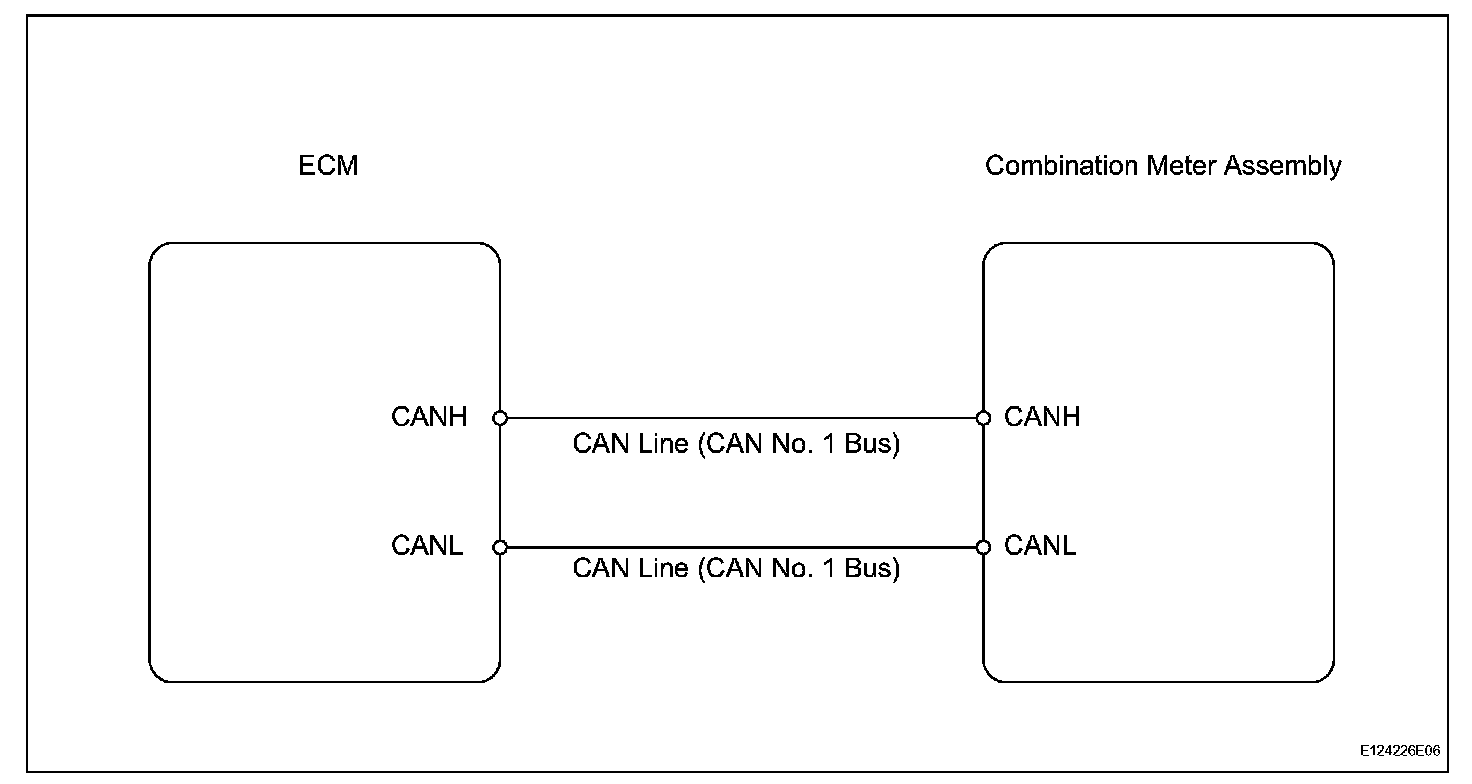

Wiring Diagram:

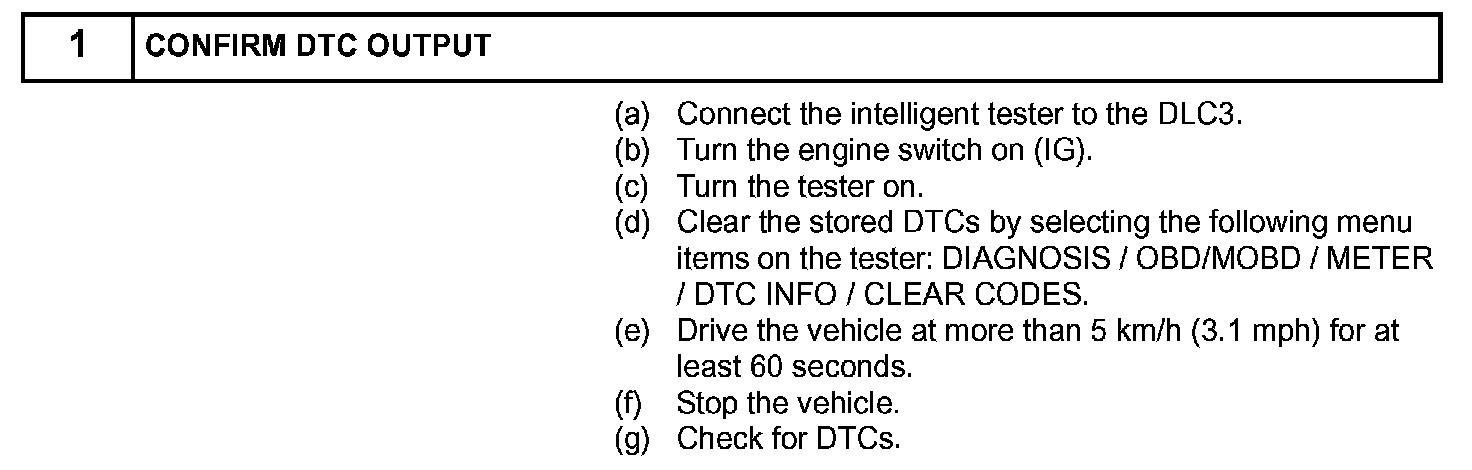

Step 1:

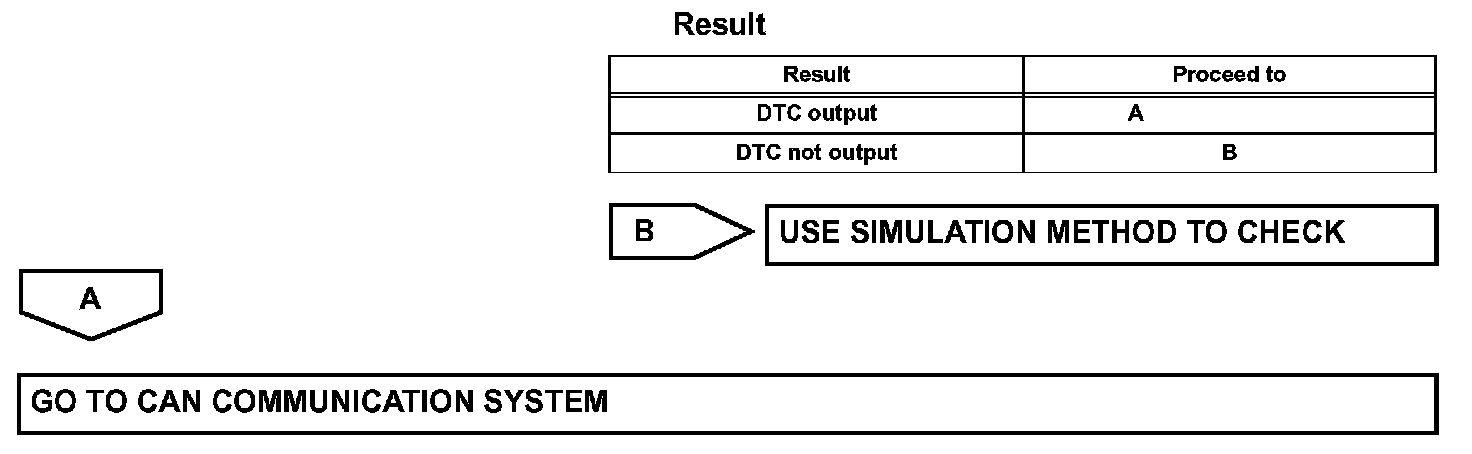

Step 1 (Continued):

INSPECTION PROCEDURE
