Automatic Transmission System

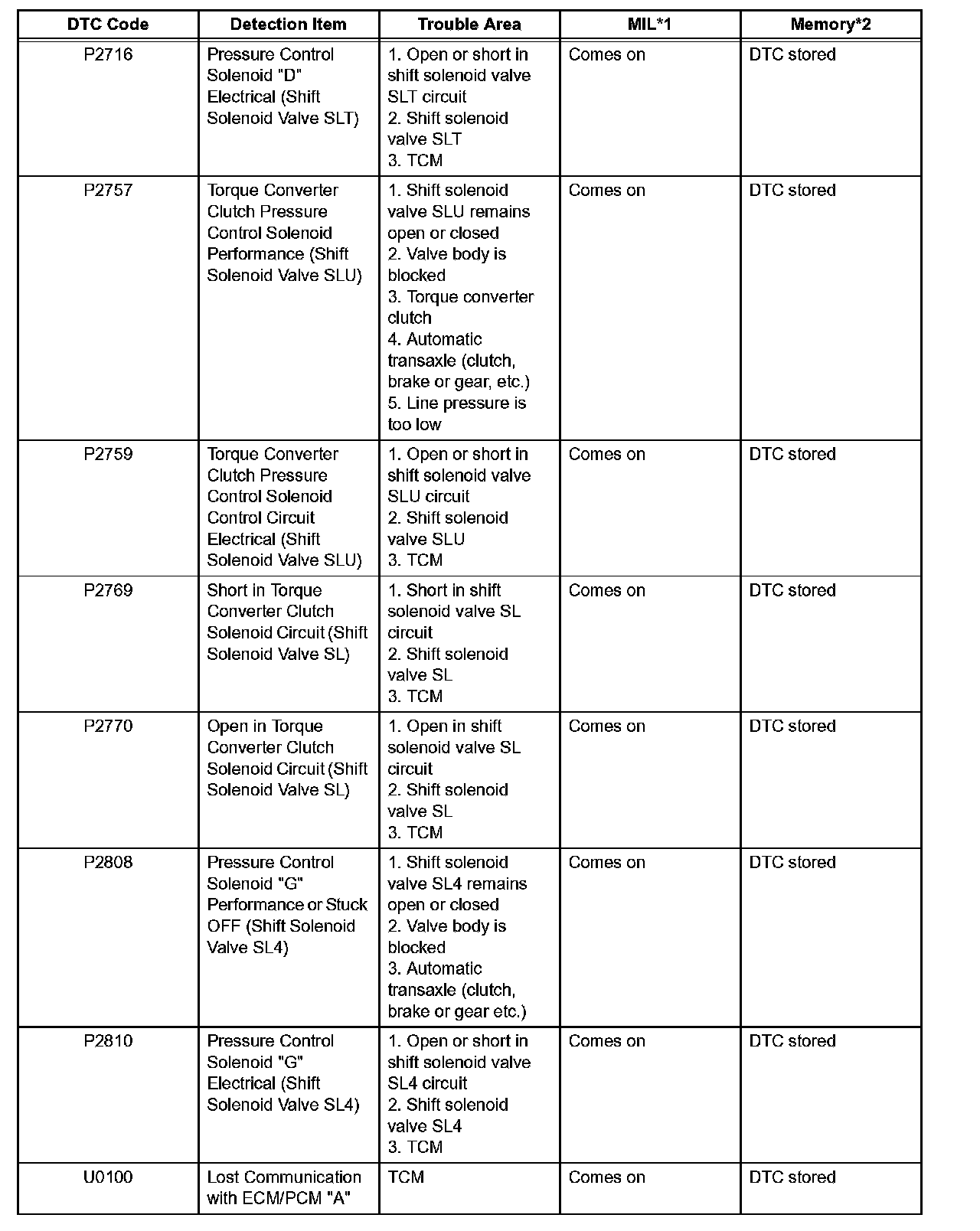

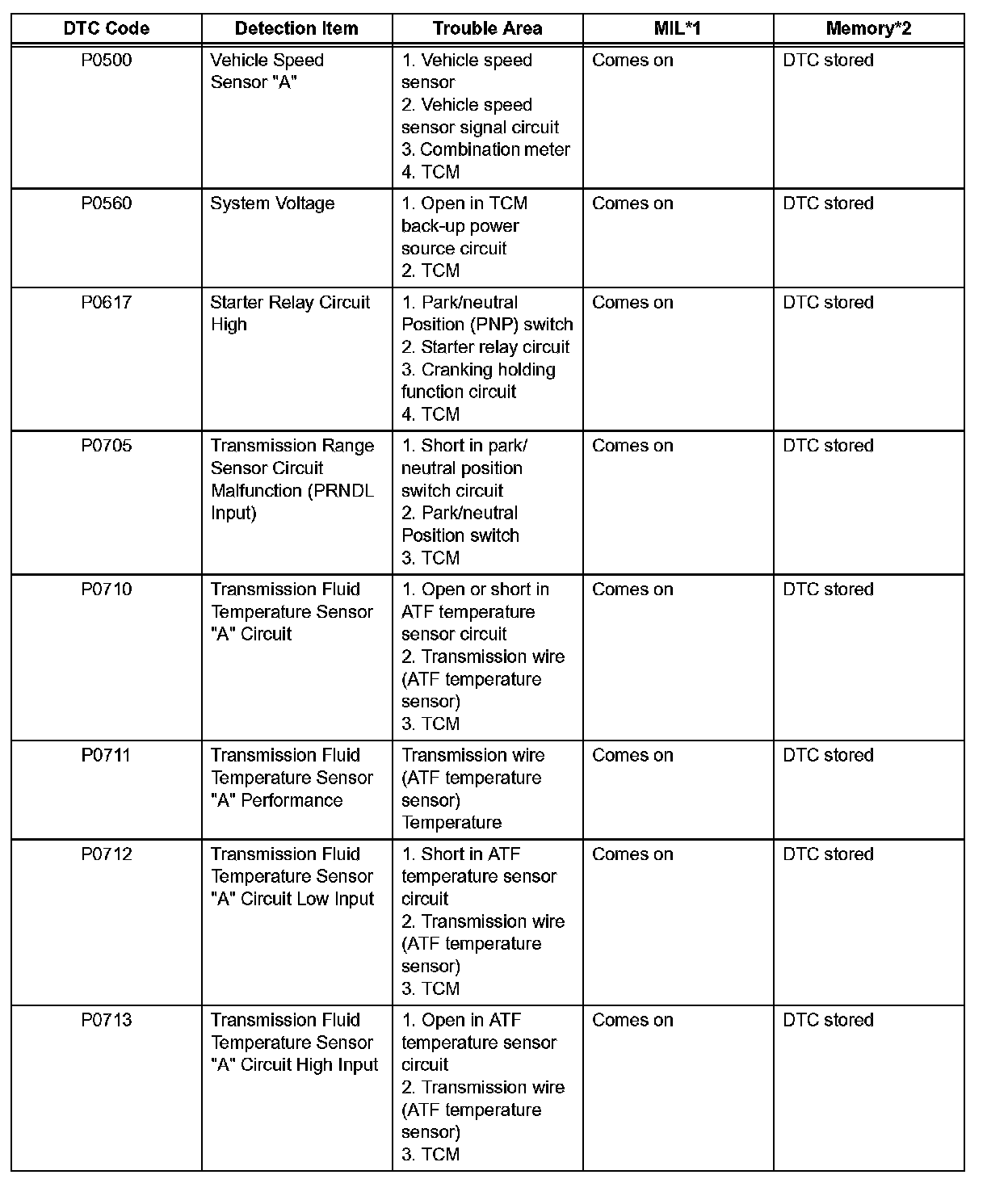

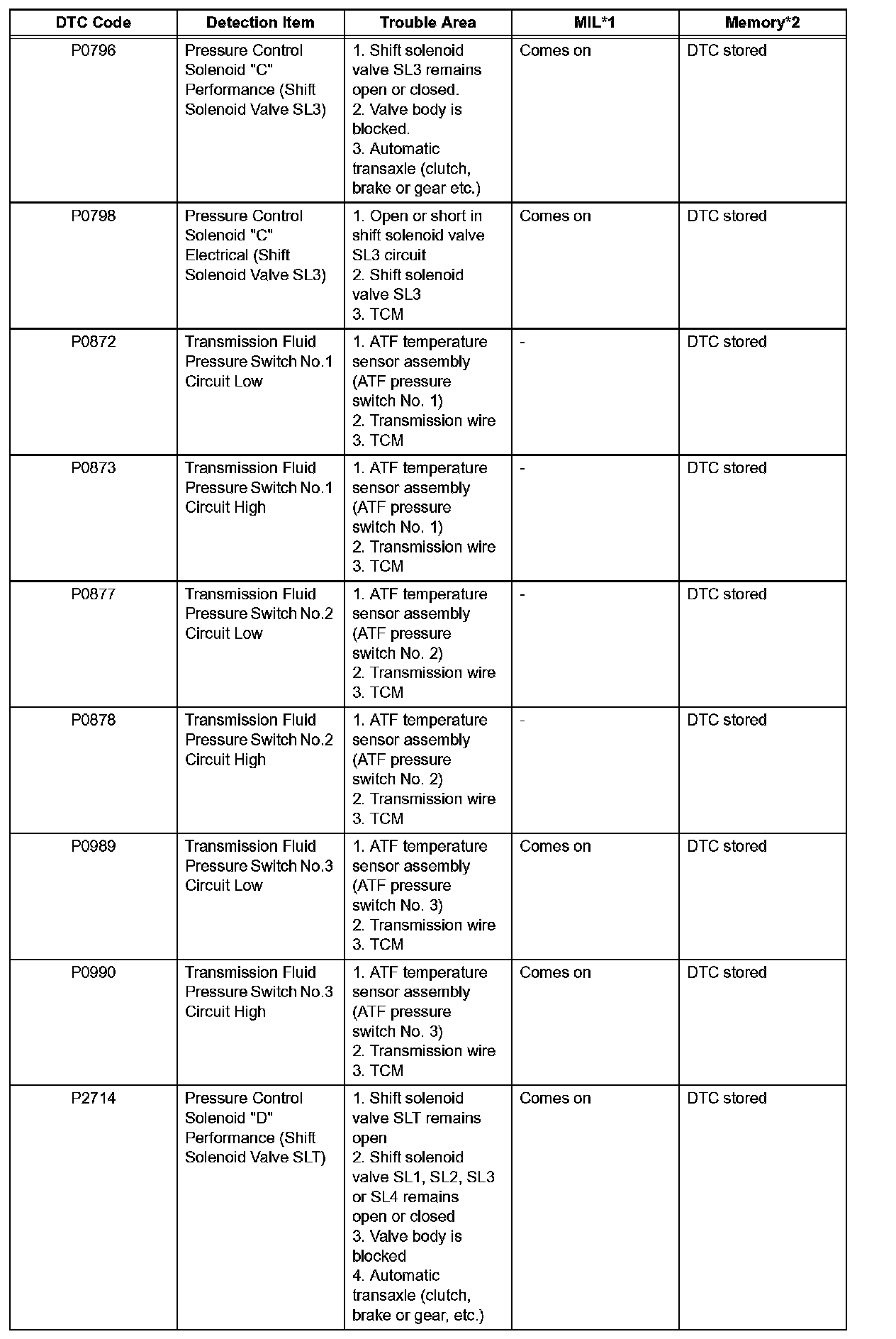

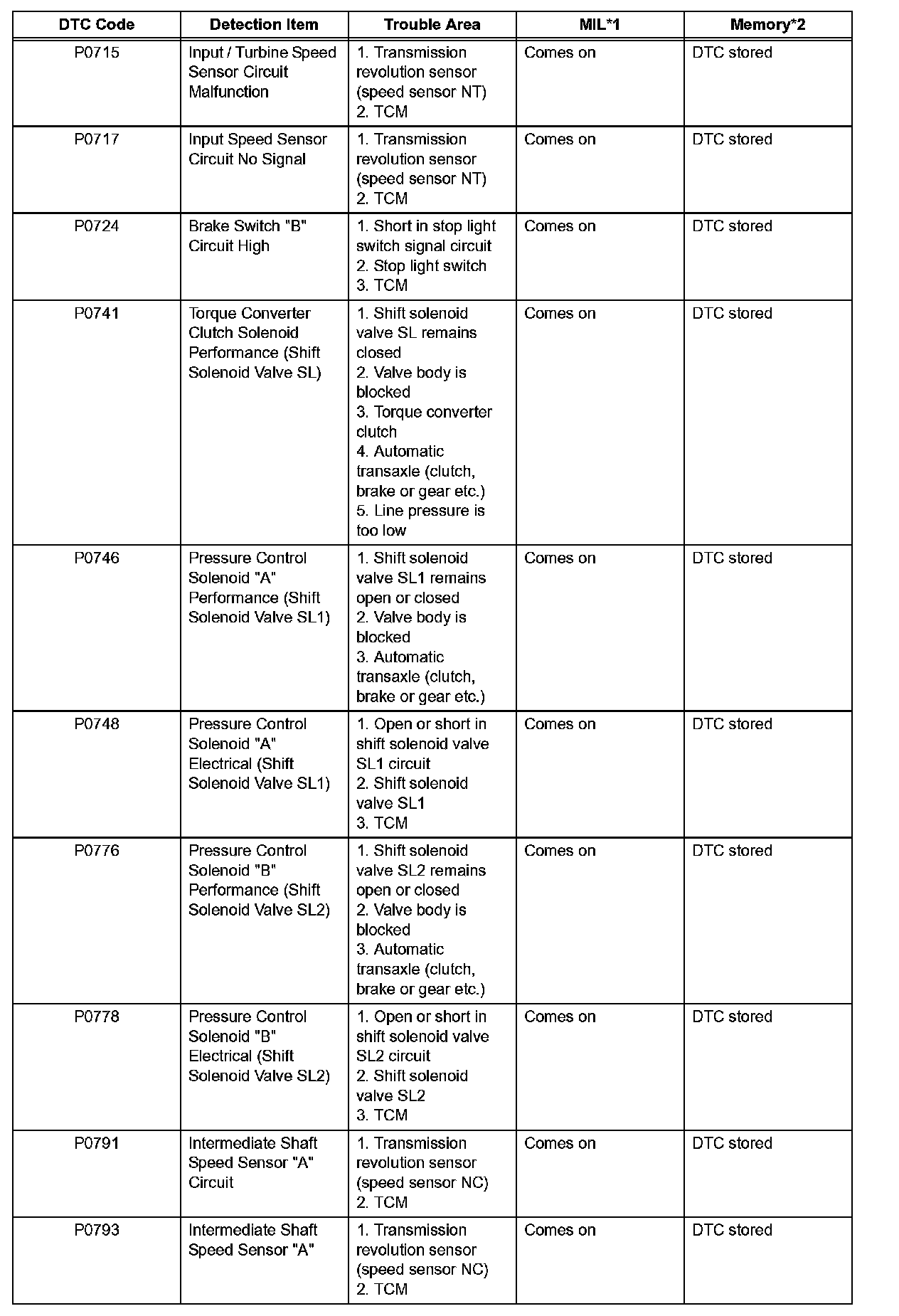

DIAGNOSTIC TROUBLE CODE CHARTIf a DTC is displayed during the DTC check, check the parts listed in the table below and proceed to the code given.
HINT:
^ *1: MIL (Malfunction Indicator Lamp) comes on.
^ *2: "DTC stored" mark means TCM memorizes the trouble code if the TCM detects that the DTC detection condition is satisfied.
^ A DTC may be output when the clutch, brake and gear components, etc. inside the automatic transaxle are damaged.
