Active Control Engine Mount System
Active Control Engine Mount System

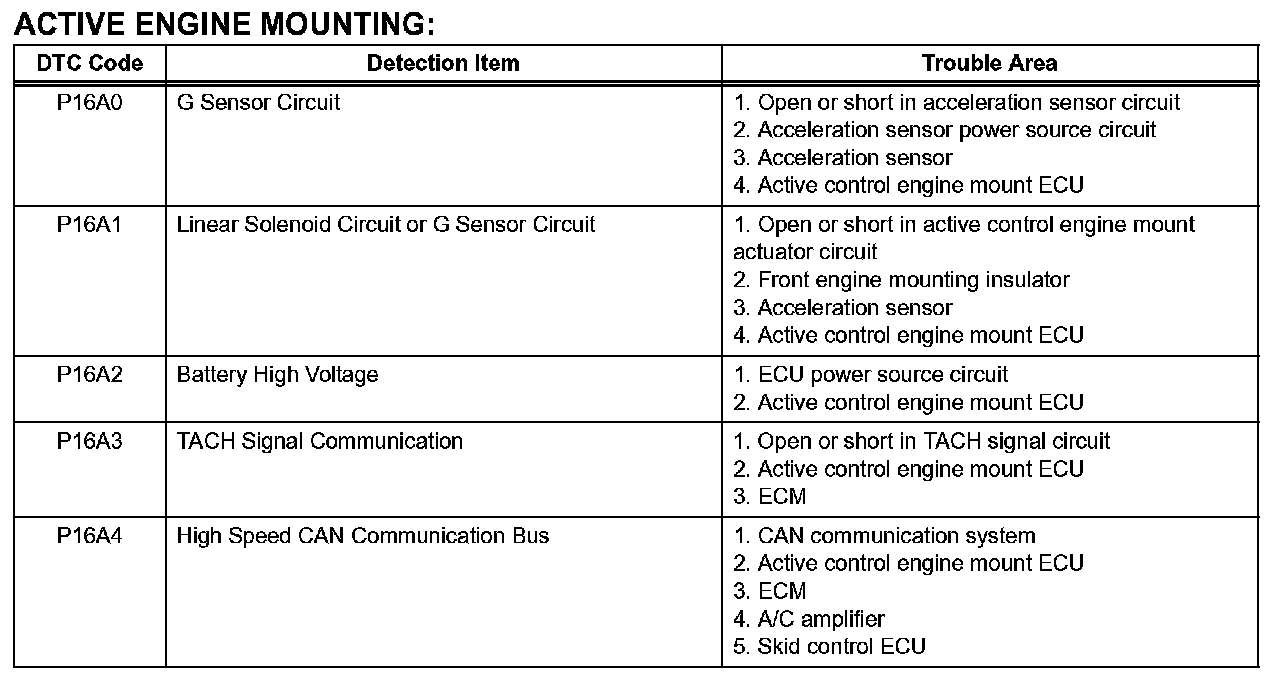

DIAGNOSTIC TROUBLE CODE CHART
If any trouble code is displayed during DTC check, check the circuit corresponding to the code in the table.
P16A0-P16A4:
