ABS (Antilock Brake System)

DIAGNOSTIC TROUBLE CODE CHART

- If a trouble code is displayed during the DTC check, check the circuit indicated by the DTC. For details of each code, refer to the respective "DTC Code" in the DTC chart.
- Inspect the fuse and relay before investigating the trouble areas as shown in the table.

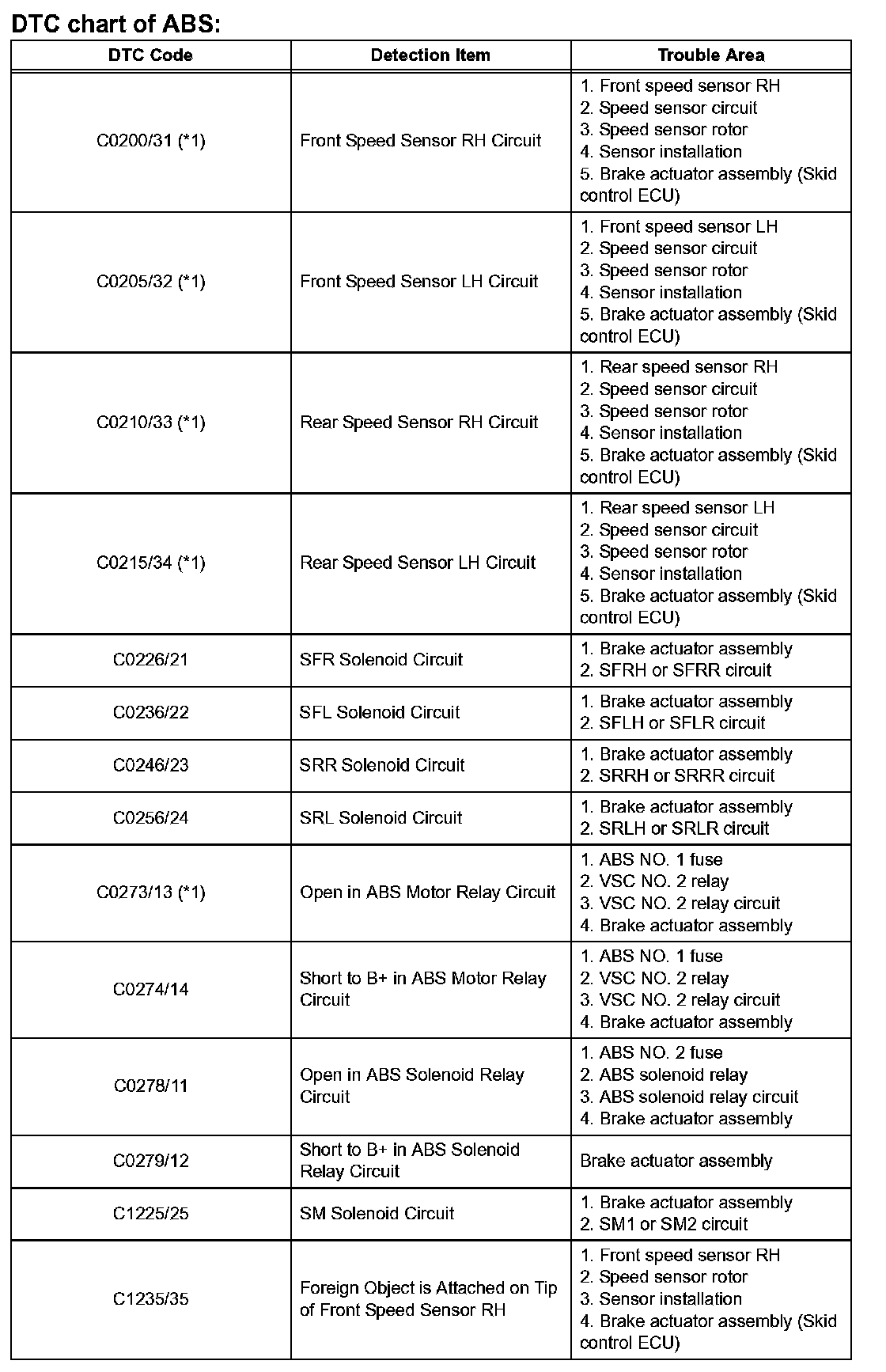

DTC chart of ABS:

C0200/31(*1)-C1235/35:

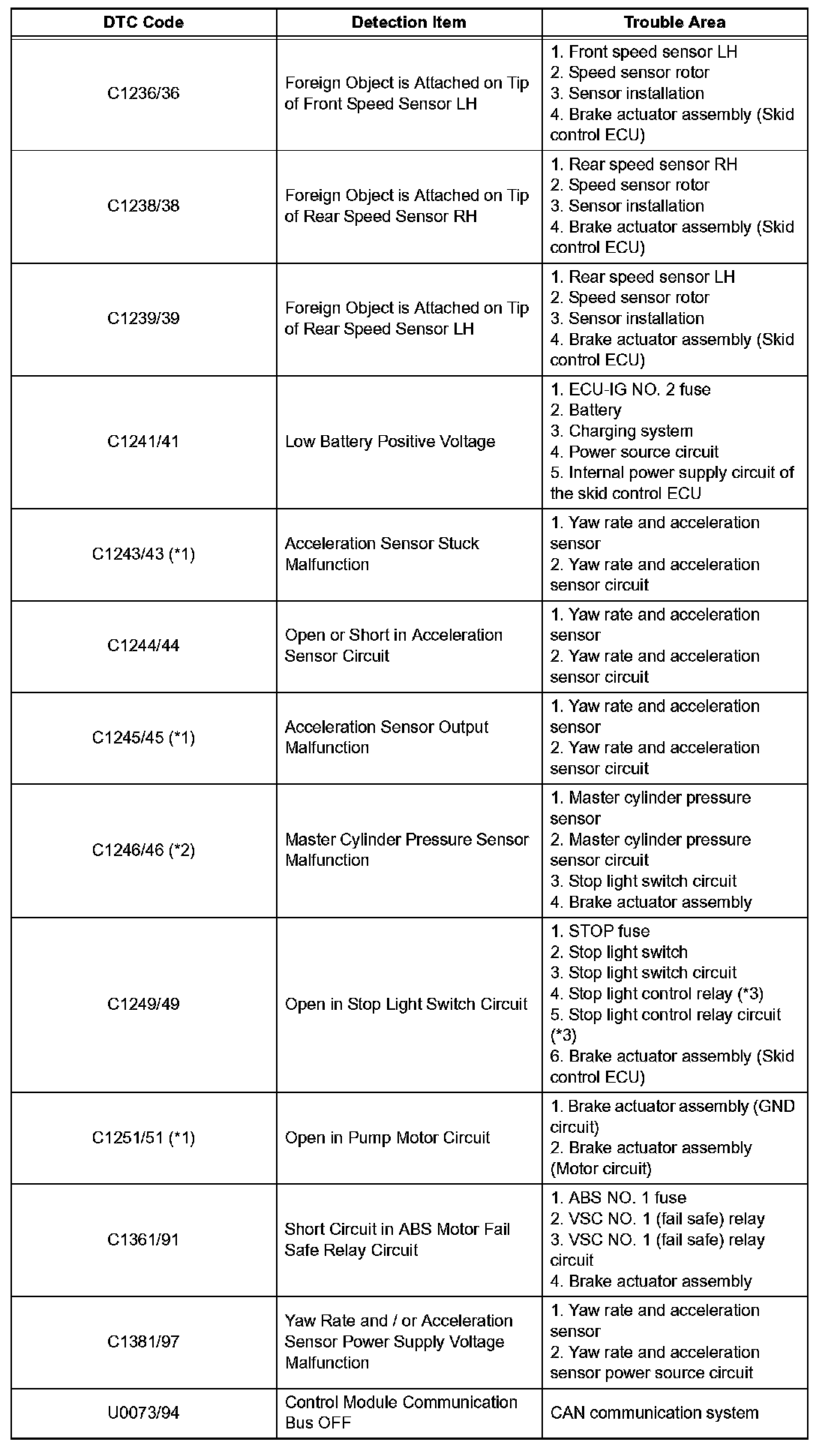

C1236/36-U0073/94:

U0124/95:

(*1, *2):
Even after the trouble areas are repaired, the ABS warning light will not go off unless the following operations are performed:

- (*1):
a. Drive the vehicle at 20 km/h (12 mph) for 30 seconds or more and check that the ABS warning light goes off.
b. Clear the DTC.

- (*2):
a. Keep the vehicle stationary for 5 seconds or more and depress the brake pedal lightly 2 or 3 times.
b. Drive the vehicle at the vehicle speed of 50 km/h (31 mph) and keep depressing the brake pedal strongly for approximately 3 seconds.
c. Repeat the operation 3 times or more and check that the ABS warning light goes off.
d. Clear the DTC.

HINT: In some cases, the intelligent tester cannot be used when the ABS warning light remains on.

- (*3): with dynamic radar cruise control

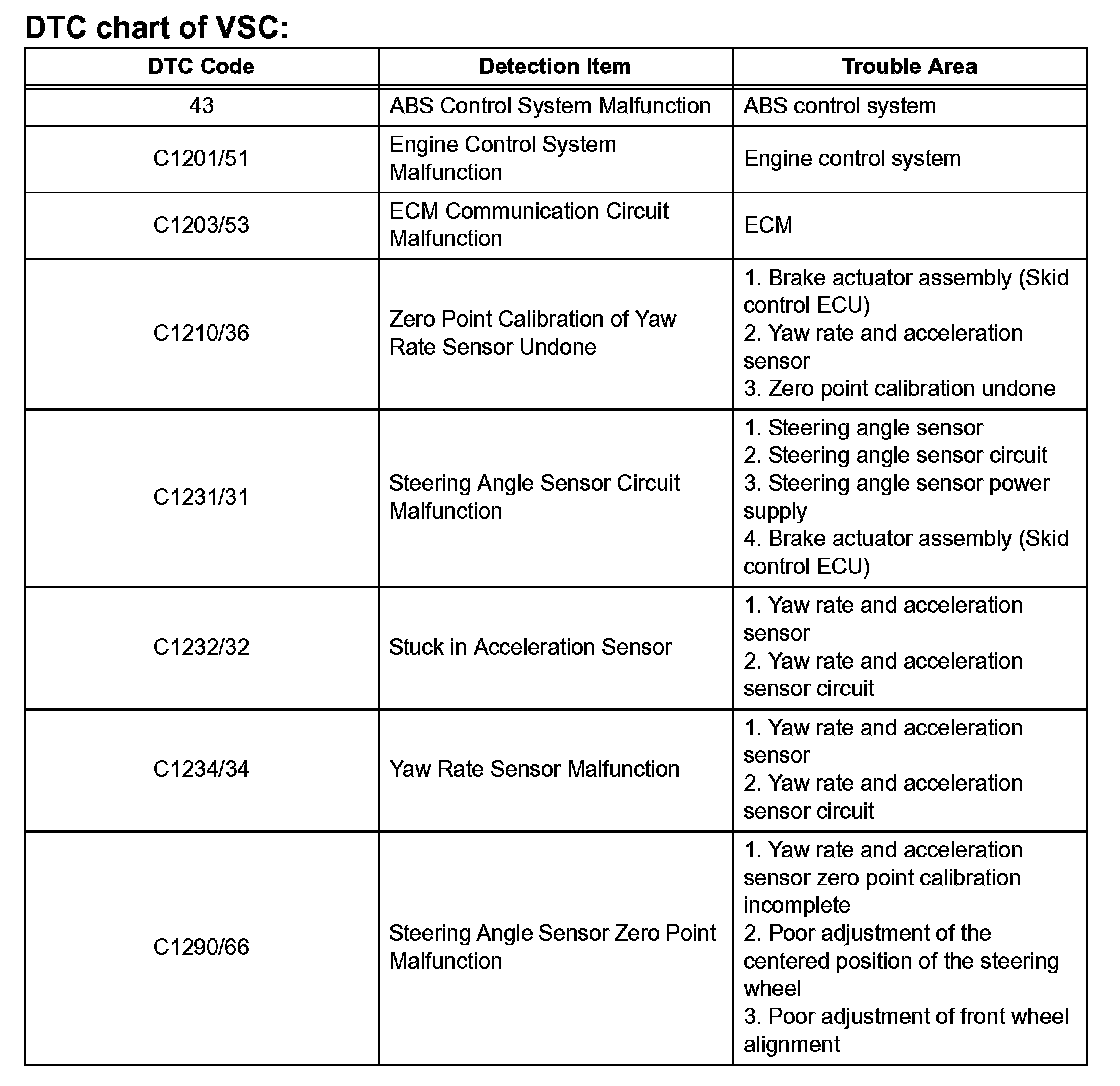

DTC chart of VSC:

43-C1290/66:

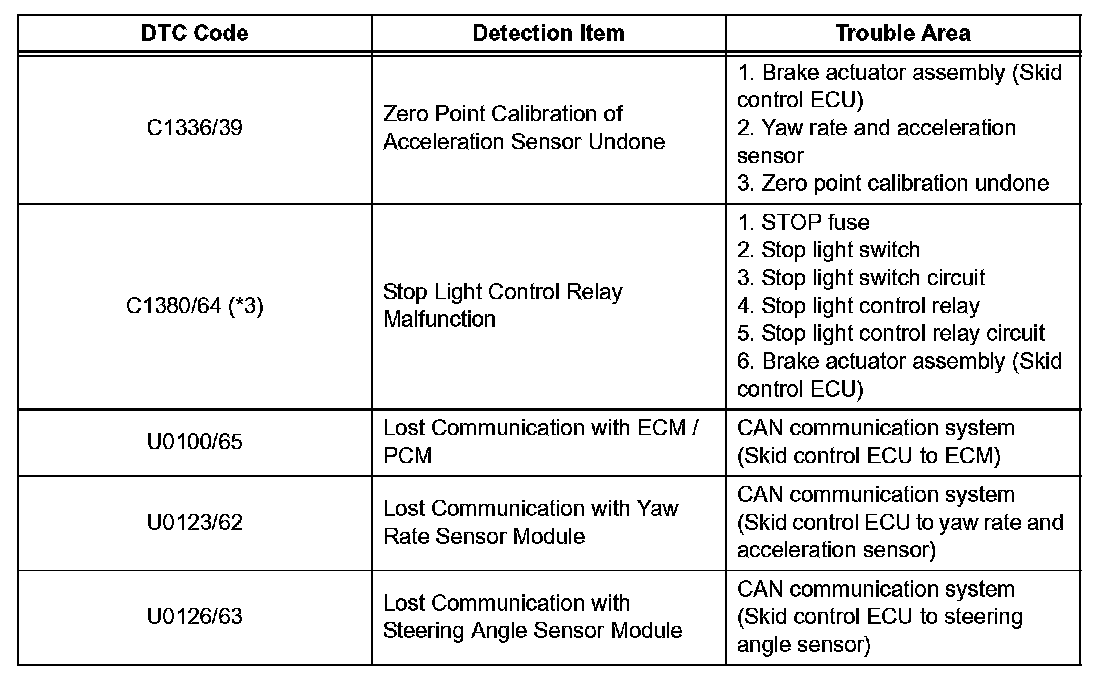

C1336/39-U0126/63:

HINT: In some cases, the intelligent tester cannot be used when the VSC warning (multi information display) remains on.

(*3): with dynamic radar cruise control

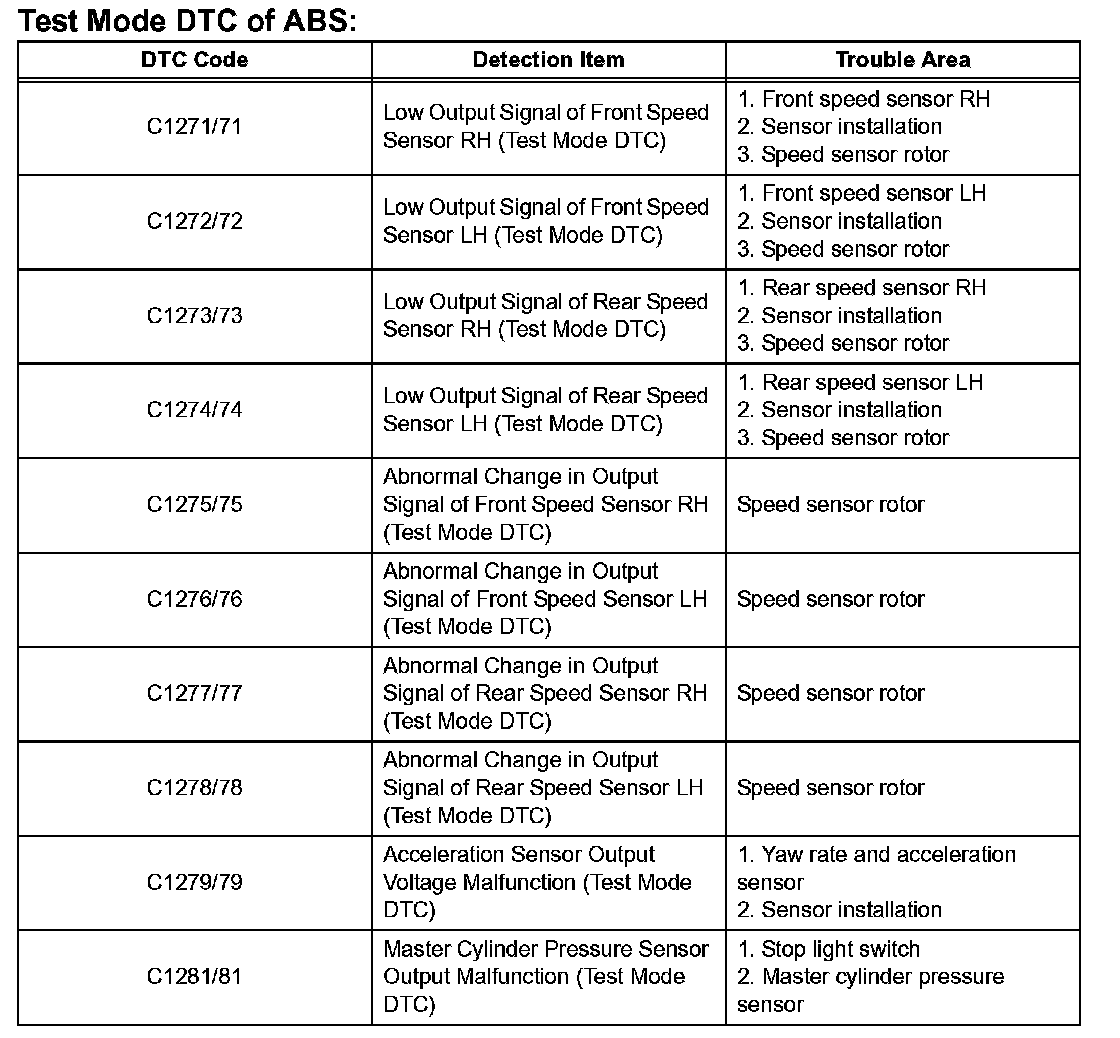

Test Mode DTC of ABS:

C1271/71-C1281/81:

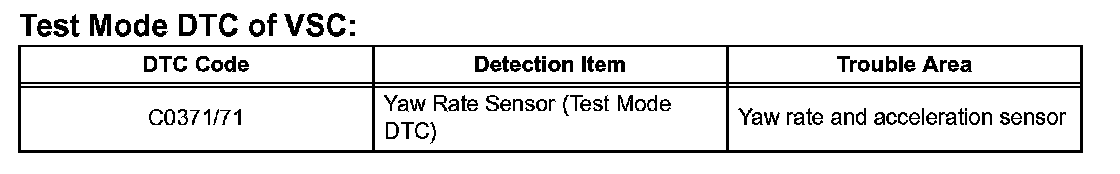

Test Mode DTC of VSC:

C0371/71:
