C1AED

DTC C1AED Rear Sensor Communication Malfunction

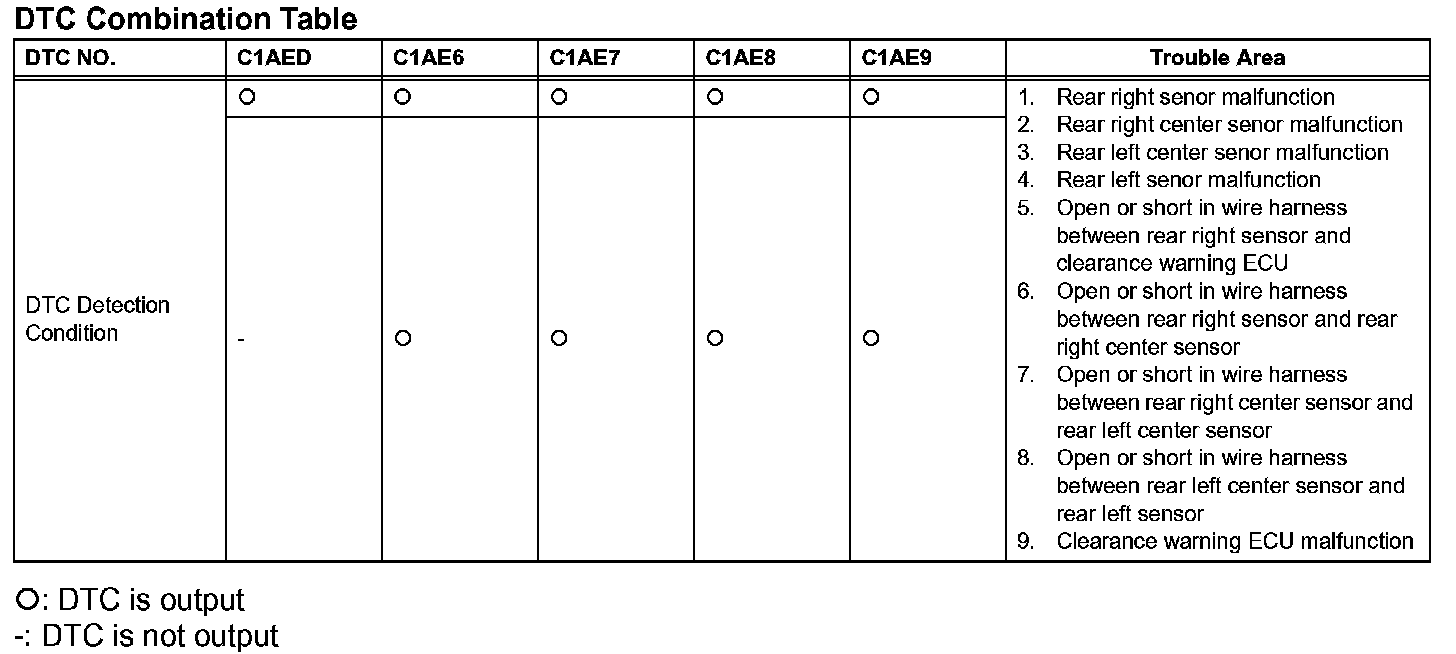

DESCRIPTION

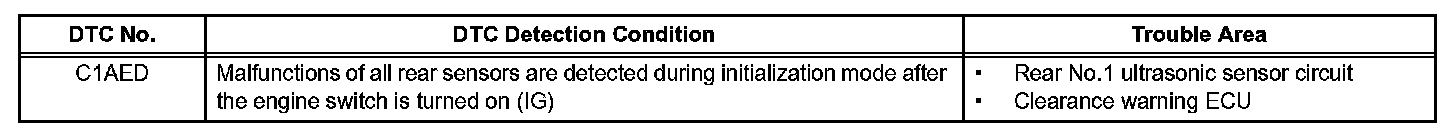

DTC Detection Condition:

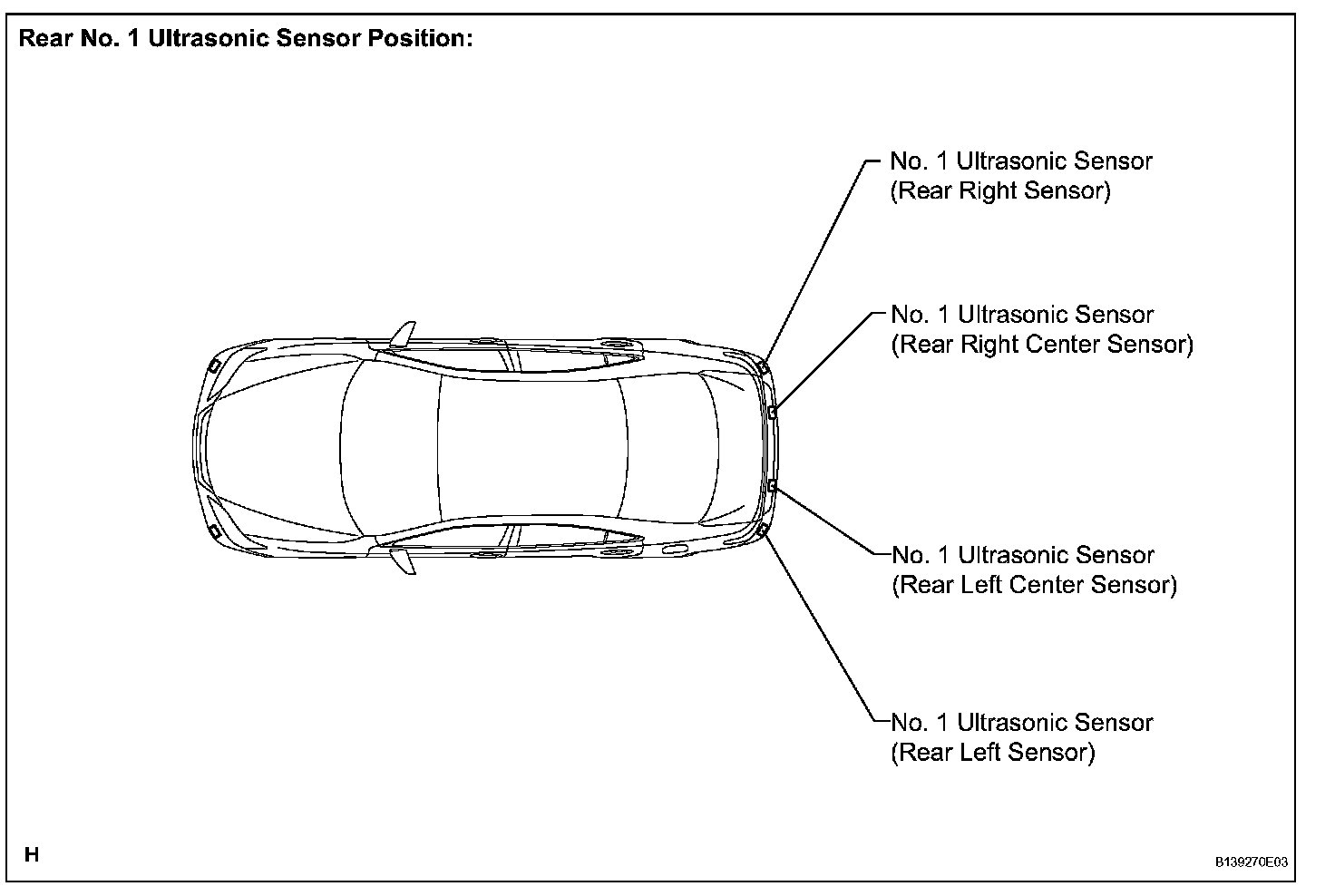

This DTC is stored when there is an open or short circuit in the communication line between the rear sensors and the clearance warning ECU, or when there is a malfunction in a rear sensor.

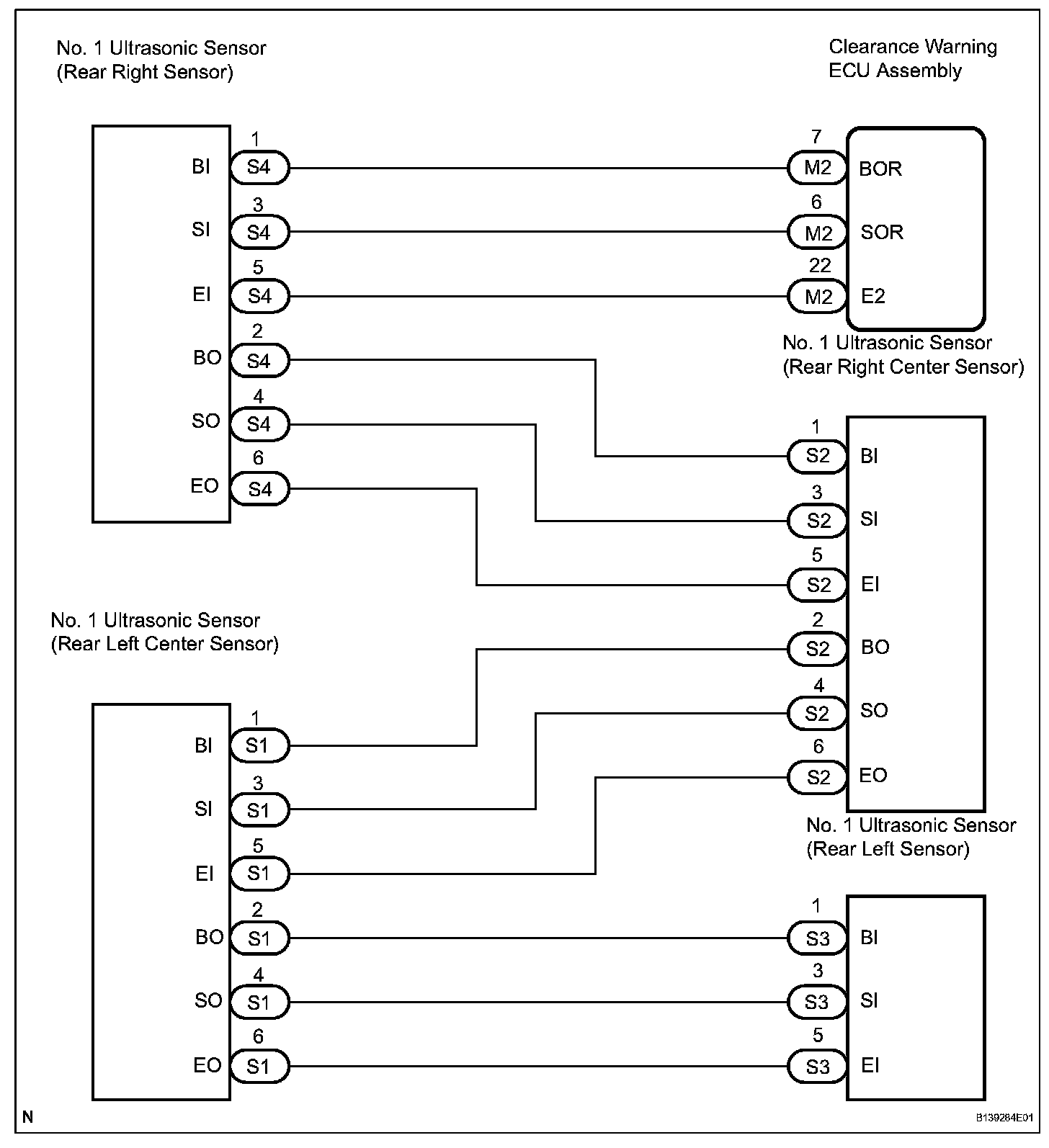

Wiring Diagram:

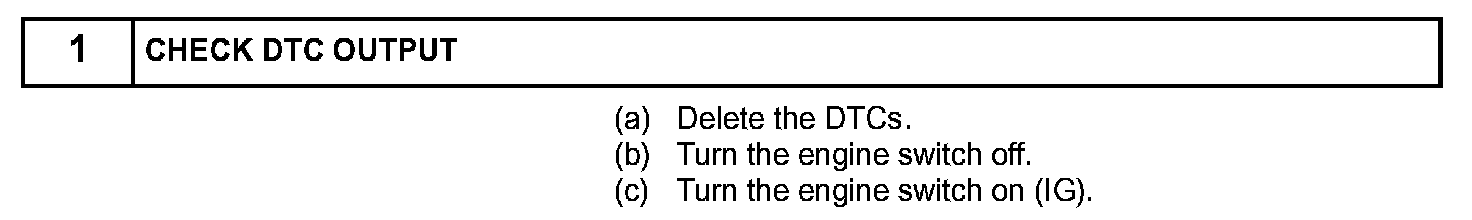

Step 1:

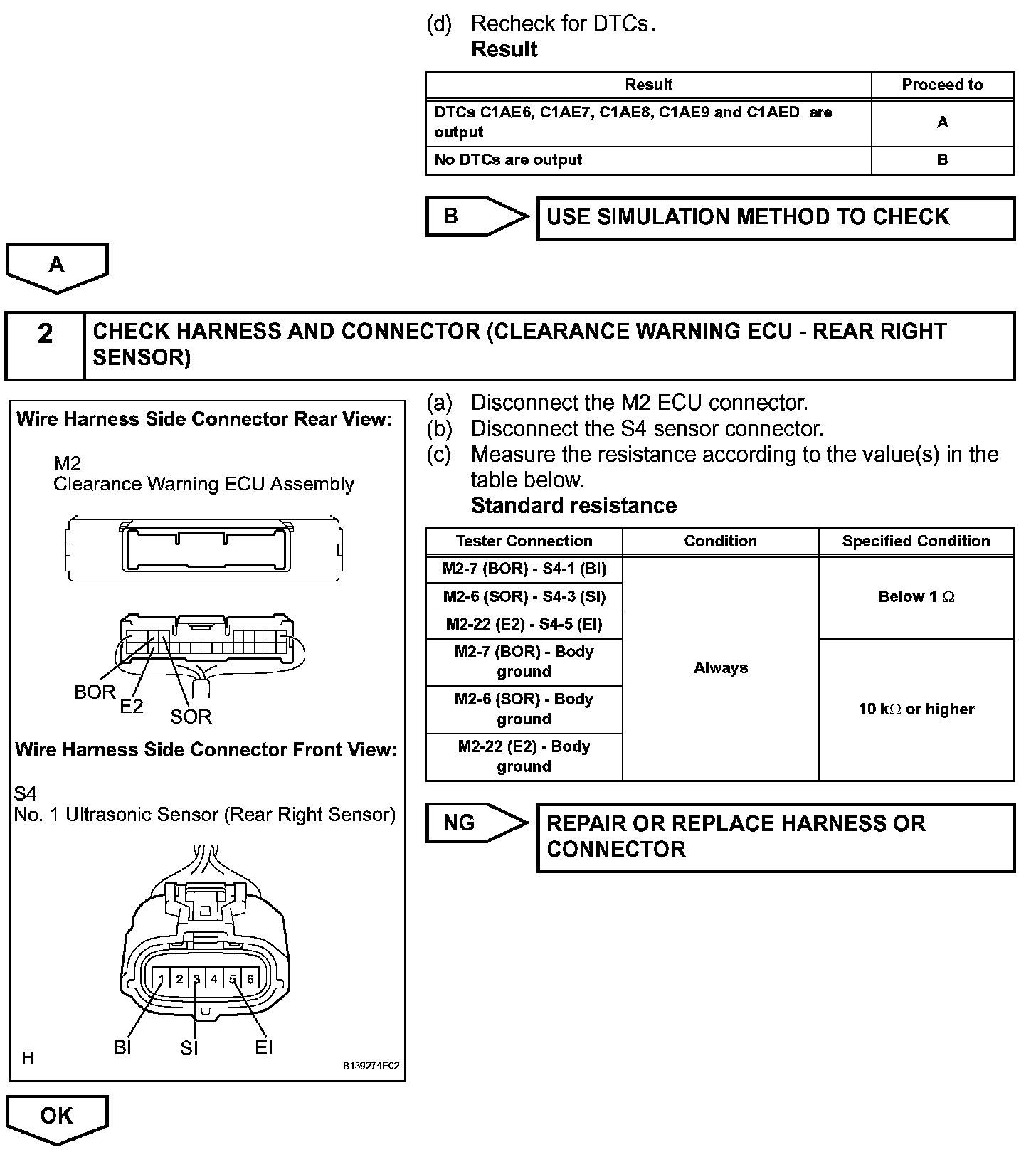

Step 1 (Continued)-2:

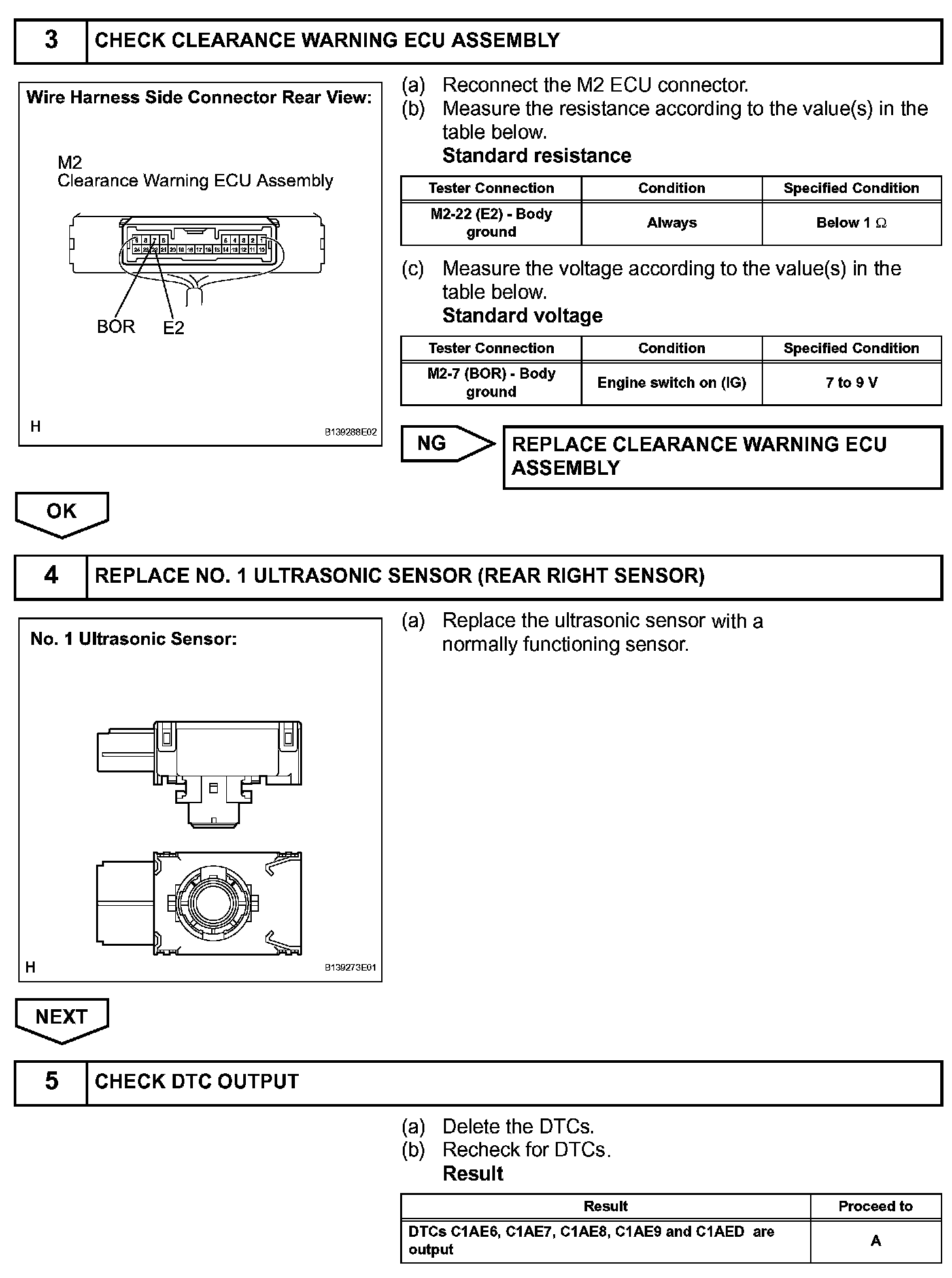

Step 3-5:

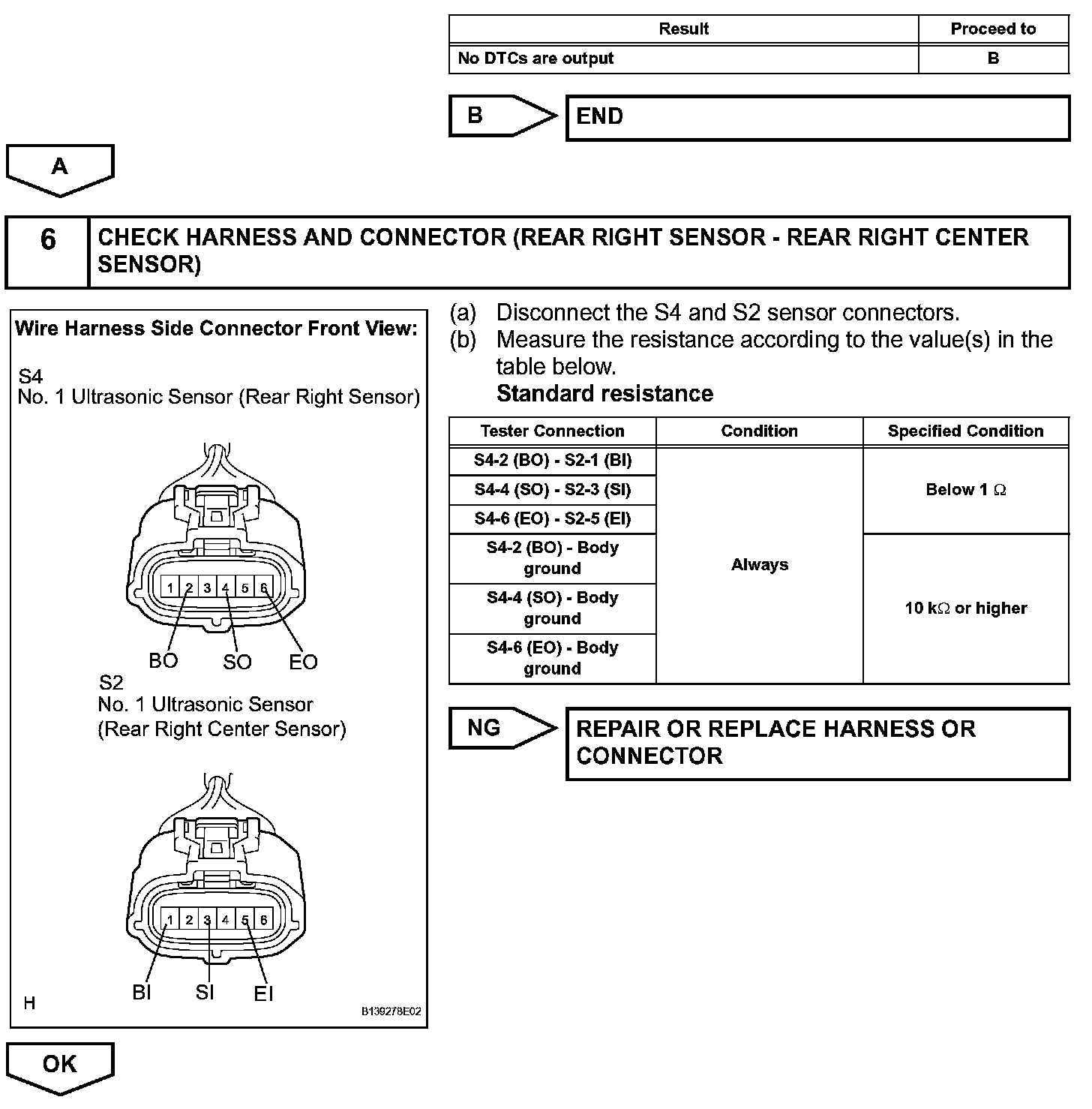

Step 5 (Continued)-6:

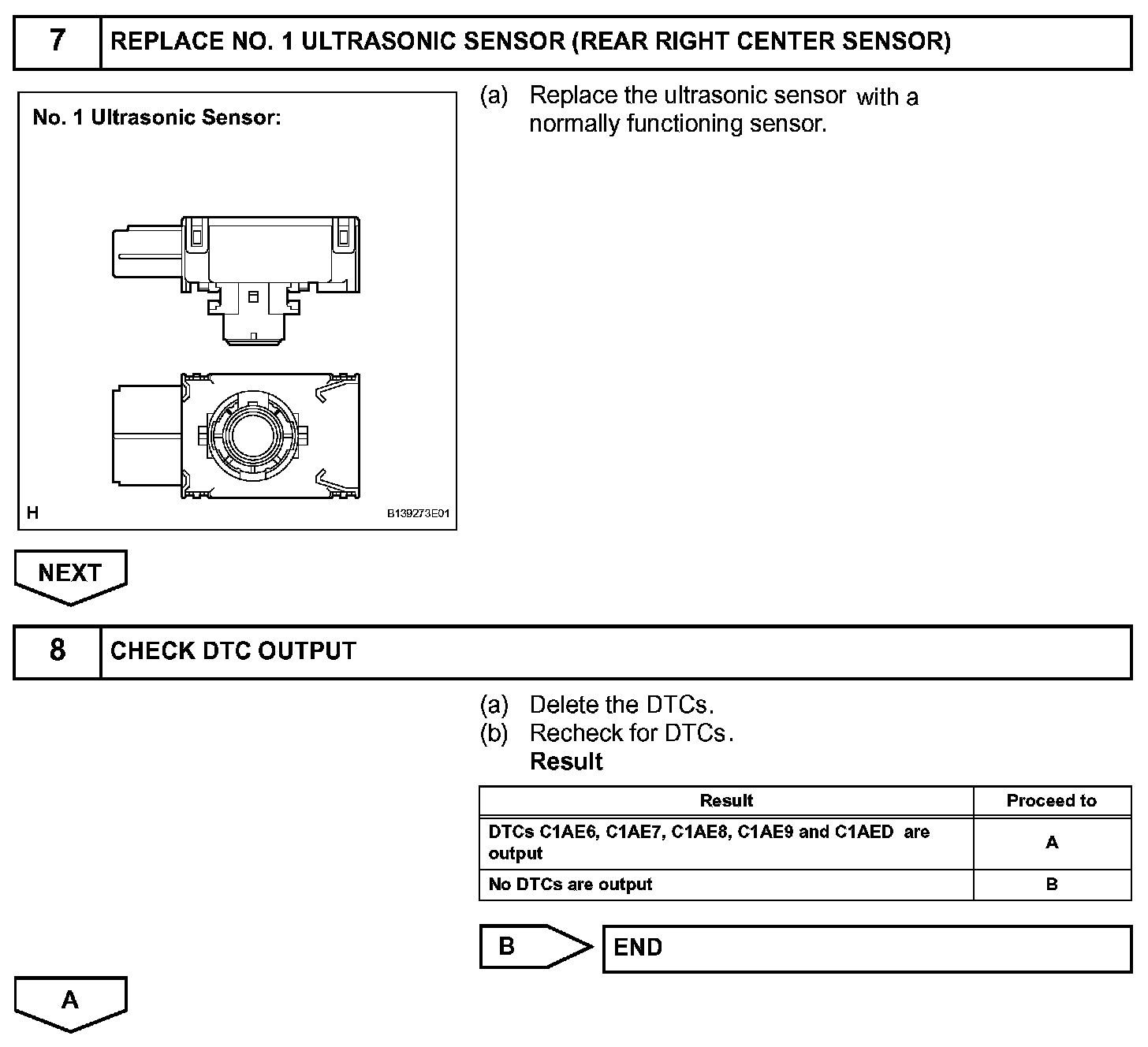

Step 7-8:

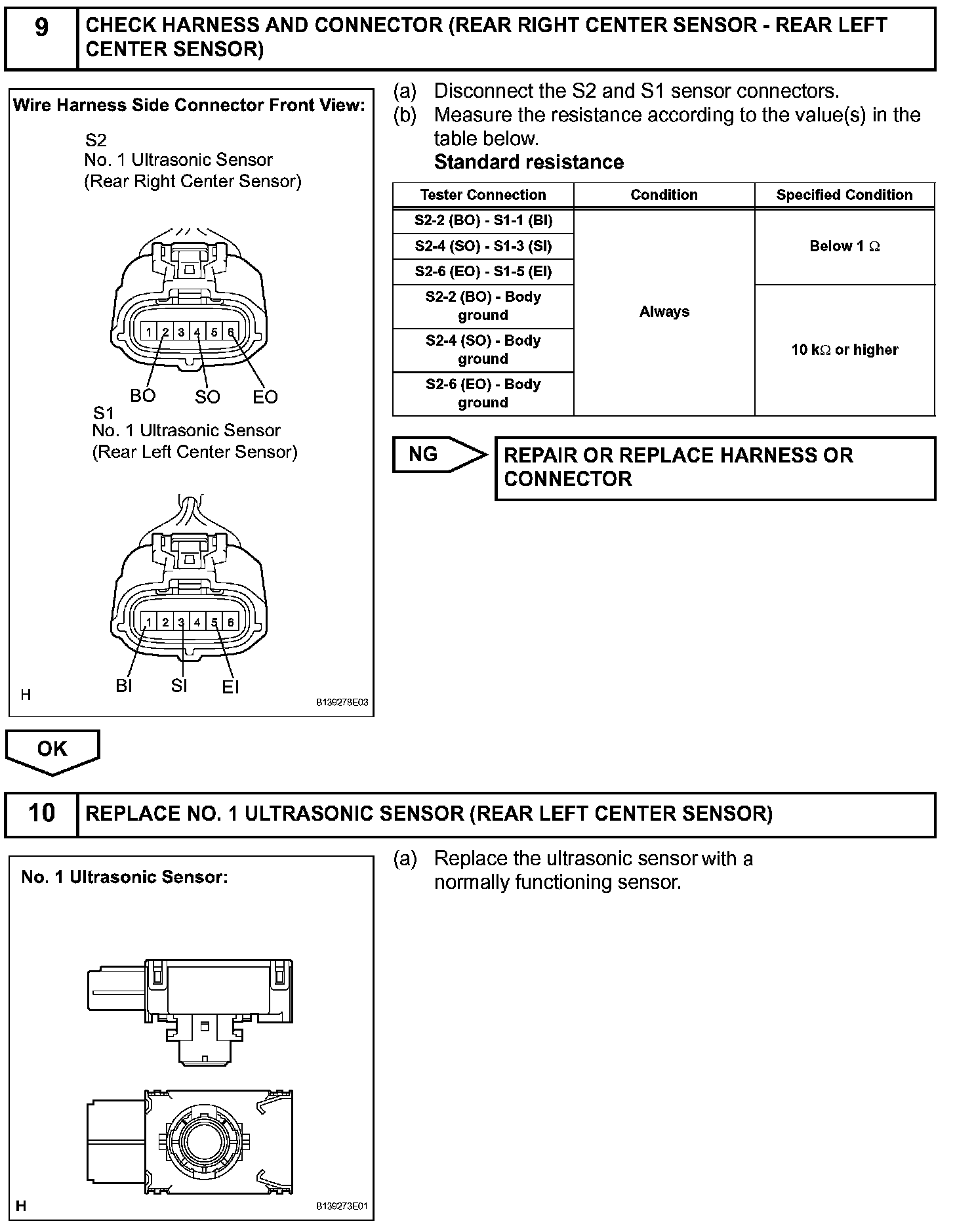

Step 9-10:

Step 10 (Continued)-12:

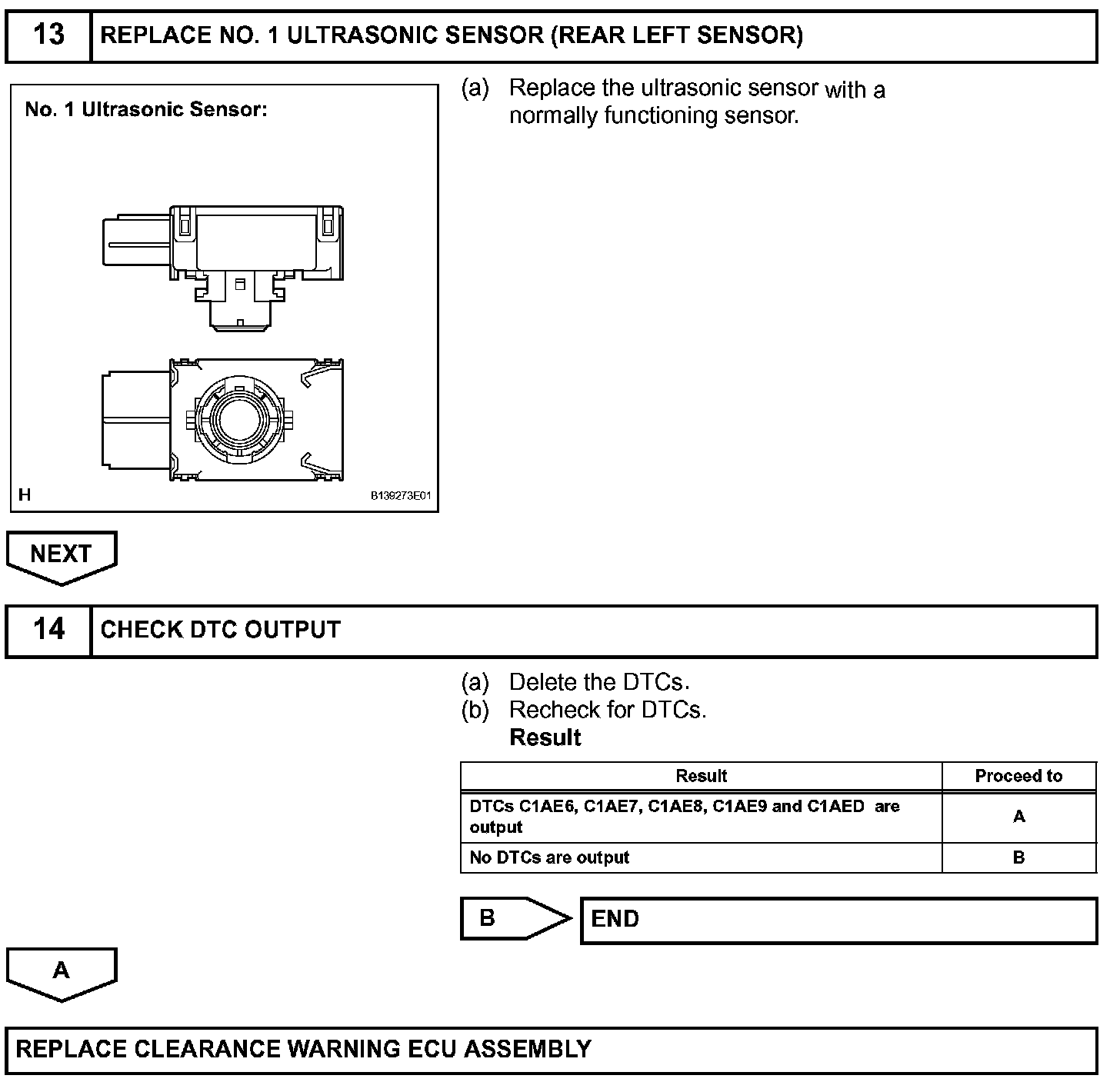

Step 13-14:

INSPECTION PROCEDURE
