C1241

DTC C1241/41 Low Battery Positive Voltage

DESCRIPTION

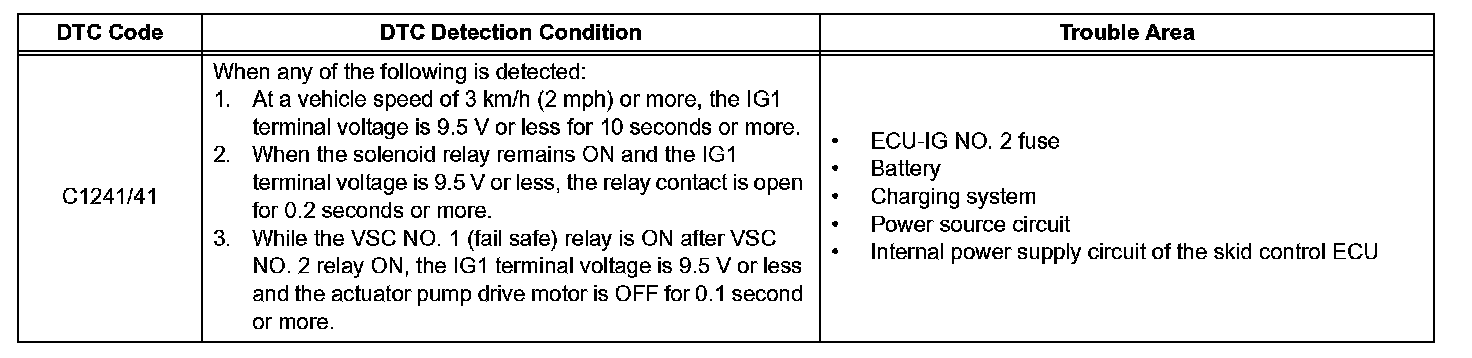

DTC Detection Condition:

If a malfunction is detected in the power supply circuit, the skid control ECU (housed in the actuator assembly) stores this DTC and the fail safe function prohibits ABS operation.

This DTC is stored when the IG1 terminal voltage deviates from the DTC detection condition due to a malfunction in the power supply or charging circuit such as the battery or alternator circuit, etc. The DTC is cancelled when the IG1 terminal voltage returns to normal.

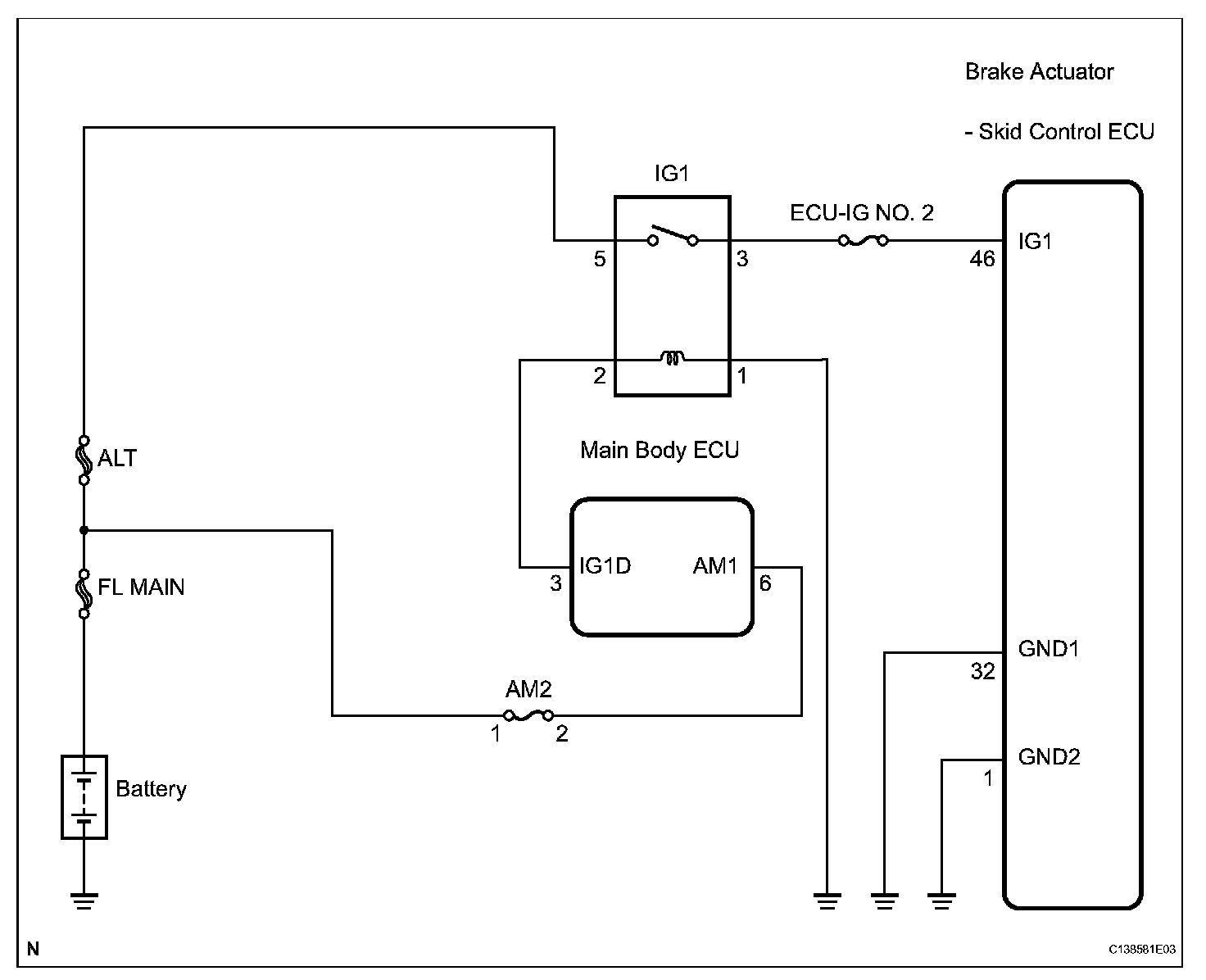

Wiring Diagram:

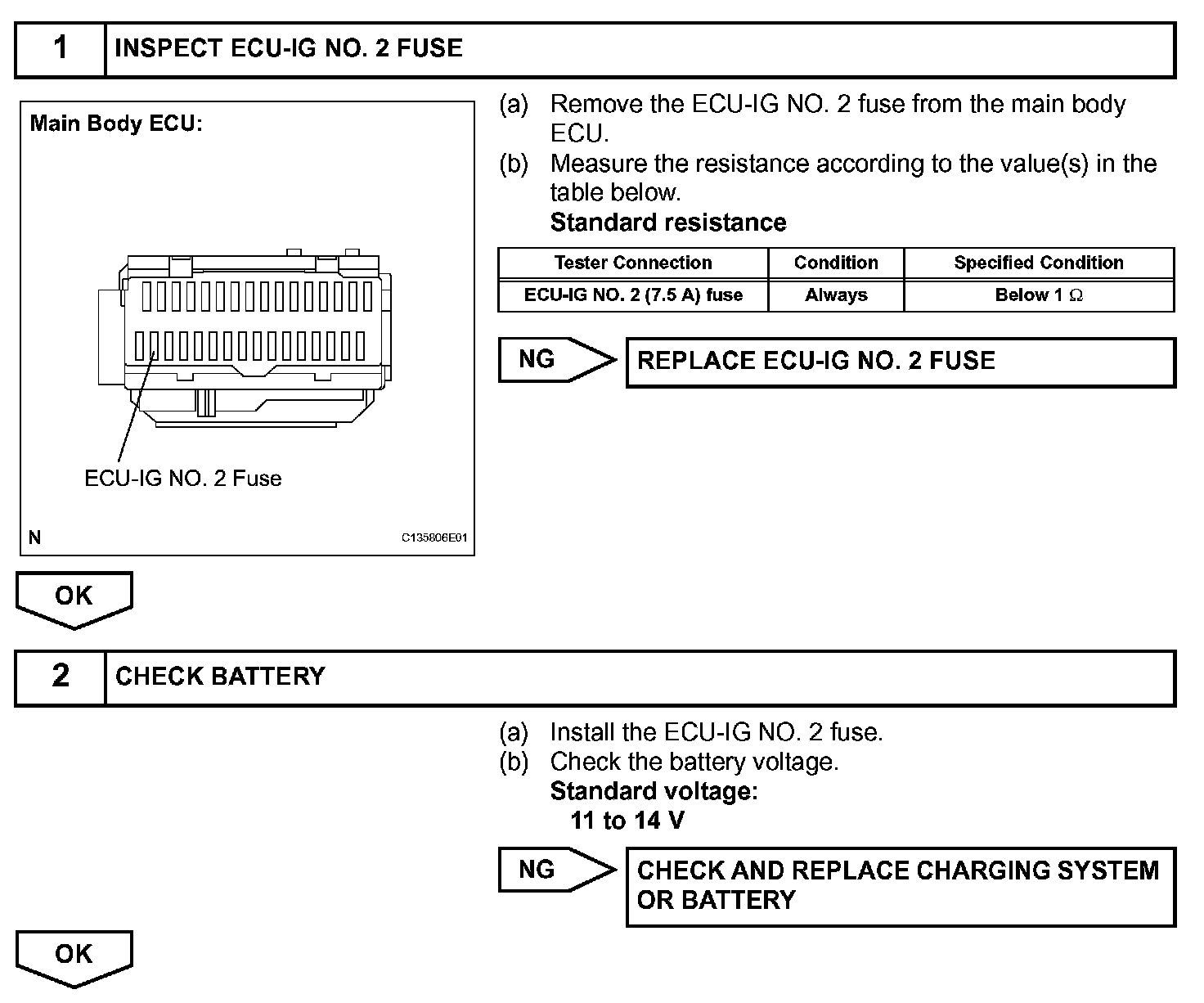

Step 1-2:

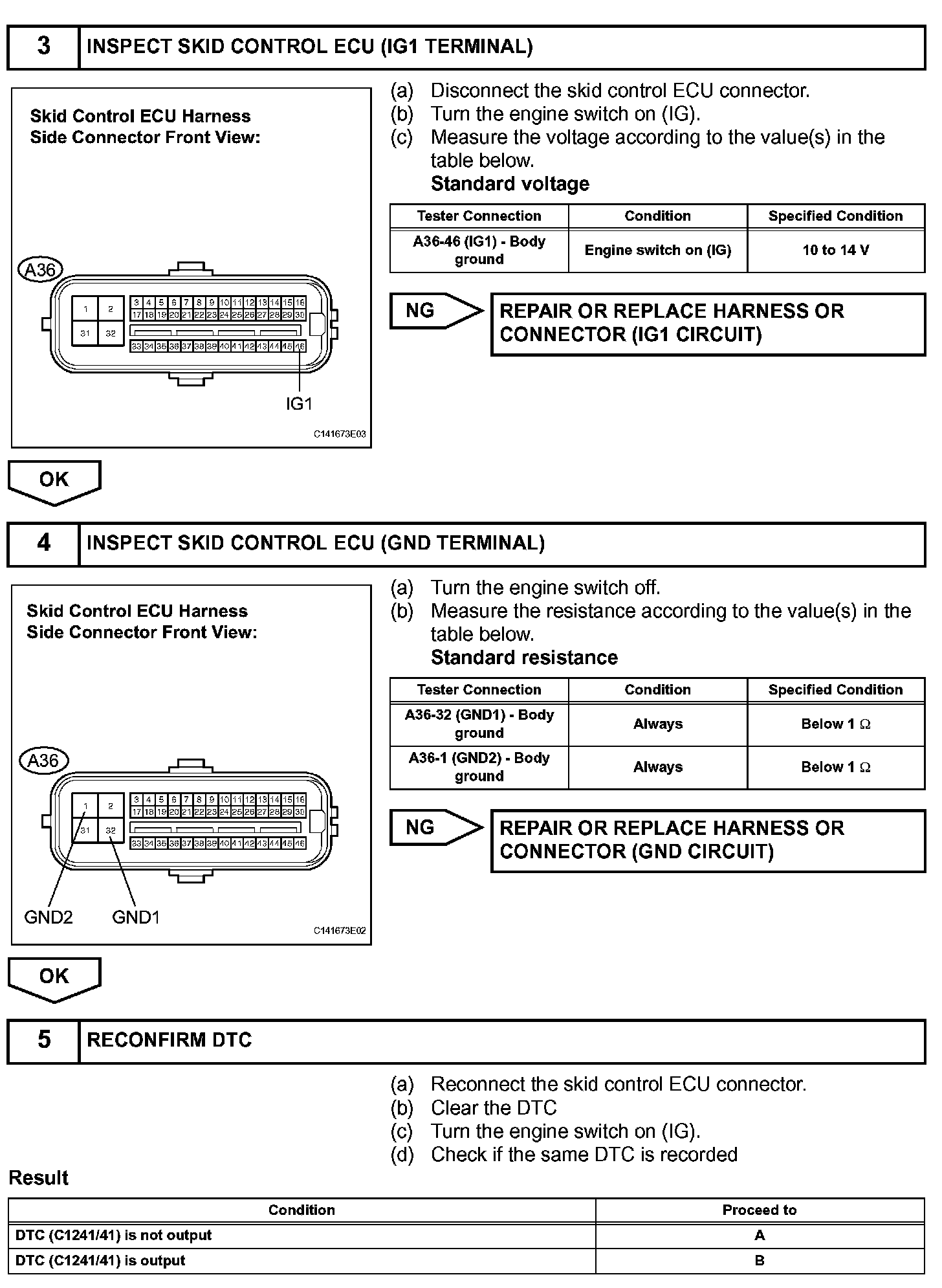

Step 3-5:

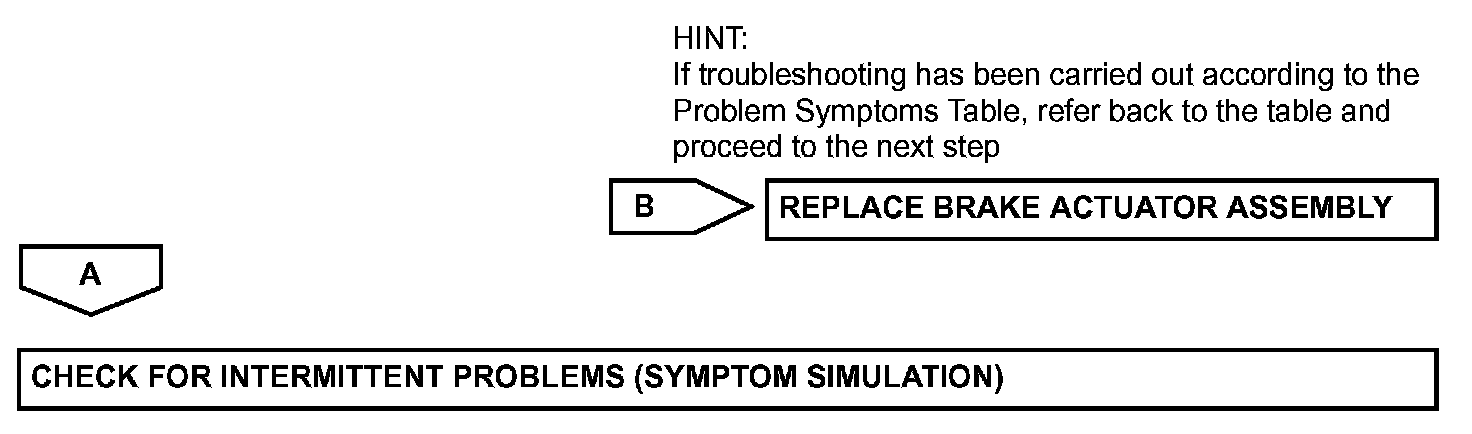

Step 5(Continued):

INSPECTION PROCEDURE

NOTE: When replacing the brake actuator assembly, perform zero point calibration. Programming and Relearning
