B2782

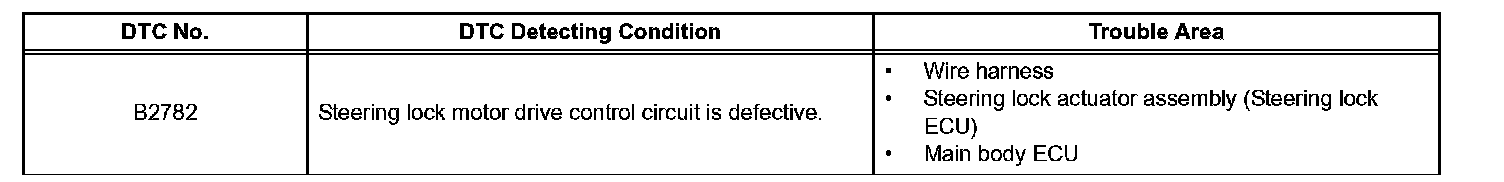

DTC B2782 Power Source Control ECU Malfunction

DESCRIPTION
The main body ECU (*) controls the power supply to activate the steering lock motor. This prevents the steering from being locked while the vehicle is moving.

HINT: *: The power source control ECU is not a physical part. This code refers to the power source control function performed by the main body ECU.

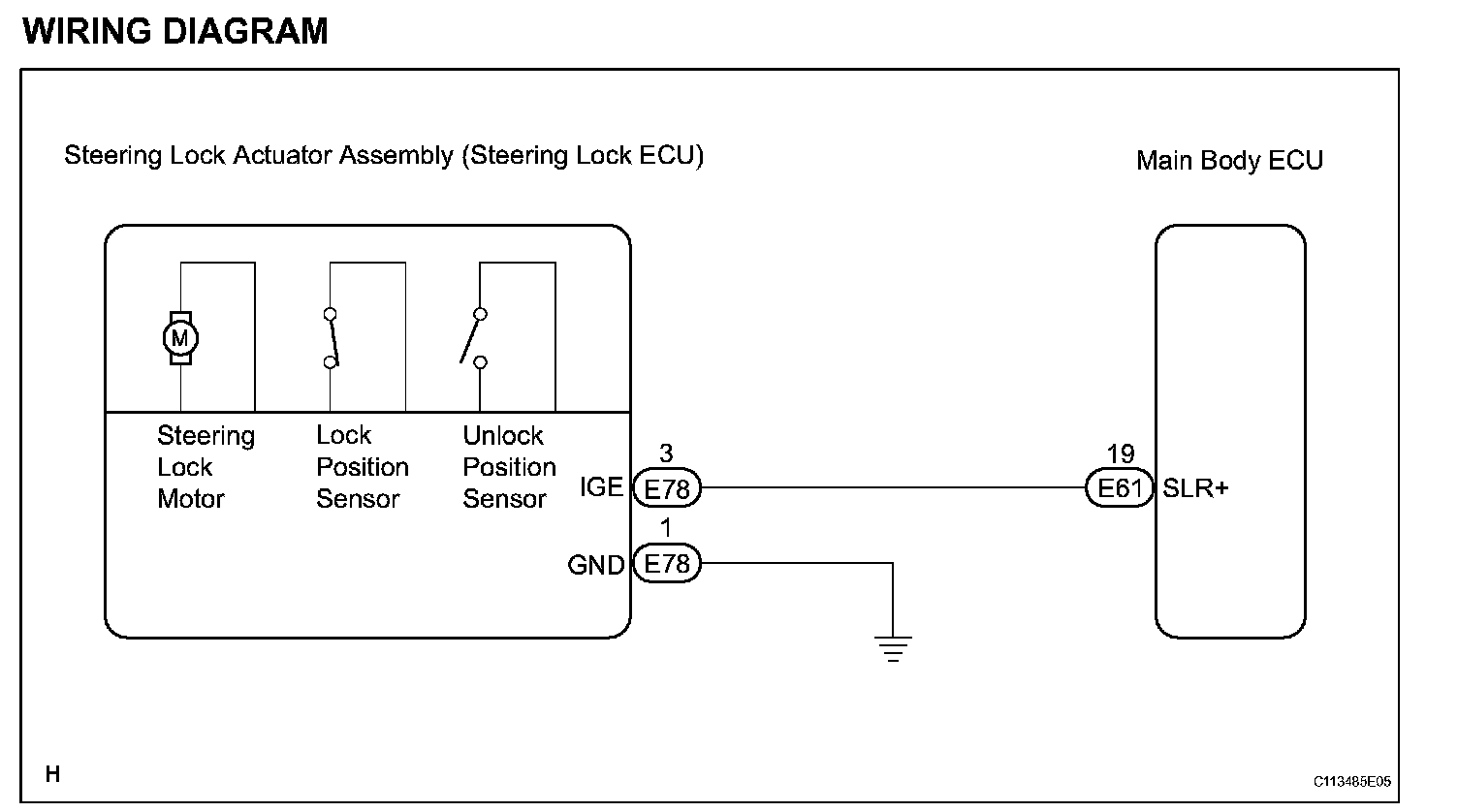

WIRING DIAGRAM:

INSPECTION PROCEDURE

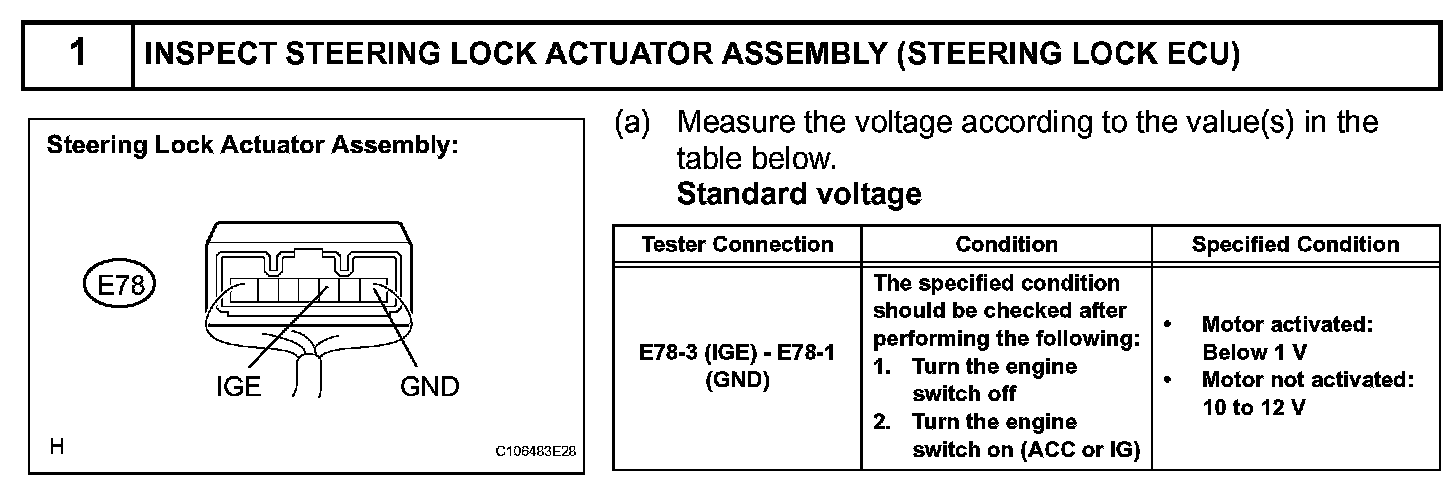

Step 1 (Part 1):

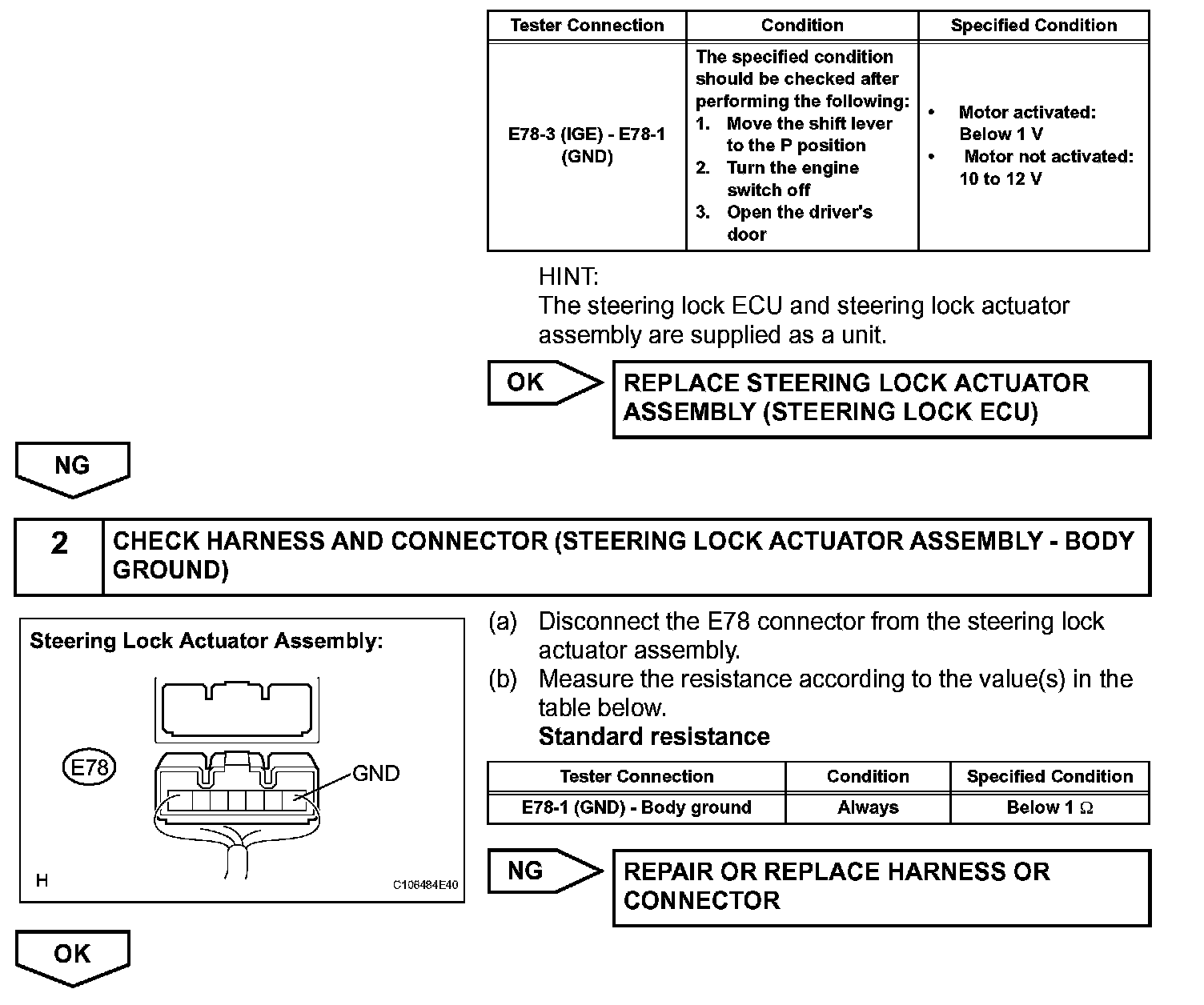

Step 1 (Part 2), Step 2:

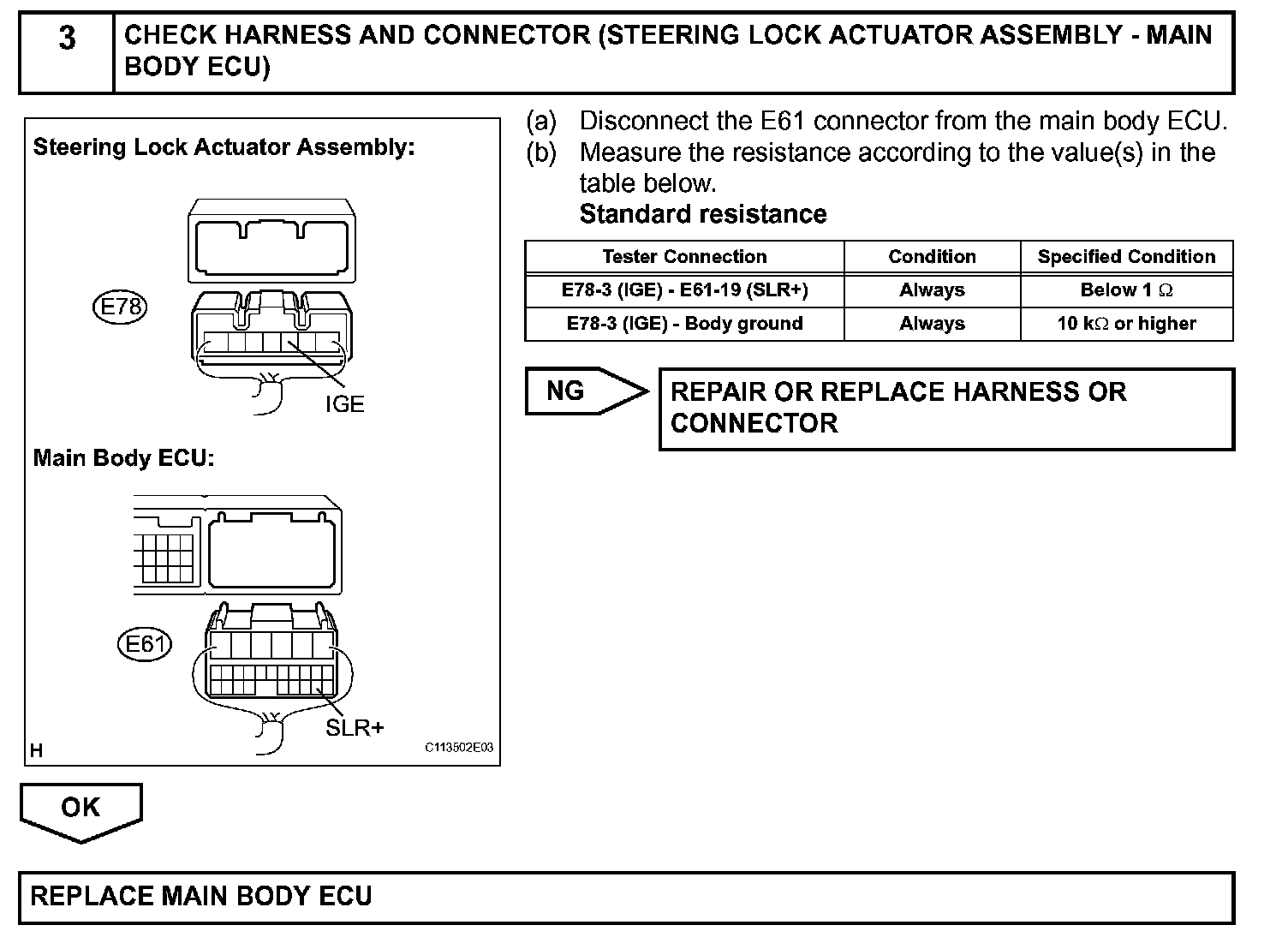

Step 3:
