B2781

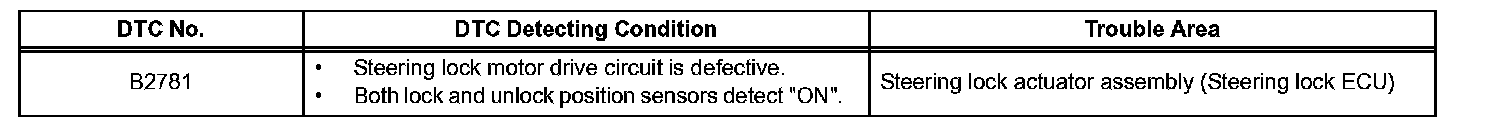

DTC B2781 Open / Short in Steering Lock ECUDESCRIPTION
If the steering lock ECU determines that there is a malfunction inside the ECU, it outputs this DTC. The steering lock ECU diagnosis information cannot be read directly from the steering lock ECU by the tester. The diagnosis information from the steering lock ECU is transmitted to the tester via the certification ECU to the tester using the controller area network (CAN).

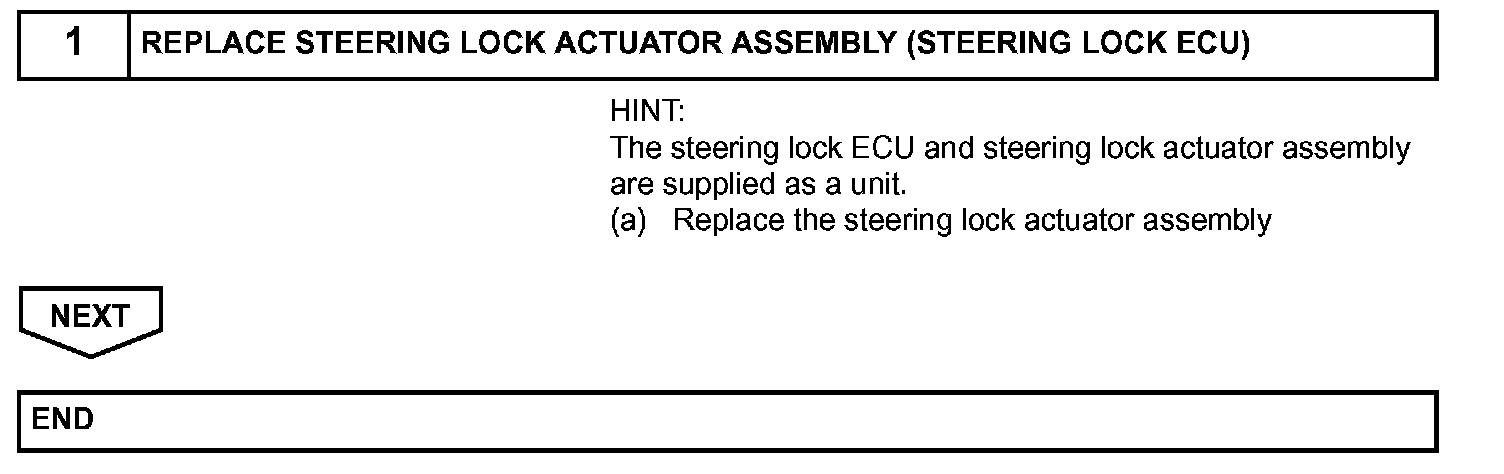

INSPECTION PROCEDURE
Step 1:
