B1244

DTC B1244 Light Sensor Circuit Malfunction

DESCRIPTION

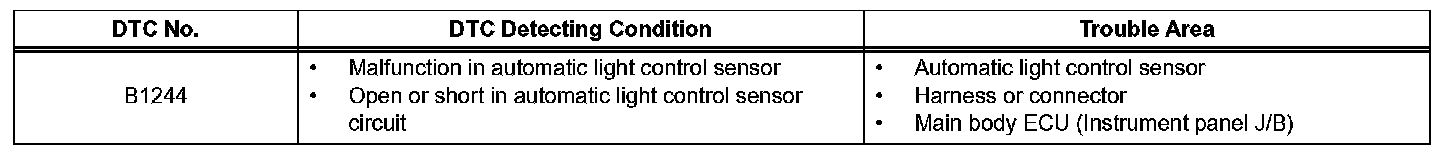

DTC Detecting Condition:

The automatic light control sensor detects ambient light, converts it into an electrical signal, and outputs it to the main body ECU. The main body ECU turns on or off the headlights and taillights according to the signal.

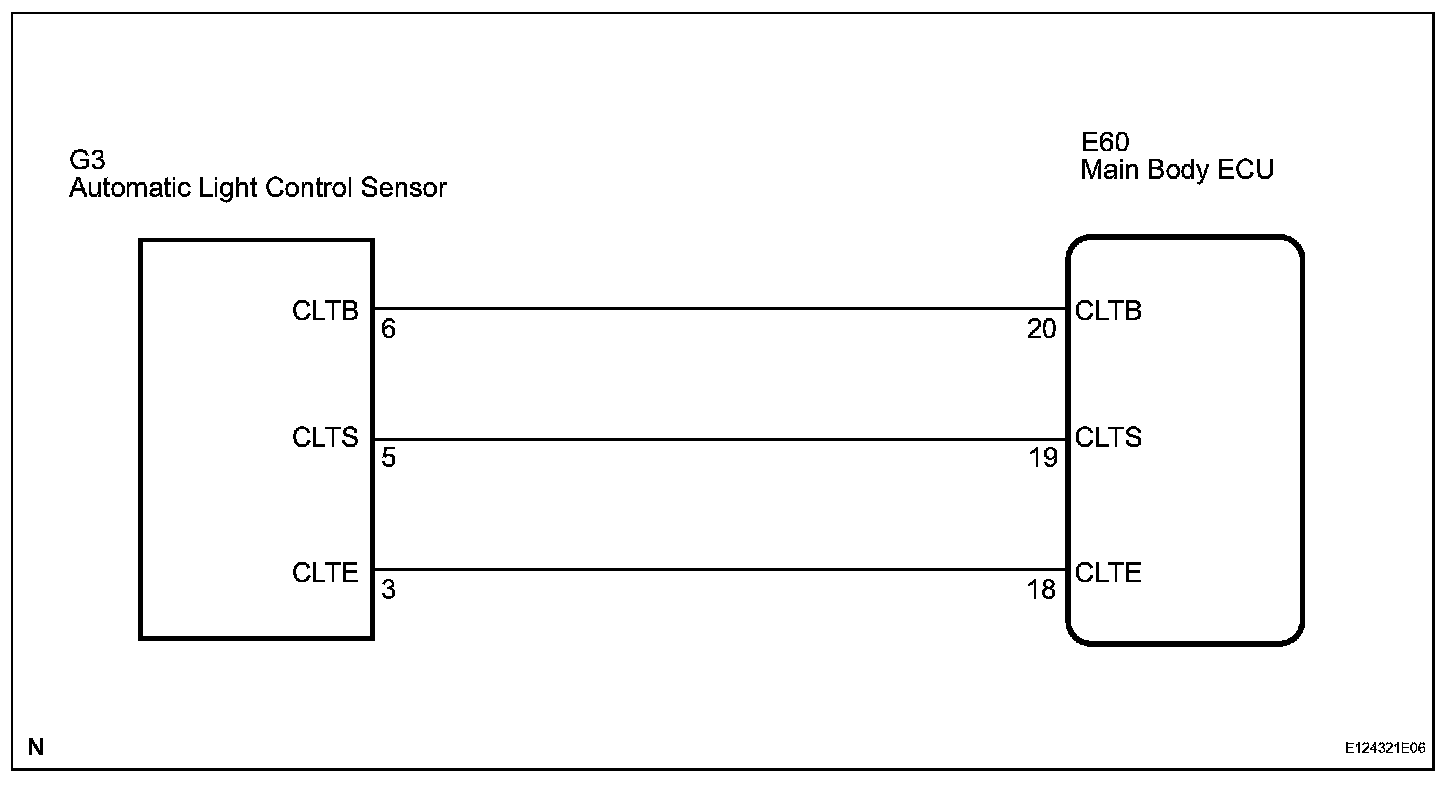

Wiring Diagram:

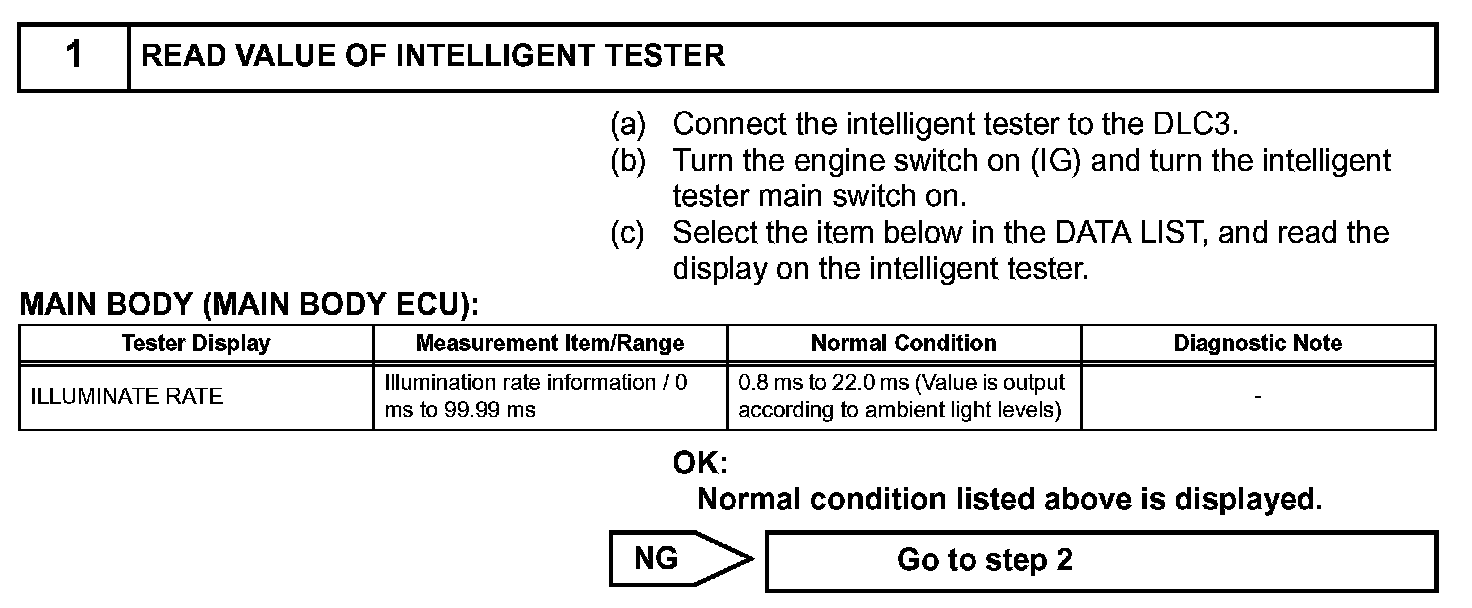

Step 1:

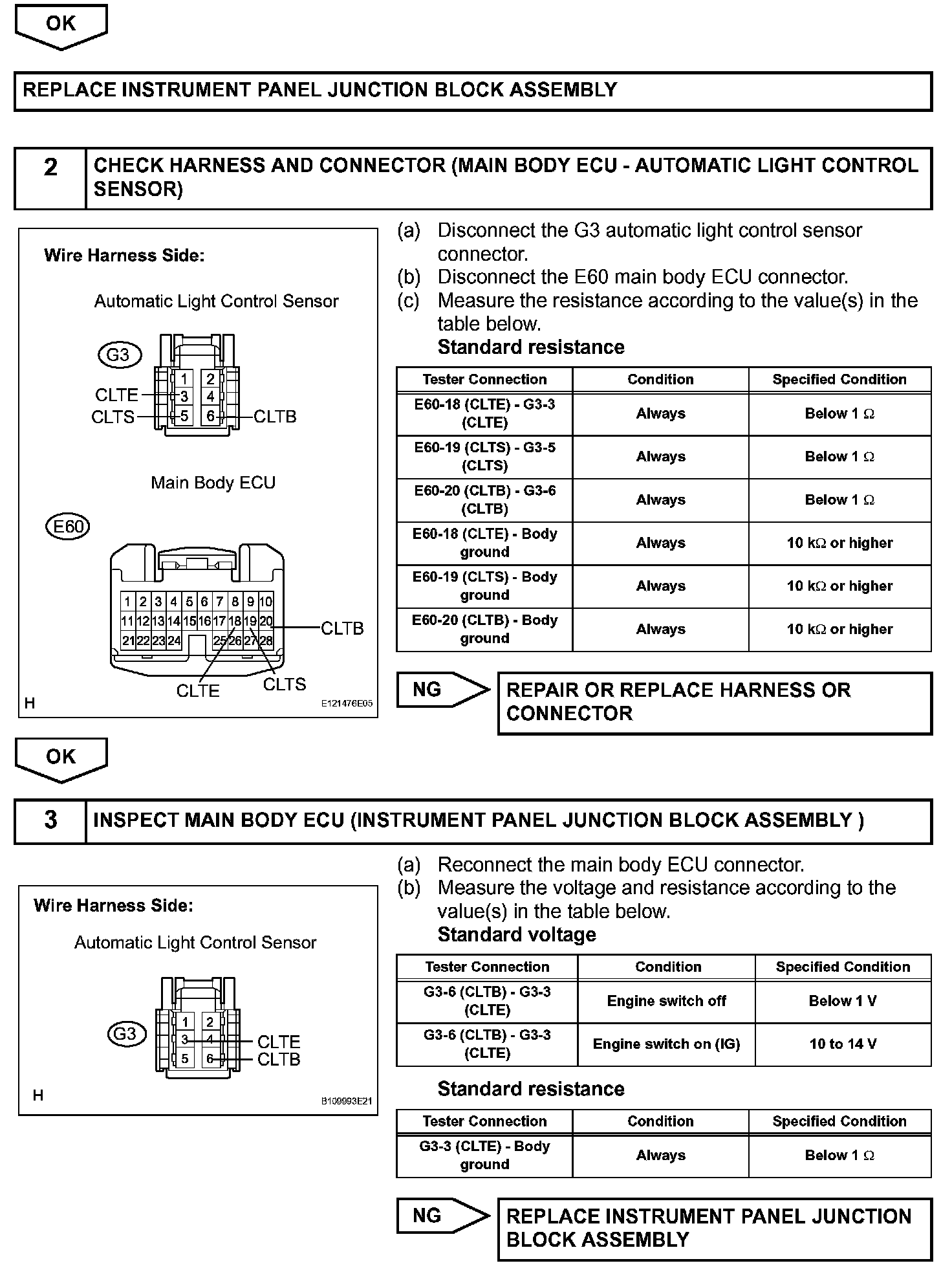

Step 1 (Continued)-3:

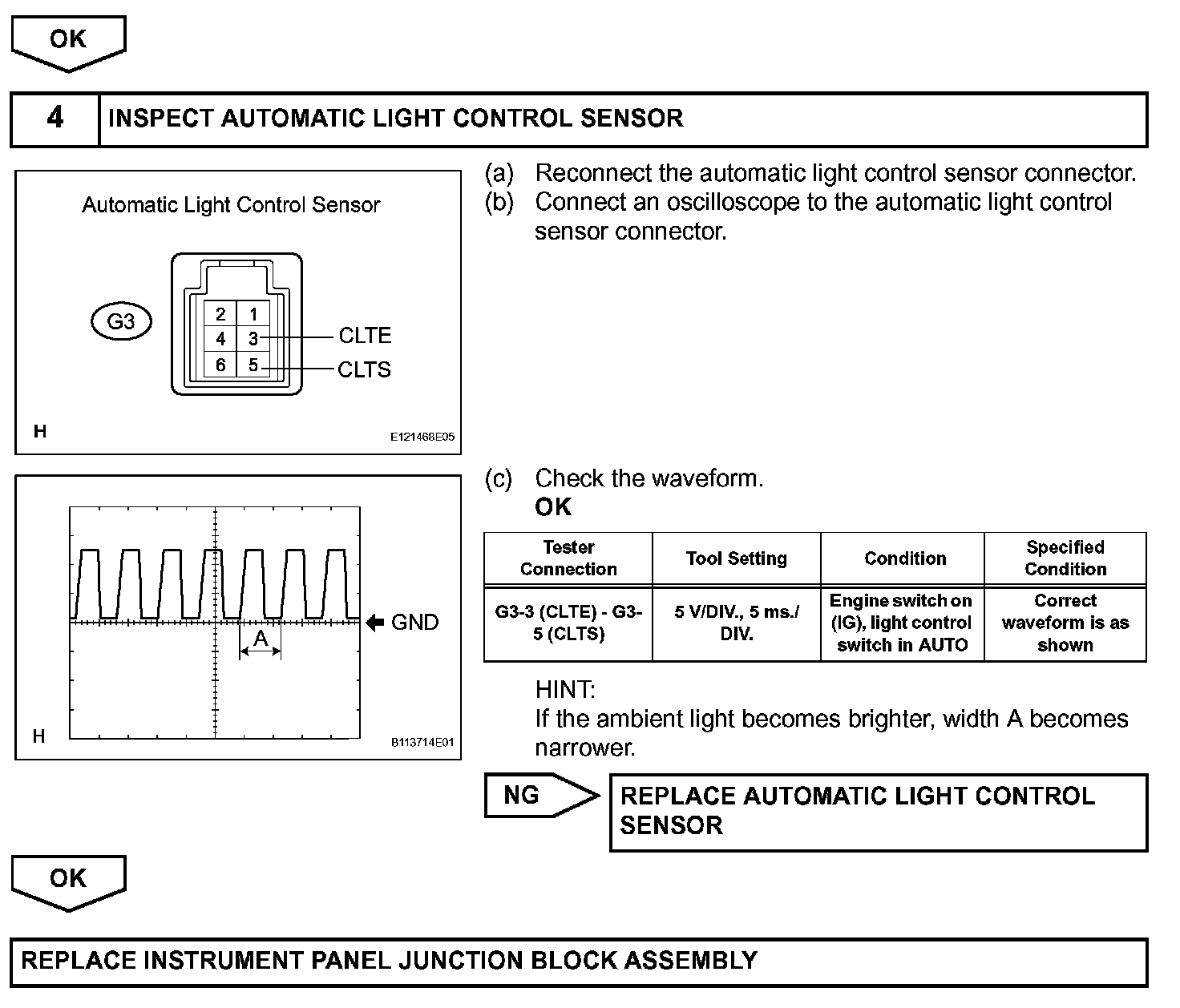

Step 3 (Continued)-4:

INSPECTION PROCEDURE
