Wiper Switch (HI Speed) Circuit
WIPER SWITCH (HI SPEED) CIRCUITCIRCUIT DESCRIPTION
The passenger side J/B ECU receives the wiper switch HI position signal and activates the wiper motor at HI speed.

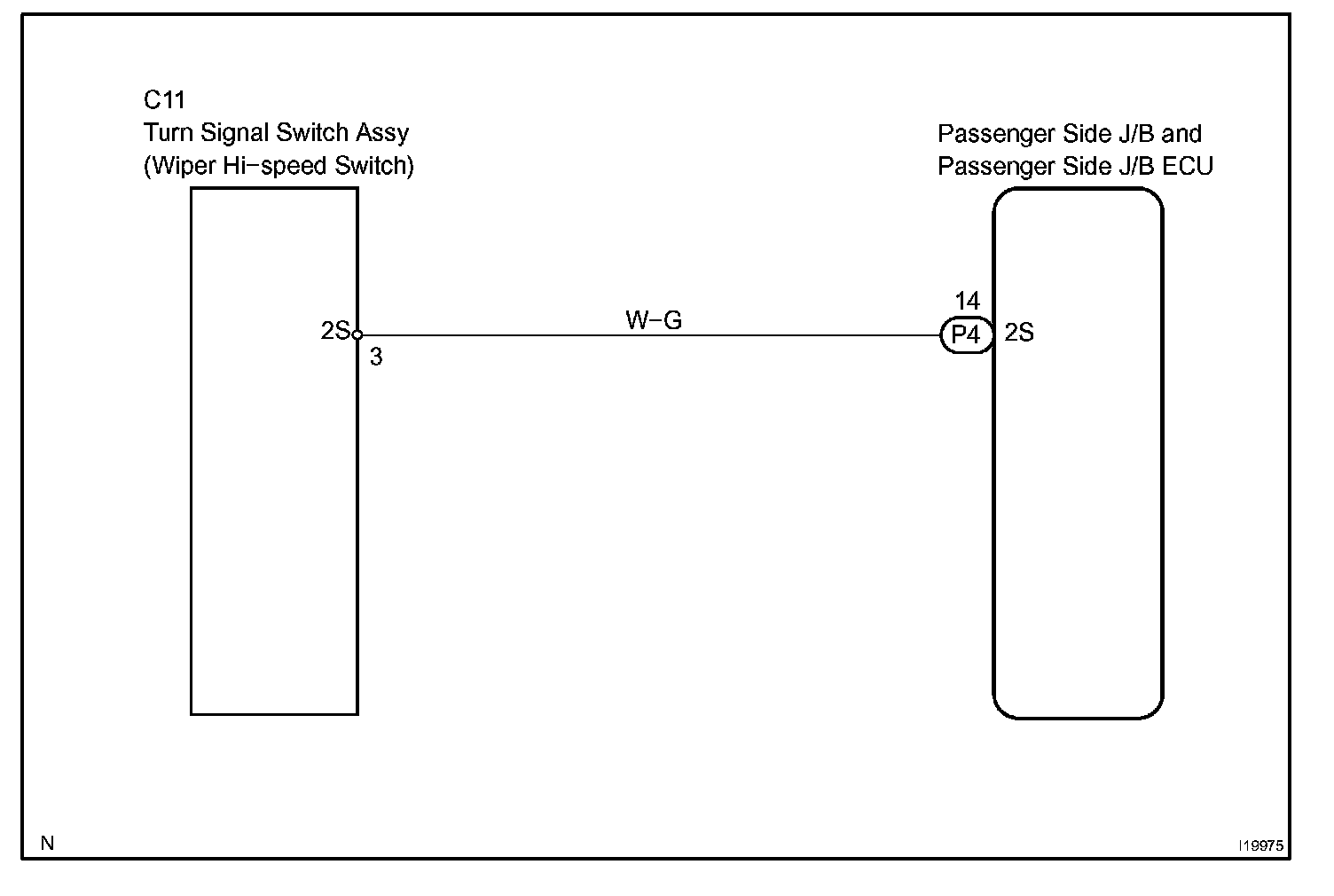

Wiring Diagram:

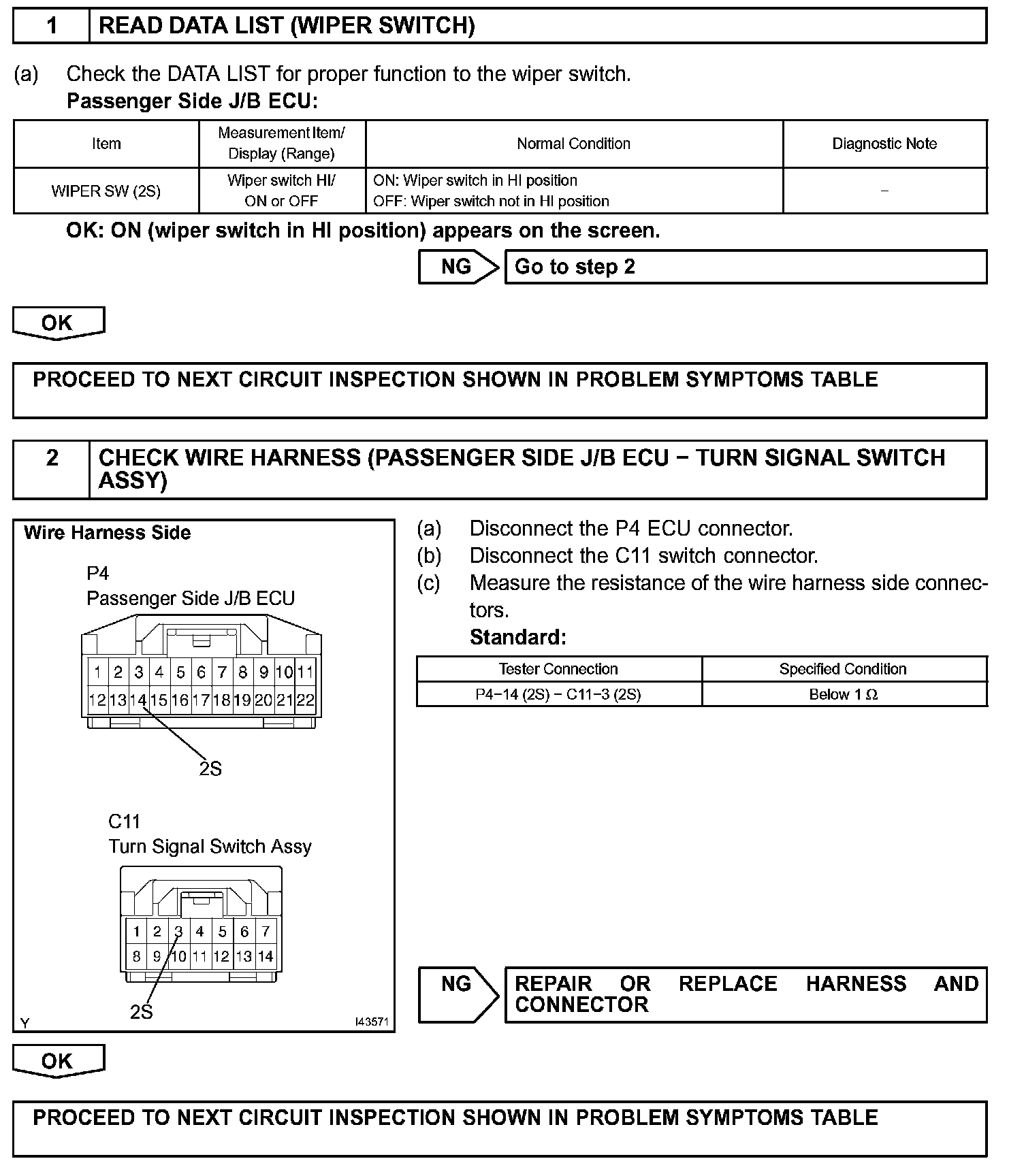

Step 1-2:
INSPECTION PROCEDURE
CIRCUIT DESCRIPTION
The passenger side J/B ECU receives the wiper switch HI position signal and activates the wiper motor at HI speed.
INSPECTION PROCEDURE
