Wiper Motor Circuit

WIPER MOTOR CIRCUIT

CIRCUIT DESCRIPTION

The passenger side J/B ECU controls the wiper motor. Even if the ECU is malfunctioning, the wiper motor circuit is designed so that the wiper can still function in HI mode.

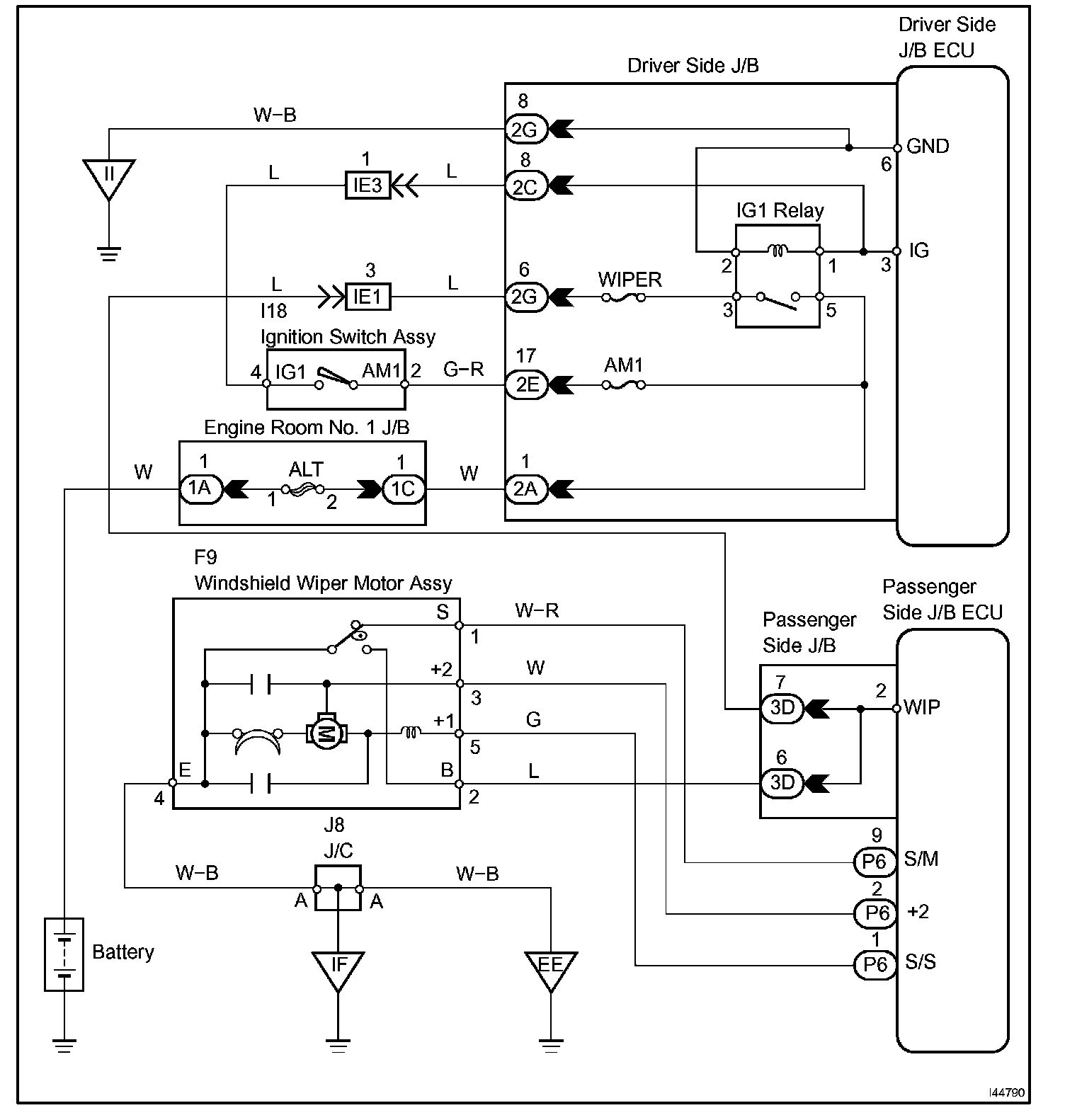

Wiring Diagram:

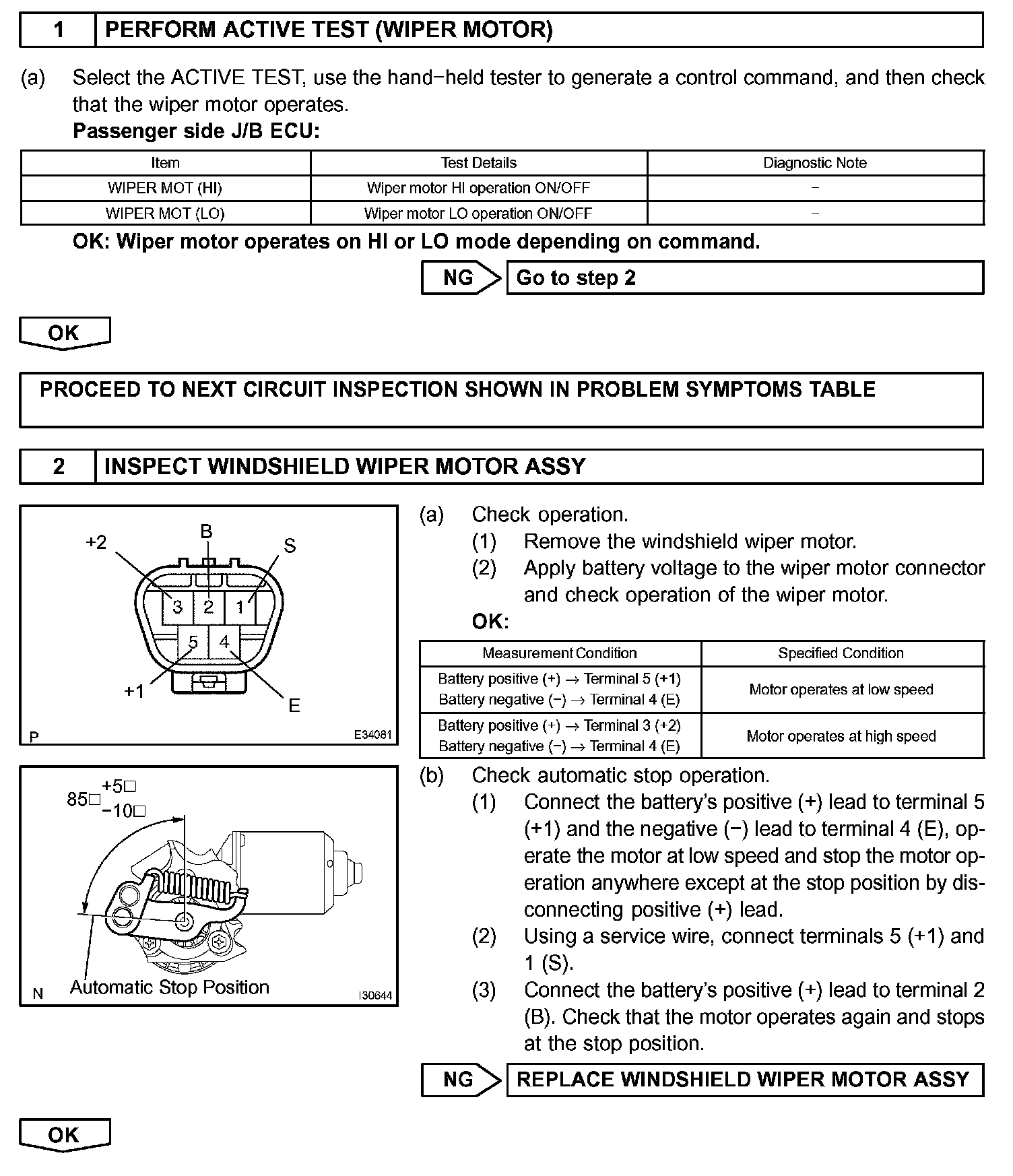

Step 1-2:

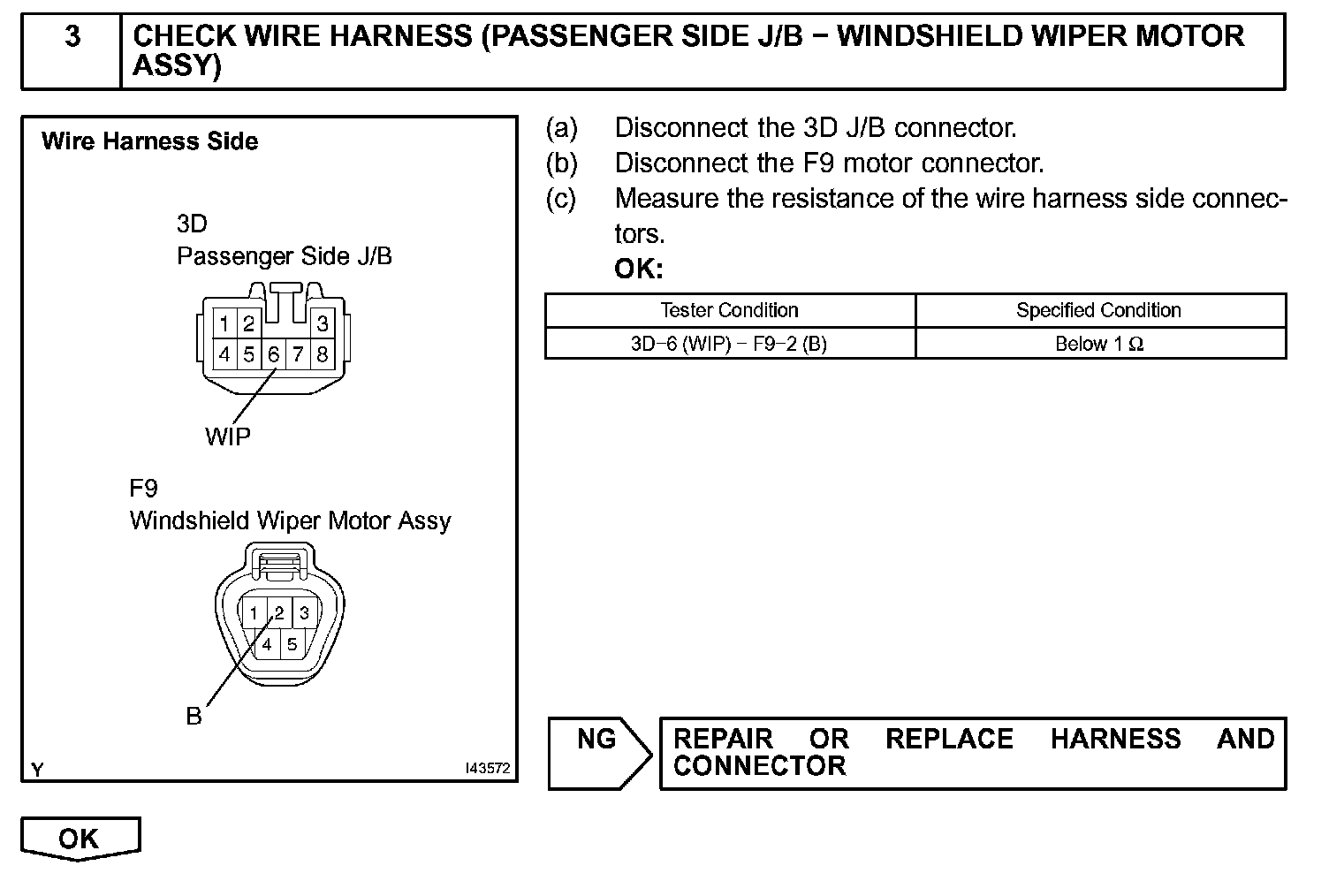

Step 3:

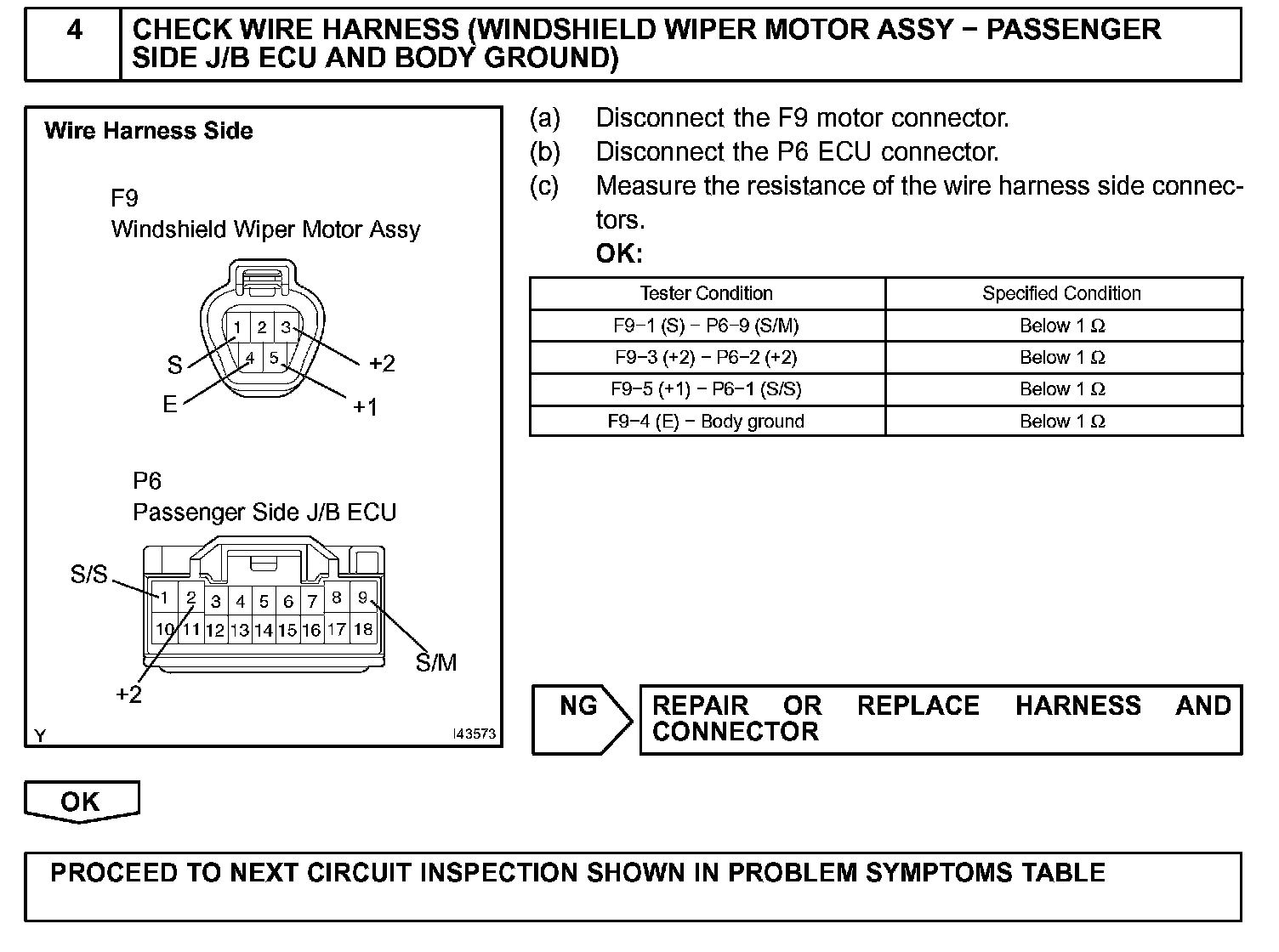

Step 4:

INSPECTION PROCEDURE
