Washer Fluid Level Warning Switch Circuit

WASHER FLUID LEVEL WARNING SWITCH CIRCUIT

CIRCUIT DESCRIPTION

The front lamp ECU receives washer fluid level sensor information, and sends it through the multiplex communication system to the combination meter. The combination meter receives this information and illuminates the washer fluid level warning lamp when the washer fluid is less than a predetermined value.

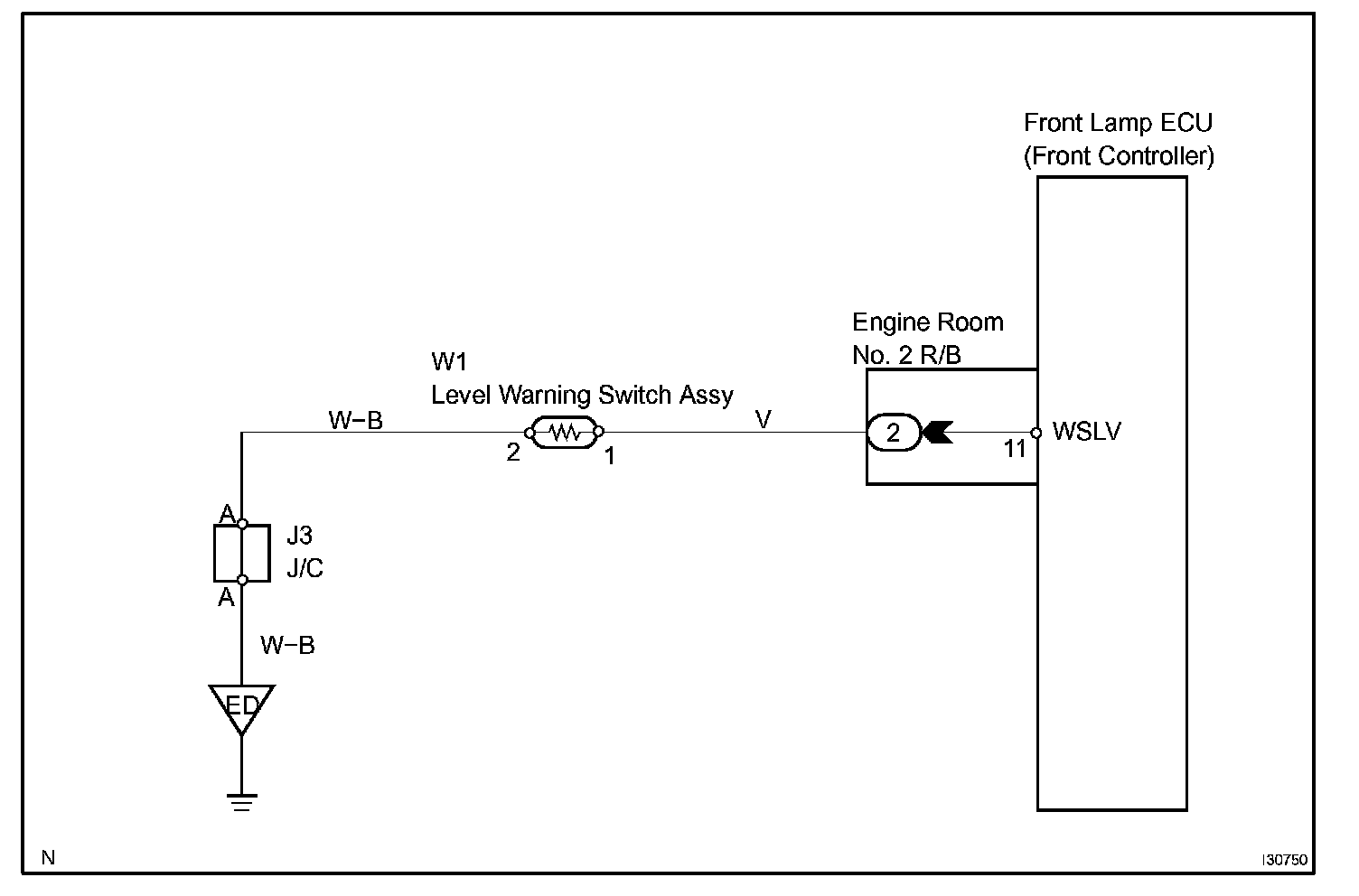

Wiring Diagram:

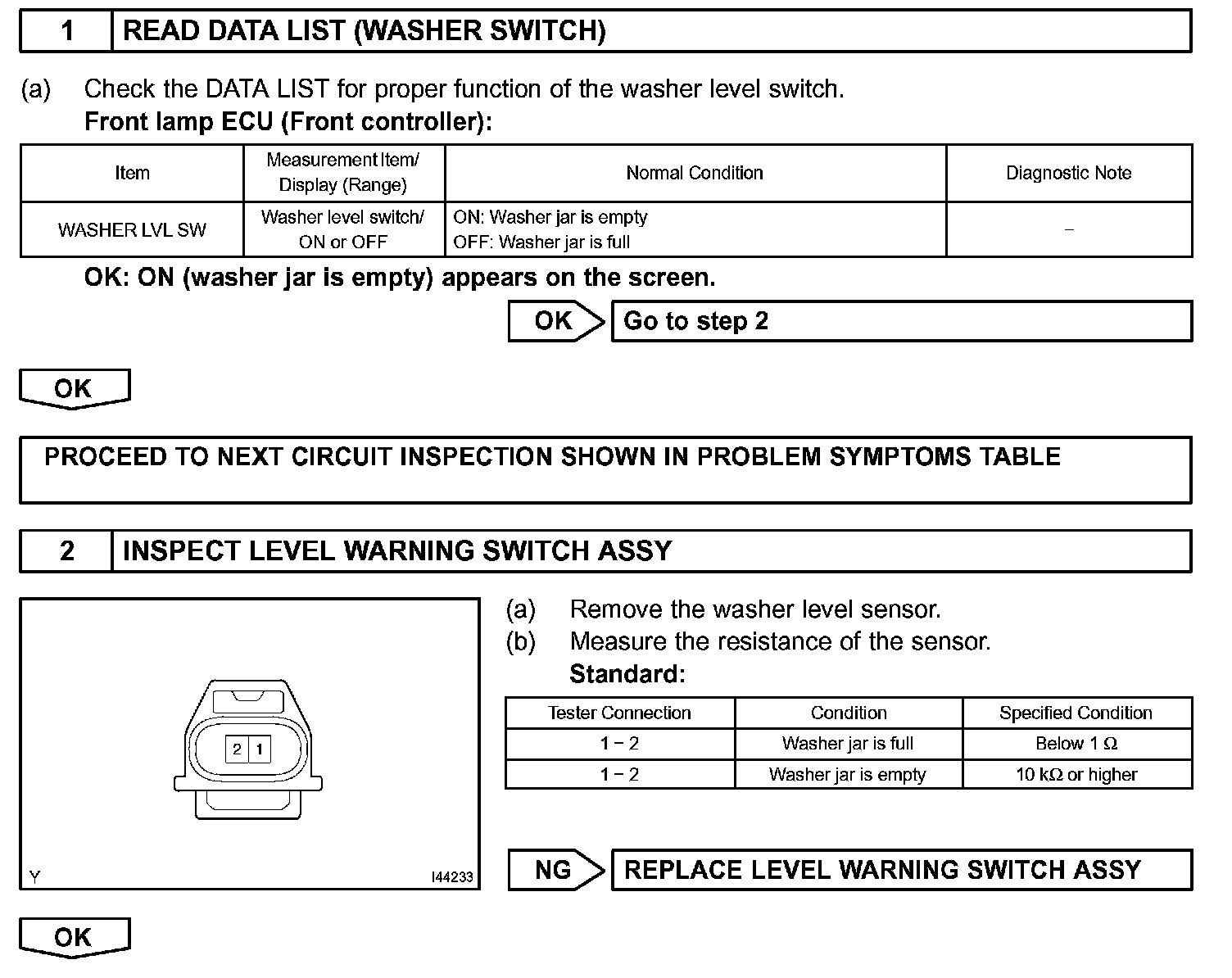

Step 1-2:

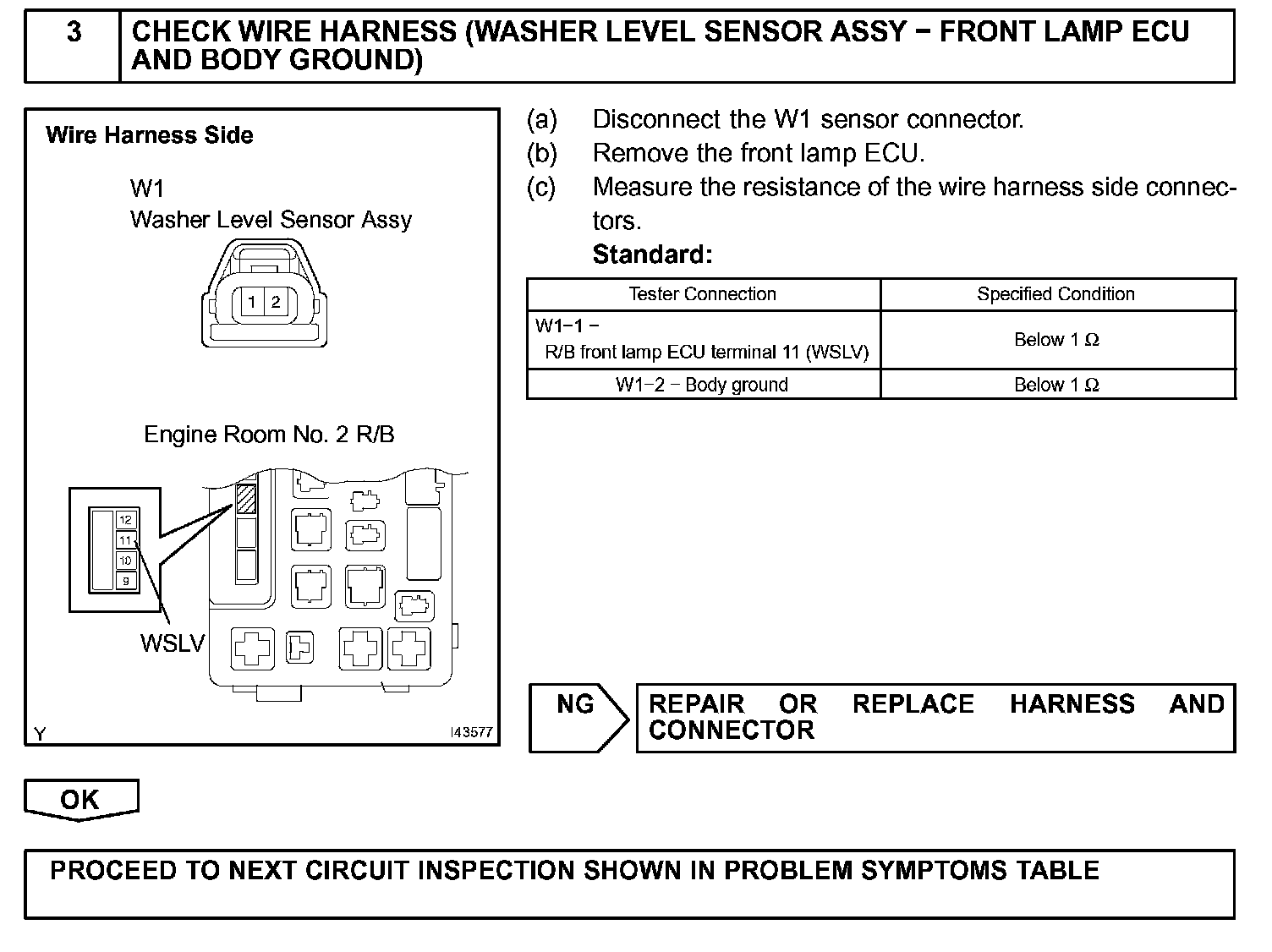

Step 3:

INSPECTION PROCEDURE
