Headlamp Washer Actuator Sub-Assy:

HEADLAMP WASHER ACTUATOR SUB-ASSEMBLY

REPLACEMENT

HINT:
- The installation procedures are the removal procedures in reverse order. However, only installation procedures requiring additional information are included.
- Use the same procedures for the RH side and LH side.
- The procedures listed are for the LH side.
- A bolt without a torque specification is shown in the standard bolt chart.

1. REMOVE RADIATOR GRILLE
2. REMOVE FRONT FENDER LINER LH
3. REMOVE FRONT FENDER LINER RH
4. REMOVE FRONT BUMPER COVER

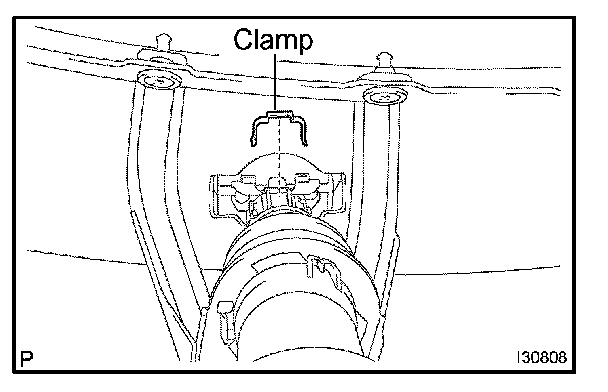

5. REMOVE HEADLAMP CLEANER WASHER NOZZLE
a. Remove the clamp.
b. Remove the washer nozzle.

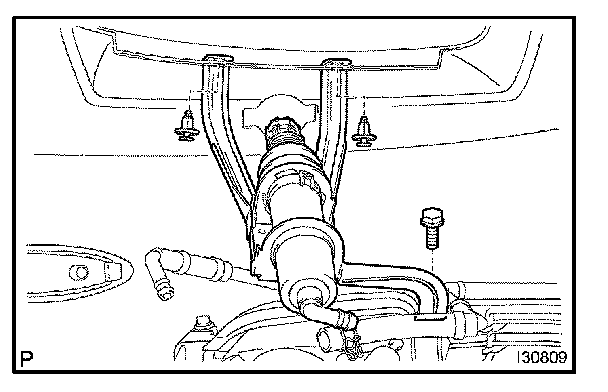

6. REMOVE HEADLAMP WASHER ACTUATOR SUB-ASSEMBLY LH
a. Disconnect the cleaner hose.
b. Remove the bolt, 2 clips and actuator.
