Power Window Does Not Operate on Driver Side

POWER WINDOW DOES NOT OPERATE ON DRIVER SIDE

CIRCUIT DESCRIPTION

The power window regulator master switch sends signals to the multiplex network door ECU front LH (driver door ECU). The ECU then activates the appropriate power window regulator motor.

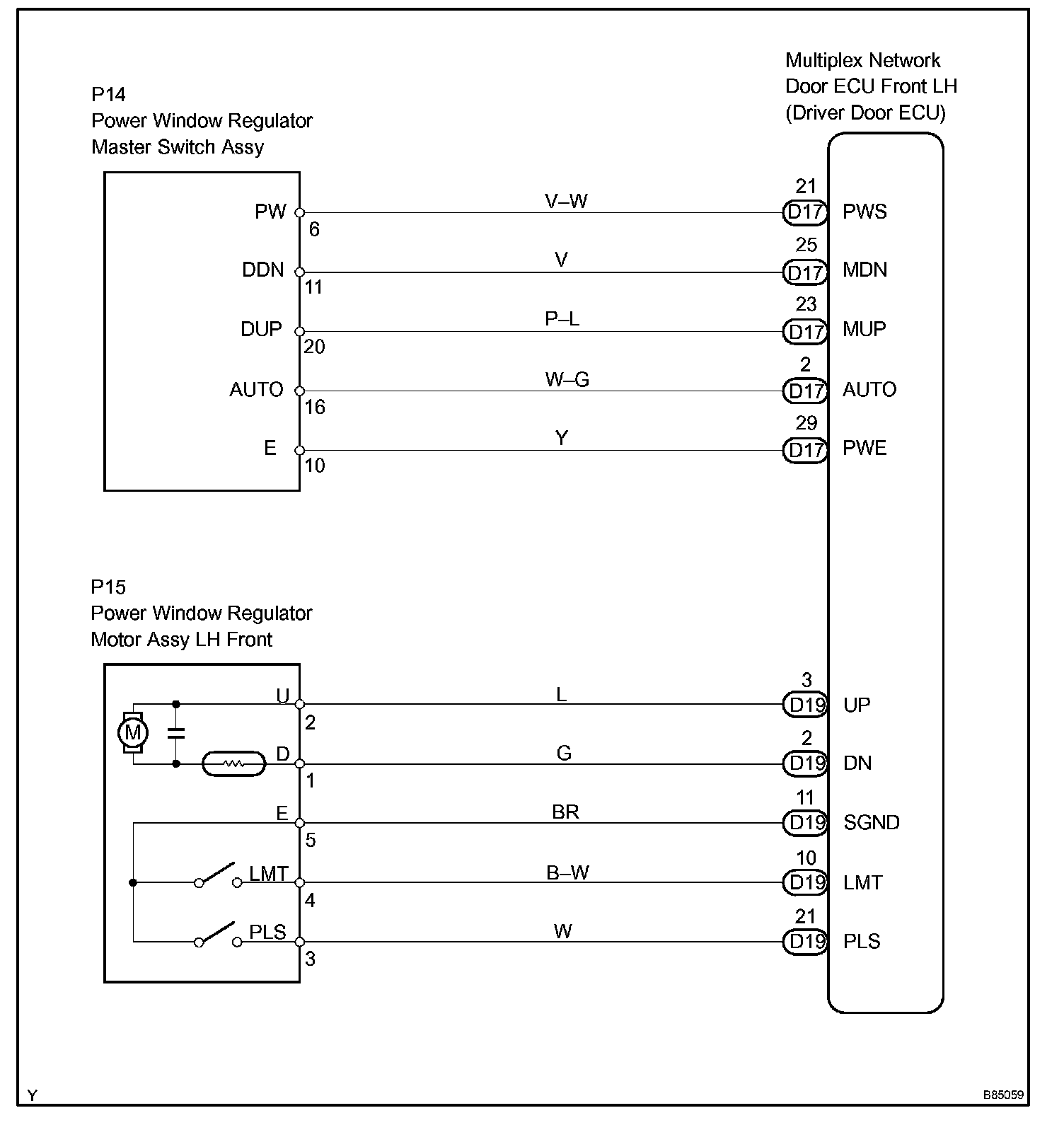

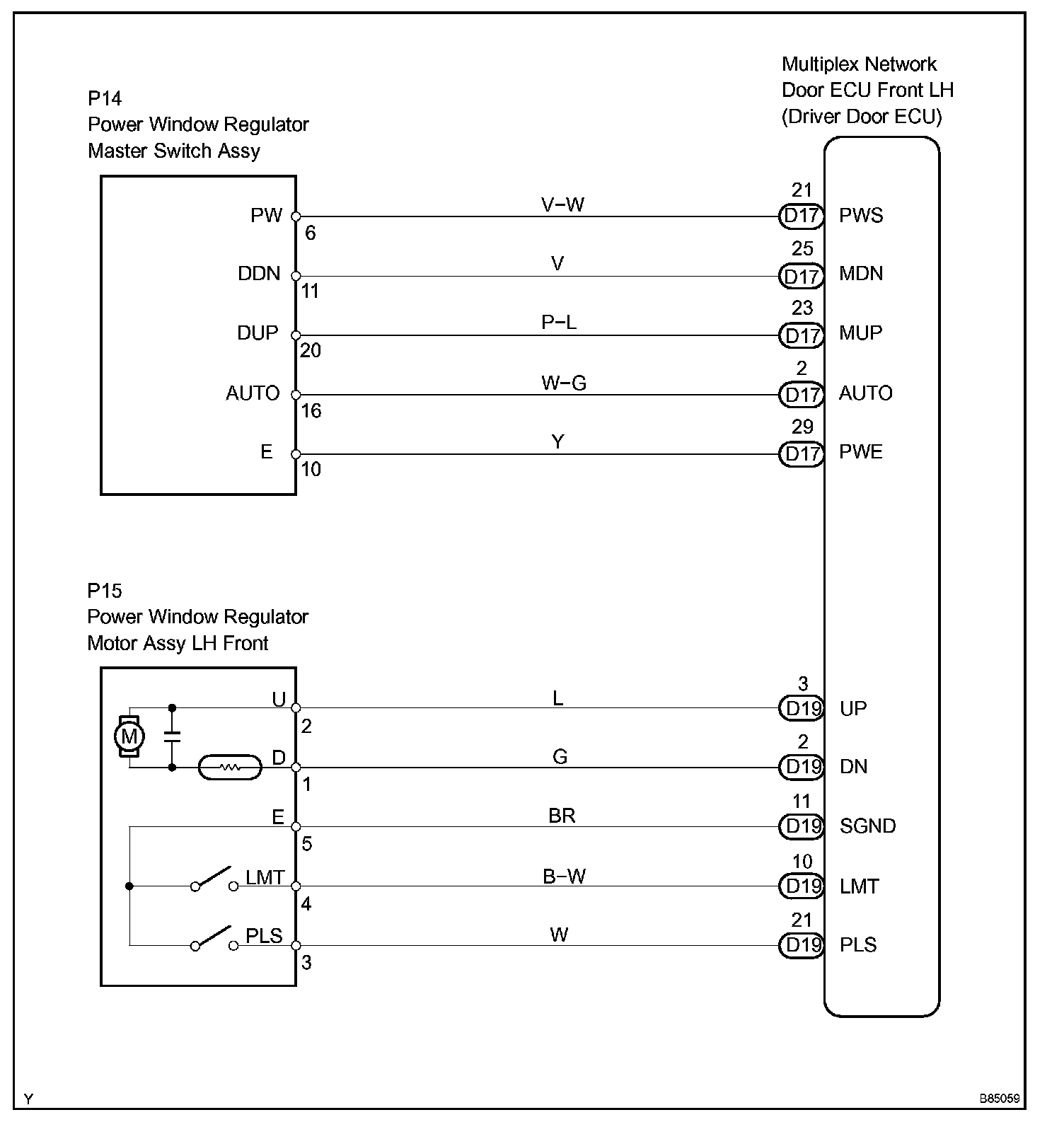

Wiring Diagram:

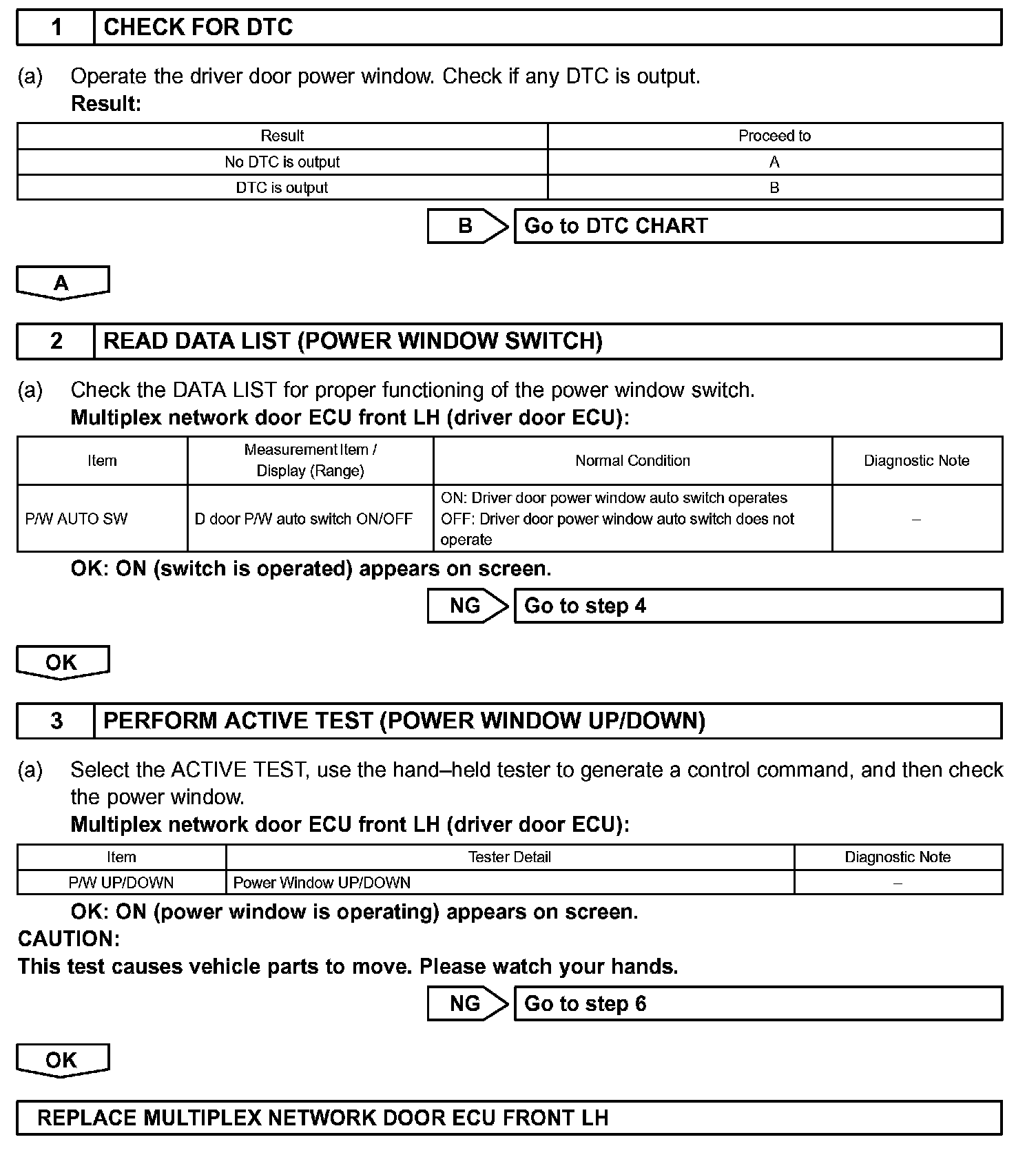

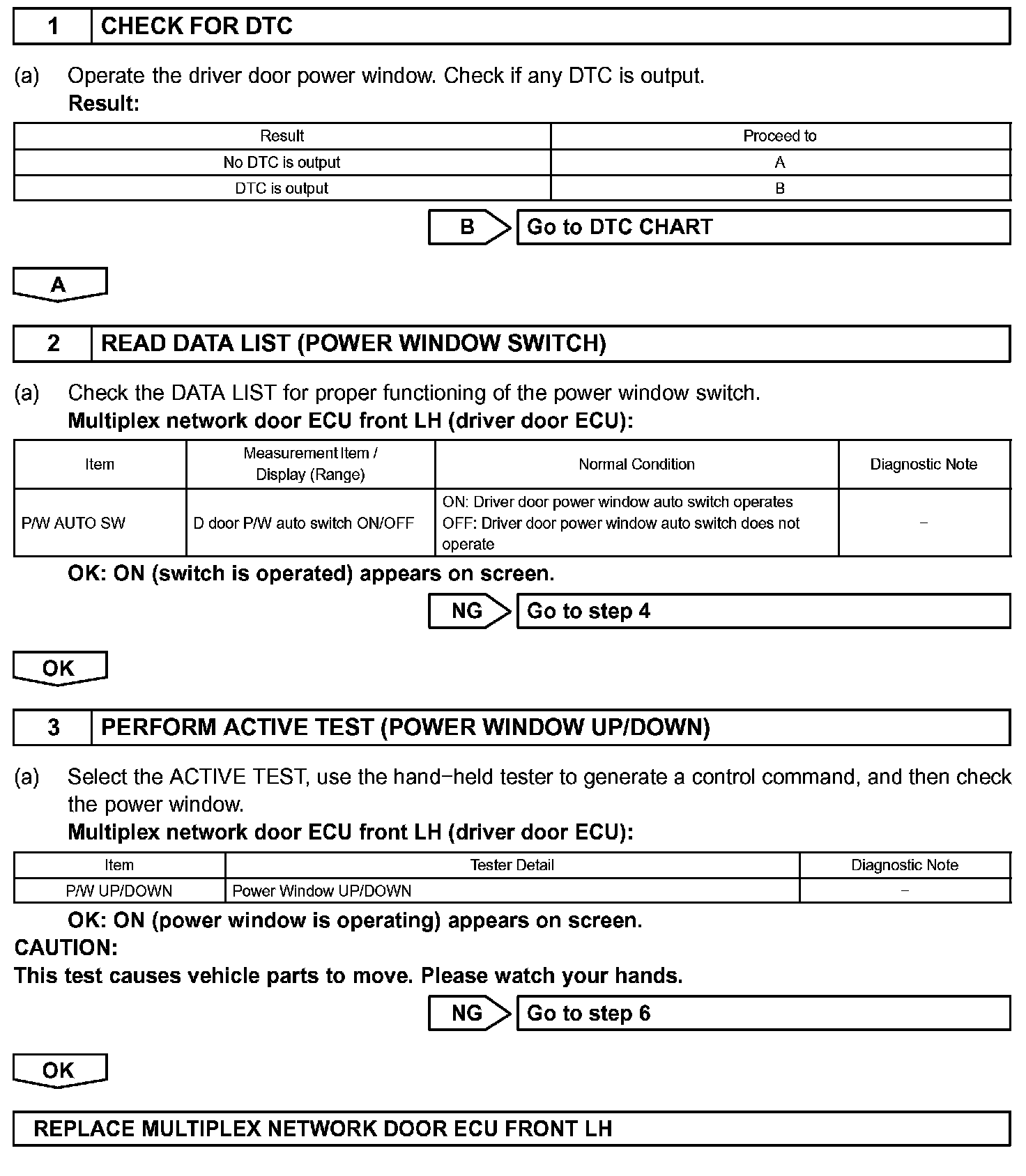

Step 1-3:

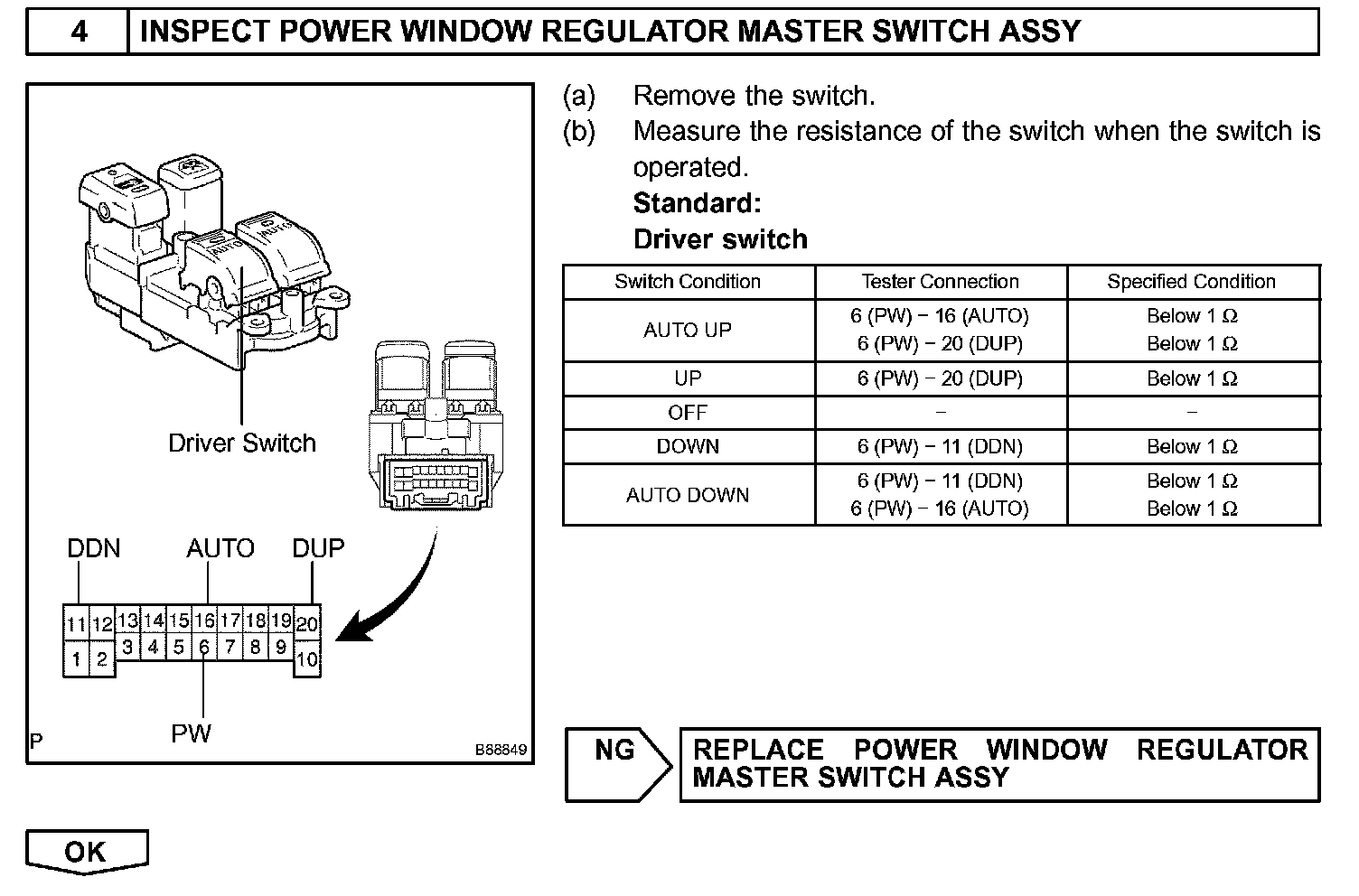

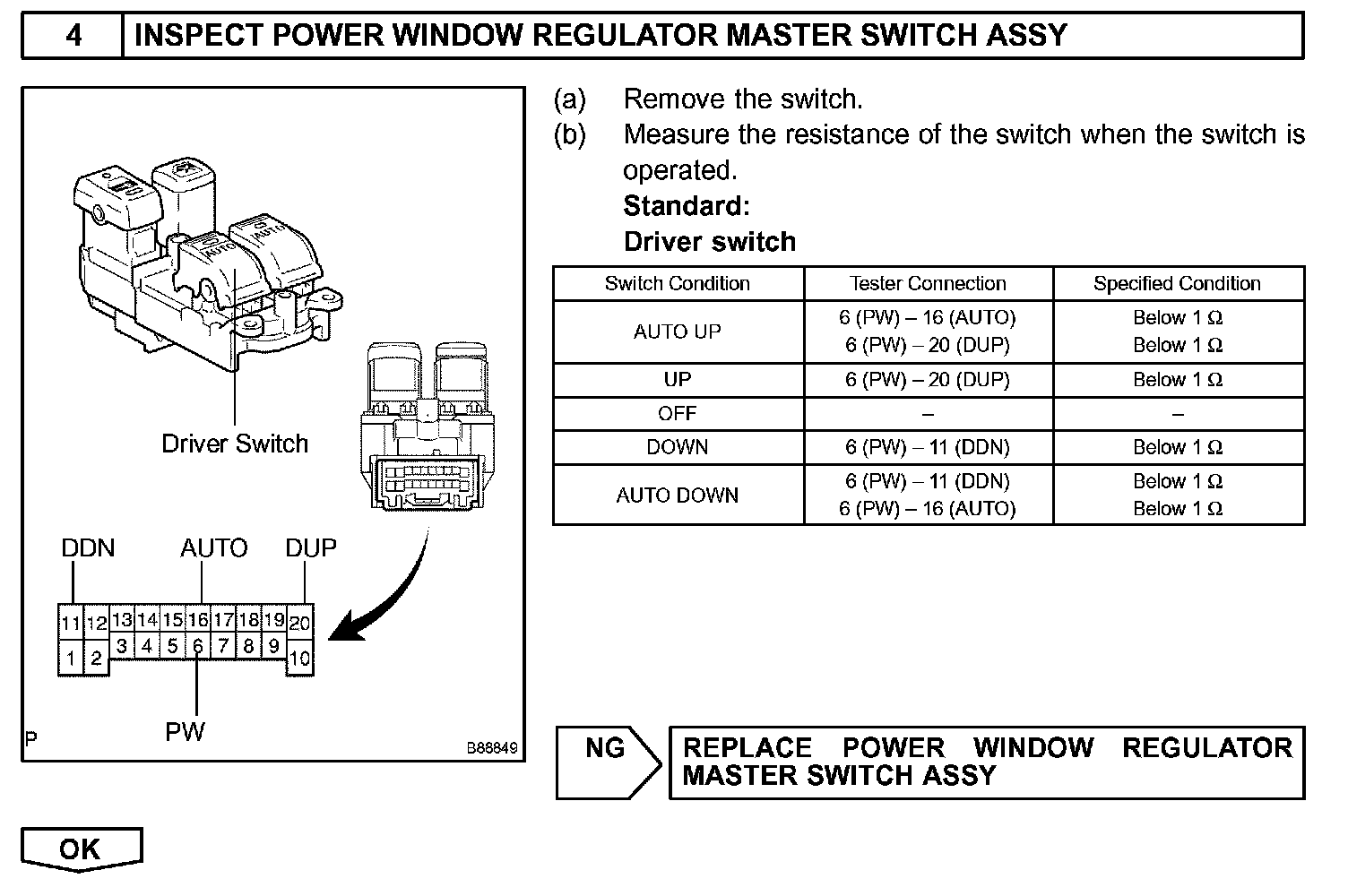

Step 4:

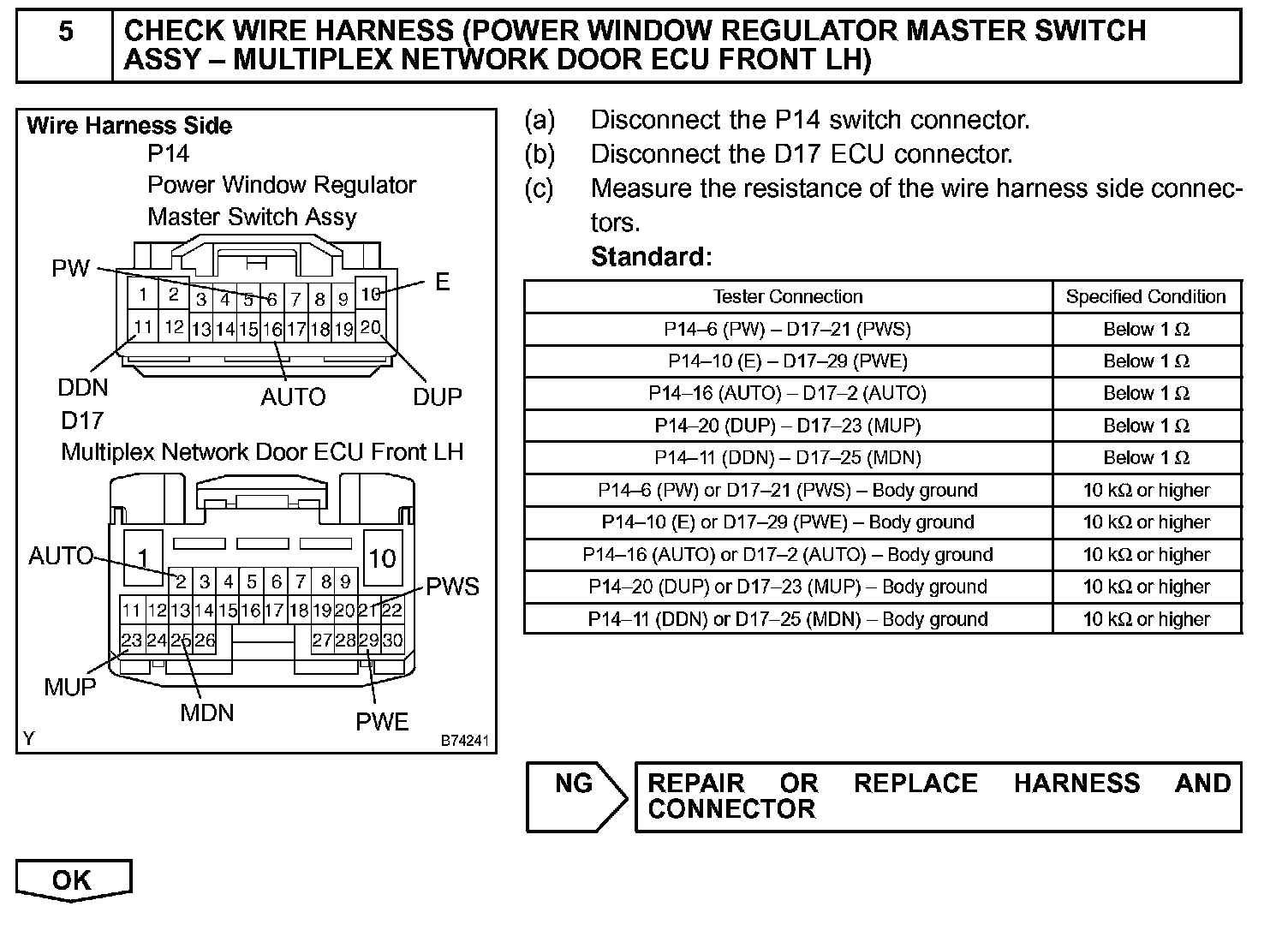

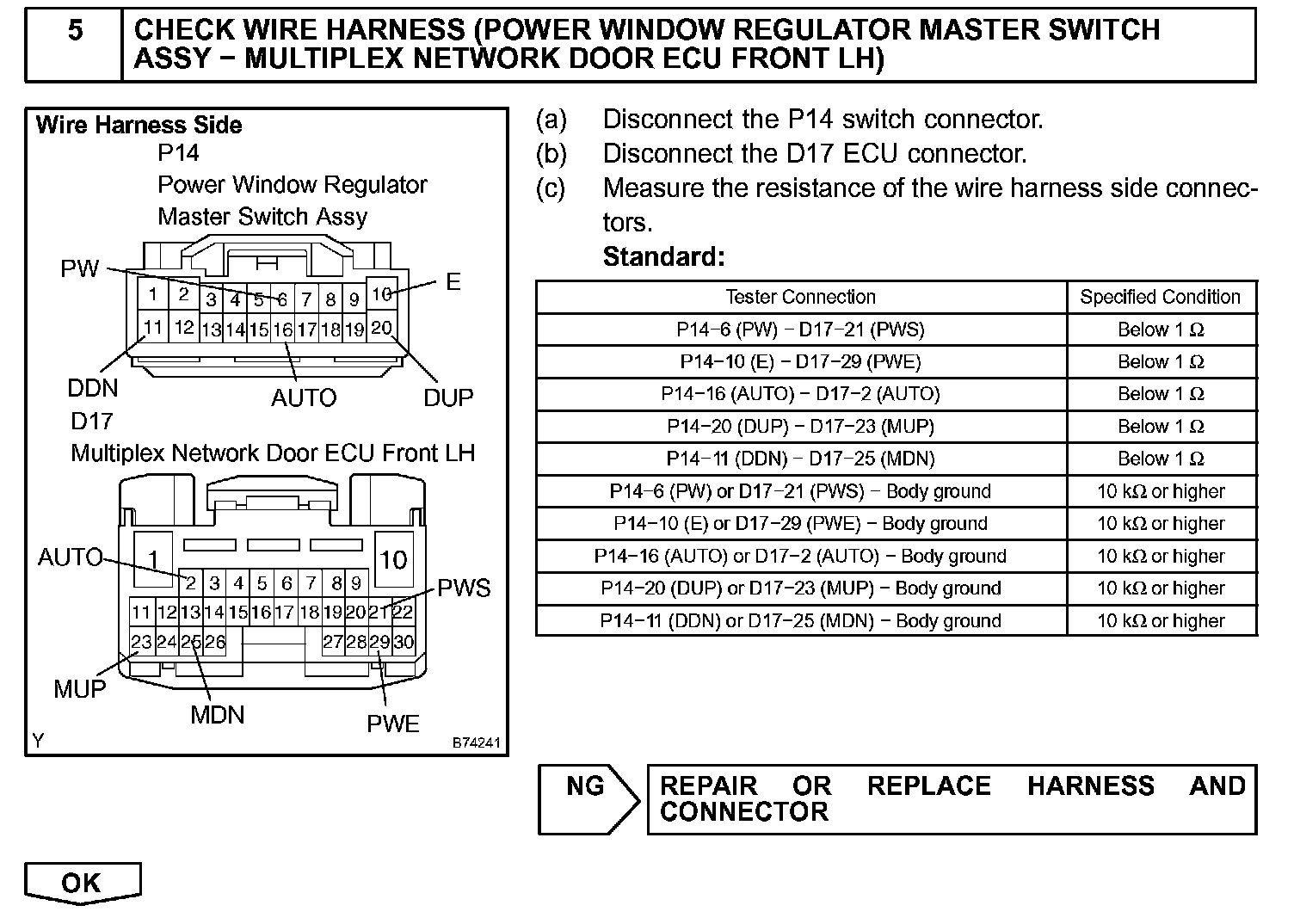

Step 5:

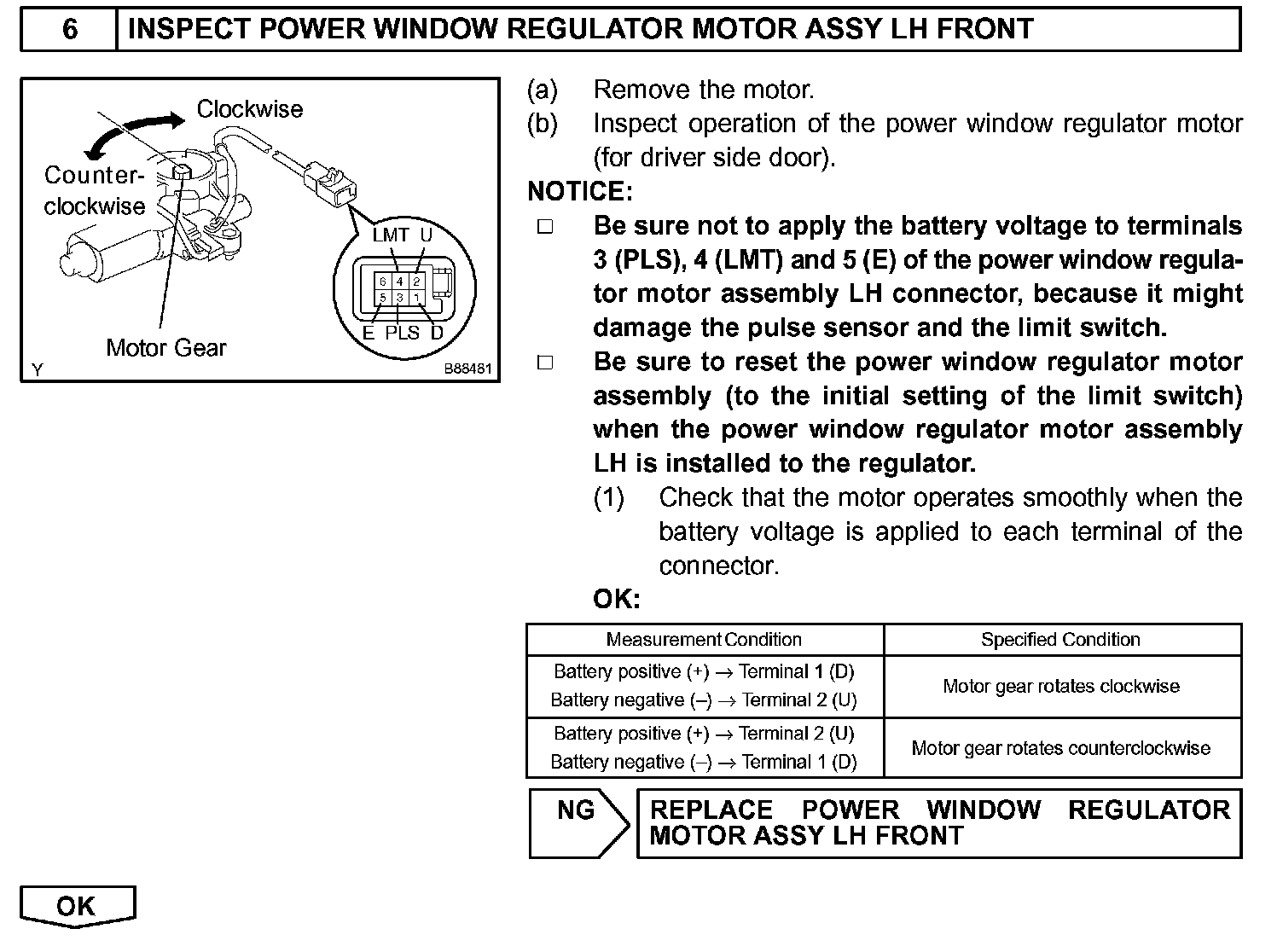

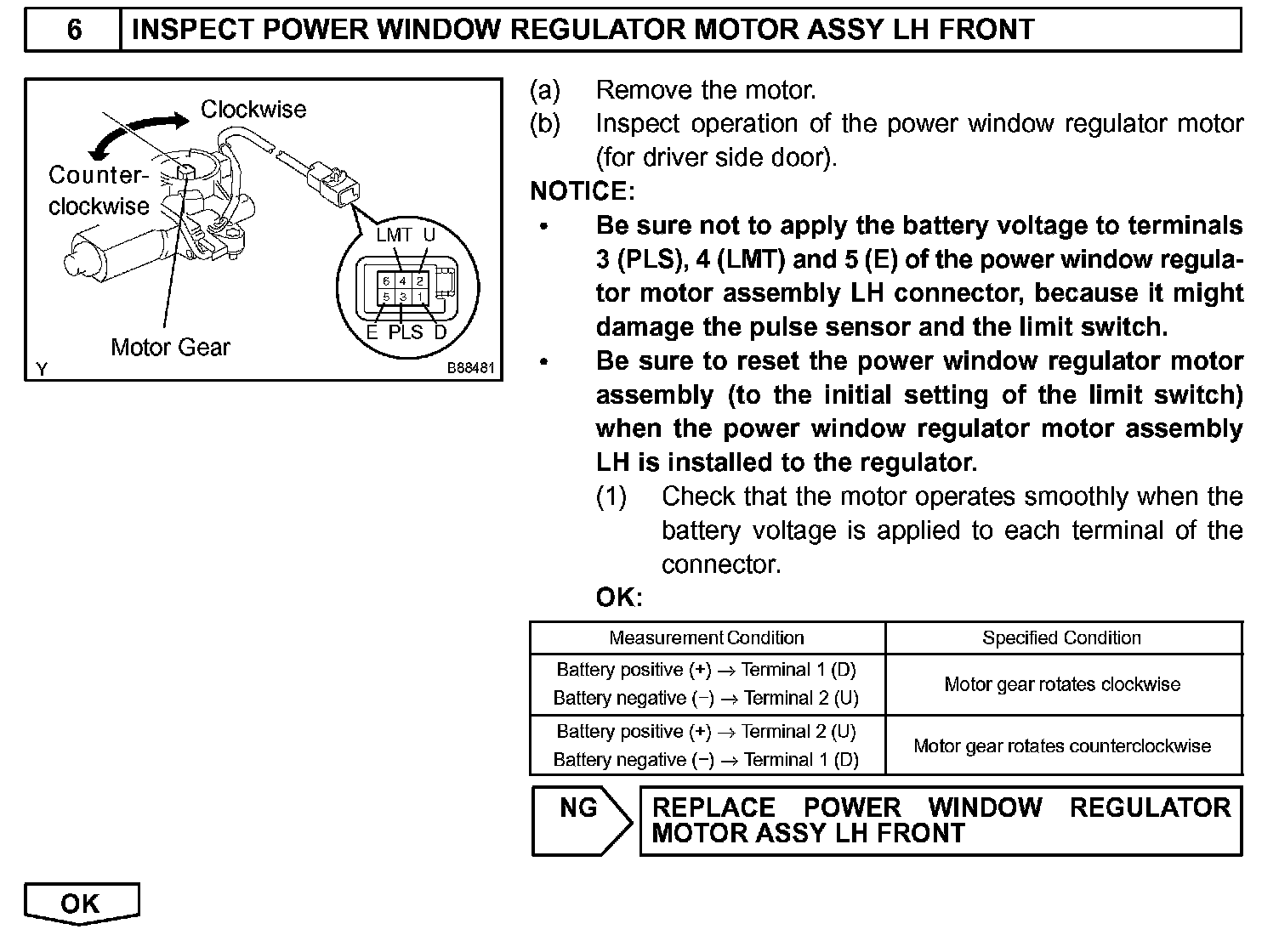

Step 6:

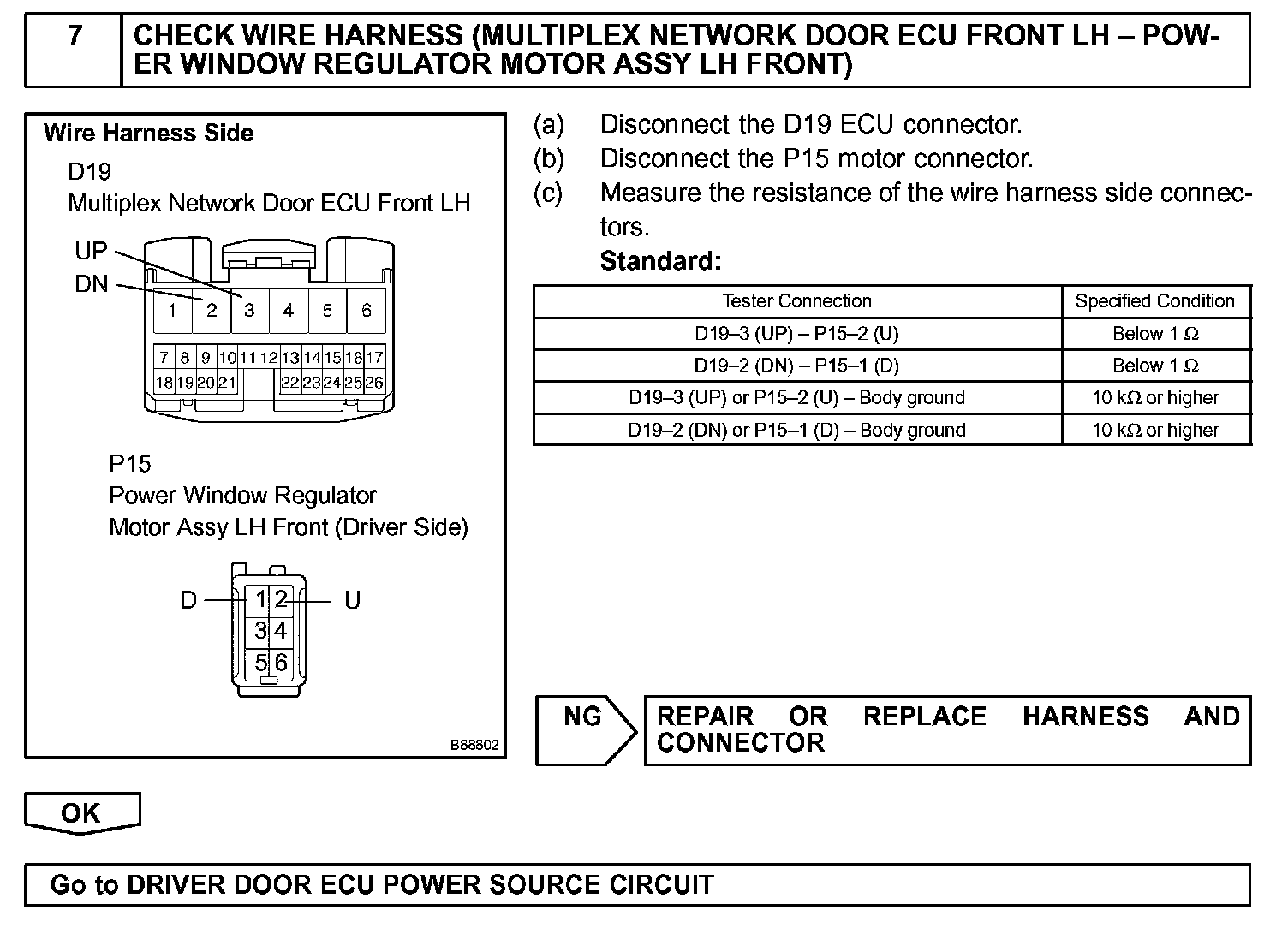

Step 7:

INSPECTION PROCEDURE
