Driver Door ECU Power Source Circuit

DRIVER DOOR ECU POWER SOURCE CIRCUIT

CIRCUIT DESCRIPTION

This circuit supplies power to operate the multiplex network door ECU front LH (driver door ECU).

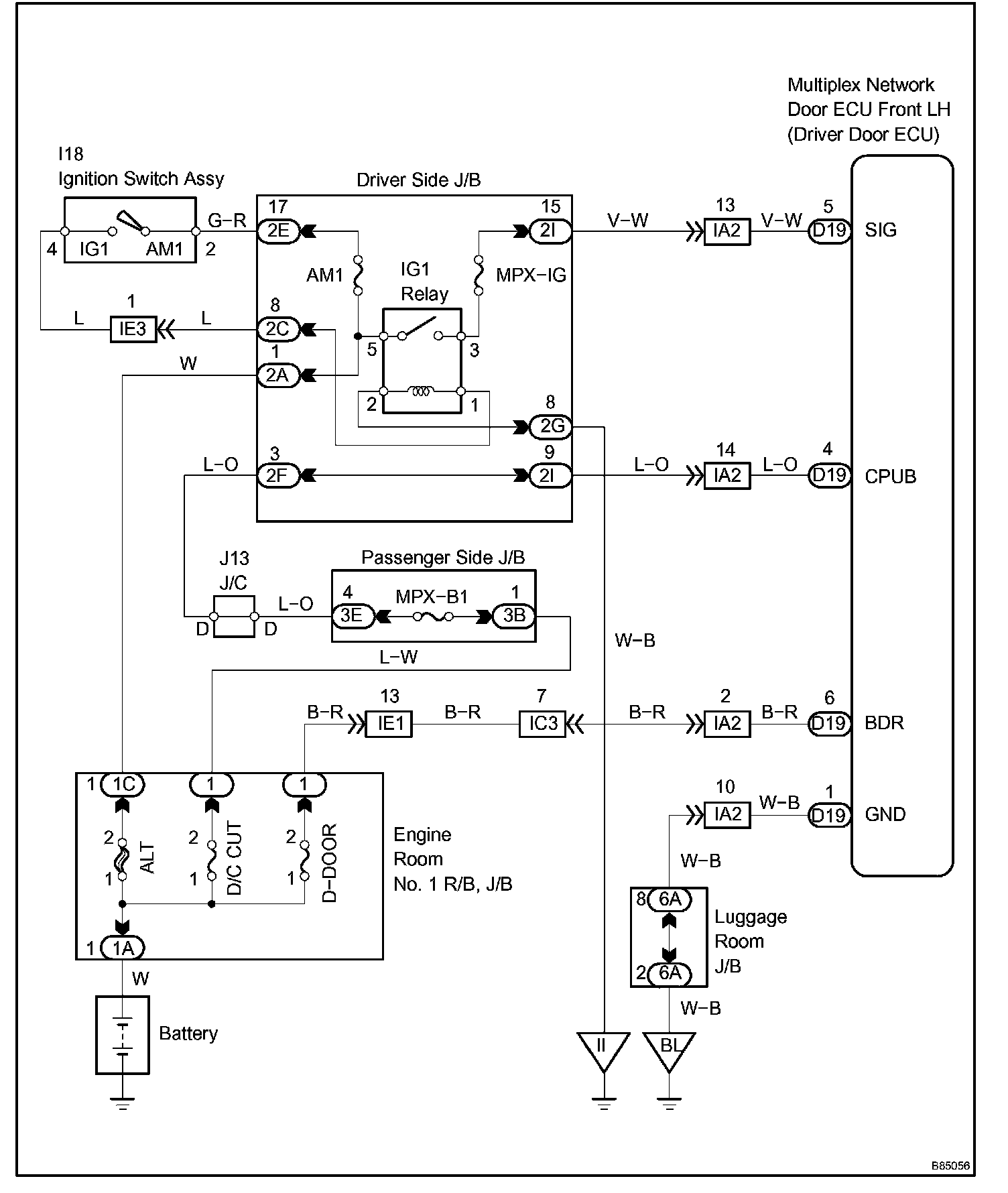

Wiring Diagram:

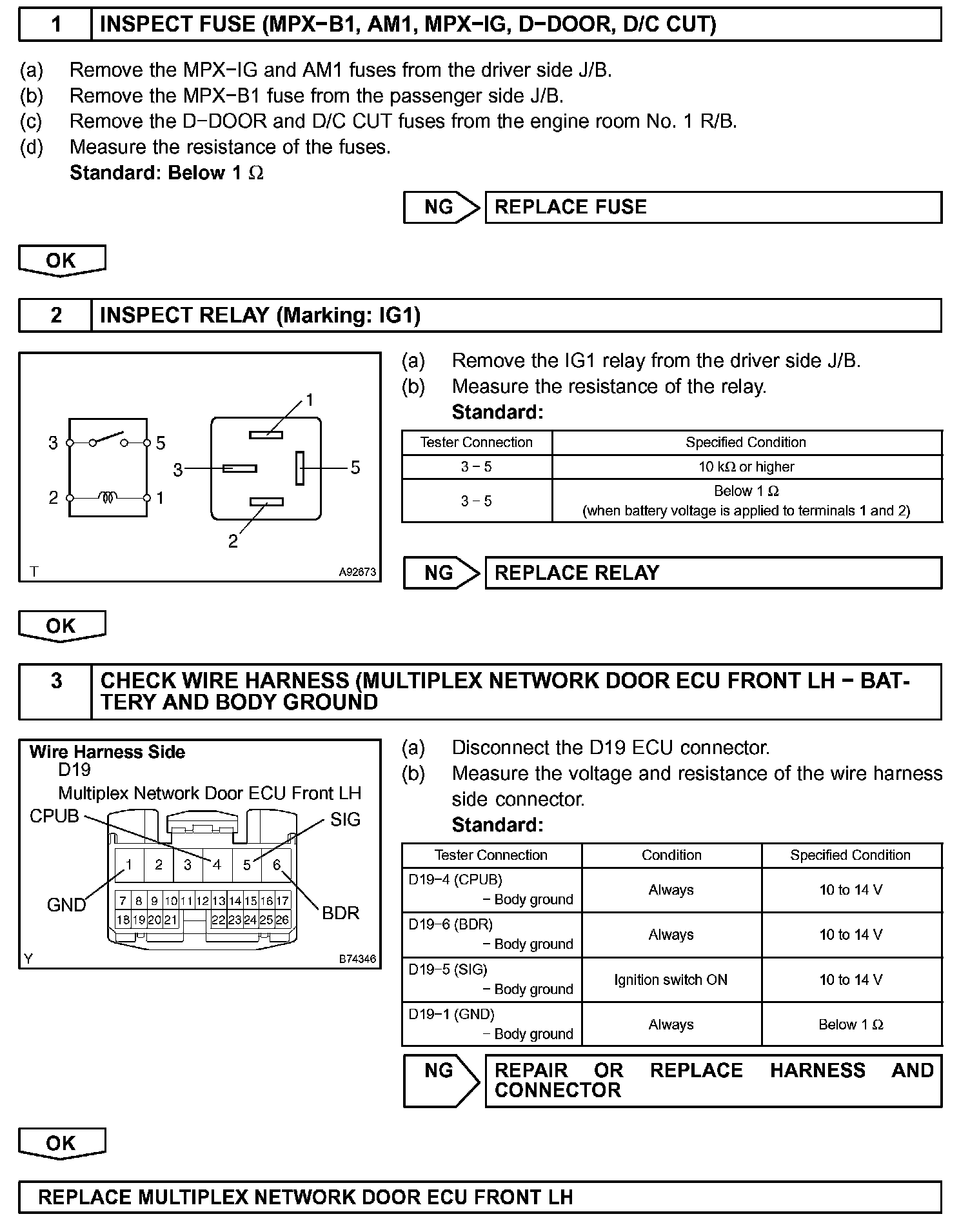

Step 1-3:




INSPECTION PROCEDURE
