Home >> Lexus >> 2006 >> SC 430 V8-4.3L (3UZ-FE) >> Repair and Diagnosis >> Transmission and Drivetrain >> Automatic Transmission/Transaxle >> Tools and Equipment

Automatic Transmission/Transaxle: Tools and Equipment

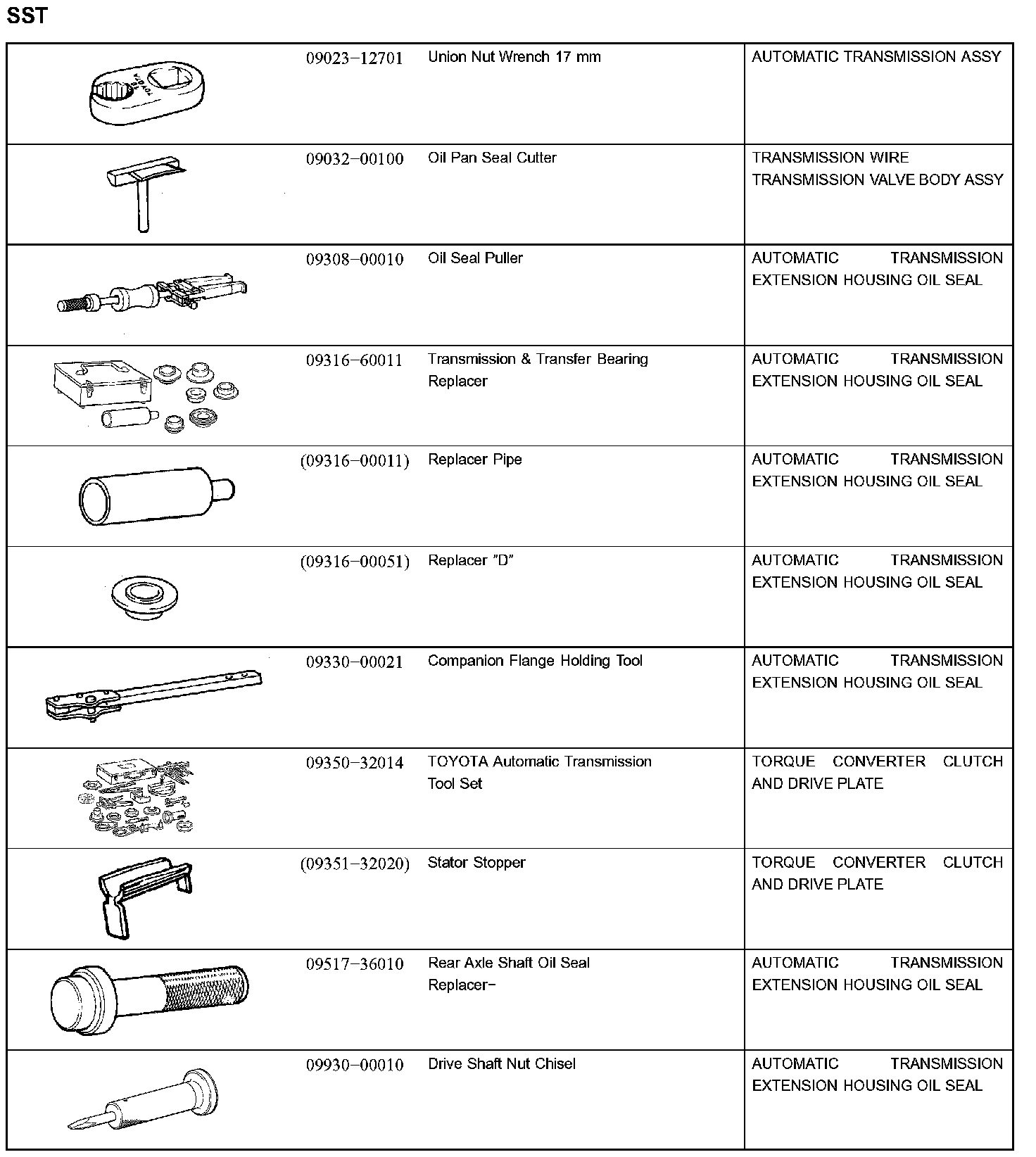

Automatic Transmission / Trans-SST:

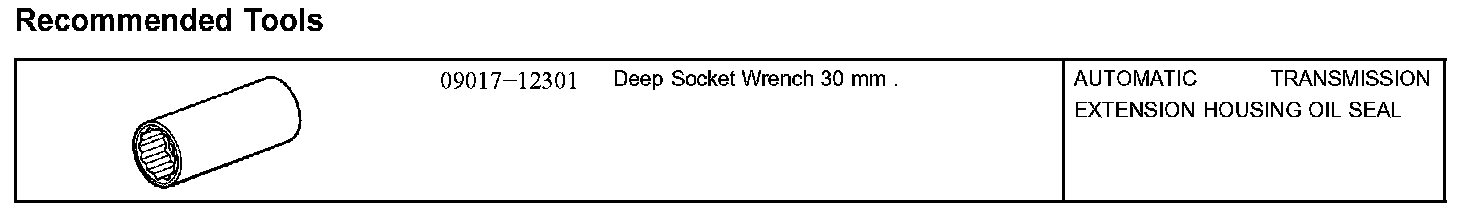

Automatic Transmission / Trans-Recommended Tools (Part 1):

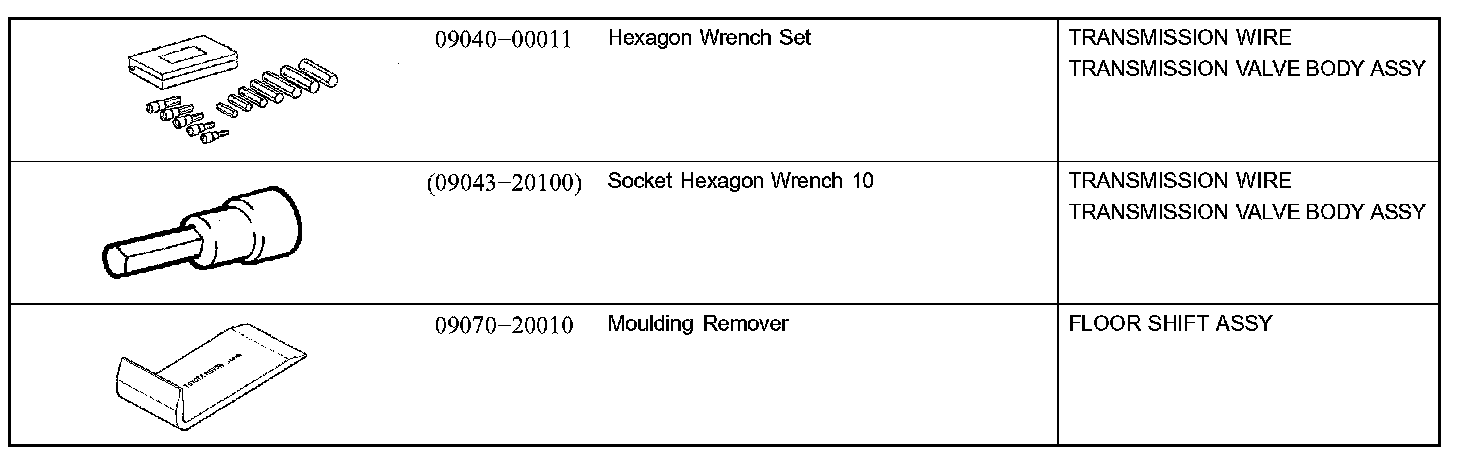

Automatic Transmission / Trans-Recommended Tools (Part 2):

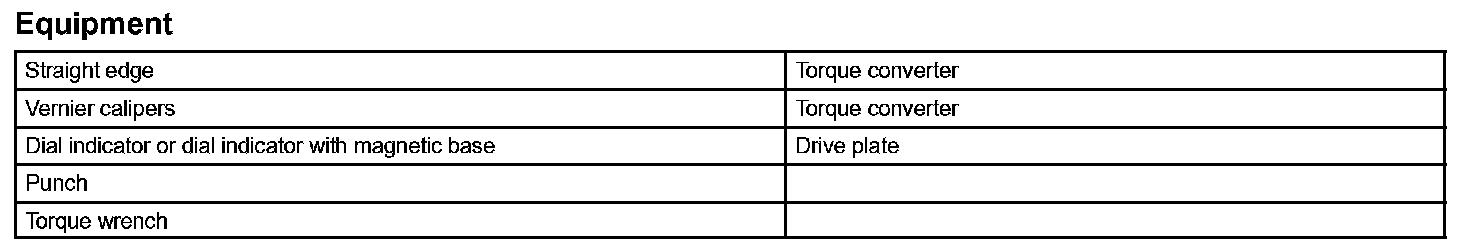

Automatic Transmission / Trans-Equipment:
