Transmission Control Switch Circuit

TRANSMISSION CONTROL SWITCH CIRCUIT

CIRCUIT DESCRIPTION

When moving the shift lever into the S position using the transmission control switch, it is possible to switch the shift range position between "1" (1st range) and "6" (6th range).
Shifting up "+" once raises one shift range position, and shifting down "-" lowers one shift range position.

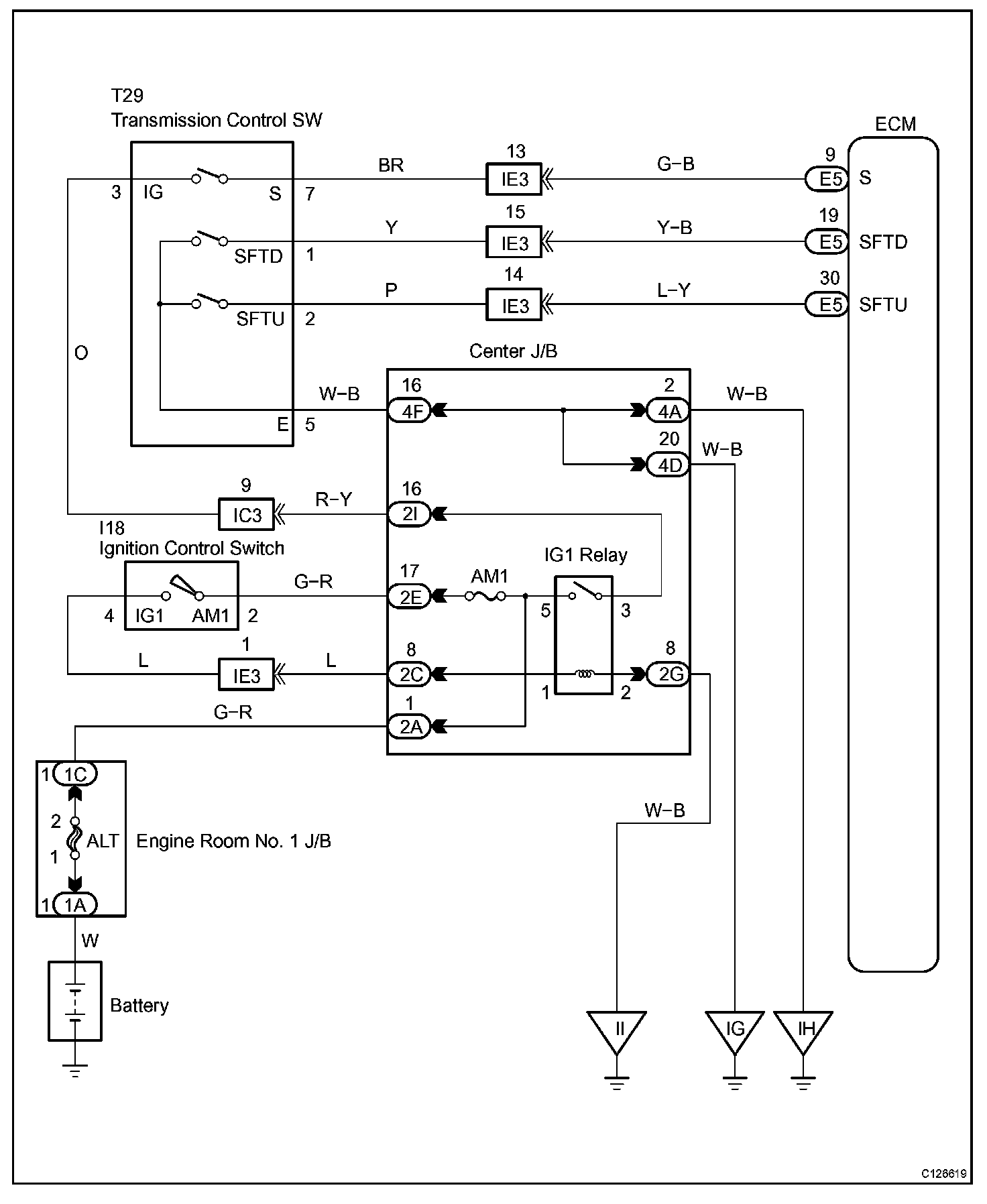

Wiring Diagram:

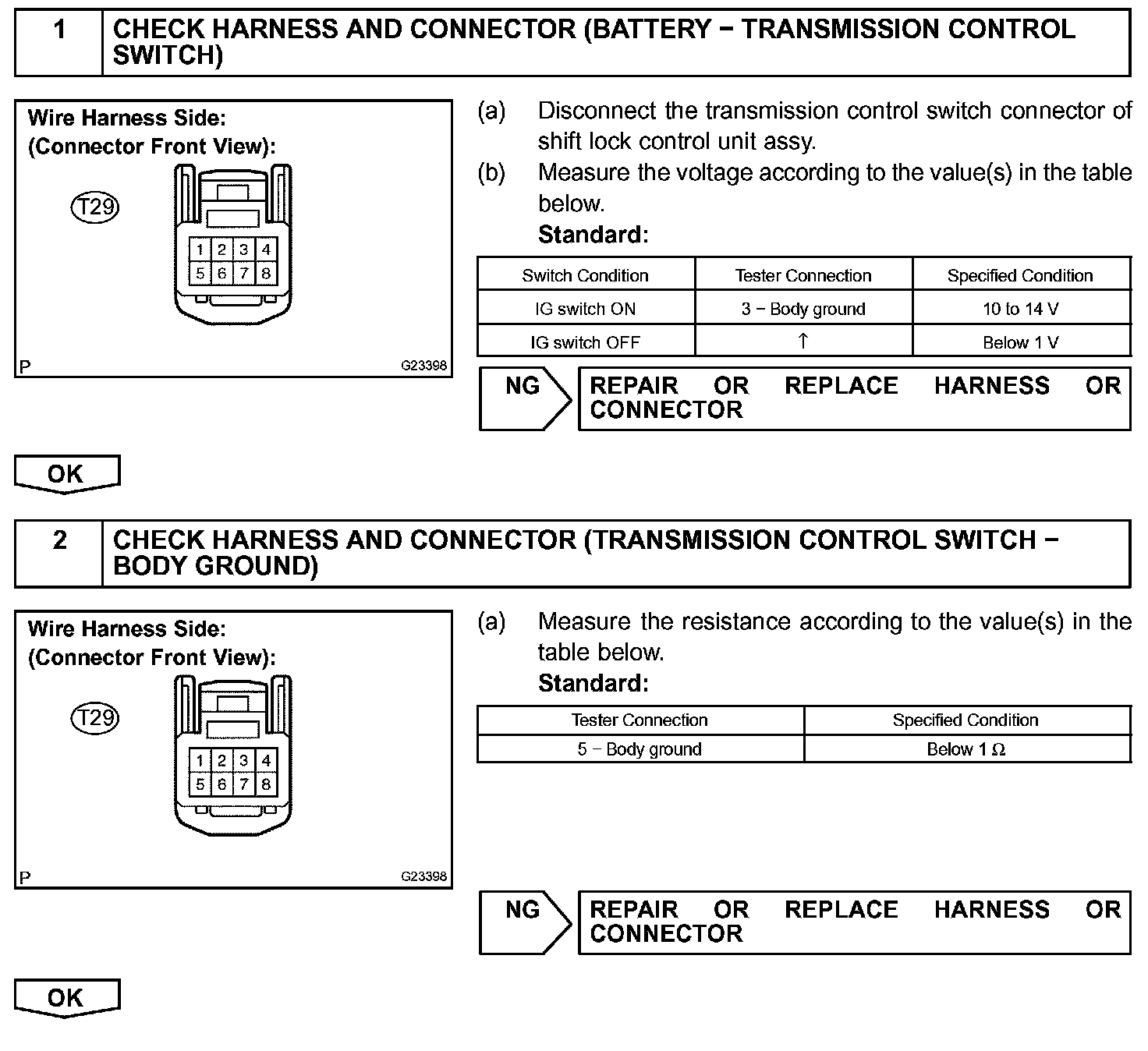

Step 1-2:

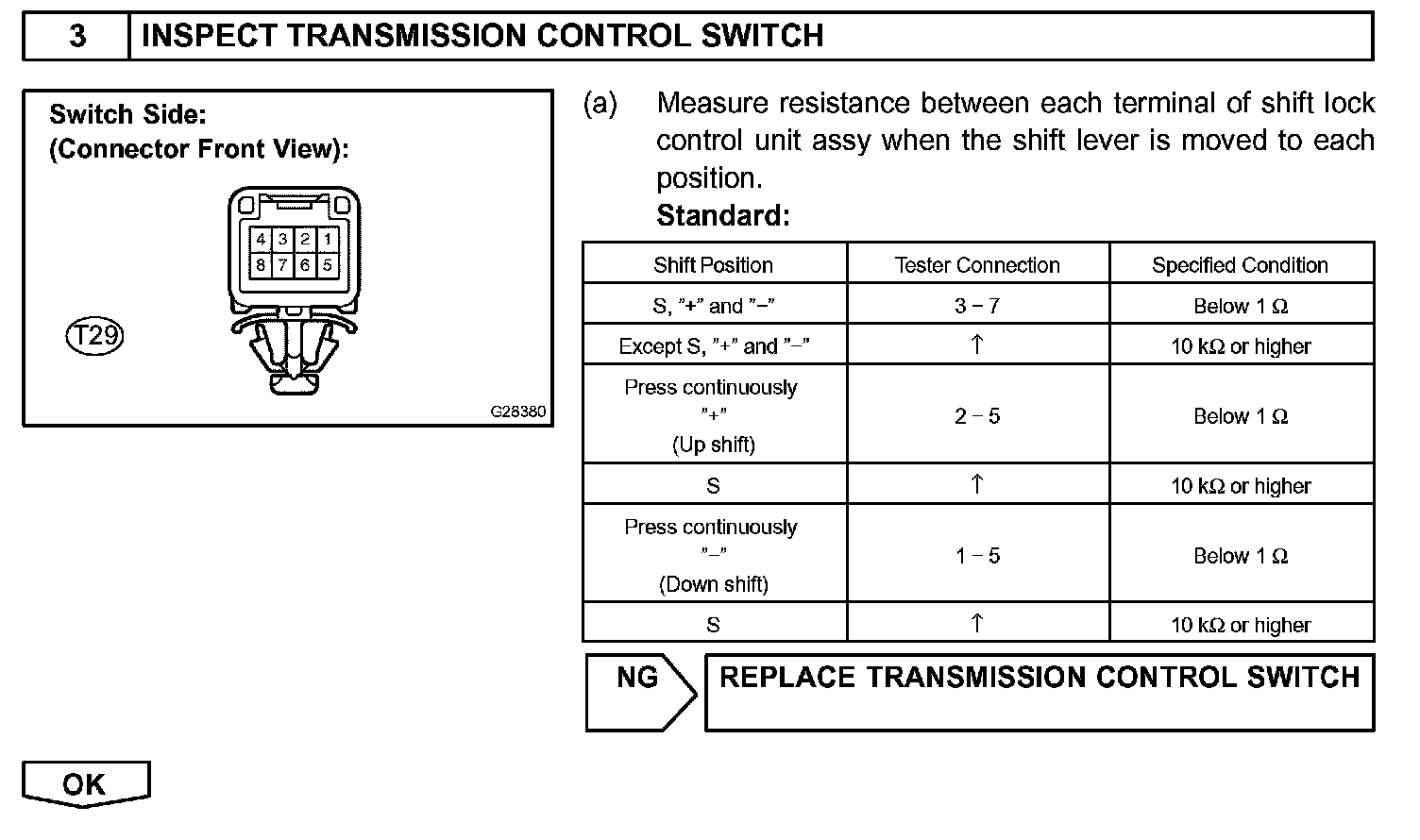

Step 3:

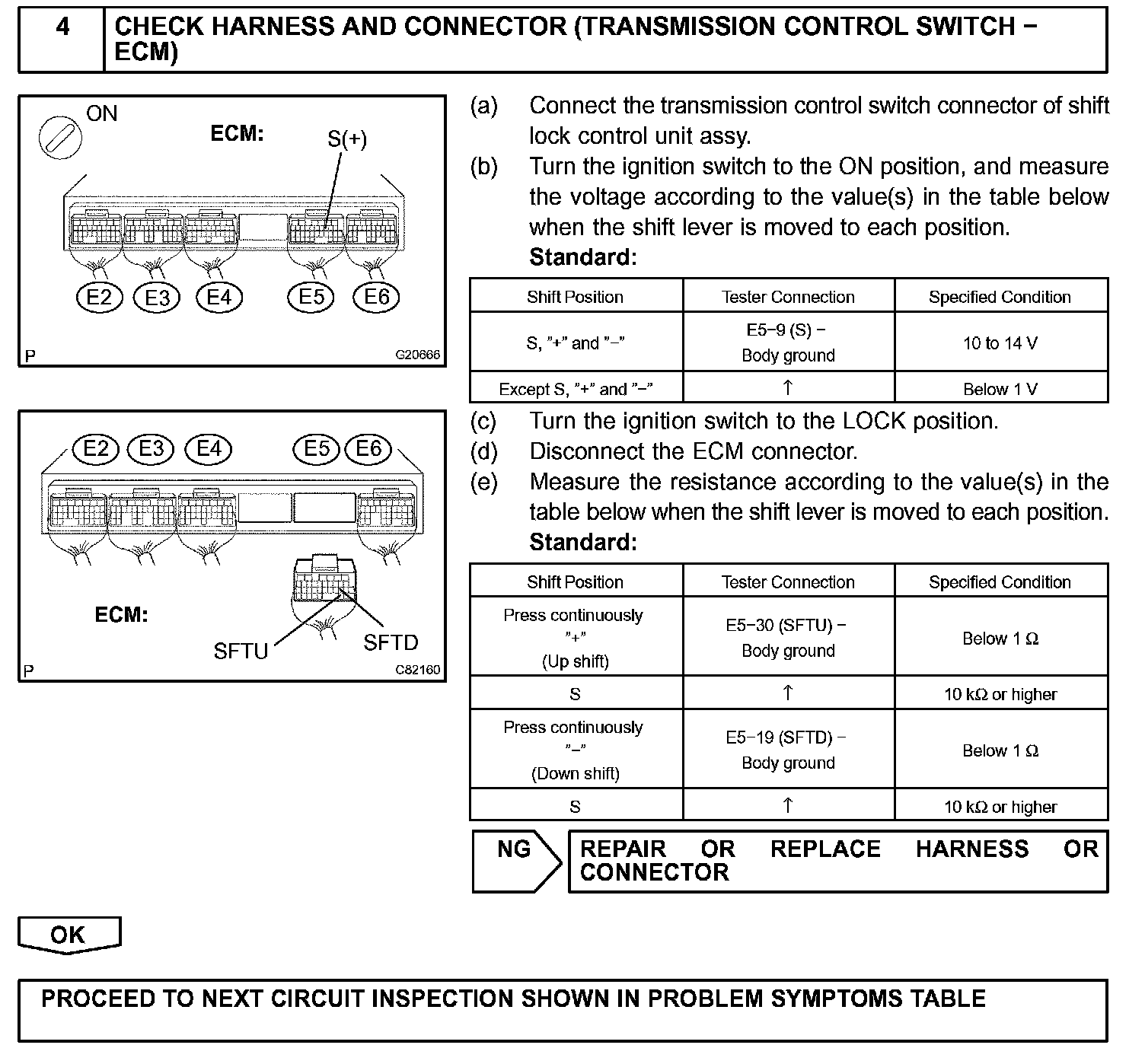

Step 4:

INSPECTION PROCEDURE
