Pattern Select Switch Circuit (PWR)

PATTERN SELECT SWITCH CIRCUIT (PWR)

CIRCUIT DESCRIPTION

Passenger side J/B ECU receives pattern select switch information, and sends it through the multiplex communication system and CAN system to the ECM.
The ECM memory contains the shift programs for the NORMAL, POWER and SNOW patterns, 2 position, L position and the lock-up patterns. By following the programs corresponding to the signals from the pattern select switch, the neutral start and other various sensors, the ECM switches the solenoid valves ON and OFF, and controls the transmission gear change and the lock-up clutch operation.

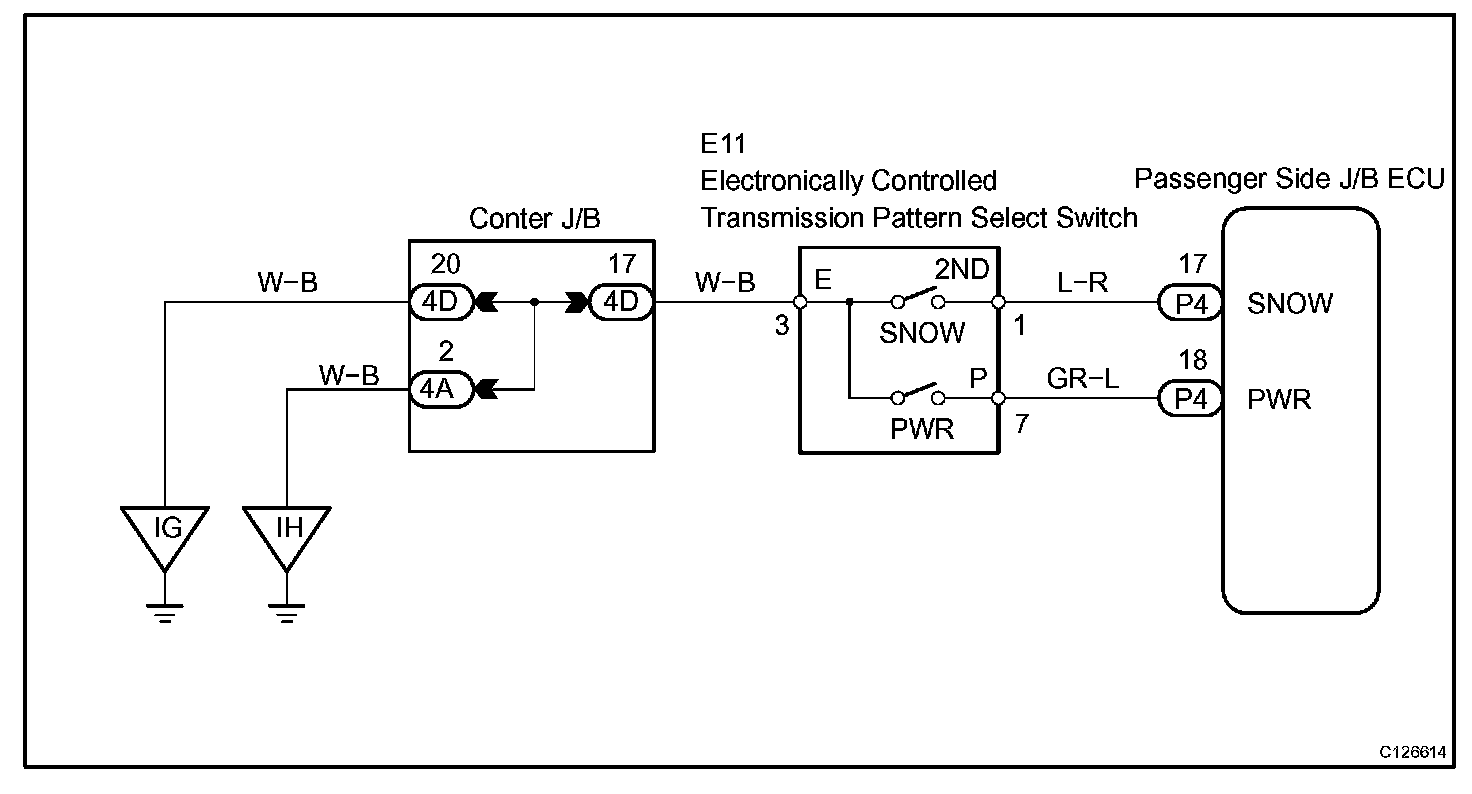

Wiring Diagram:

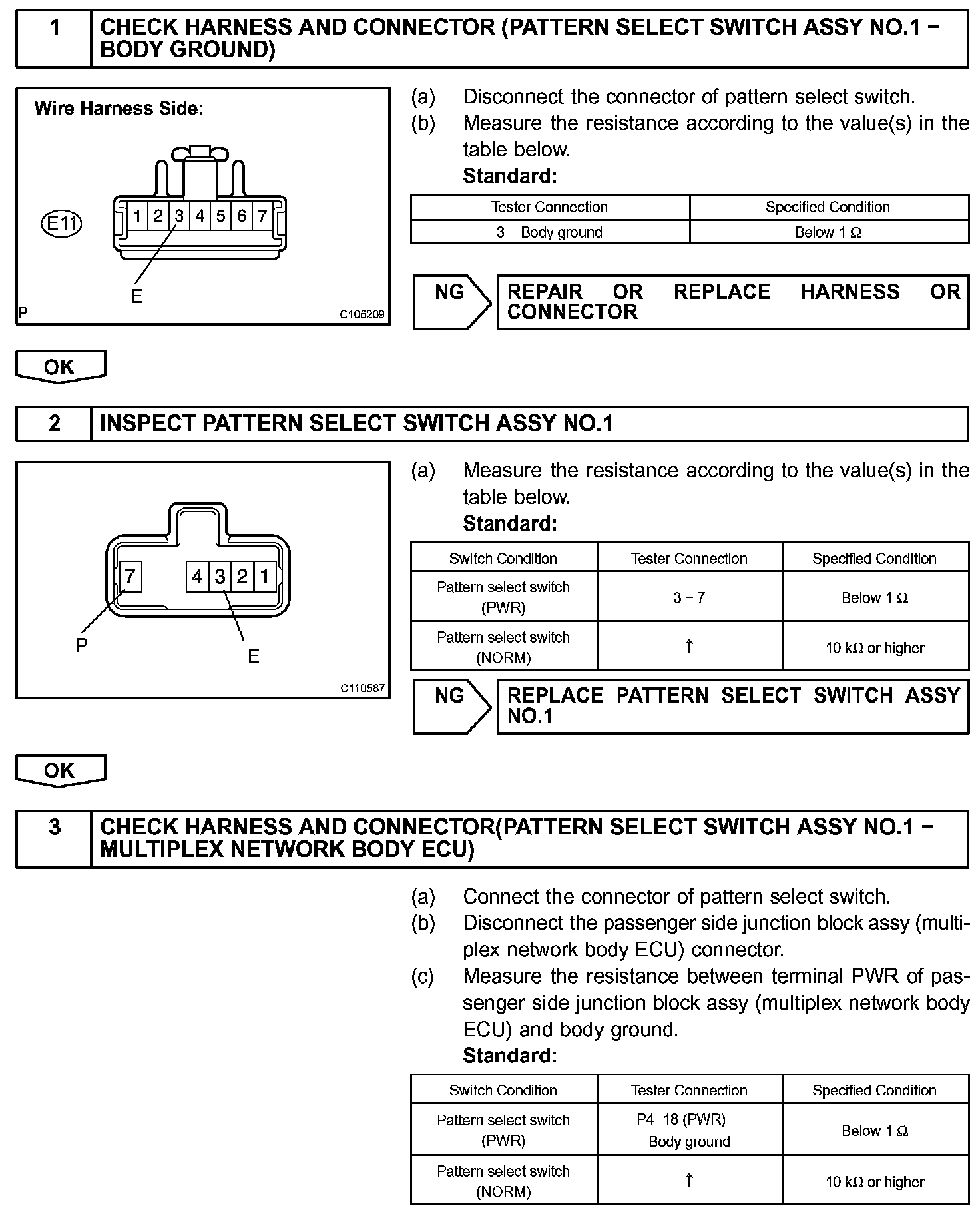

Step 1-3:

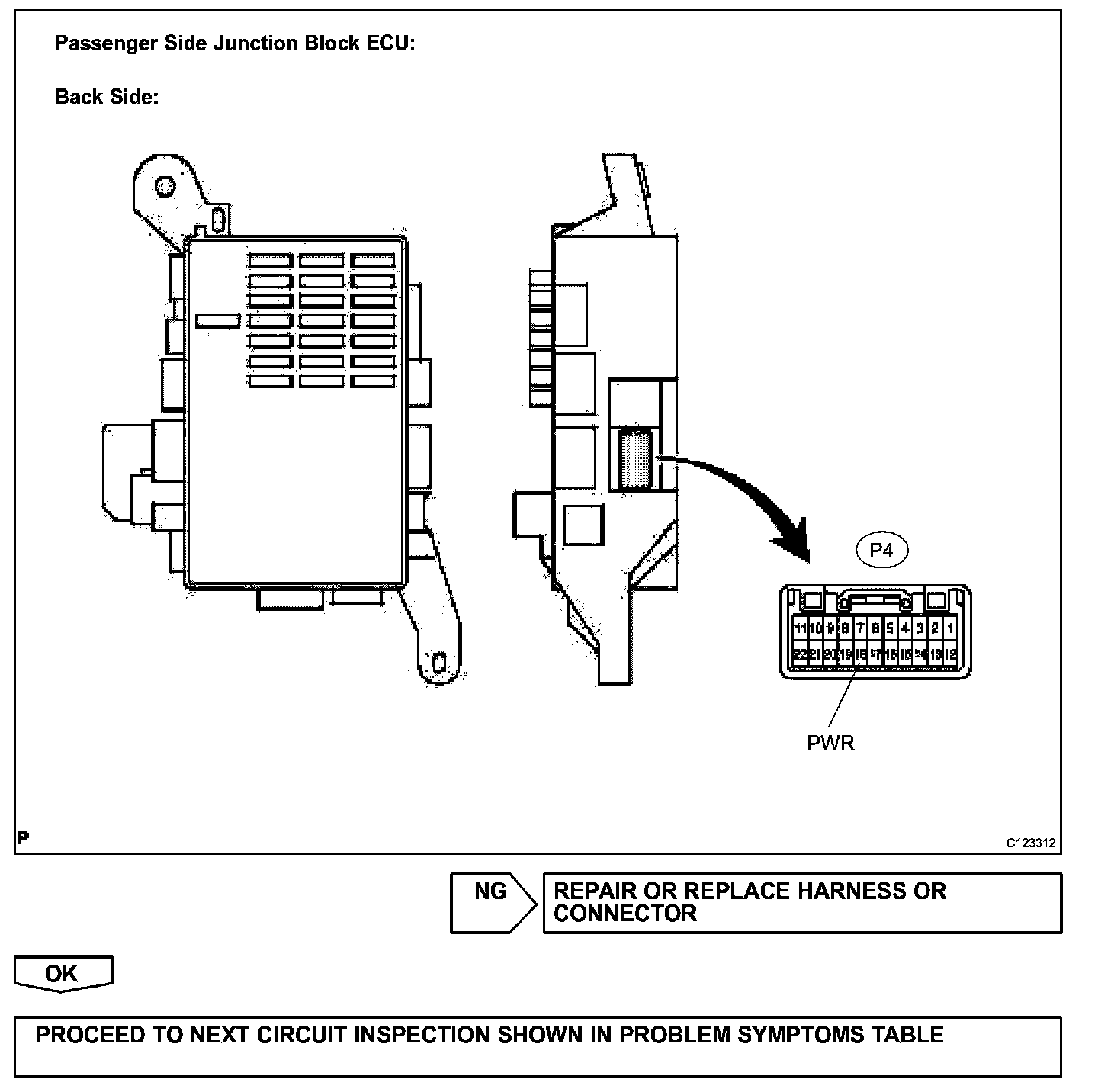

Step 3(Continued):

INSPECTION PROCEDURE
