Home >> Lexus >> 2006 >> SC 430 V8-4.3L (3UZ-FE) >> Repair and Diagnosis >> Steering and Suspension >> Steering >> Steering Column >> Testing and Inspection >> Pinout Values and Diagnostic Parameters >> Power Tilt and Power Telescopic Steering Column System

Power Tilt and Power Telescopic Steering Column System

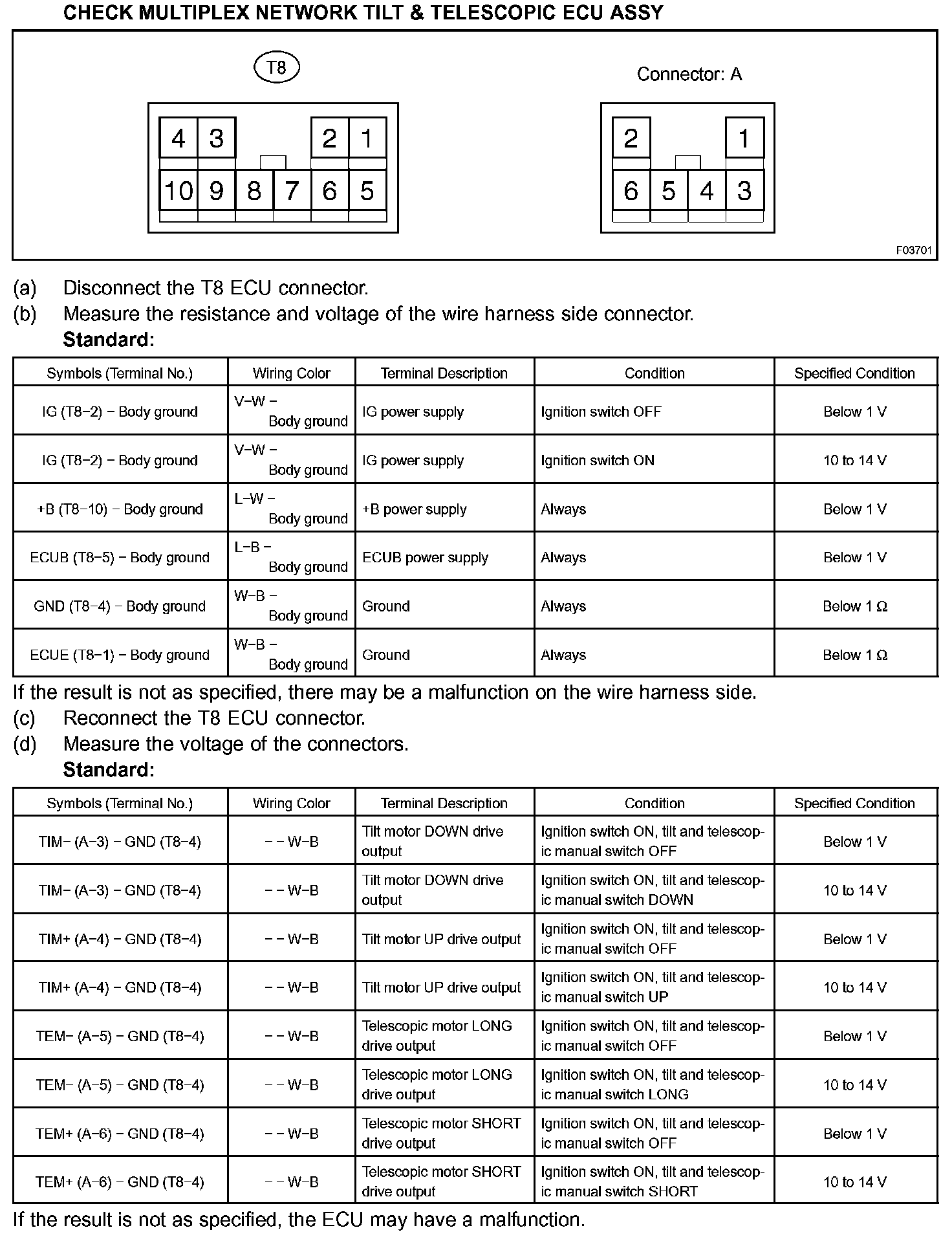

Terminals Of Control Module/Pinouts:

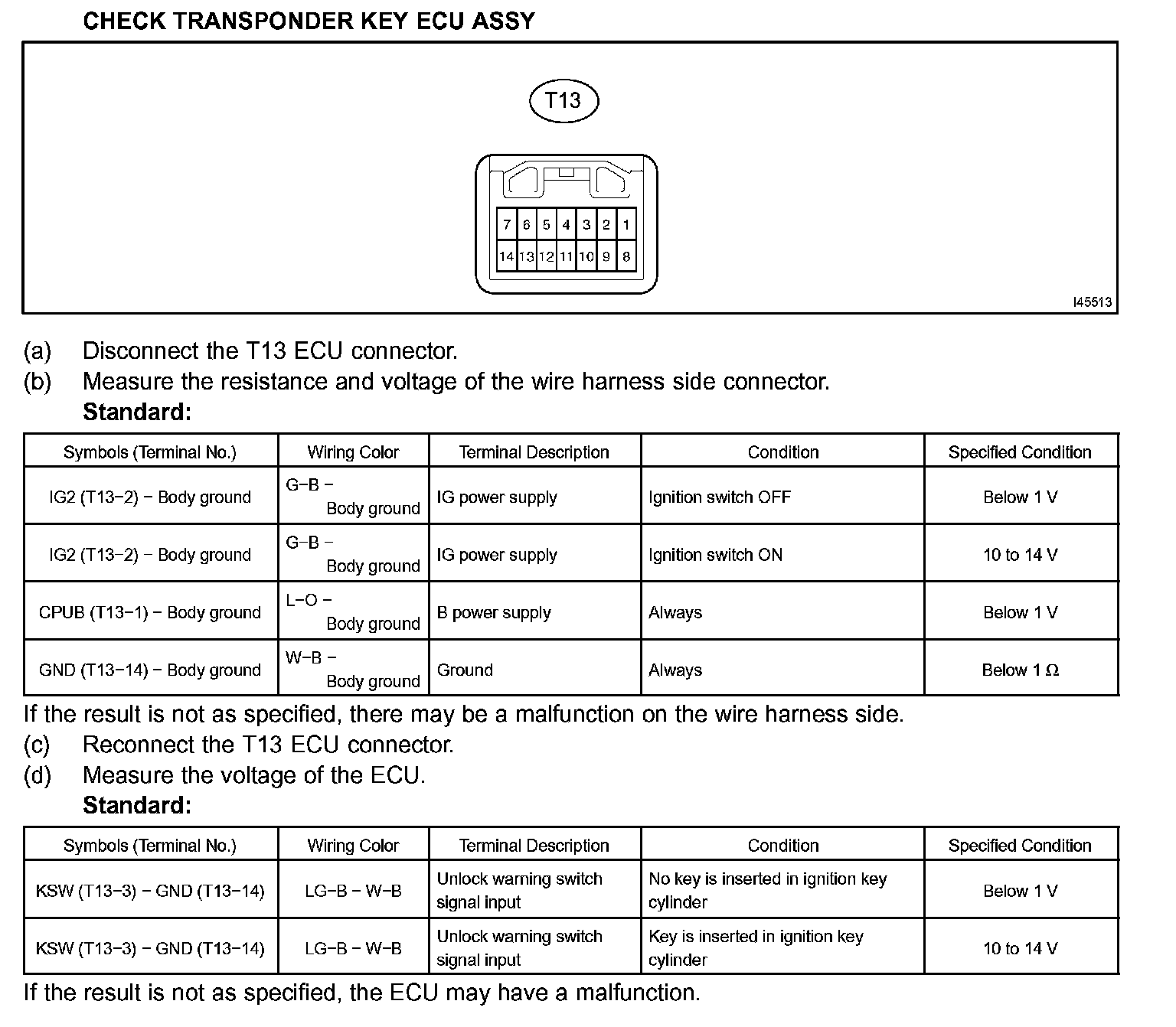

Terminals Of Control Module/Pinouts:
