Tilt and Telescopic Manual Switch Circuit

TILT AND TELESCOPIC MANUAL SWITCH CIRCUIT

CIRCUIT DESCRIPTION

Operating the manual switch (turn signal switch) sends a signal through the communication bus to the multiplex tilt & telescopic ECU.

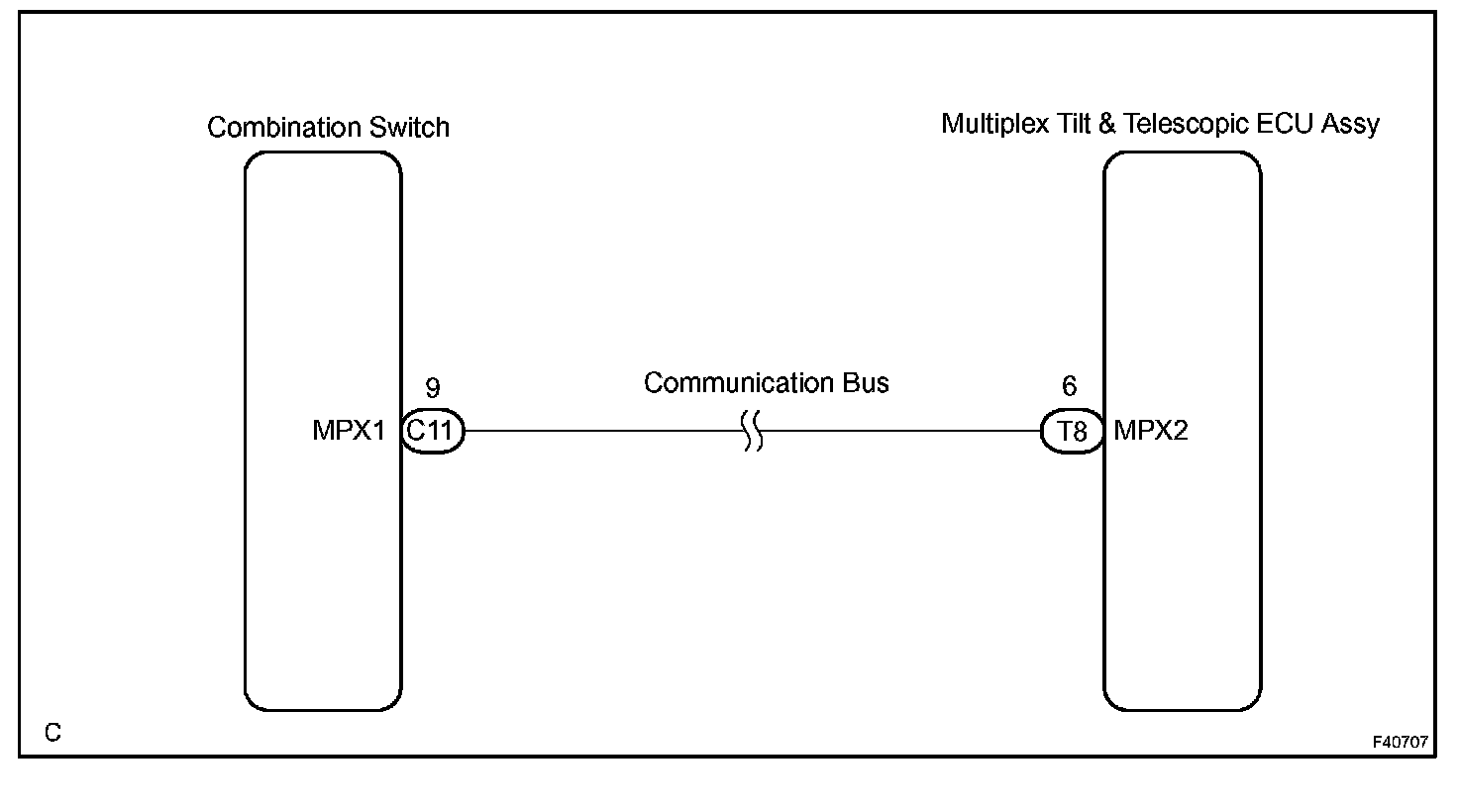

Wiring Diagram:






Step 1:

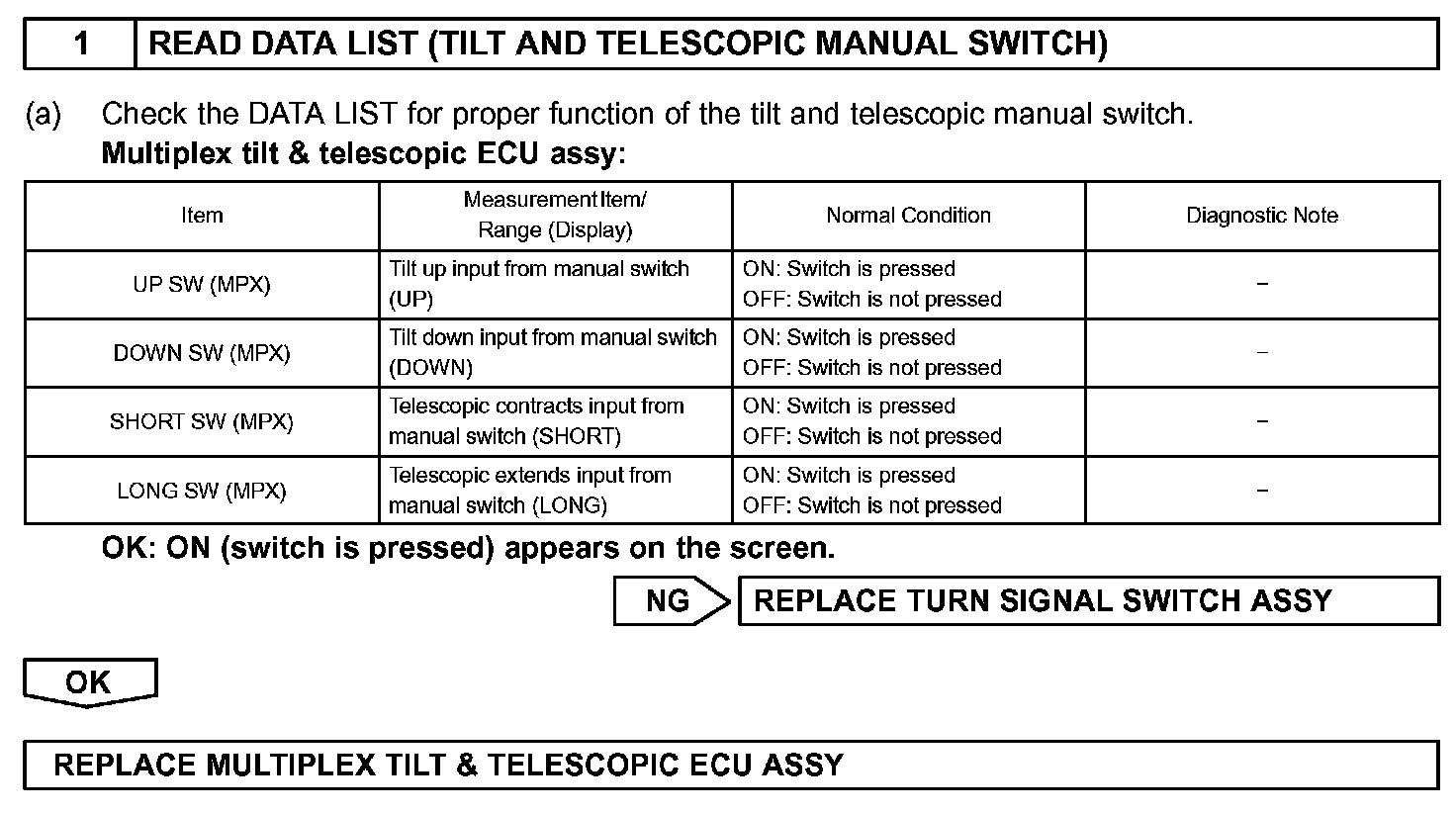

INSPECTION PROCEDURE
