Actuator Power Source Circuit

ACTUATOR POWER SOURCE CIRCUIT

CIRCUIT DESCRIPTION

The actuator power source circuit supplies Positive (+) battery voltage to the motors.

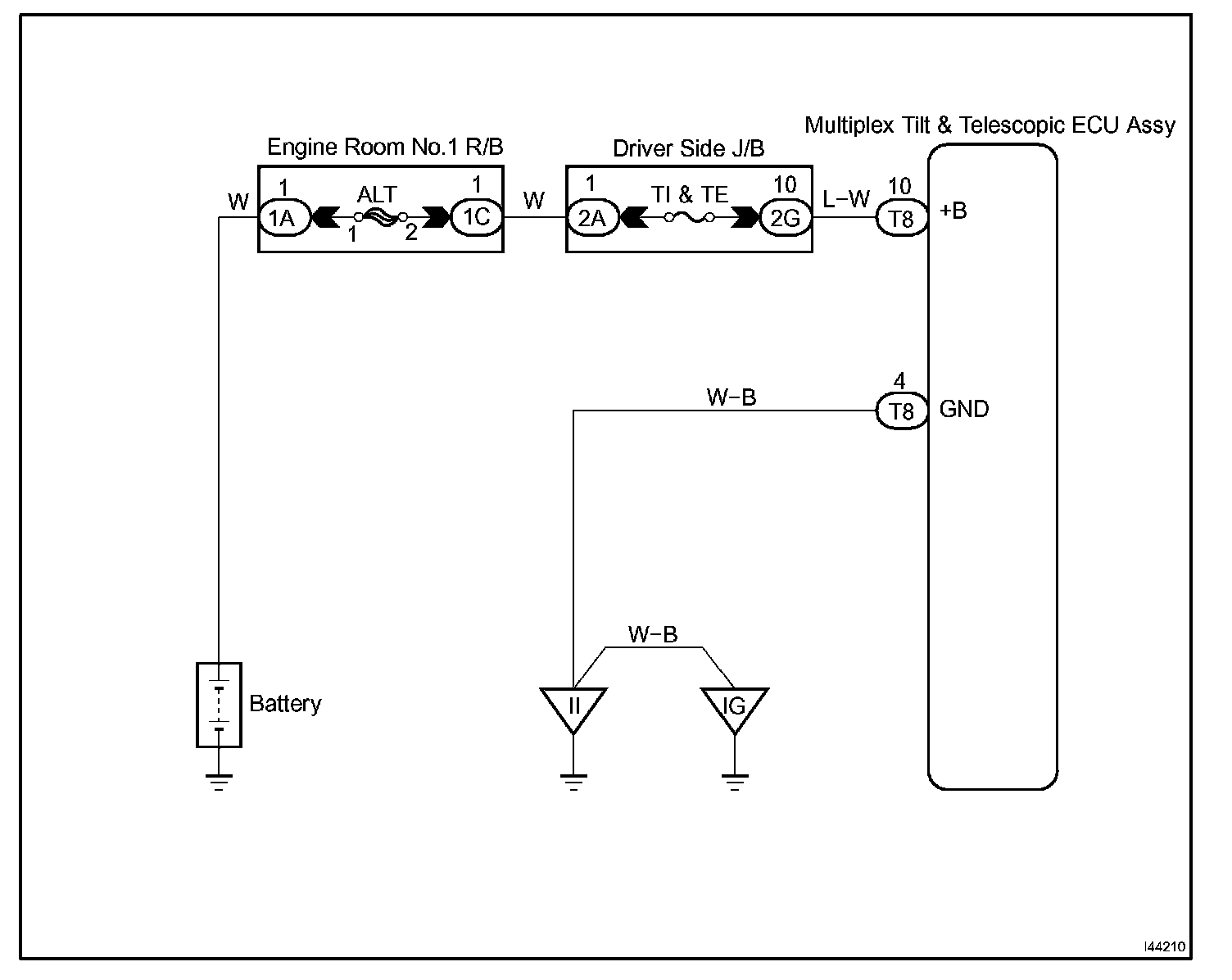

Wiring Diagram:

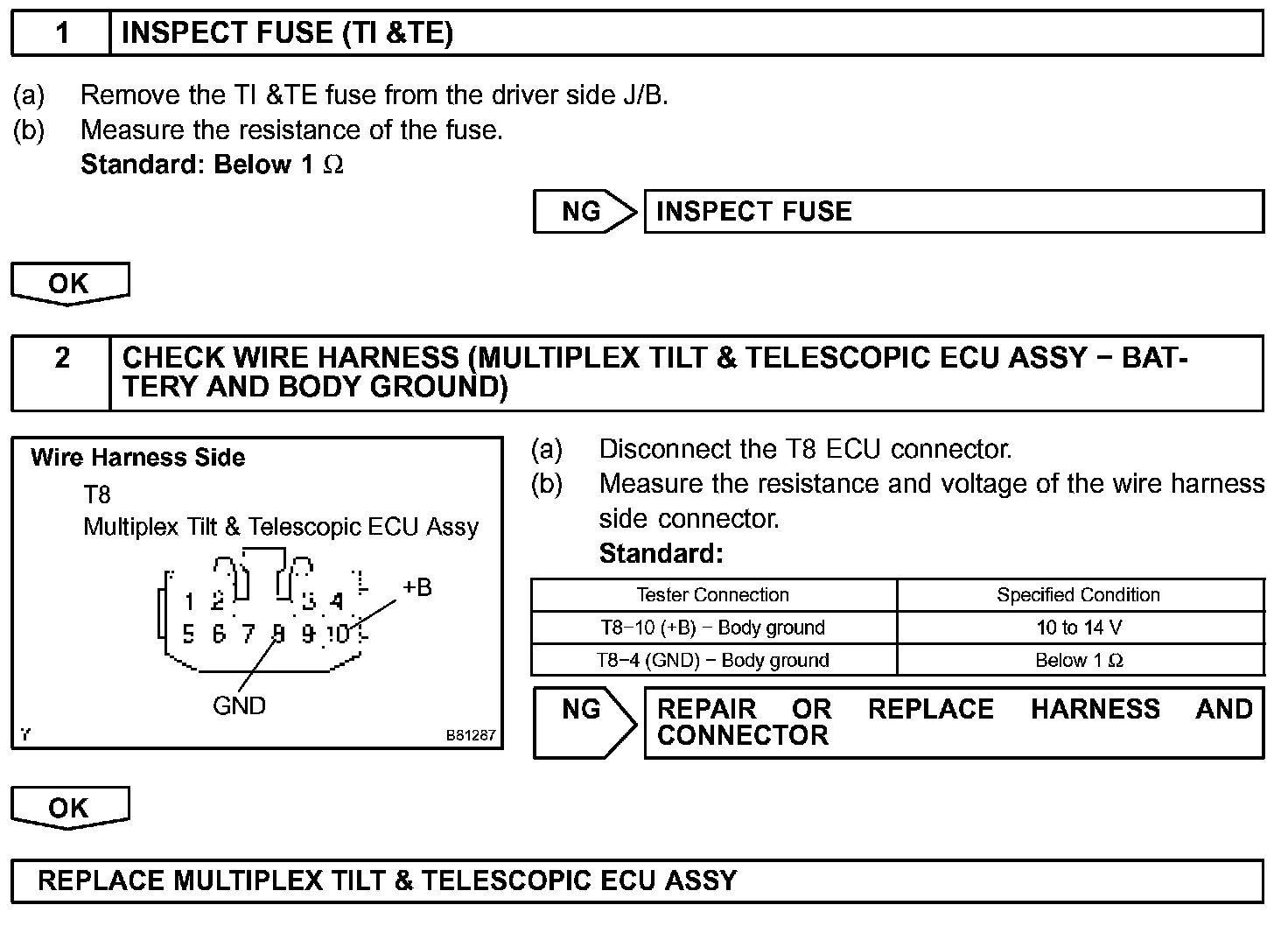

Step 1-2:




INSPECTION PROCEDURE
