Driver Side J/B
Driver Side J/B

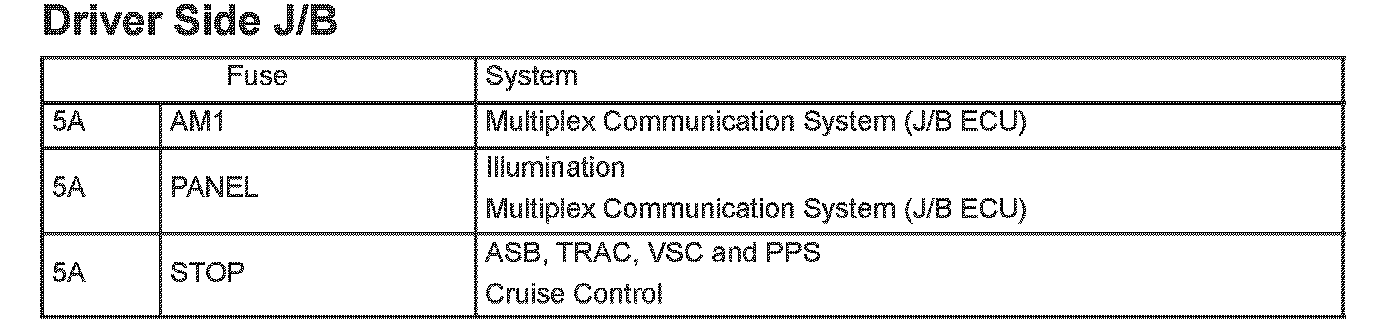

Driver Side J/B (Part 1):

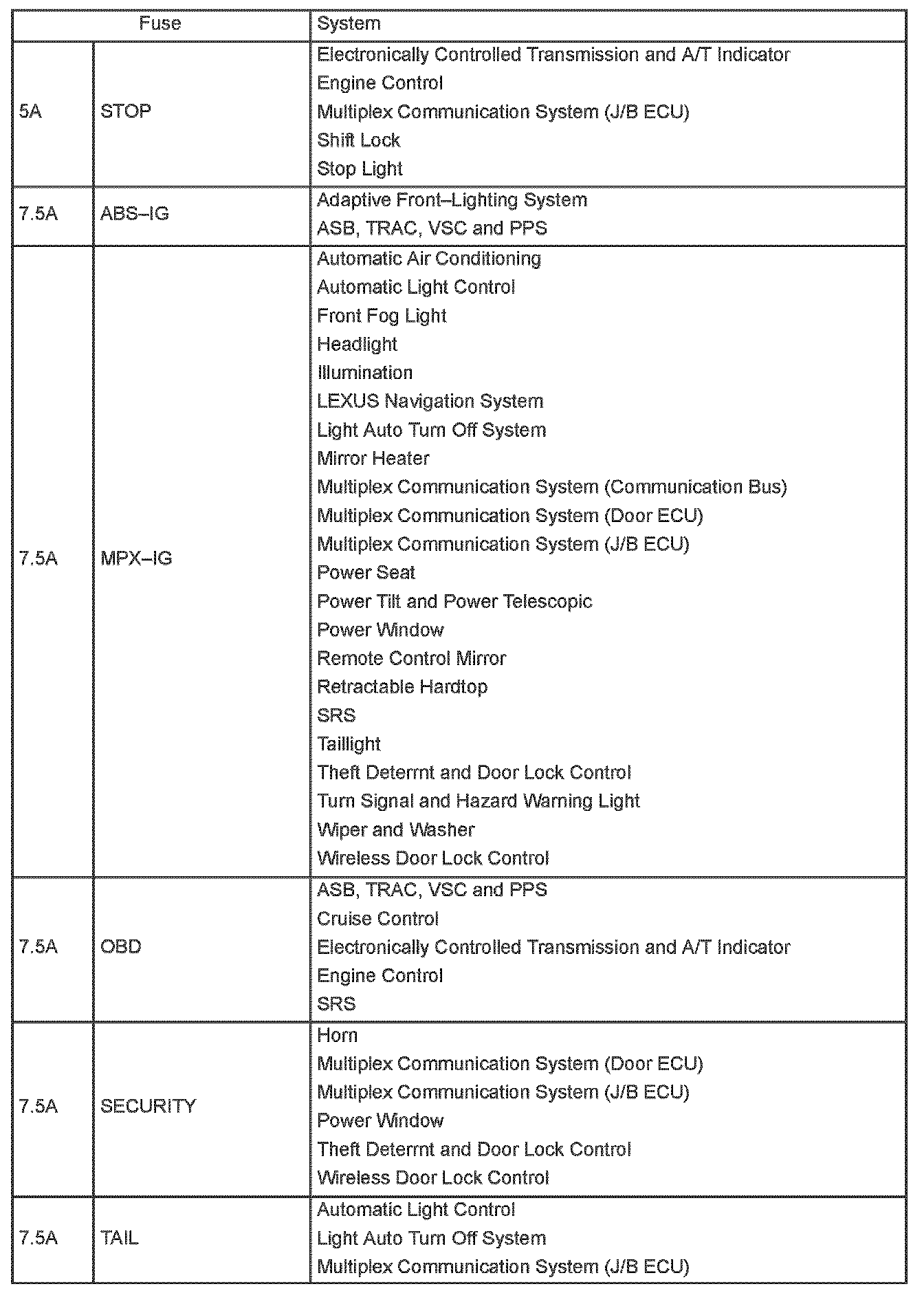

Driver Side J/B (Part 2):

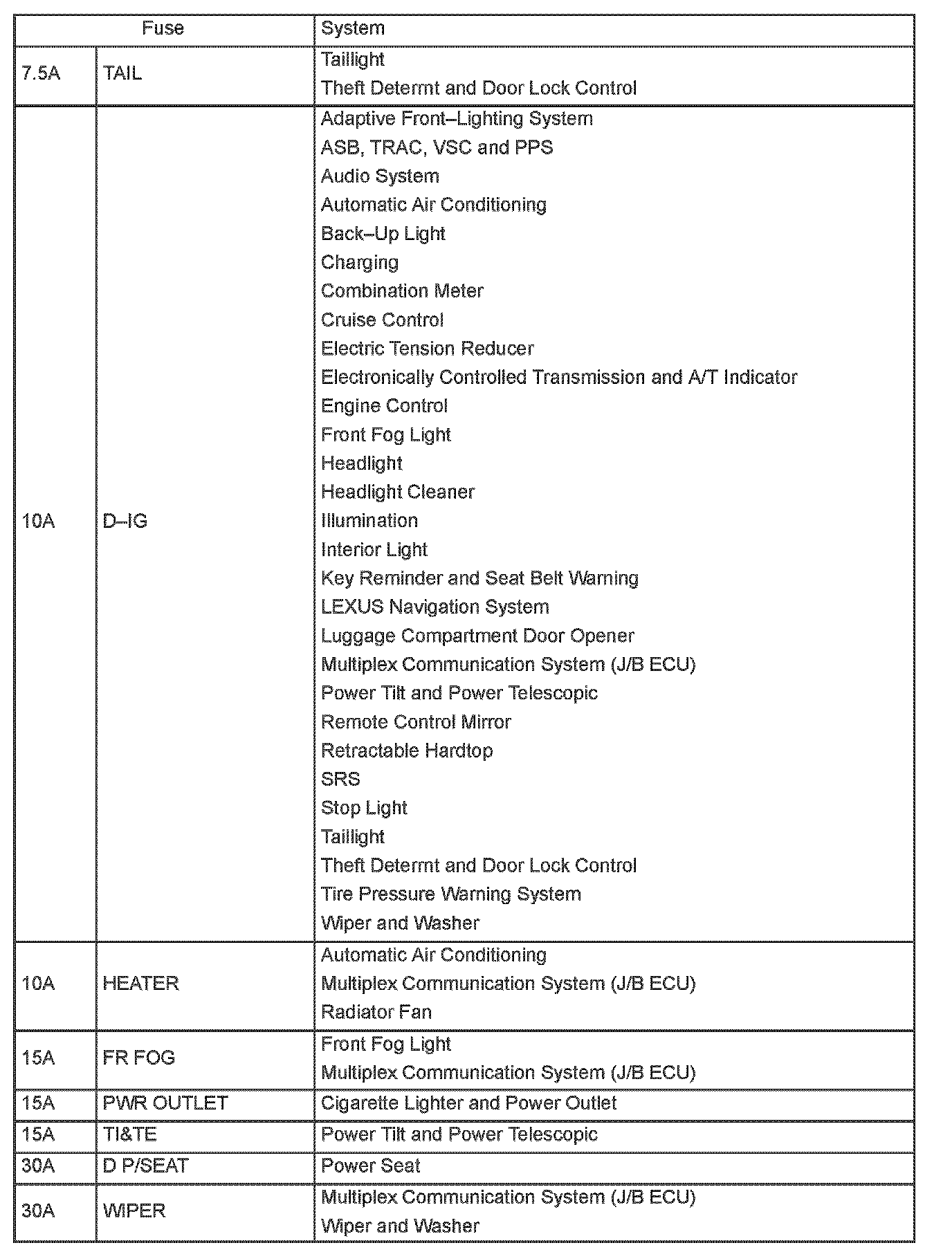

Driver Side J/B (Part 3):
