FREE REPAIR MANUALS & LABOR GUIDES 1982-2013 Vehicles
Courtesy of Operation CHARM
:
Car repair manuals for everyone.
Home
>>
Lexus
>>
2006
>>
SC 430 V8-4.3L (3UZ-FE)
>>
Repair and Diagnosis
>>
Specifications
>>
Mechanical Specifications
>>
Automatic Transmission/Transaxle
>>
System Specifications
>>
Service Data
Service Data

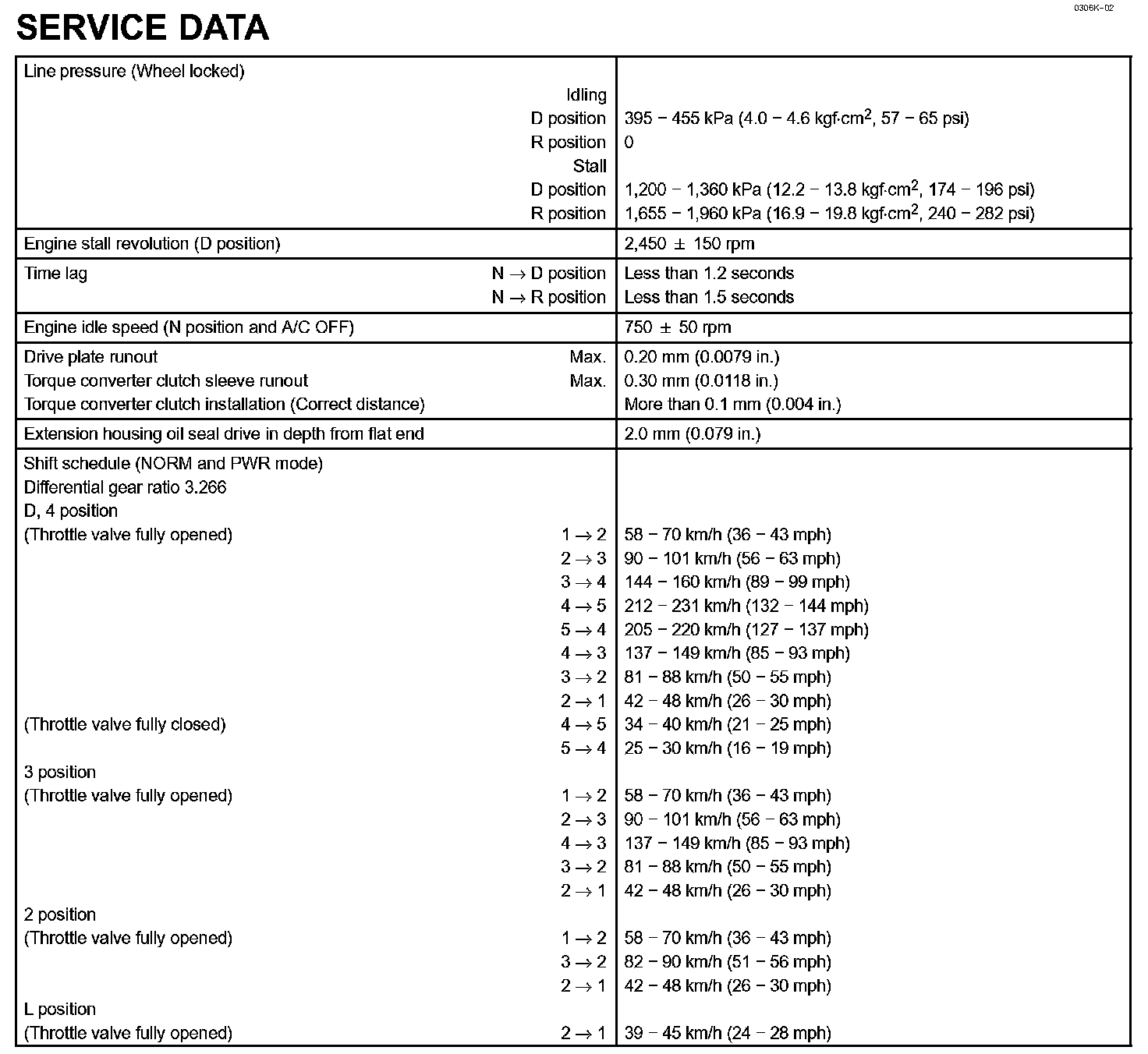

Automatic Transmission / Transaxle-Service Data (Part 1):

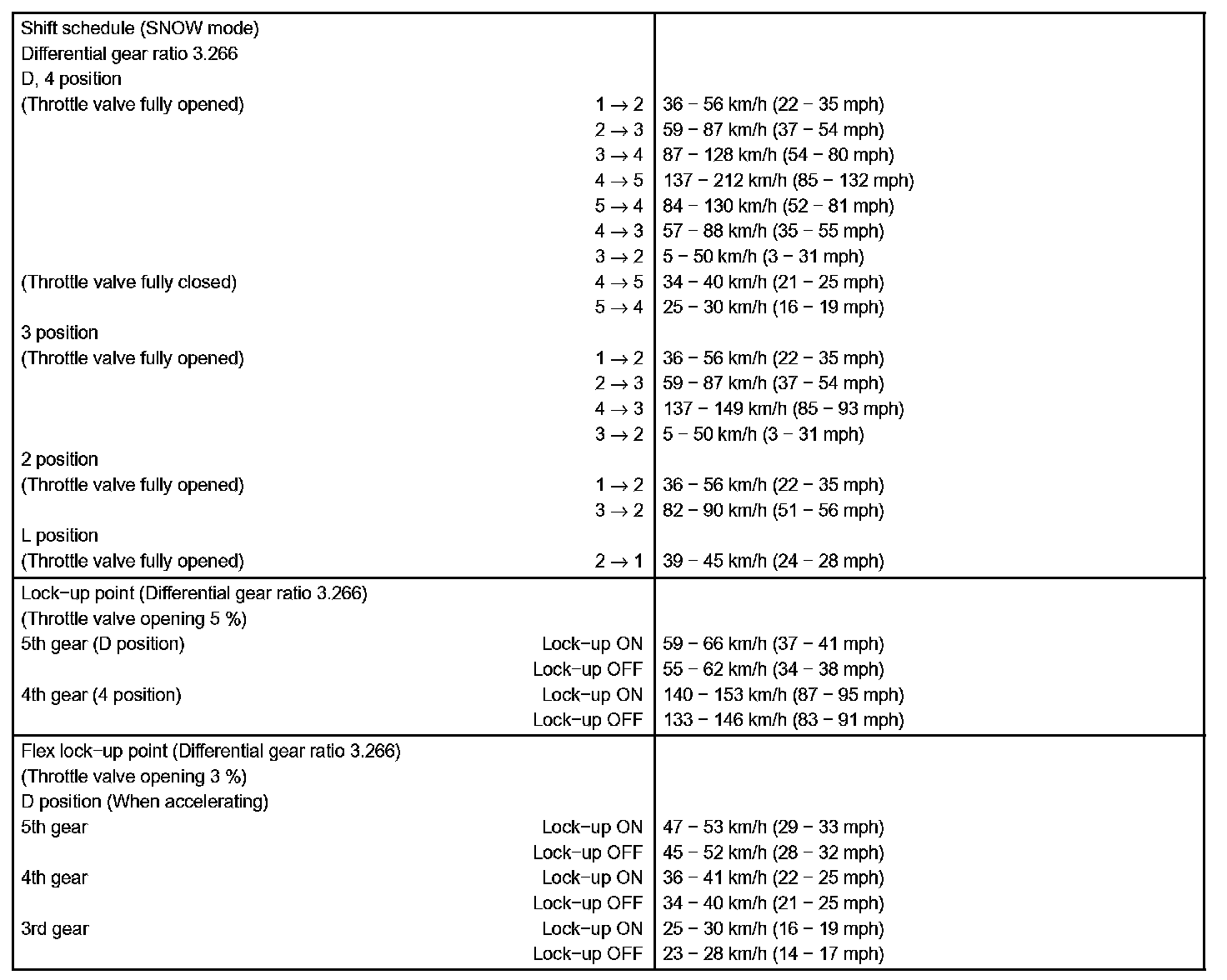

Automatic Transmission / Transaxle-Service Data (Part 2):
