Seat Belt Tension Reducer System

PROBLEM SYMPTOMS TABLE

HINT: Use the table to help determine the cause of the problem symptom. The potential causes of the symptoms are listed in order of probability in the "Suspected Area" column of the table. Check each symptom by checking the suspected areas in the order they are listed. Replace parts as necessary.

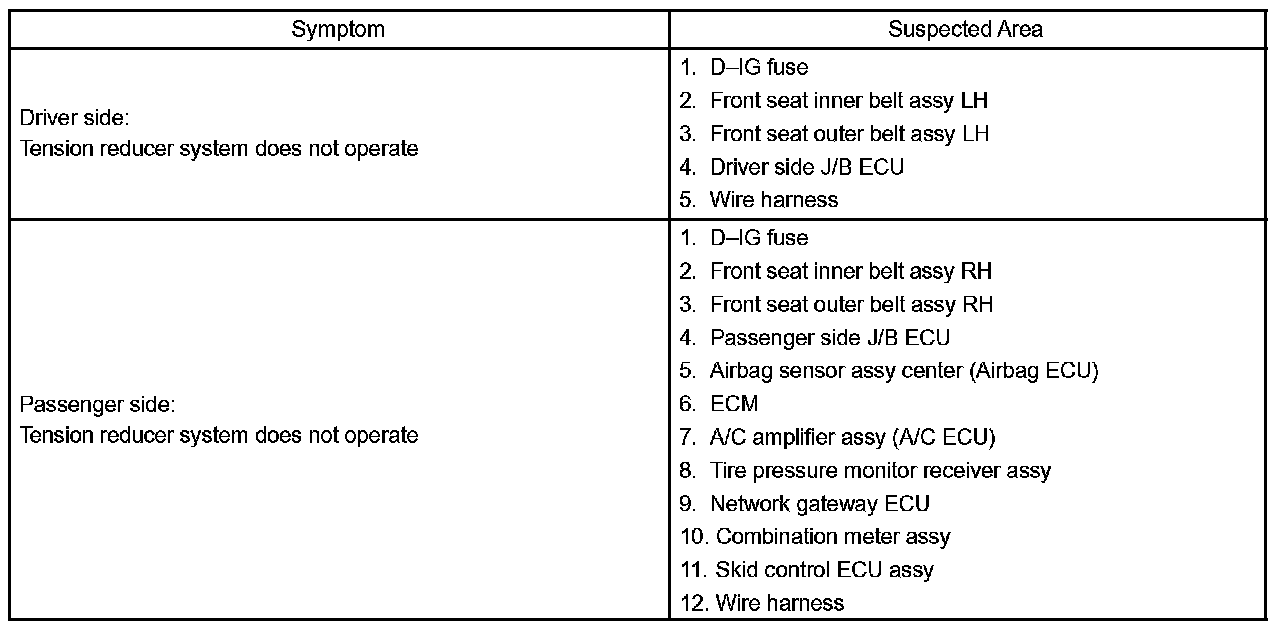

Problem Symptom Table - Seat Belt Tension Reducer System:

HINT: The seat belt tension reducer system is part of the large-scale multiplex communication system. This system features shared communication wiring that reduces the wiring complexity of the communication lines. The first step in any repair is to confirm the proper operation of the communication system. Proceed with troubleshooting after the communication has been verified (see the multiplex communication system).
