Seat Belt Warning System

INSPECTION

1. INSPECT FRONT SEAT INNER BELT ASSEMBLY LH
2. INSPECT FRONT SEAT INNER BELT ASSEMBLY RH

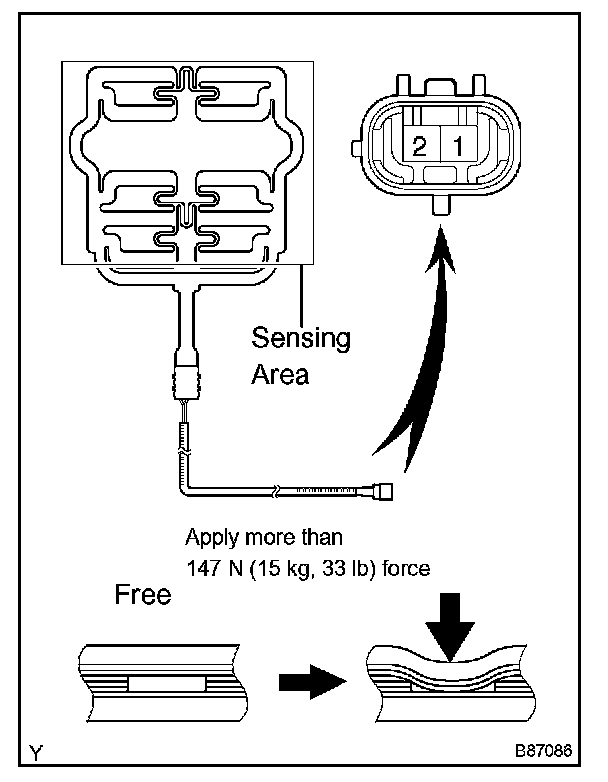

3. INSPECT OCCUPANT DETECTION SENSOR
a. Measure the resistance of the sensor.
If the result is not as specified, replace the seat cushion pad.







4. INSPECT PASSENGER SEAT BELT WARNING LAMP ASSEMBLY
a. Measure the resistance of the warning lamp.
If the result is not as specified, replace the passenger seat belt warning lamp assembly.
