Home >> Lexus >> 2006 >> SC 430 V8-4.3L (3UZ-FE) >> Repair and Diagnosis >> Restraints and Safety Systems >> Seat Belt Systems >> Locations

Seat Belt Systems: Locations

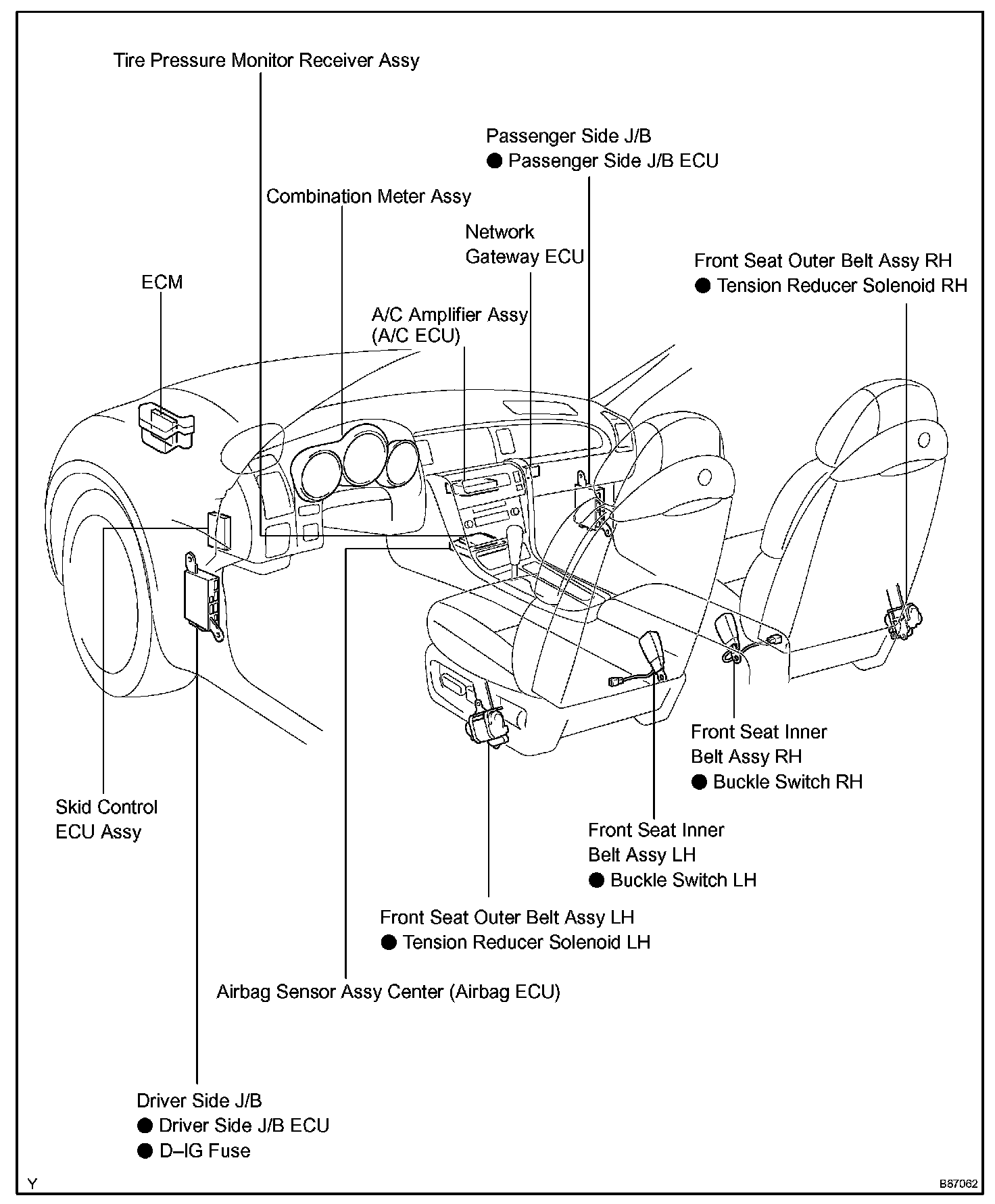

Seat Belt Tension Reducer System:

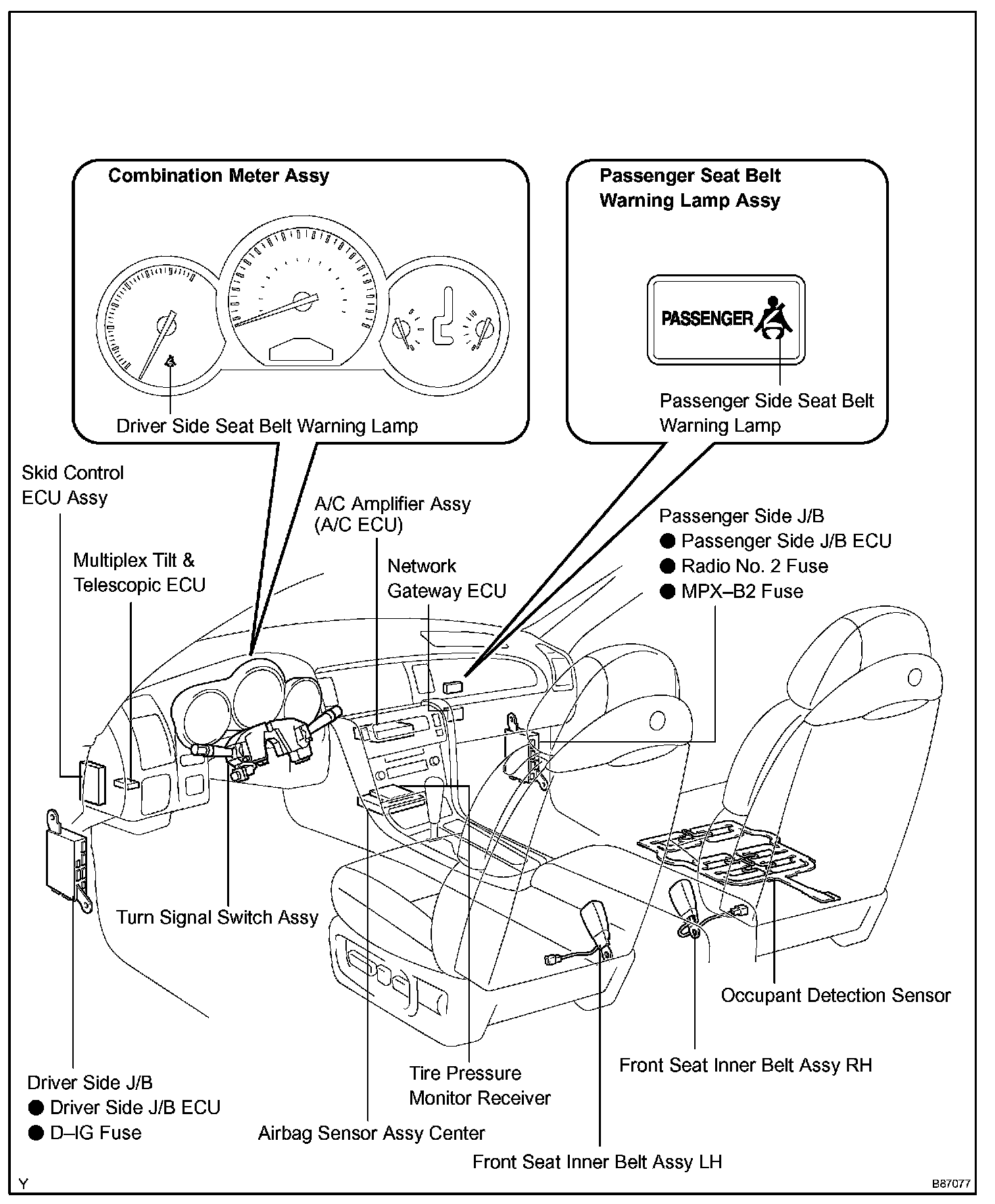

Seat Belt Warning System Part1:

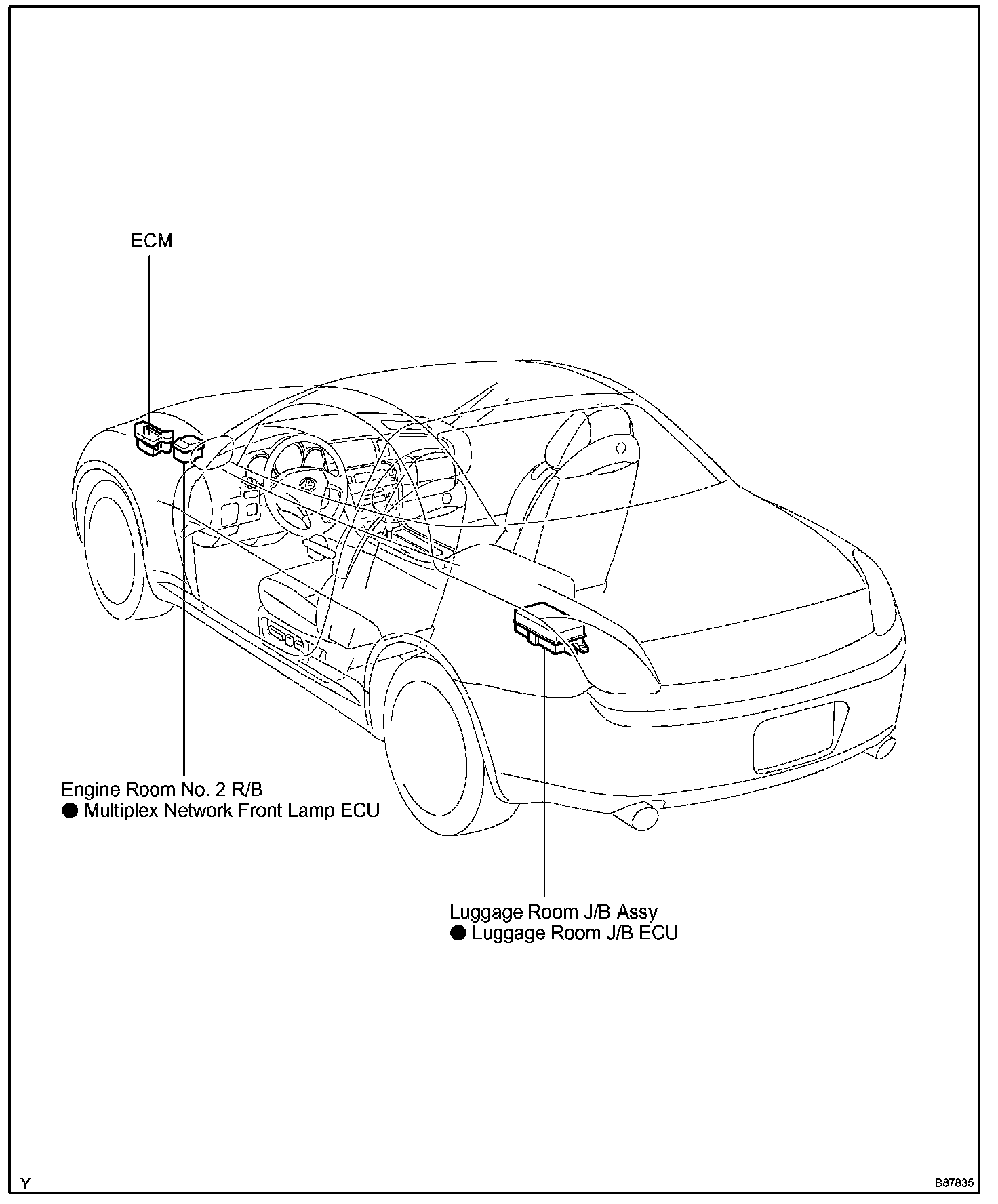

Seat Belt Warning System Part 2:
