Displaying & Reading Trouble Codes
>>
With Manufacturer's Scan Tool
With Manufacturer's Scan Tool
CHECK DTC (USING HAND-HELD TESTER)
a.
Check the DTCs.
1.

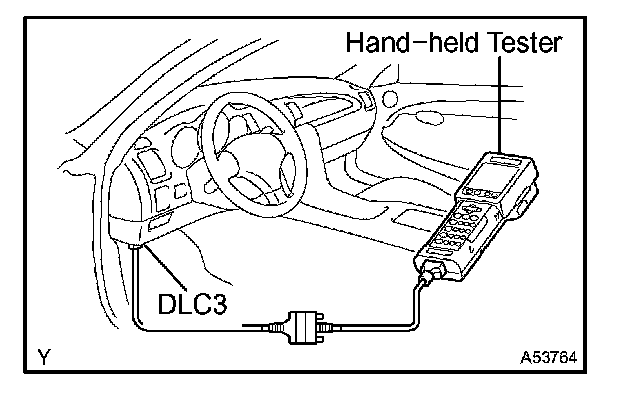

Connect the hand-held tester to the DLC3.
2.
Turn the ignition switch ON.
3.
Check the DTCs by following the prompts on the tester screen.
