Symptom Simulation

SYMPTOM SIMULATION

HINT: The most difficult case in troubleshooting is when no symptoms occur. In such cases, a thorough customer problem analysis must be carried out. A simulation of the same or similar conditions and environment in which the problem occurred in the customer's vehicle should be carried out. No matter how much skill or experience a technician has, troubleshooting without confirming the problem symptoms will lead to important repairs being overlooked and mistakes or delays.




a. Vibration method: When vibration seems to be the major cause.

HINT: Perform the simulation method only during the primary check period (for approximately 6 seconds after the ignition switch is turned ON).

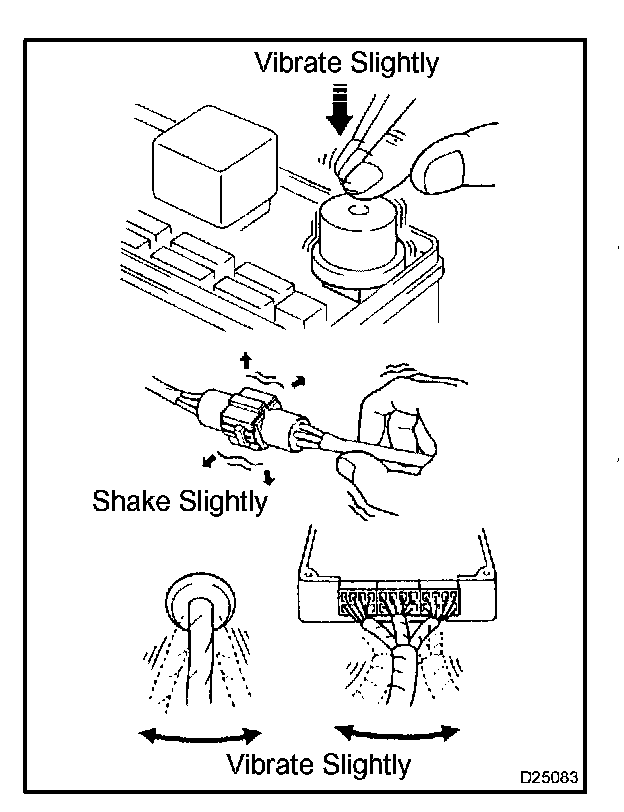

1. Apply slight vibration with a finger to the part of the sensor considered to be the cause of the problem and check whether or not the malfunction occurs.

HINT: Applying strong vibration to relays may open relays.

2. Slightly shake the connector vertically and horizontally.
3. Slightly shake the wire harness vertically and horizontally. The connector joint and fulcrum of the vibration are the major areas to be checked thoroughly.
