Removal and Replacement

REPLACEMENT
1. SET RADIO RECEIVER ASSEMBLY TO SHIPMENT MODE
2. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL

CAUTION: Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to prevent airbag and seat belt pretensioner activation.

3. REMOVE CONSOLE UPPER PANEL GARNISH REAR
4. REMOVE CONSOLE PANEL SUB-ASSEMBLY UPPER
5. REMOVE AIR CONDITIONING CONTROL ASSEMBLY
6. REMOVE INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY LOWER CENTER
7. CONFIRM RADIO RECEIVER ASSEMBLY SHIPMENT MODE SETTING





8. REMOVE TIRE PRESSURE MONITOR RECEIVER ASSEMBLY

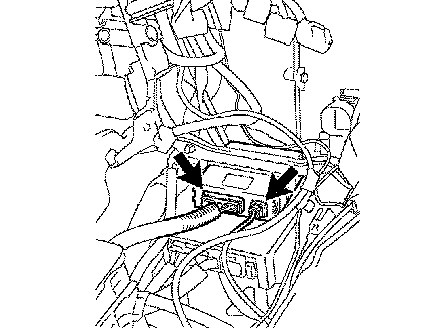

a. Disconnect the 2 connectors.
b. Remove the 2 bolts and receiver.

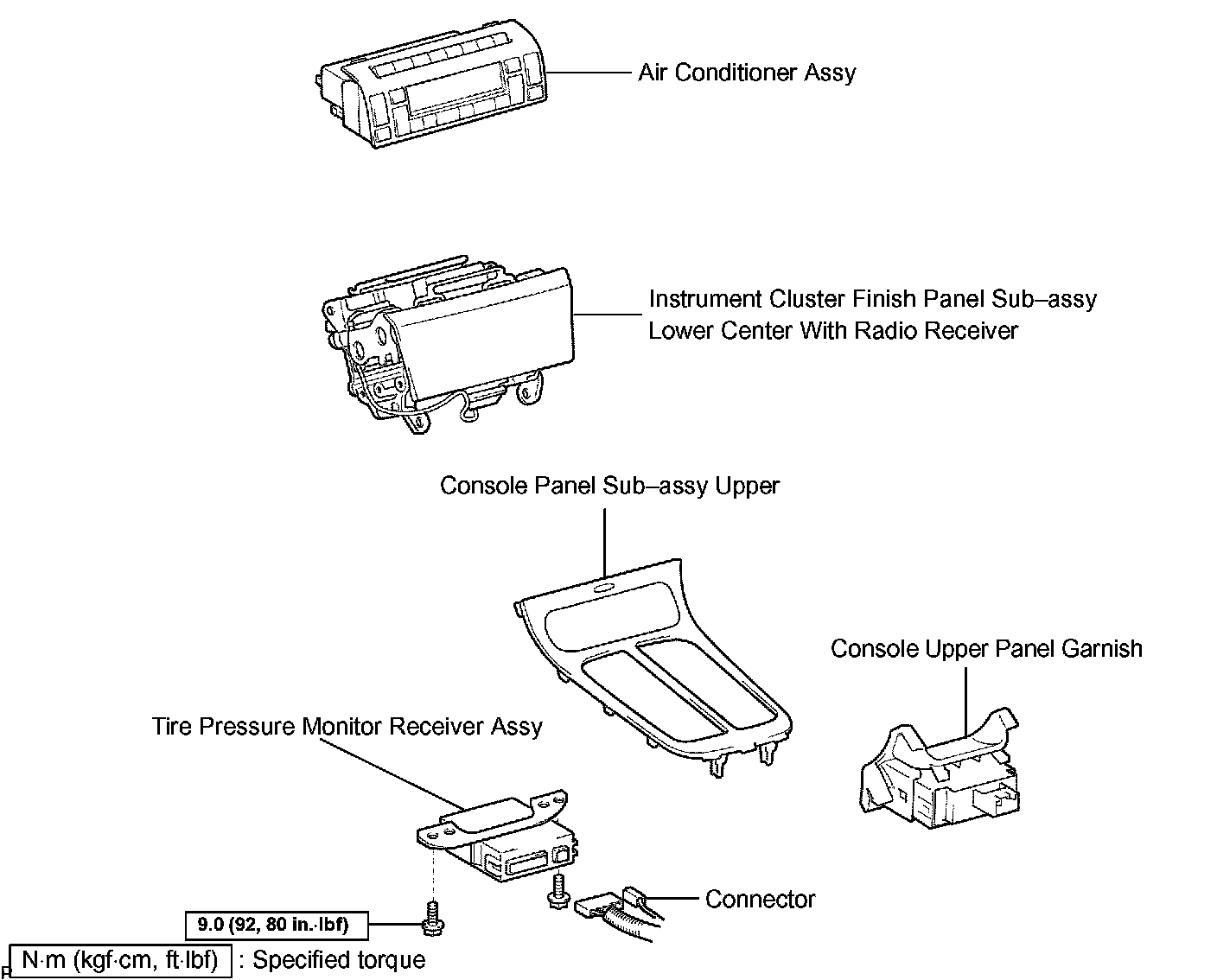

9. INSTALL TIRE PRESSURE MONITOR RECEIVER ASSEMBLY
a. Install the receiver with the 2 bolts.
Torque: 9.0 Nm (92 kgf-cm, 80 inch lbs.)

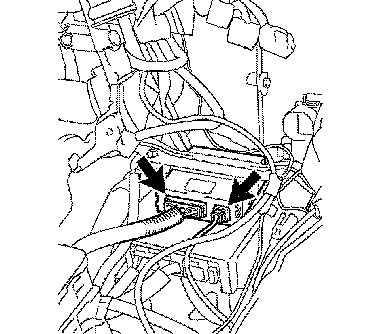

b. Connect the 2 connectors.
10. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
11. PERFORM INITIALIZATION

NOTICE: Certain systems need to be initialized after disconnecting and reconnecting the cable from the negative (-) battery terminal.

12. INSPECT TIRE PRESSURE WARNING SYSTEM
