Home >> Lexus >> 2006 >> SC 430 V8-4.3L (3UZ-FE) >> Repair and Diagnosis >> Powertrain Management >> Ignition System >> Description and Operation

Ignition System: Description and Operation

Ignition System Part 2:

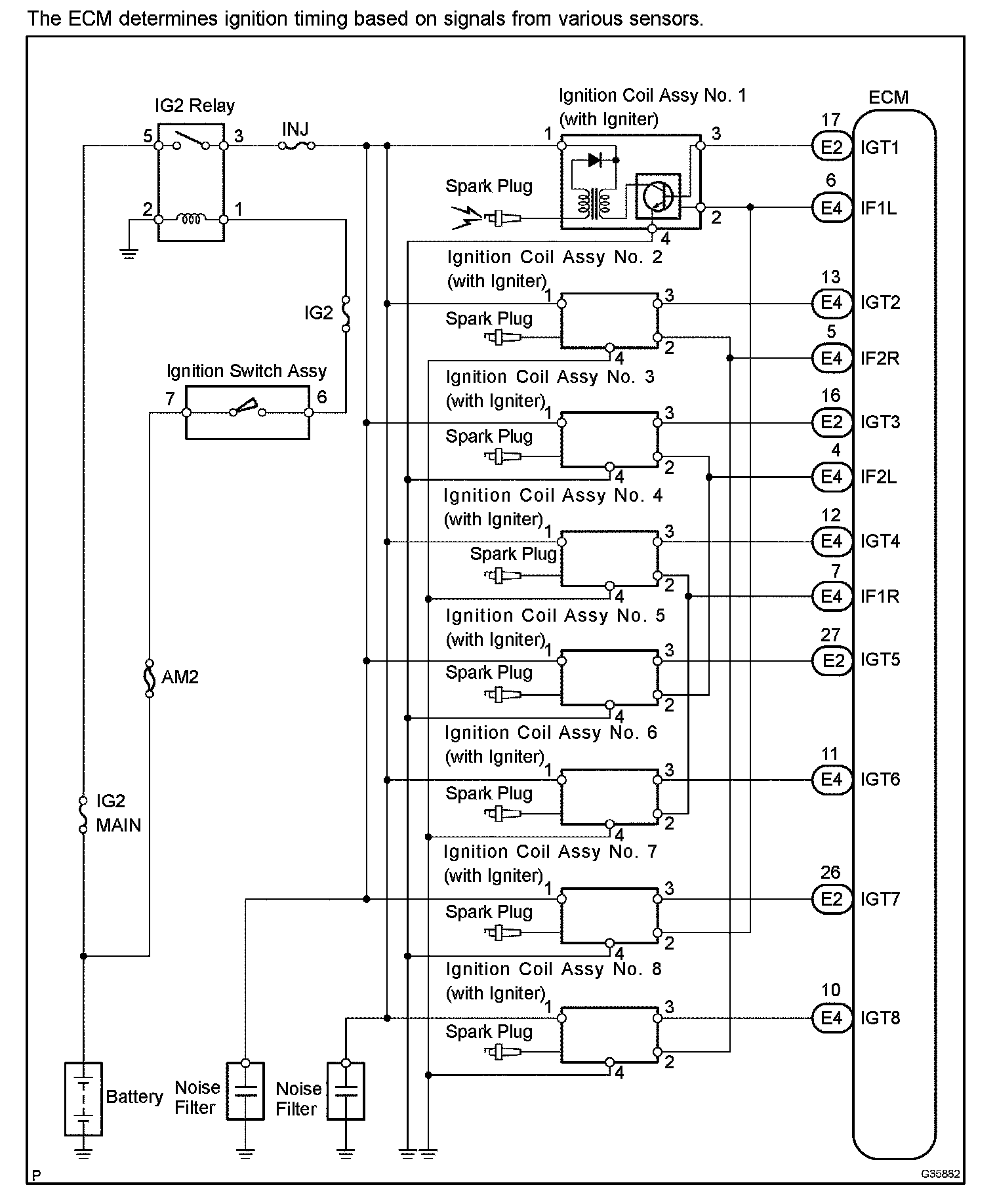

Ignition System Part 1:
