Positive Crankcase Ventilation Valve: Service and Repair
REPLACEMENT1. REMOVE V-BANK COVER
2. REMOVE VENTILATION VALVE SUB-ASSY
a. Disconnect the ventilation hose from the valve.
b. Remove the ventilation valve cover.
c. Remove the valve.
3. INSTALL VENTILATION VALVE SUB-ASSY

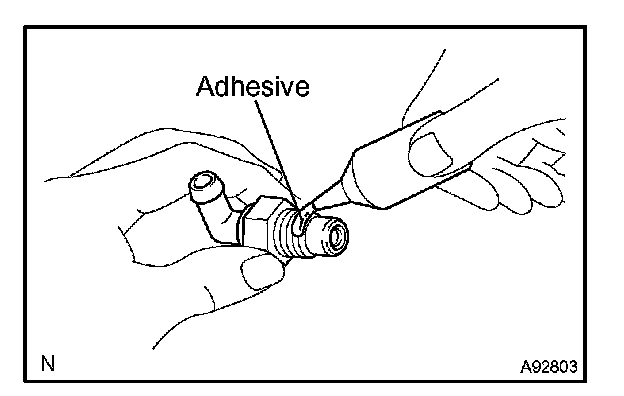

a. Apply adhesive to 2 or 3 threads of the valve.
Adhesive:
Part No. 08833-00070, THREE BOND 1324 or equivalent
b. Install the valve.
Torque: 27 N.m (275 kgf.cm, 20 ft.lbf)

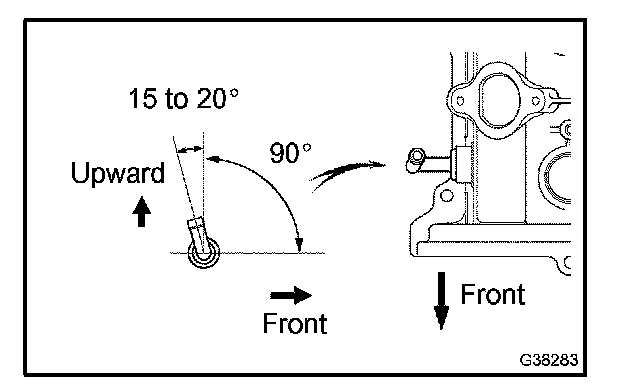

HINT: After applying the specified torque, turn the valve clockwise with the port facing in the direction indicated in the illustration.
c. Install the valve cover.
d. Connect the ventilation hose to the valve.
4. INSTALL V-BANK COVER
