VC Output Circuit

VC OUTPUT CIRCUIT

DESCRIPTION

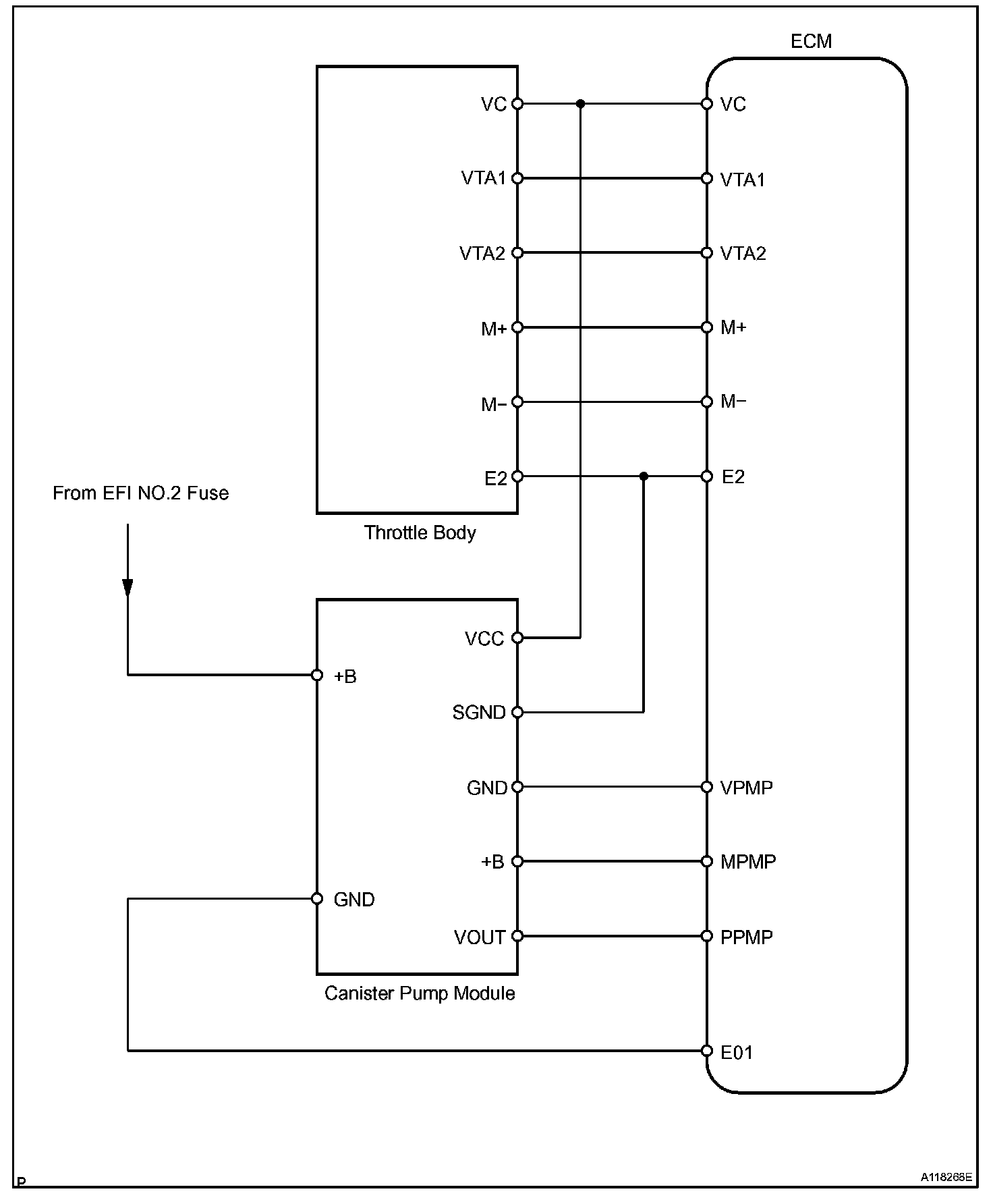

Wiring Diagram:

The VC voltage (5 V) is generated in the ECM. The voltage is used to supply power to the throttle position sensor, canister pump module, etc.

Step 1-4:

Step 4(Continued)-6:

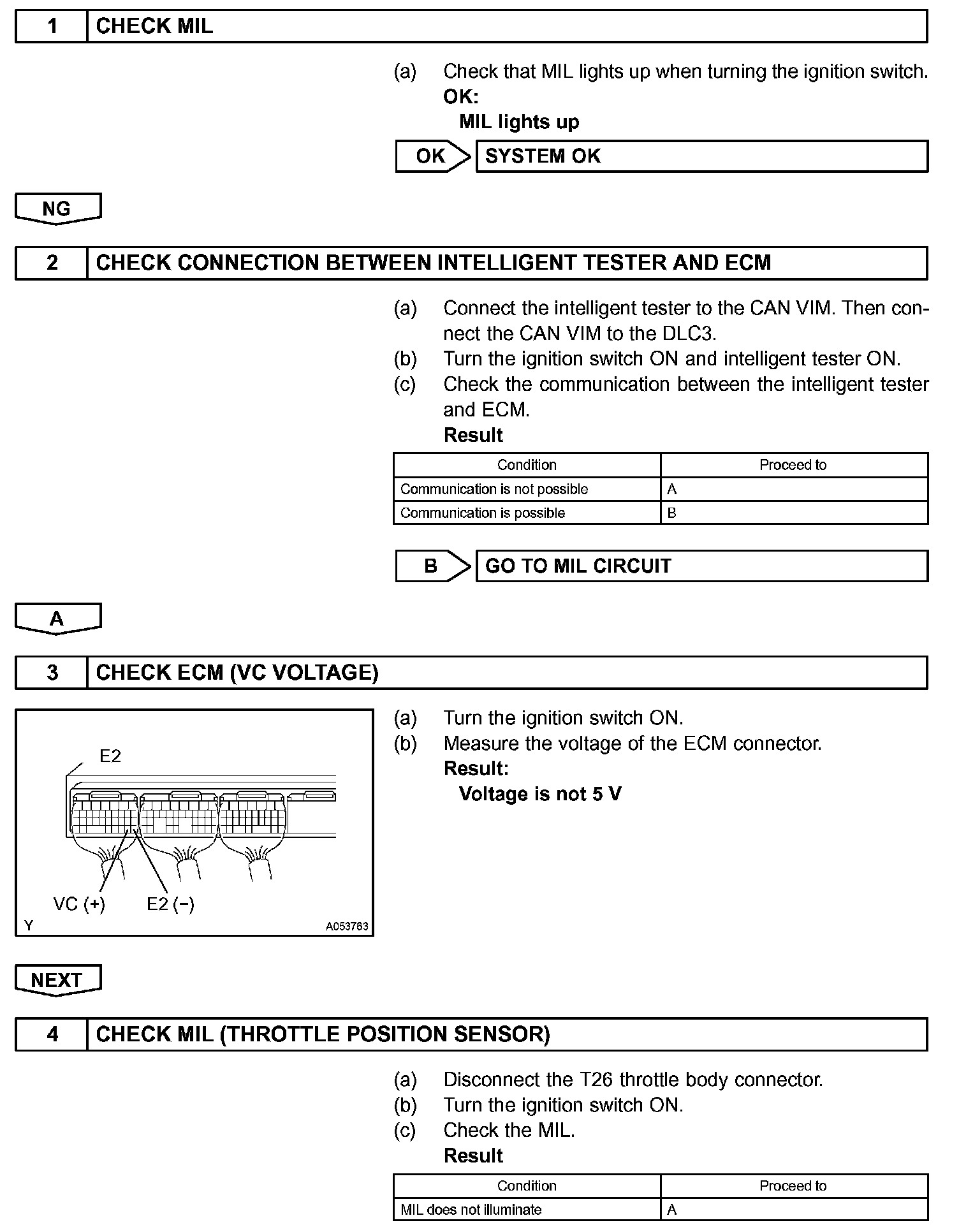

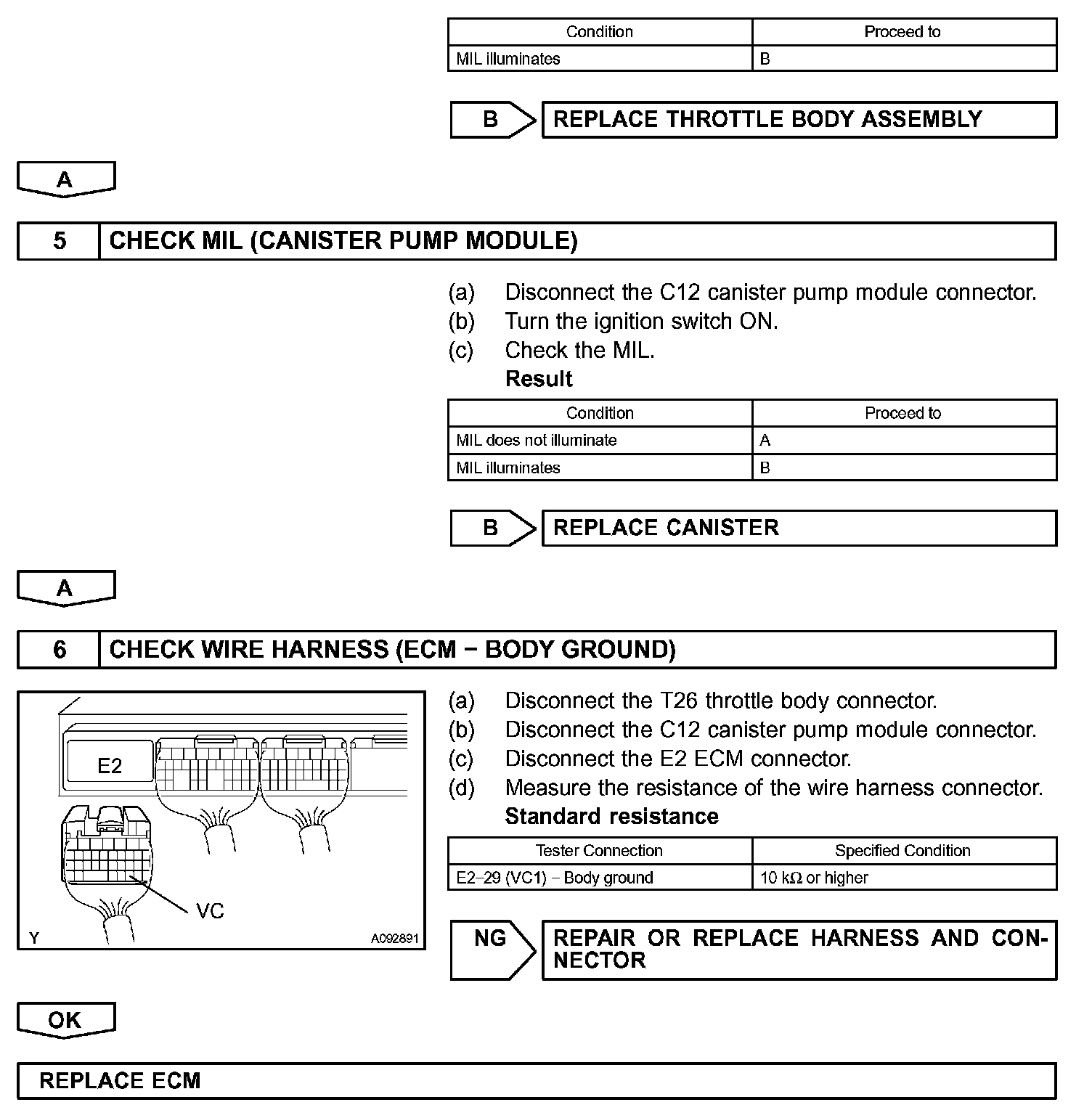

INSPECTION PROCEDURE
