Diagnosis System

DIAGNOSIS SYSTEM

BUS CHECK

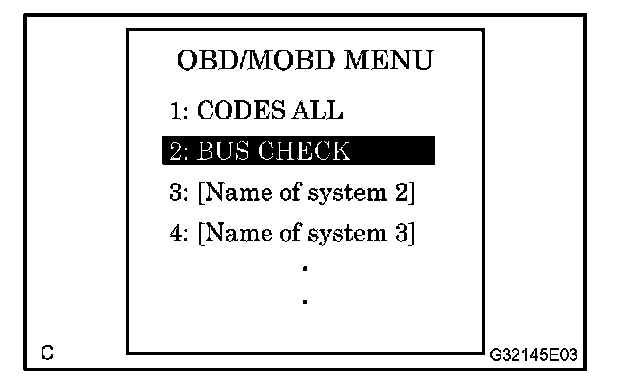

a. Select "BUS CHECK" from the "OBD/MOBD MENU" screen.

HINT: The ECUs and sensors that are properly connected to the CAN communication system can be displayed using the hand-held tester via the CAN VIM.

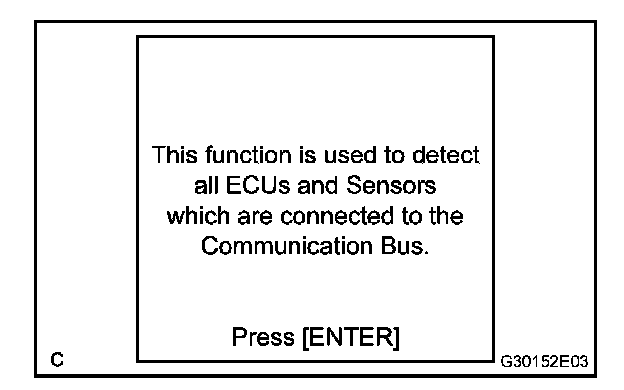

b. Press "ENTER" on the intelligent tester via the CAN VIM.

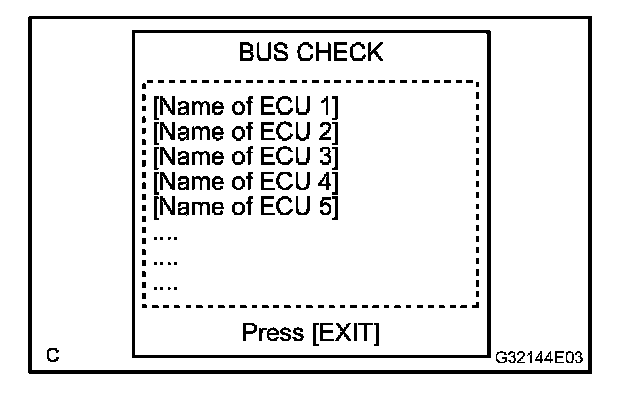

c. The screen displays the ECUs that are properly connected to the CAN communication system.

HINT: There is a communication stop in the system of any properly connected ECUs that are not displayed.
