Translate ECU Communication Stop Mode
Translate ECU Communication Stop Mode
TRANSLATE ECU COMMUNICATION STOP MODE

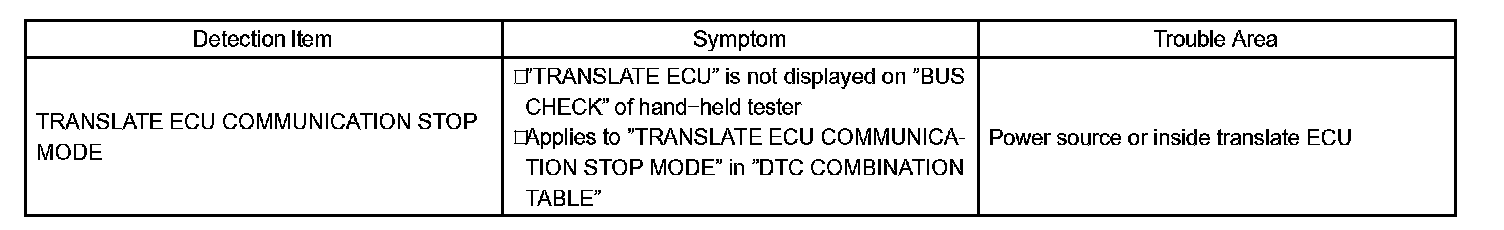

Detection Item:
MODE DESCRIPTION

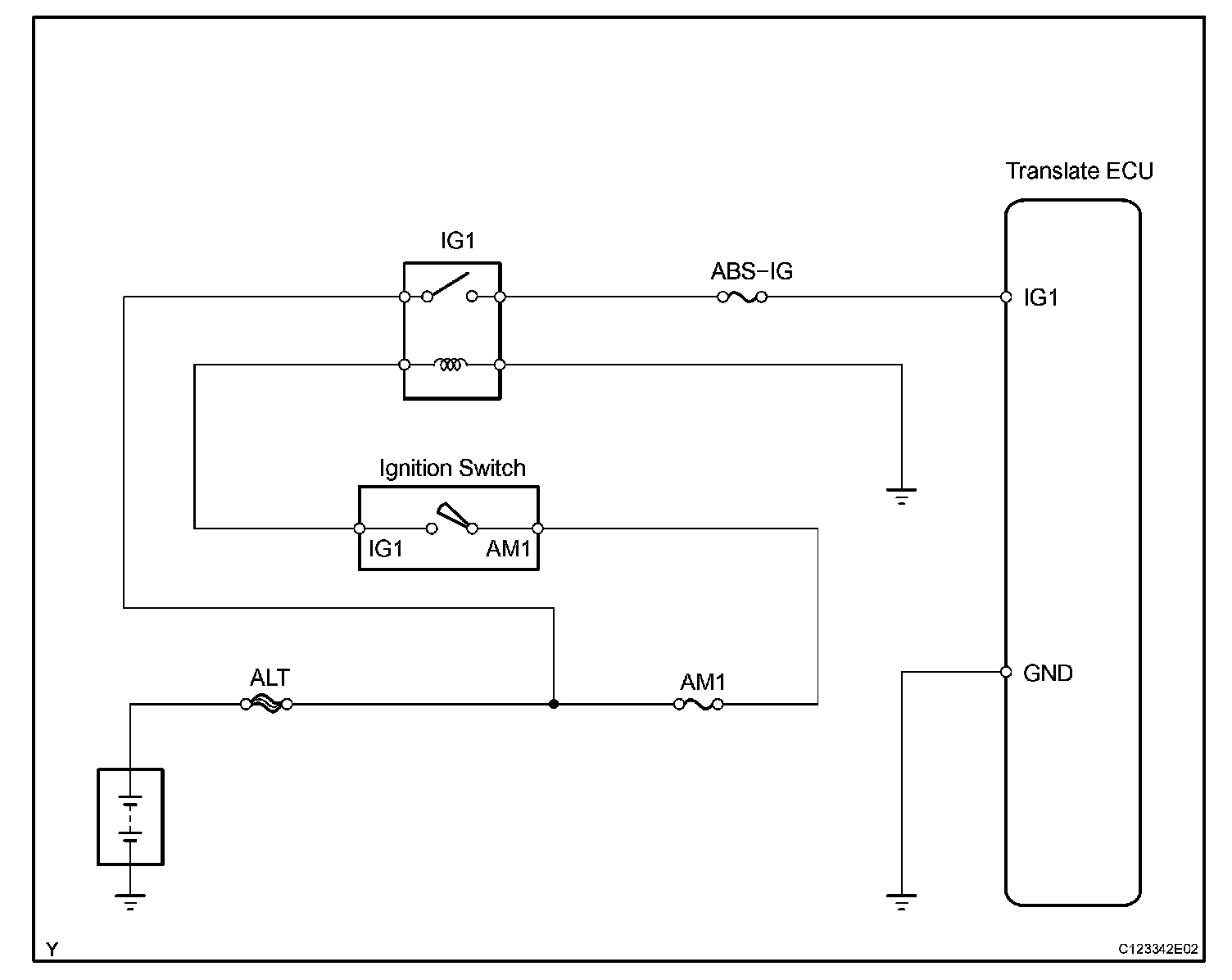

Wiring Diagram:

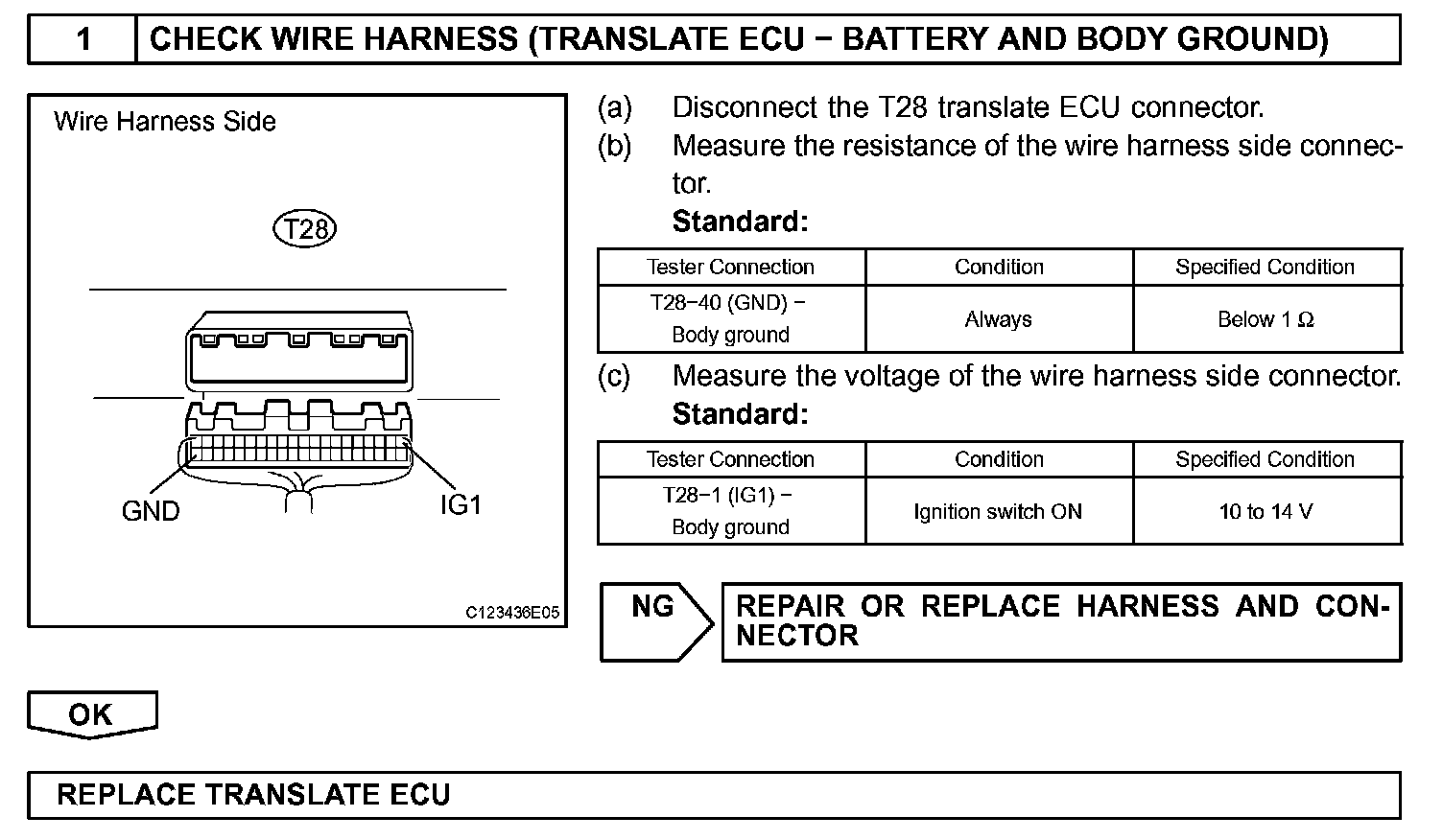

Step 1:
INSPECTION PROCEDURE
