Short to B+ in CAN Bus Line

SHORT TO B+ IN CAN BUS LINE

CIRCUIT DESCRIPTION




There may be a short circuit between the CAN bus line and B+ when there is resistance between terminals 6 (CANH) and 16 (BAT) or terminals 14 (CANL) and 16 (BAT) of the DLC3.

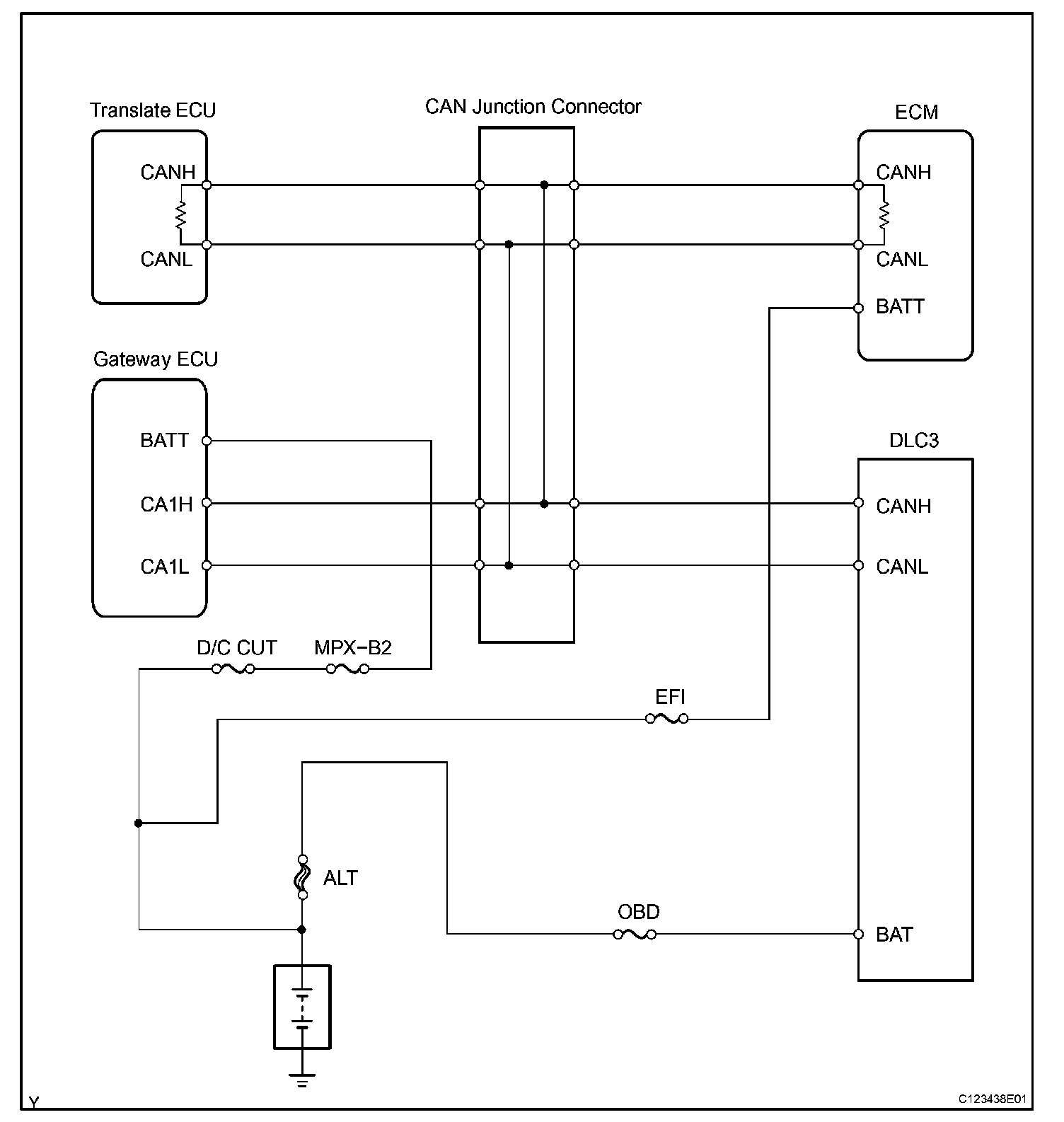

Wiring Diagram:

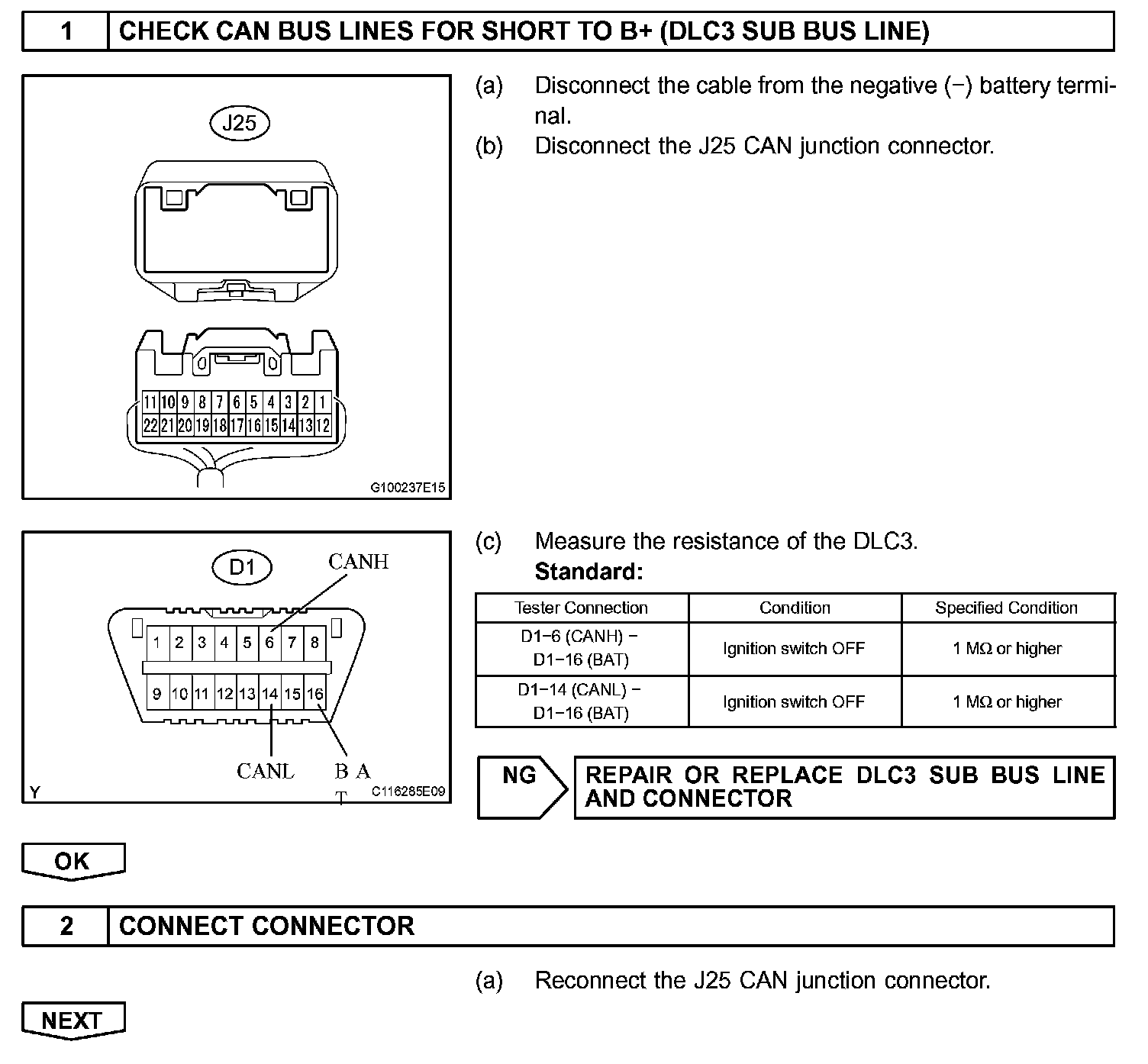

Step 1-2:

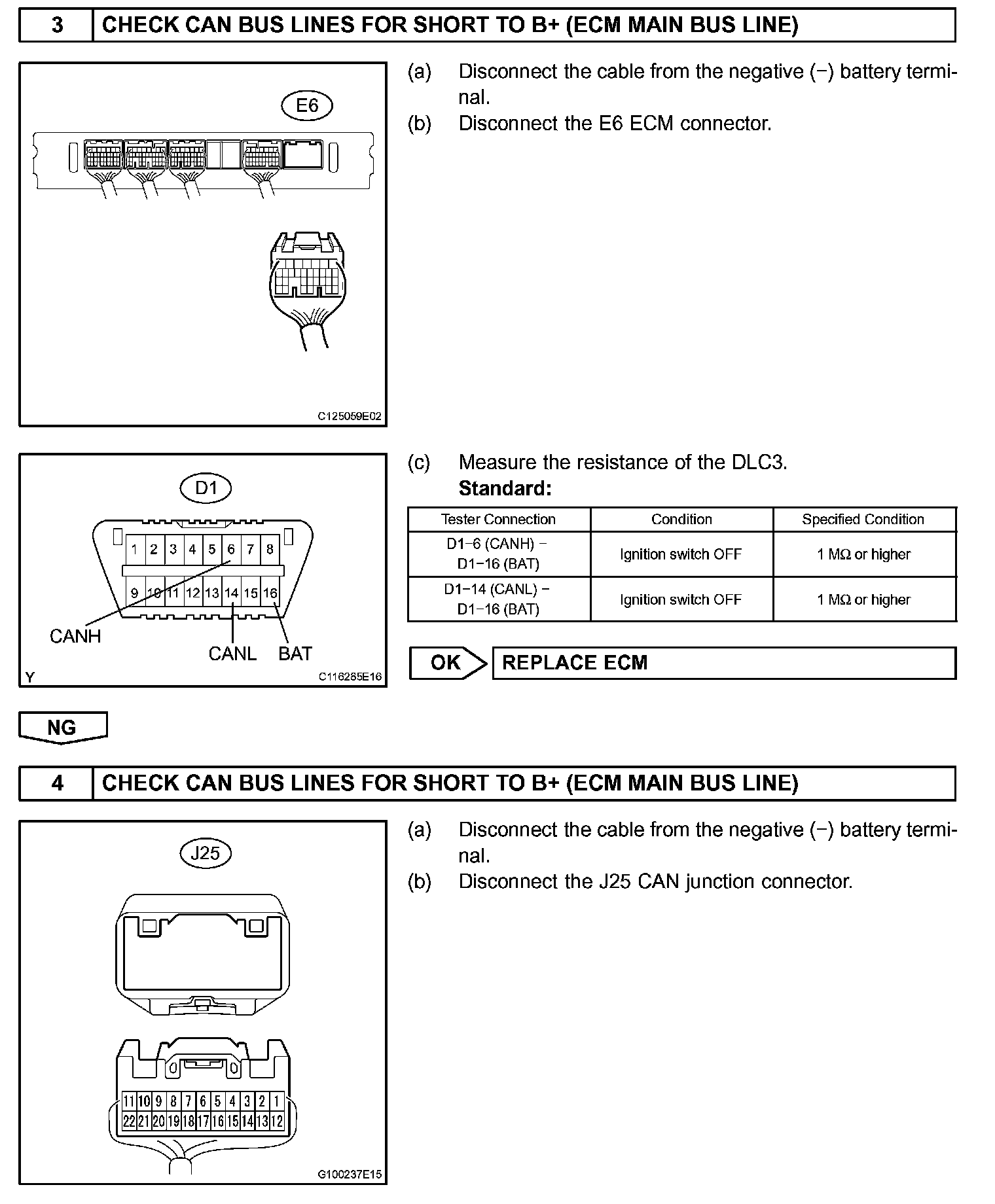

Step 3-4:

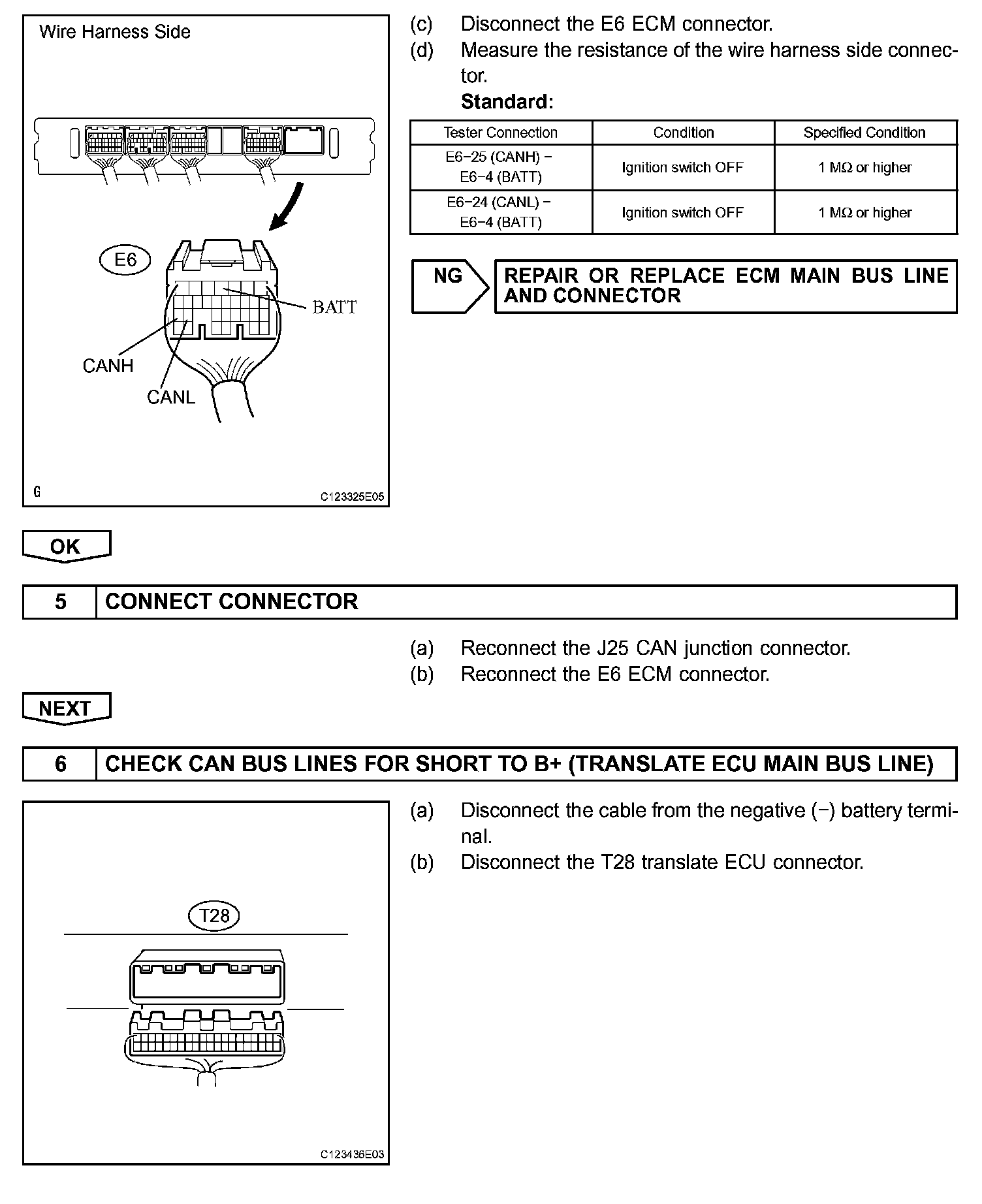

Step 4(Continued)-6:

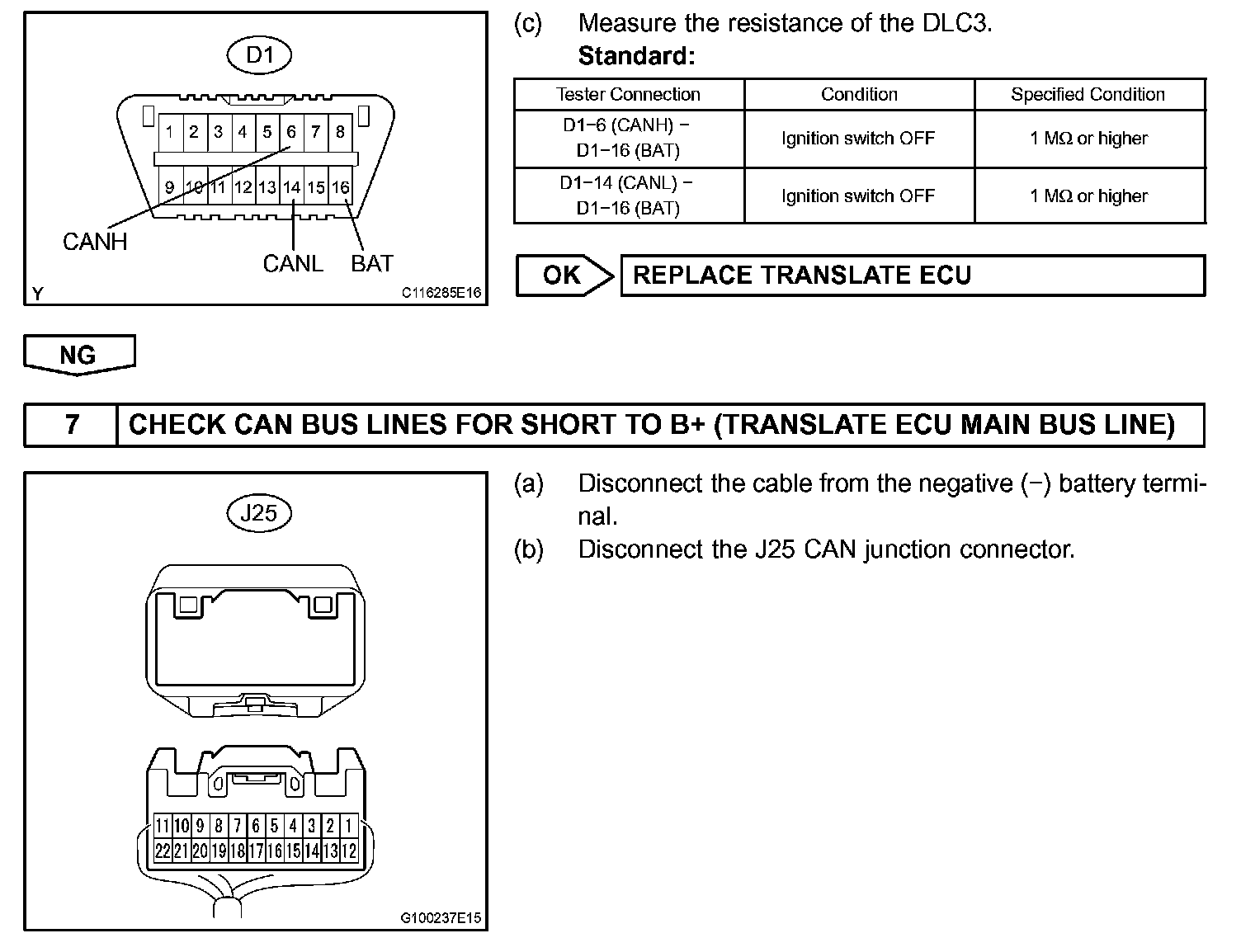

Step 6(Continued)-7:

Step 7(Continued)-9:

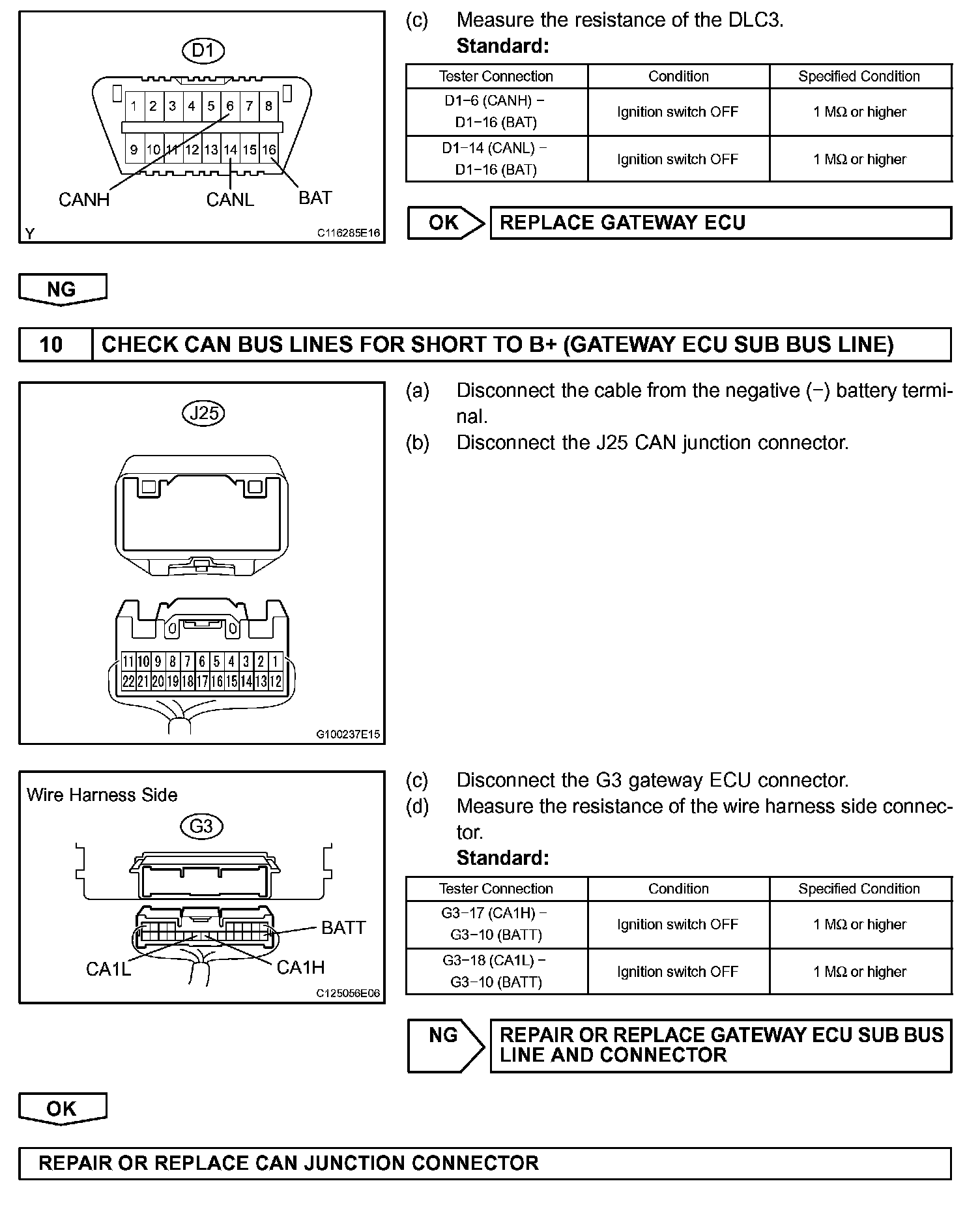

Step 9(Continued)-10:

INSPECTION PROCEDURE
