GATEWAY ECU COMMUNICATION STOP MODE

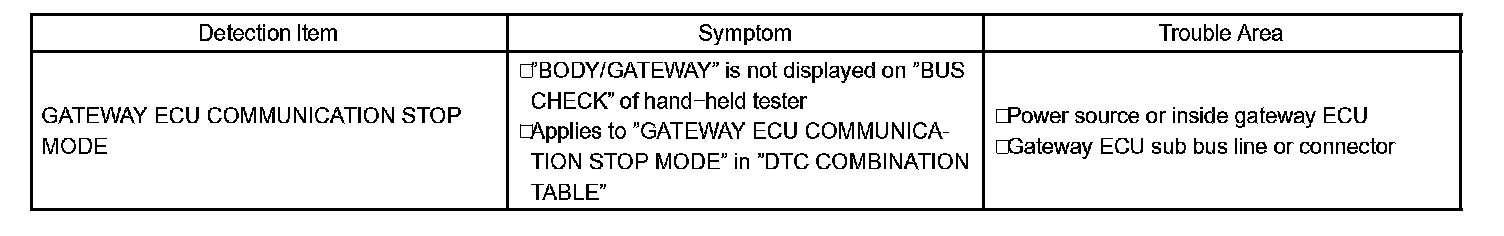

Detection Item:
MODE DESCRIPTION

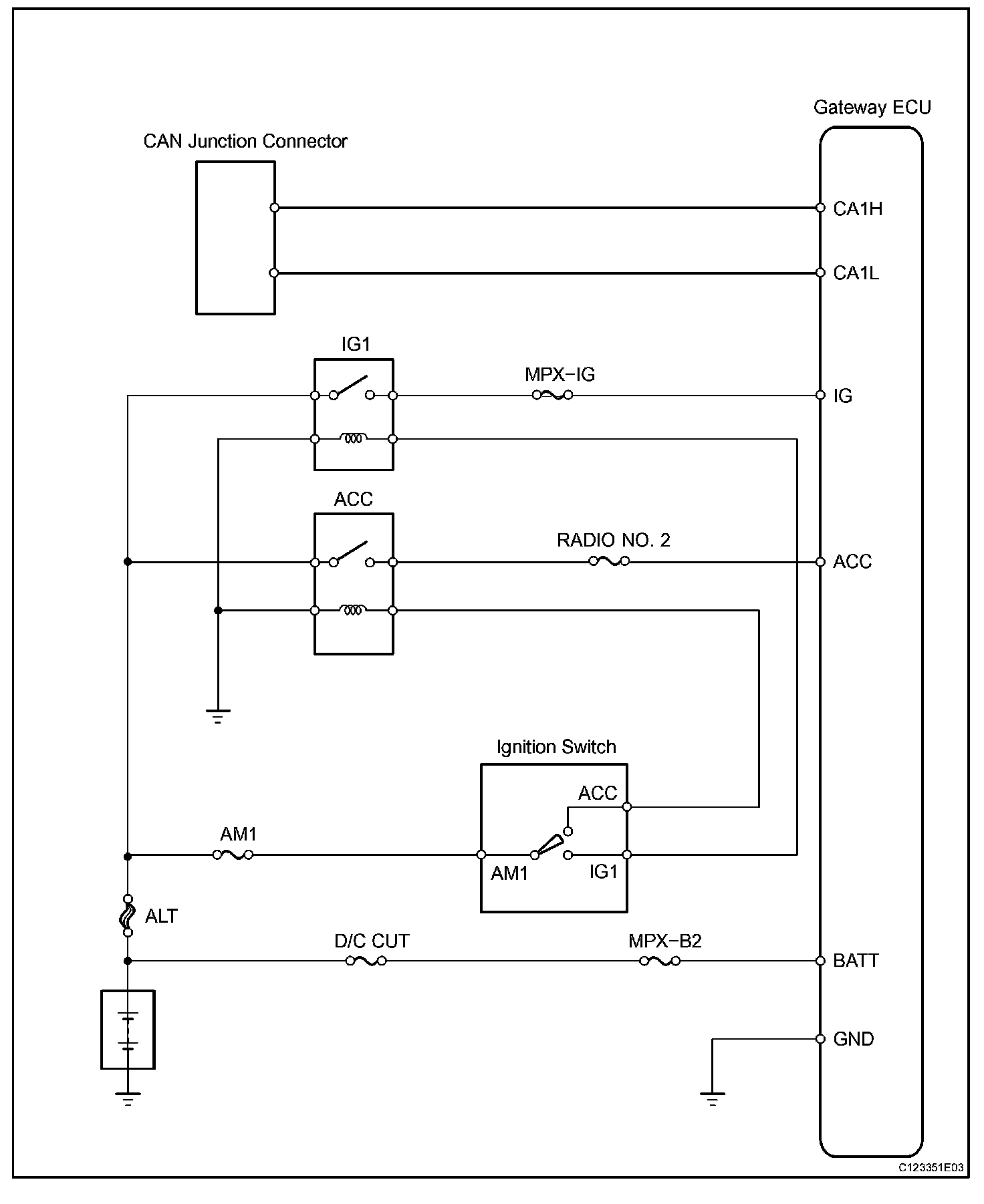

Wiring Diagram:

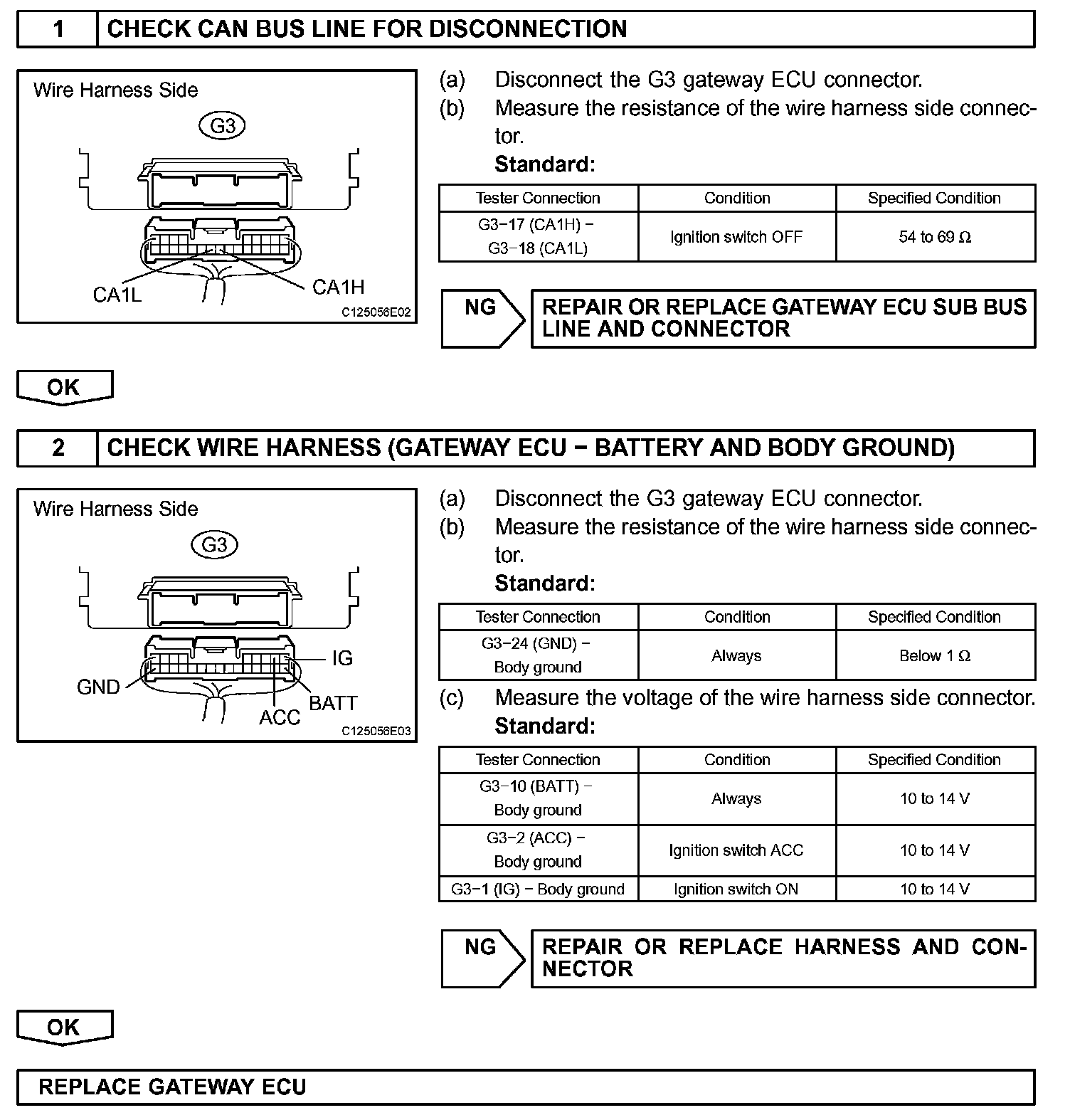

Step 1-2:
INSPECTION PROCEDURE
