ECM Communication Stop Mode

TRANSLATE ECU COMMUNICATION STOP MODE

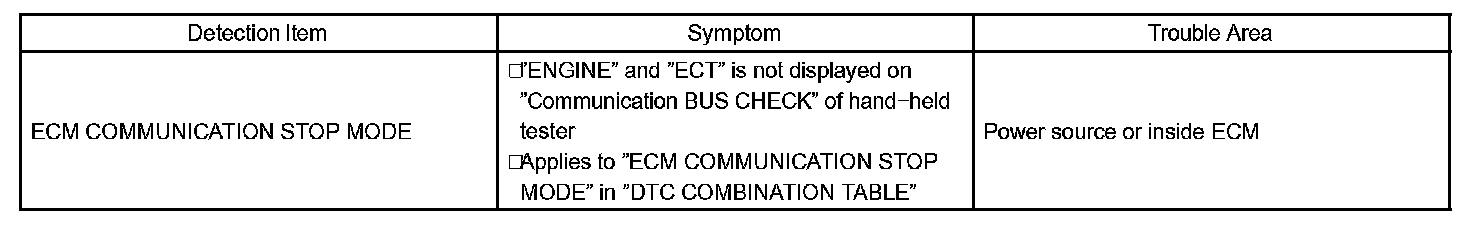

Detection Item:




MODE DESCRIPTION

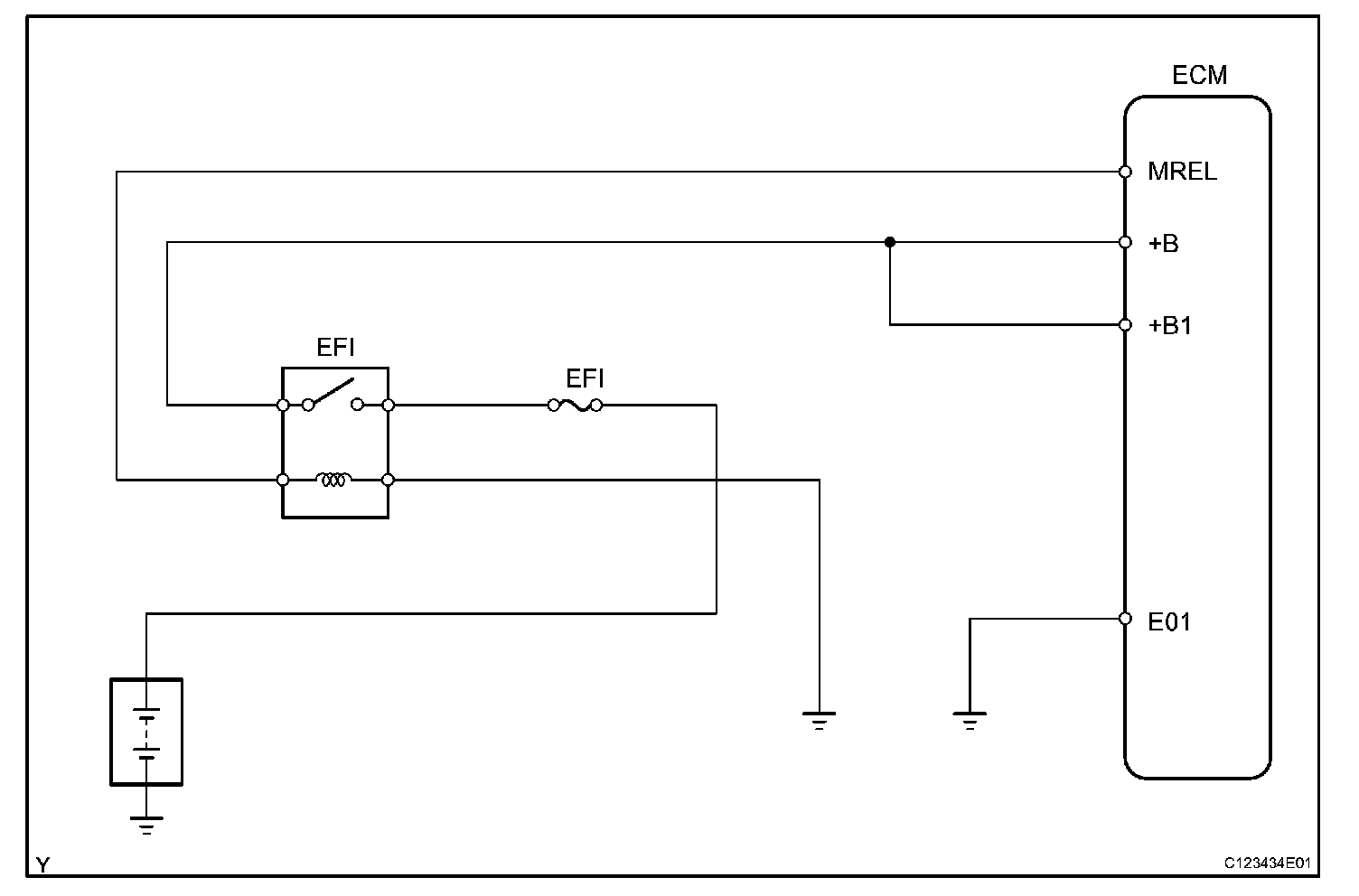

Wiring Diagram:

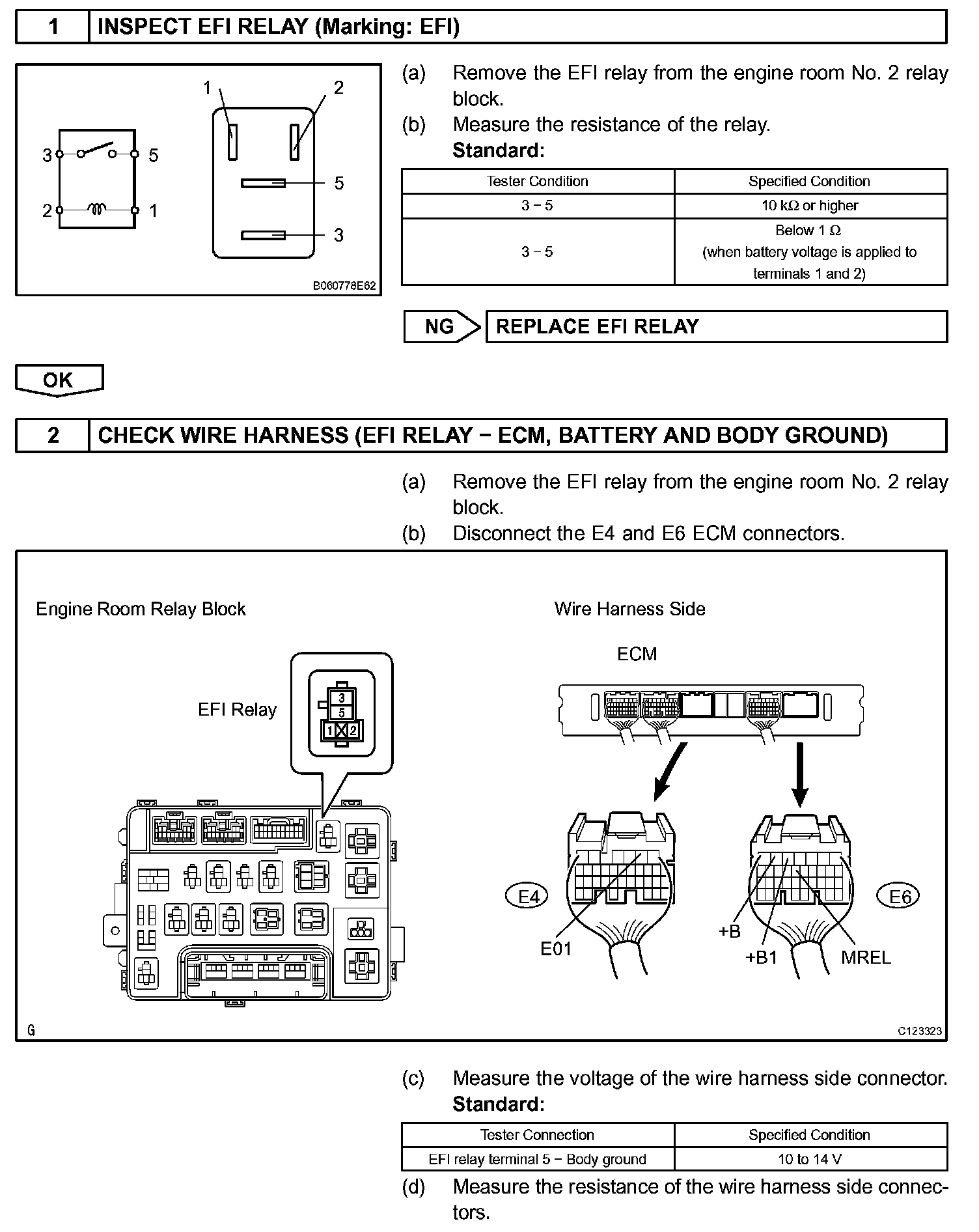

Step 1-2:

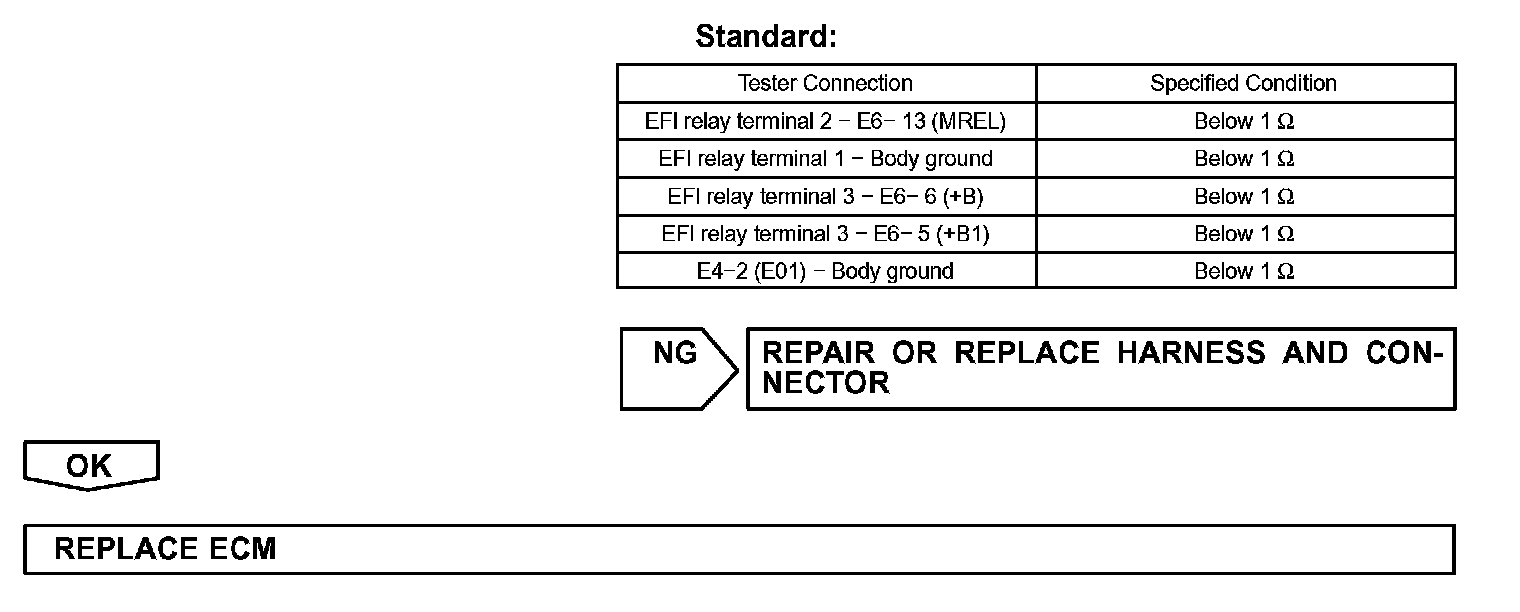

Step 2(Continued):




INSPECTION PROCEDURE
