ECU Power Source Circuit

ECU POWER SOURCE CIRCUIT

CIRCUIT DESCRIPTION

This is the power source for the tire pressure monitor receiver assembly.

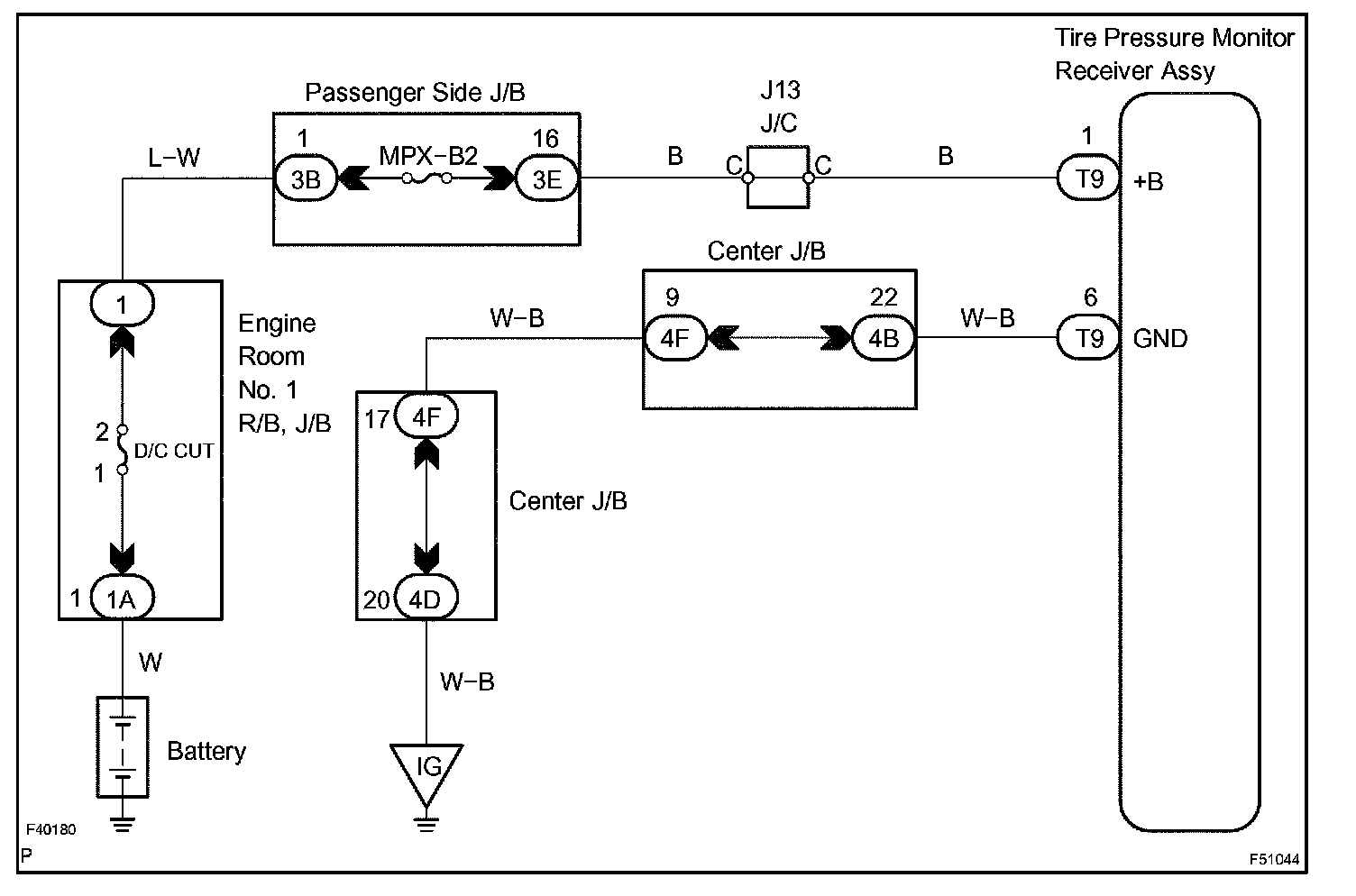

Wiring Diagram:

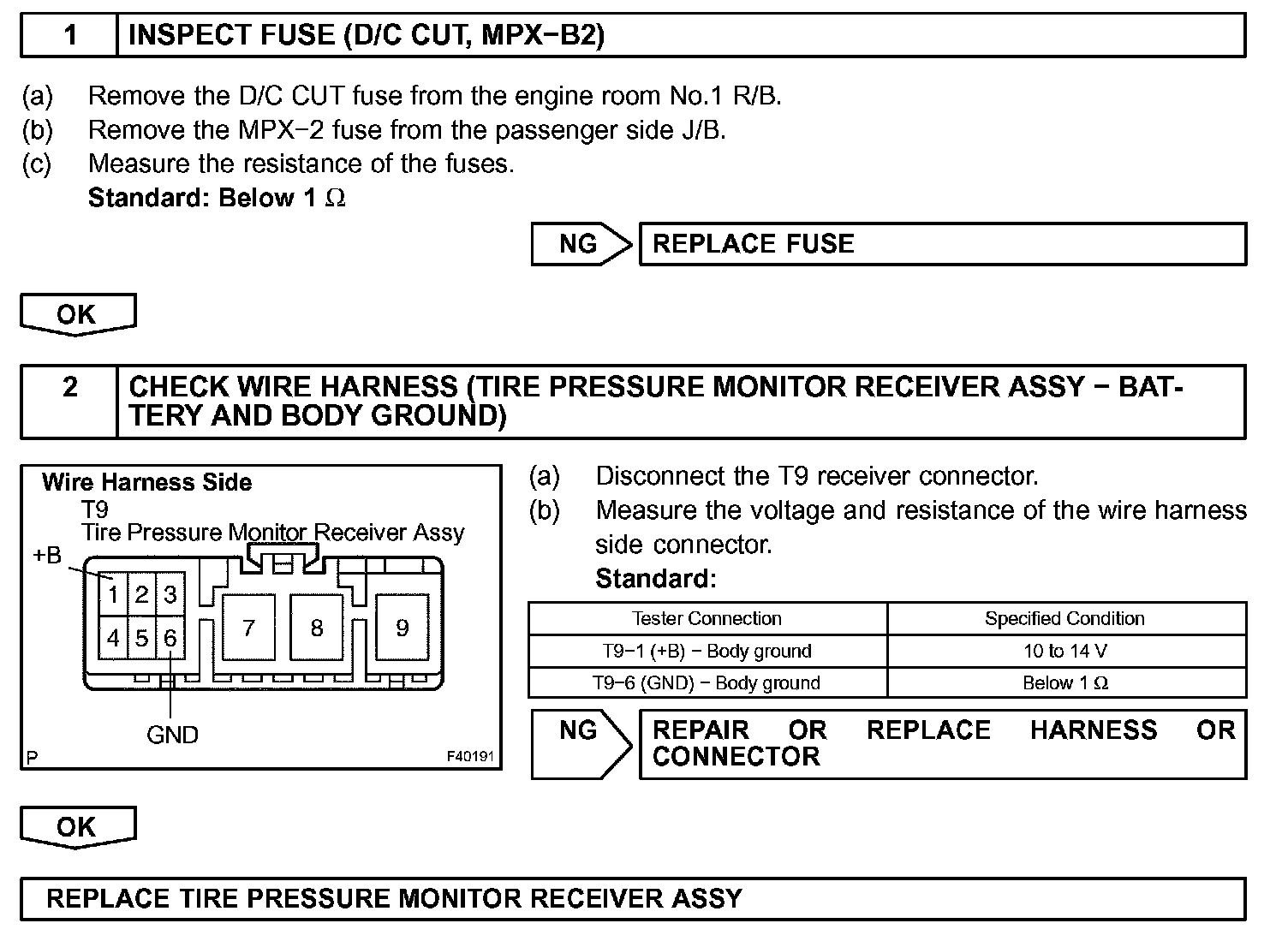

Step 1-2:




INSPECTION PROCEDURE
