Pinout Values and Diagnostic Parameters

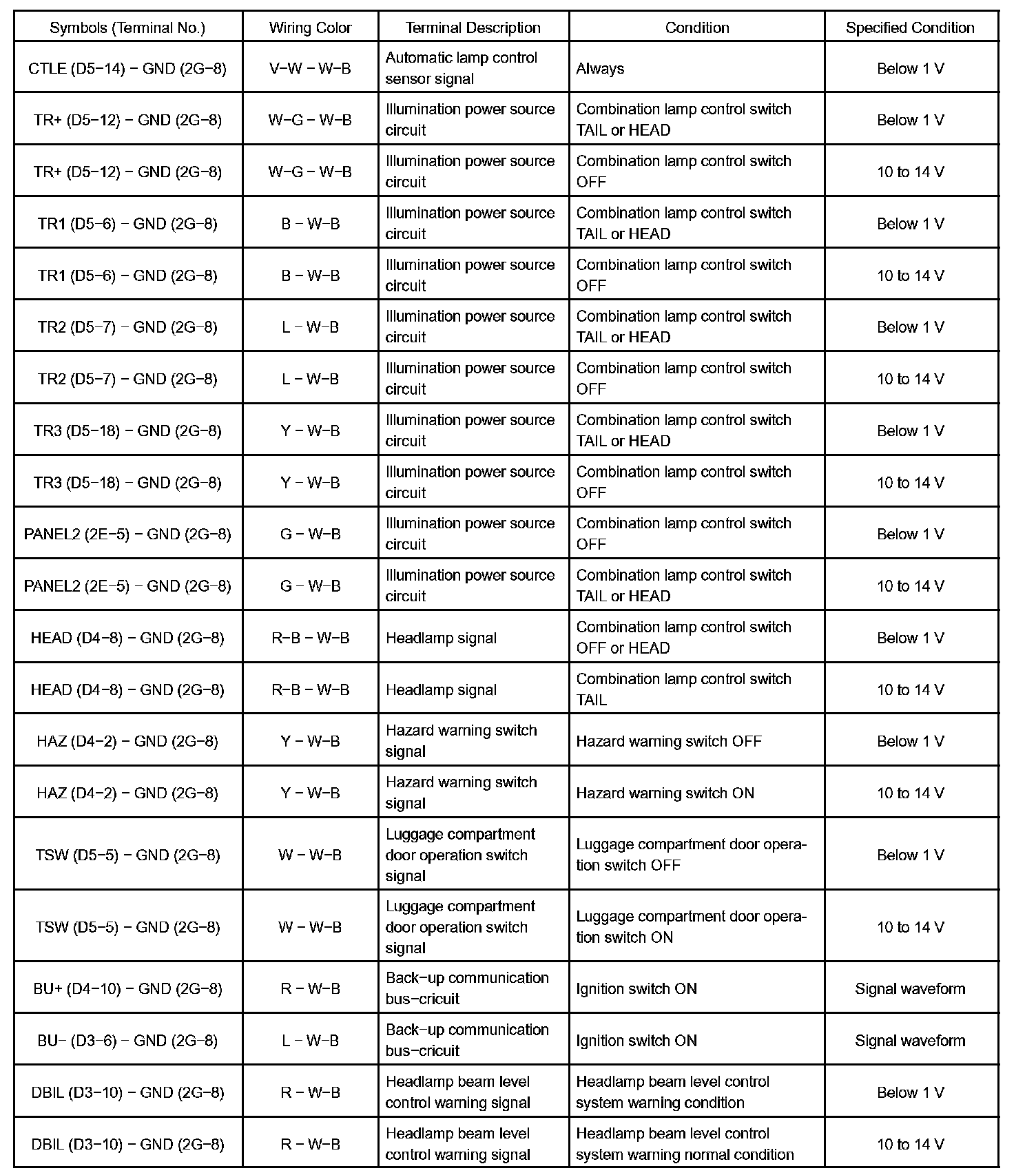

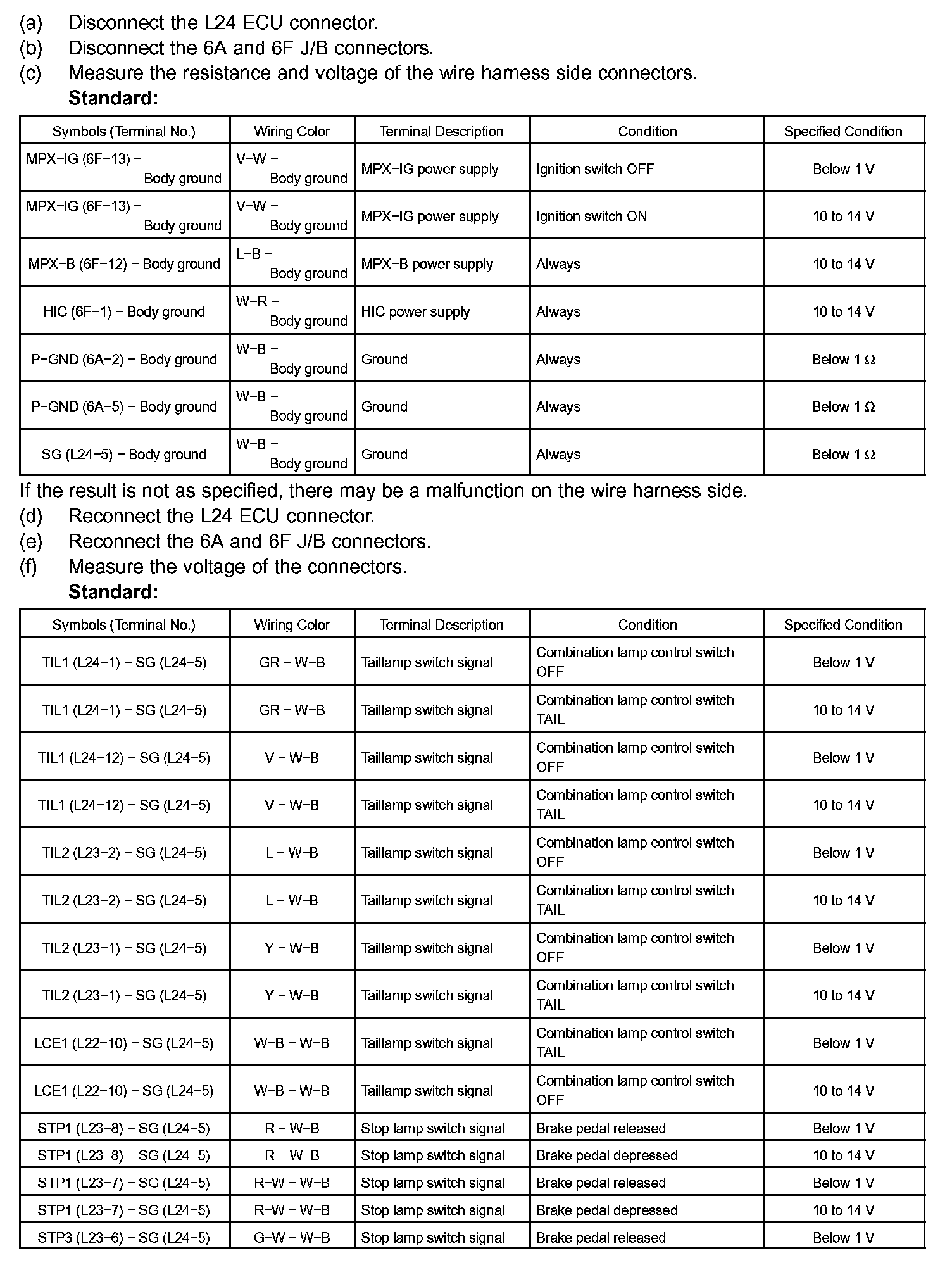

Terminals Of Control Module/Pinouts:

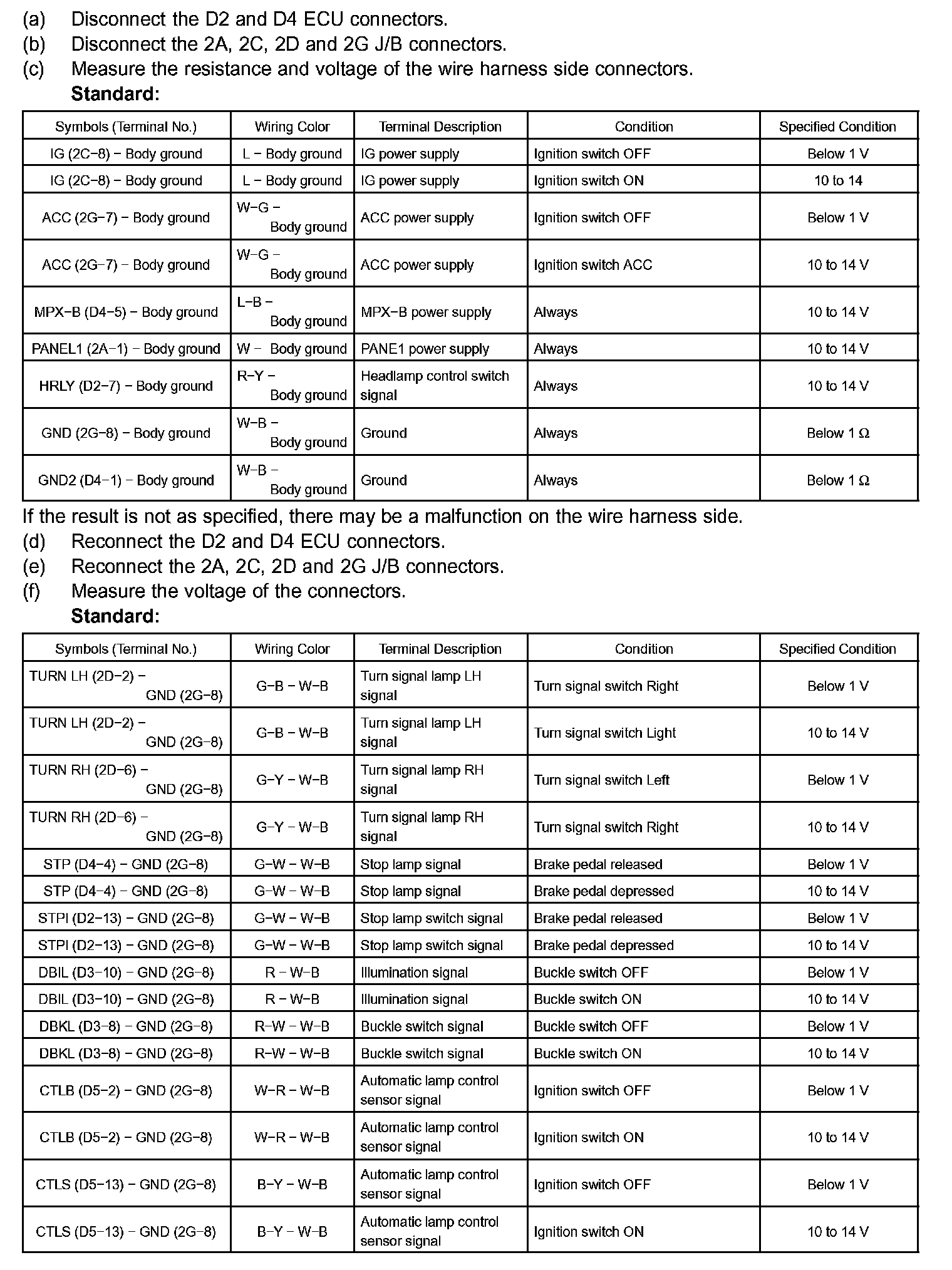

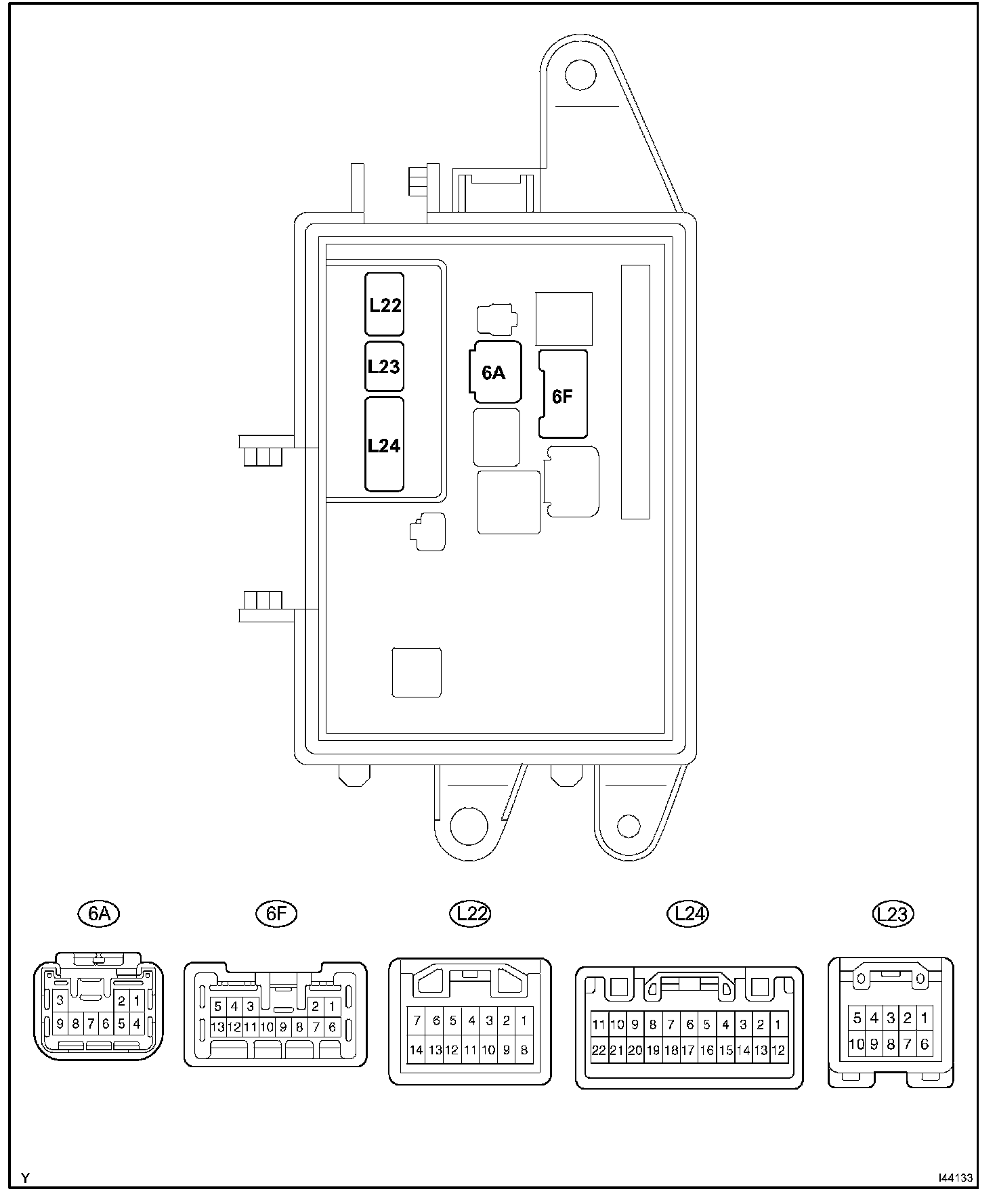

Terminals Of Control Module/Pinouts - Check Driver Side J/B ECU:

Terminals Of Control Module/Pinouts (Part 2):

Terminals Of Control Module/Pinouts (Part 3):

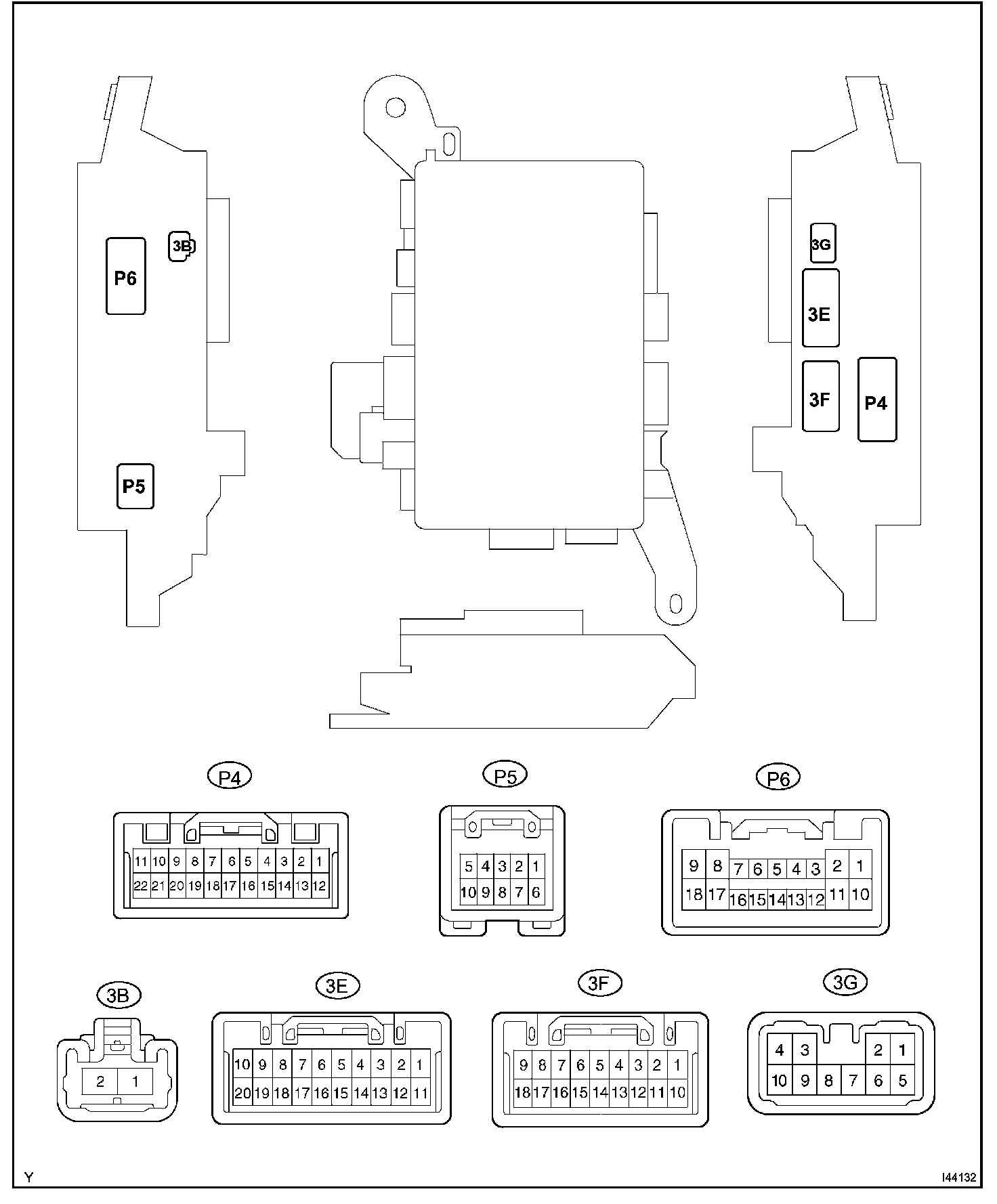

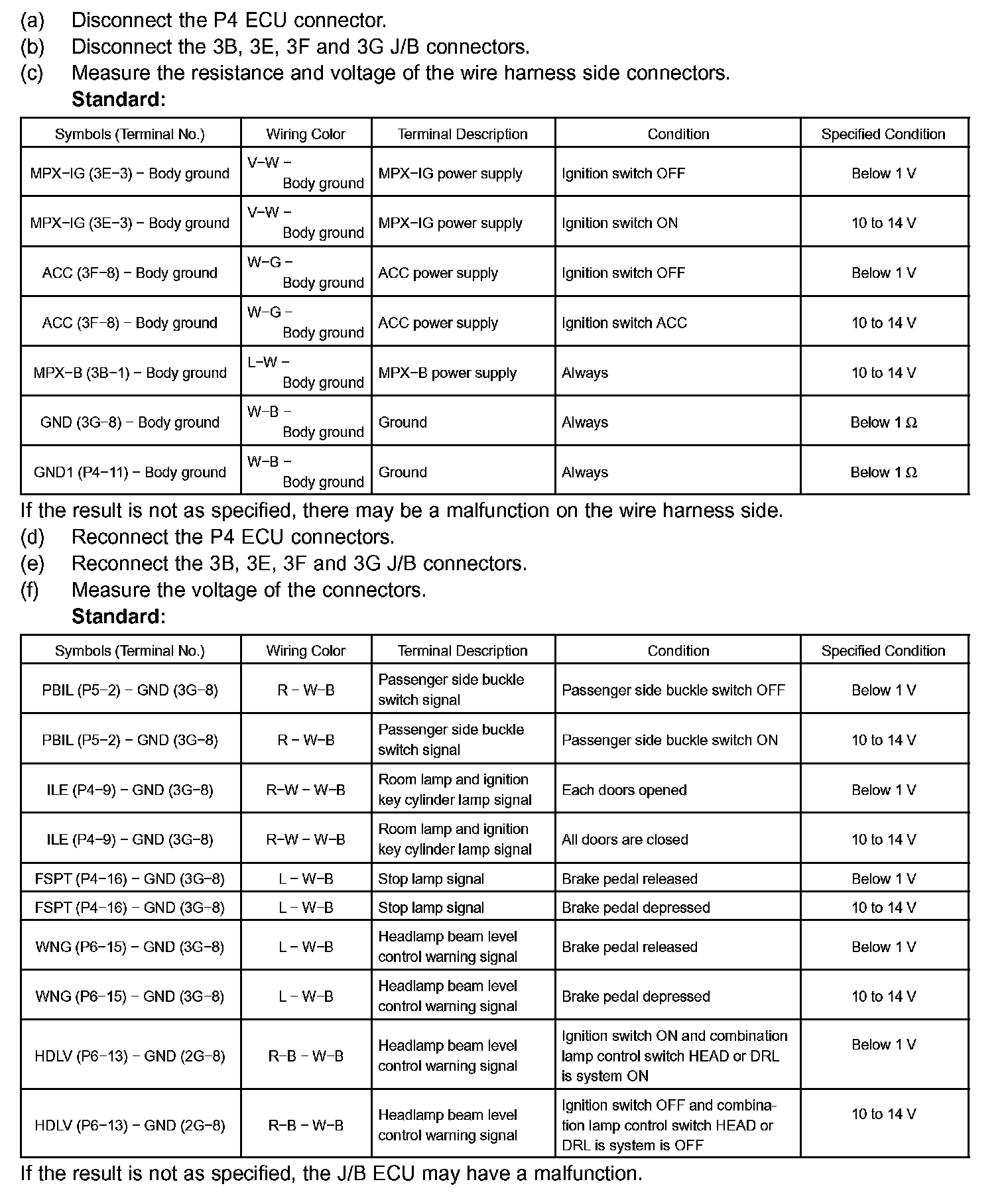

Terminals Of Control Module/Pinouts - Check Passenger Side J/B ECU:

Terminals Of Control Module/Pinouts (Part 2):

Terminals Of Control Module/Pinouts - Check Luggage Room J/B ECU:

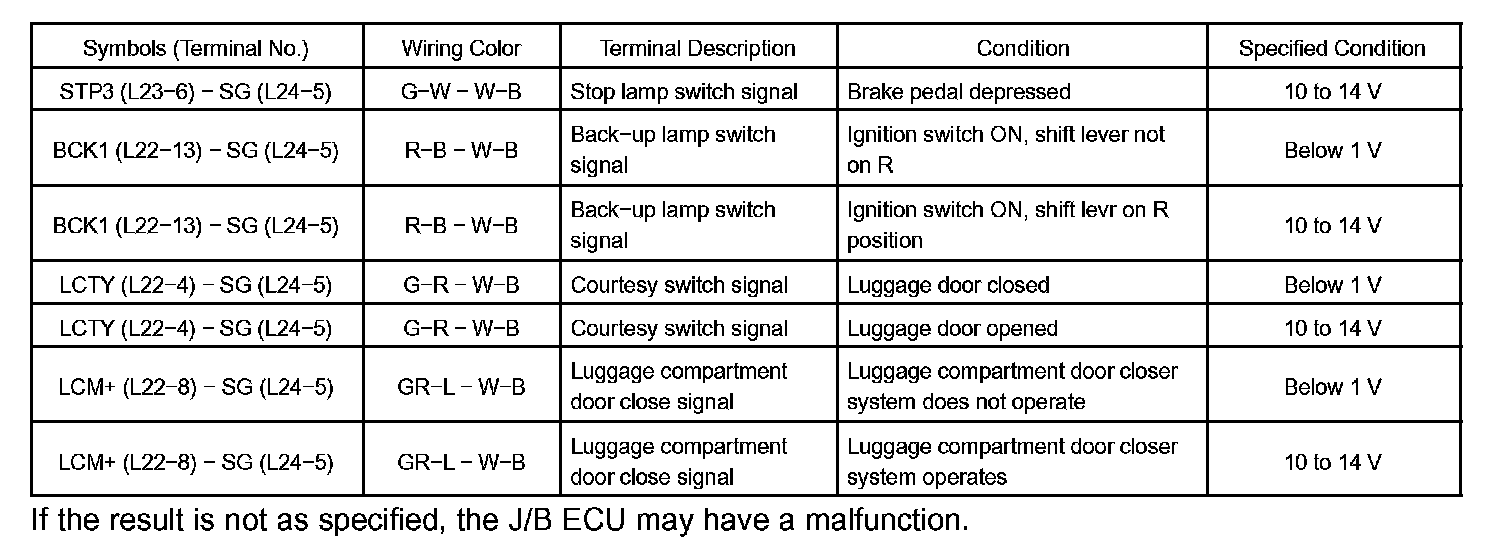

Terminals Of Control Module/Pinouts (Part 2):

Terminals Of Control Module/Pinouts (Part 3):

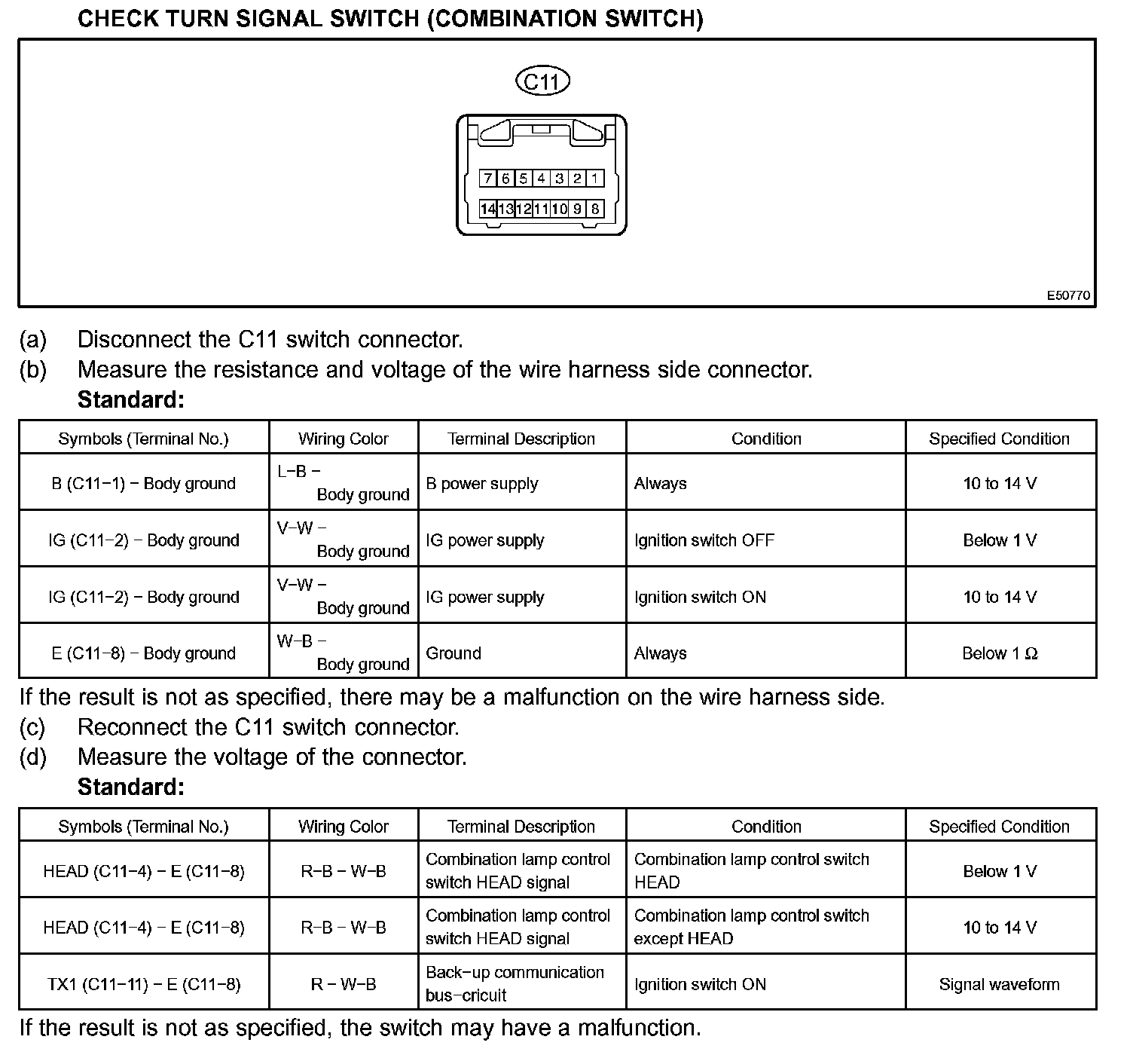

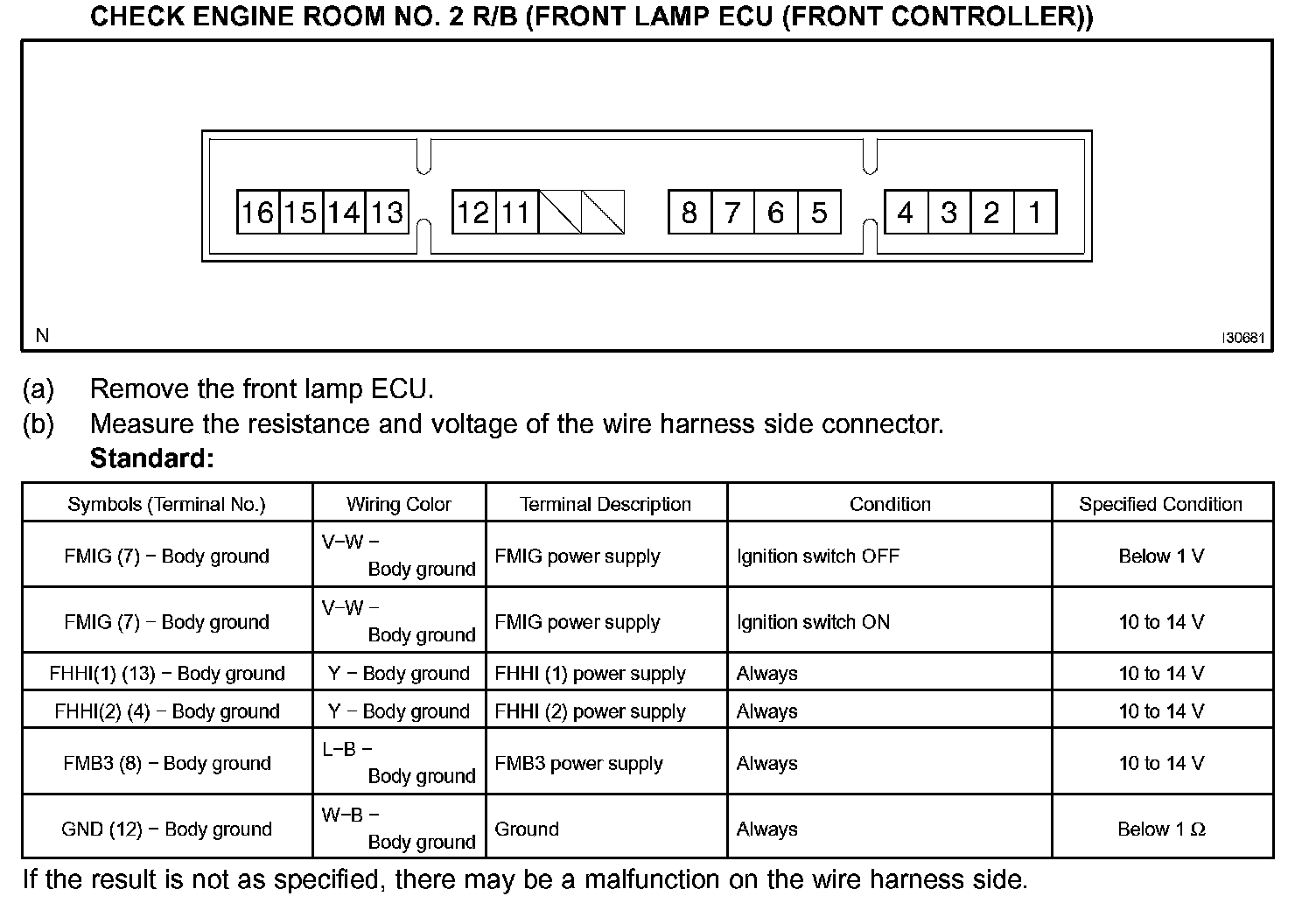

Terminals Of Control Module/Pinouts:

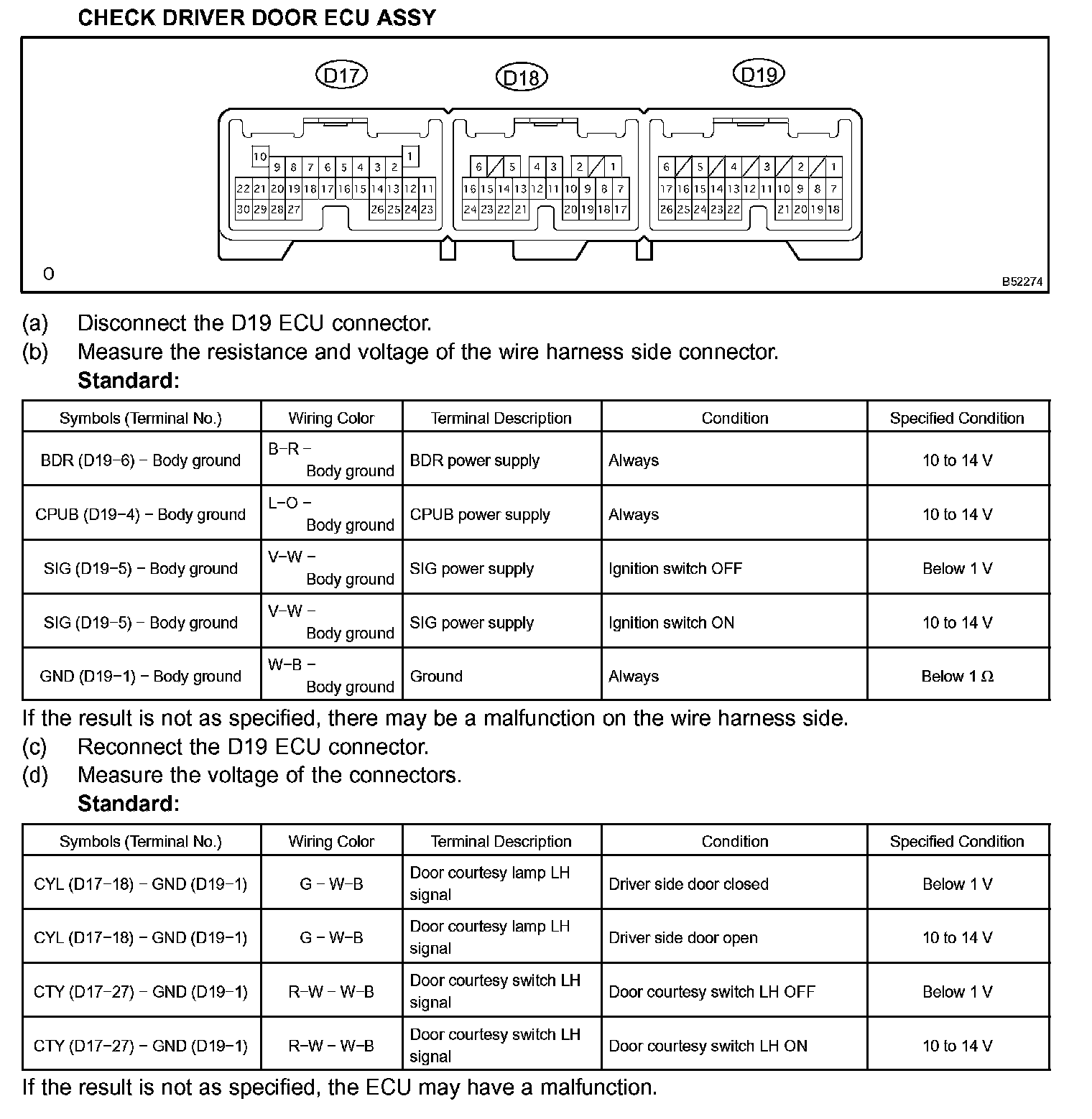

Terminals Of Control Module/Pinouts:

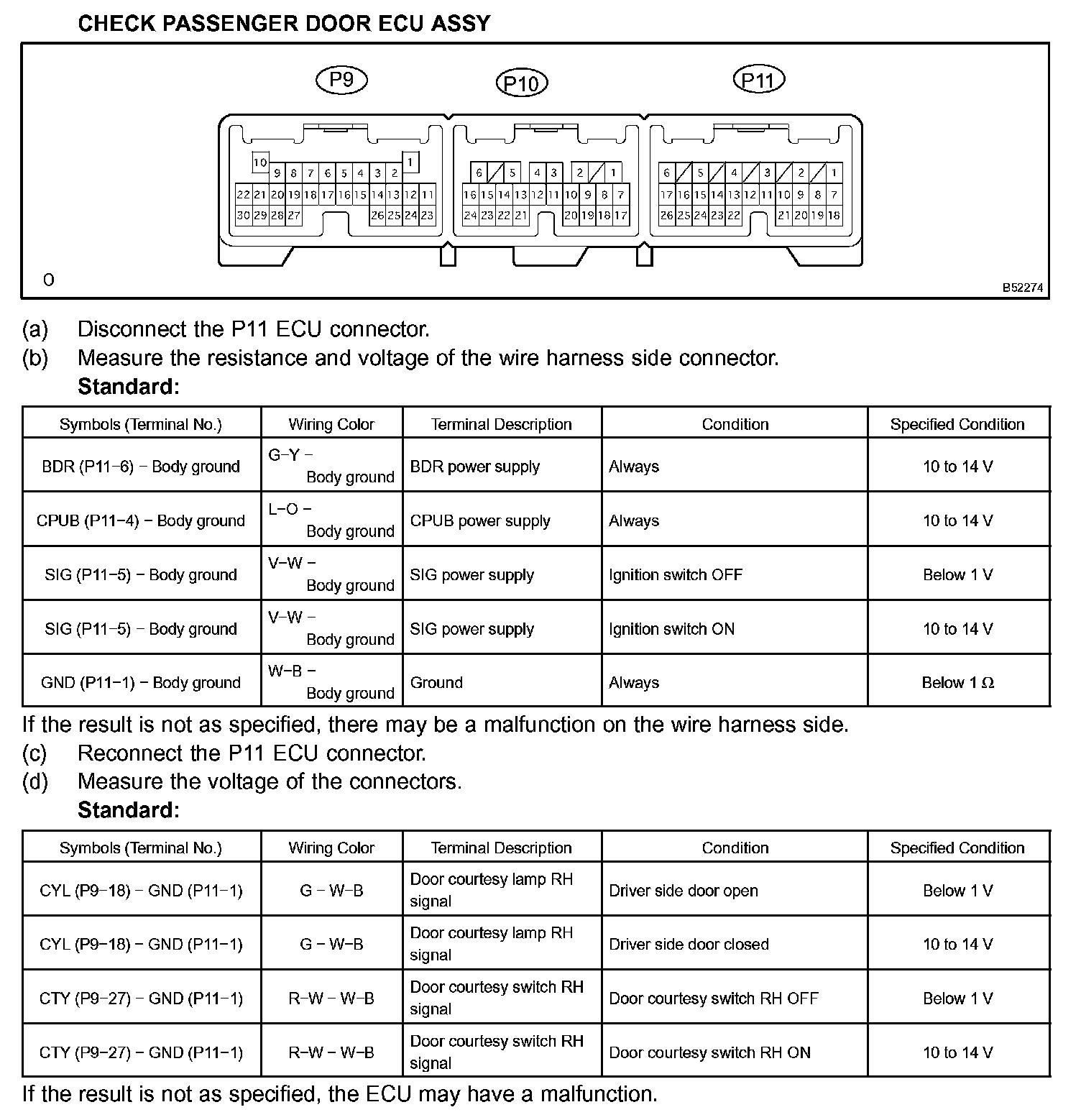

Terminals Of Control Module/Pinouts:

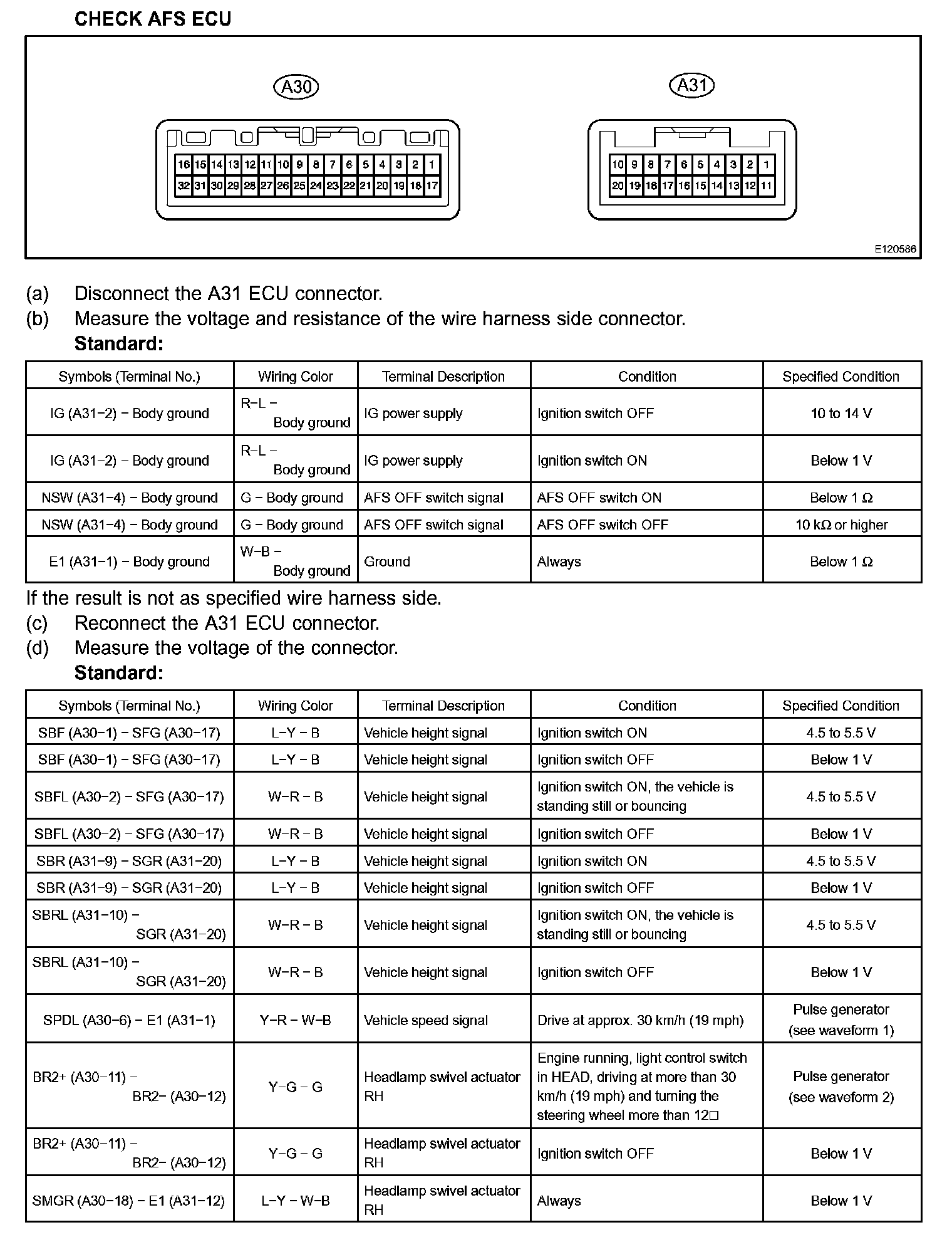

Terminals Of Control Module/Pinouts (Part 1):

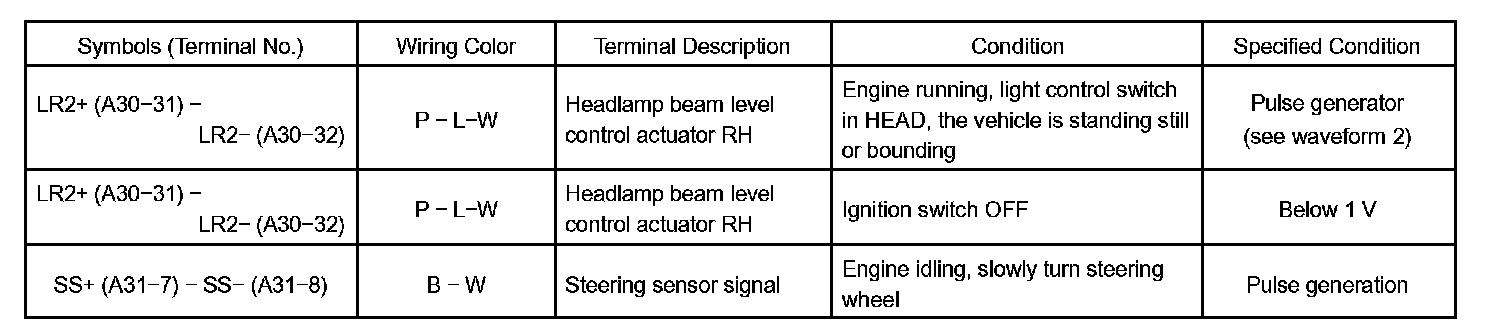

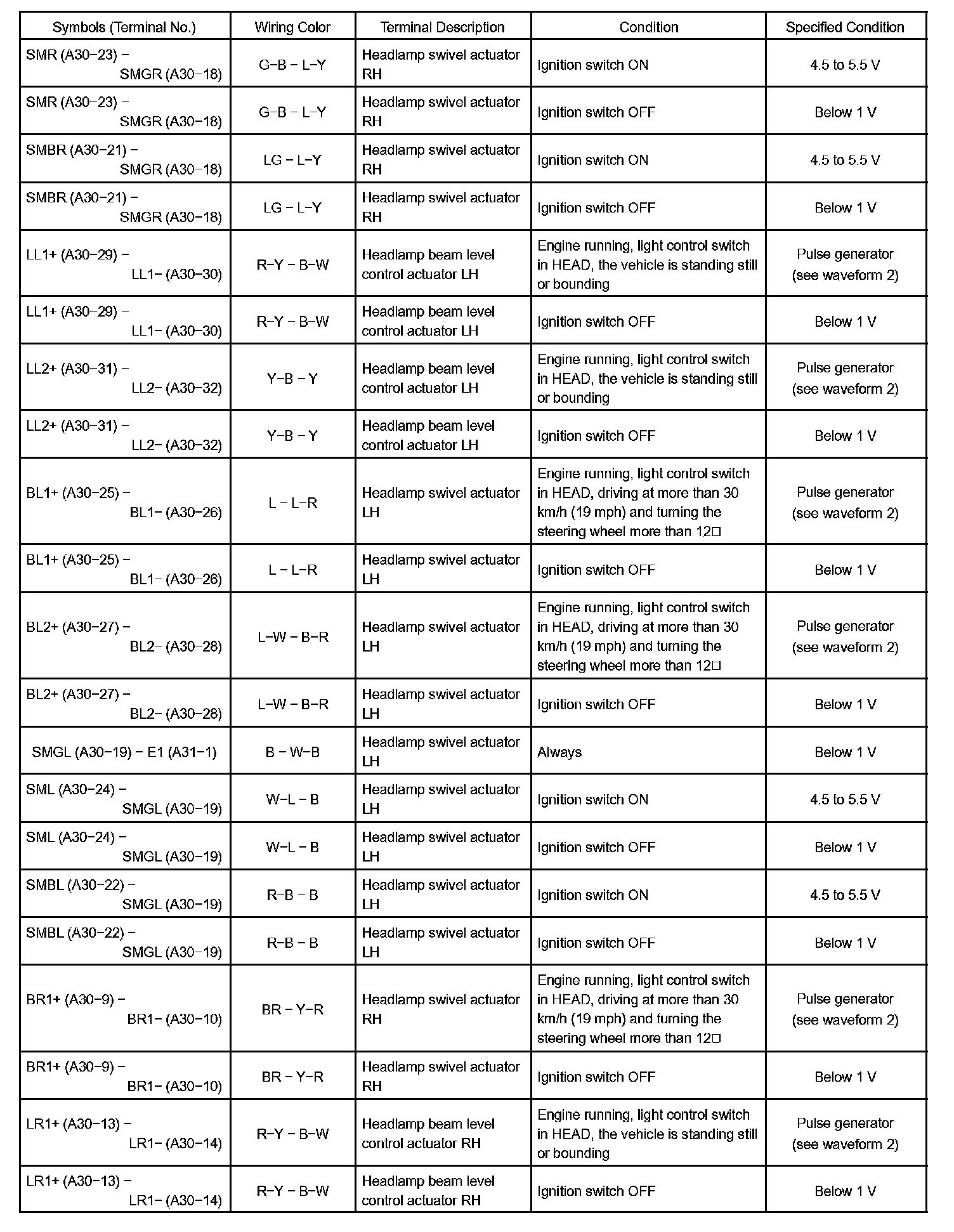

Terminals Of Control Module/Pinouts (Part 2):

Terminals Of Control Module/Pinouts (Part 3):

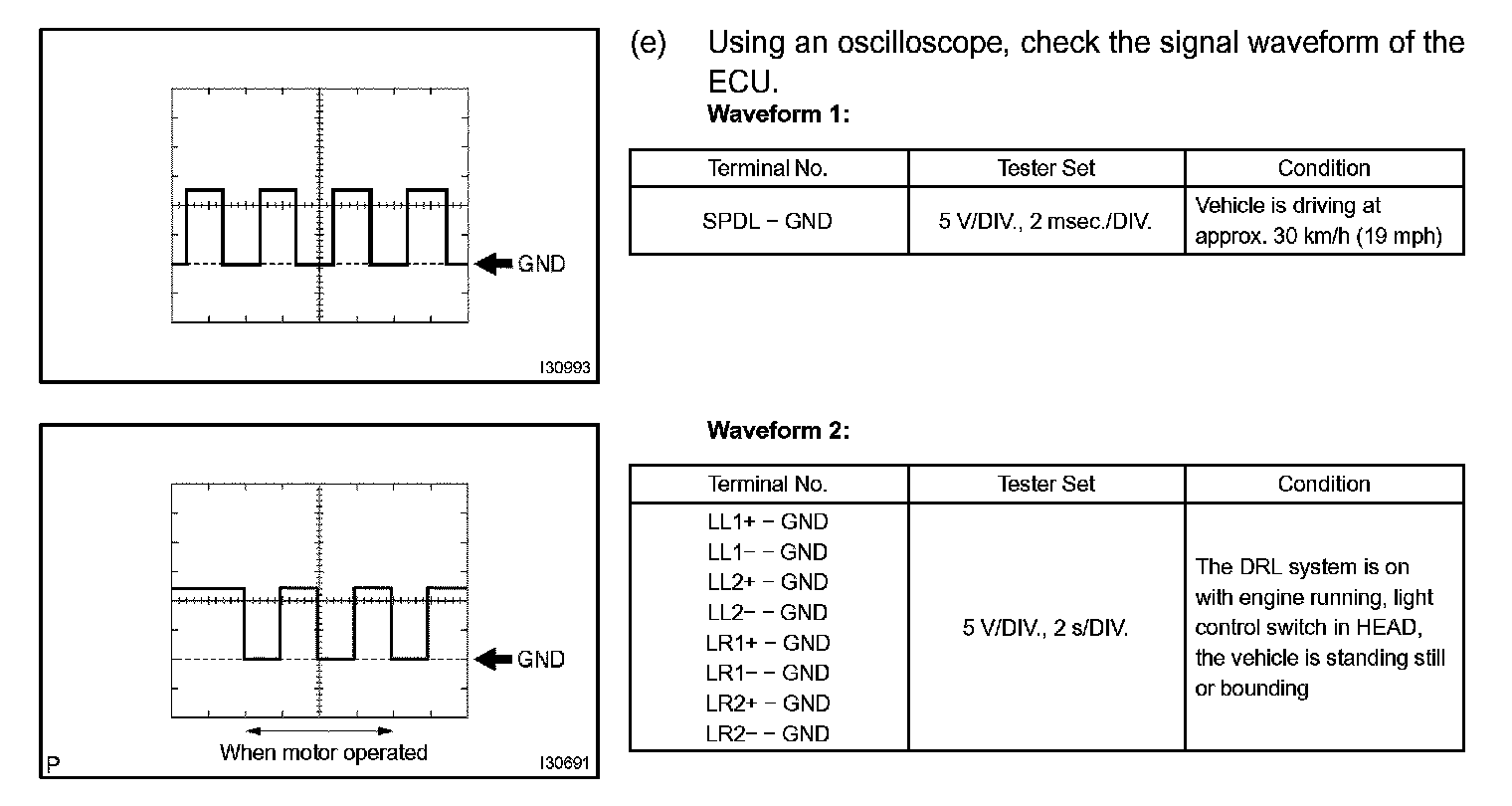

Oscilloscope Waveforms:
