Turn Signal Lamp Circuit

TURN SIGNAL LAMP CIRCUIT

CIRCUIT DESCRIPTION

Receiving the signal of the turn signal switch from the driver side J/B ECU, the driver side J/B ECU makes the turn signal lamp illuminate.
The drive side J/B ECU activates the flasher relay while the theft deterrent system gives the warning and illuminates the turn signal lamp and the hazard warning lamp.

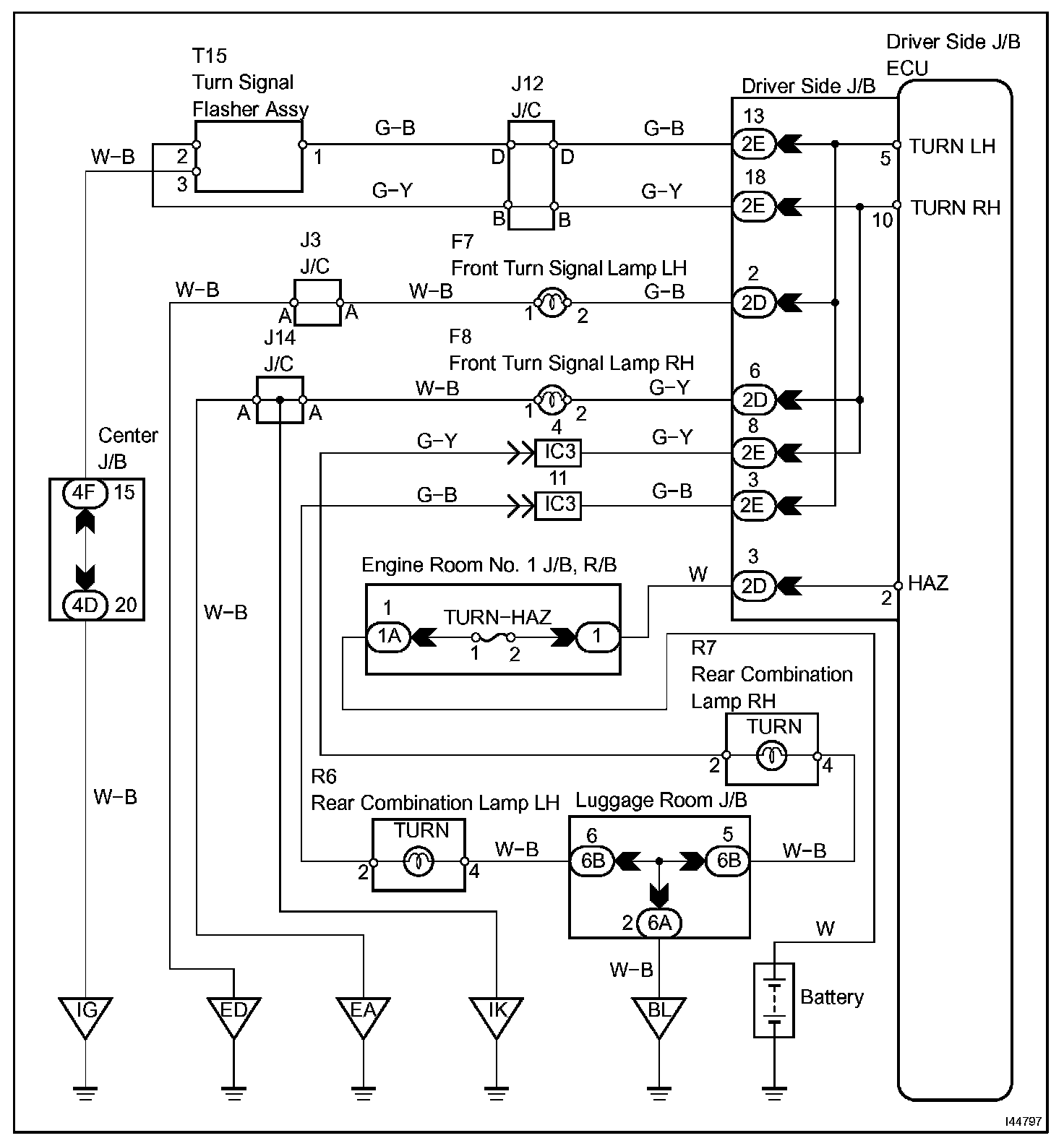

Wiring Diagram:

Step 1-3:

Step 4-5:

Step 6:

Step 7:

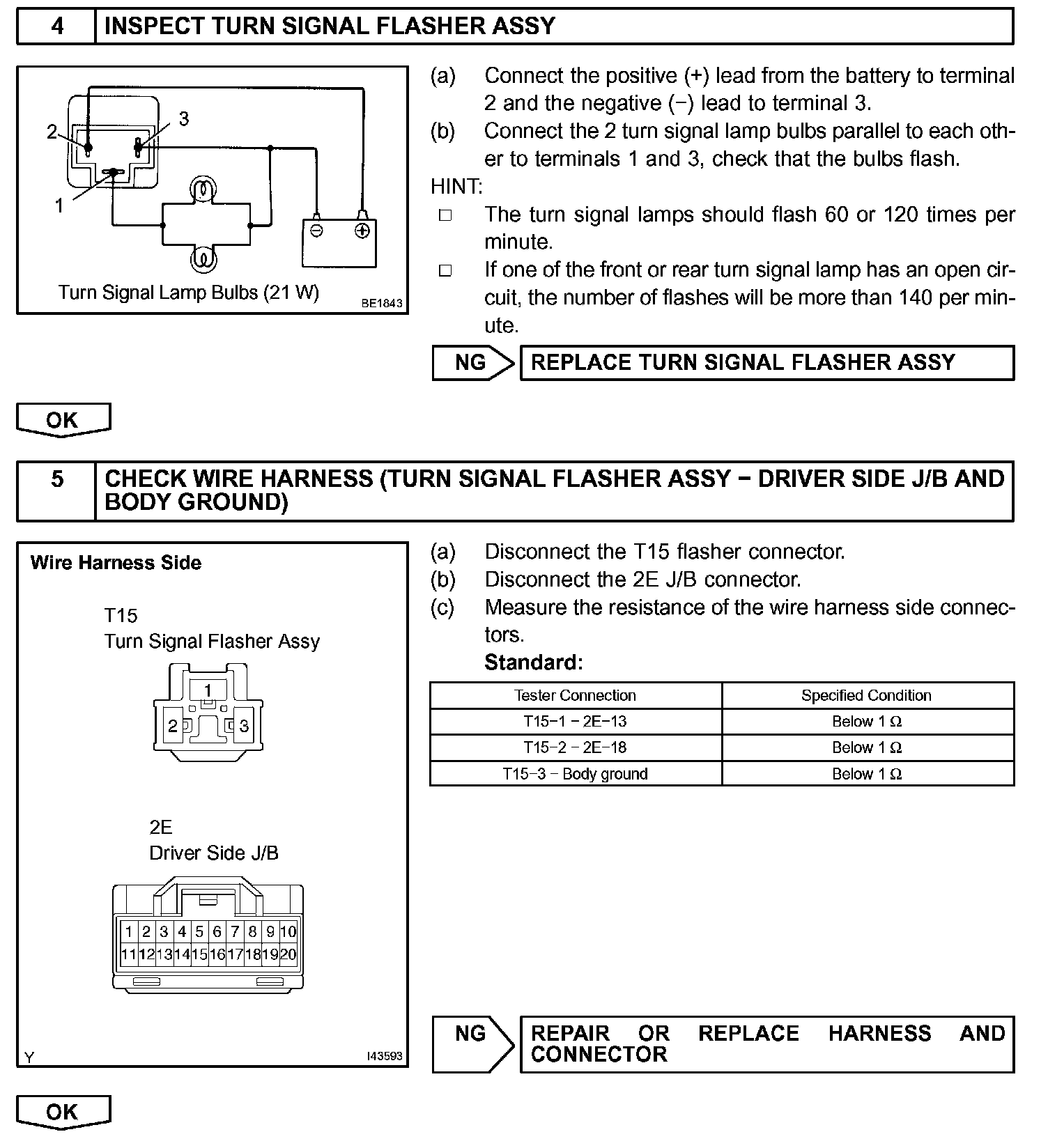

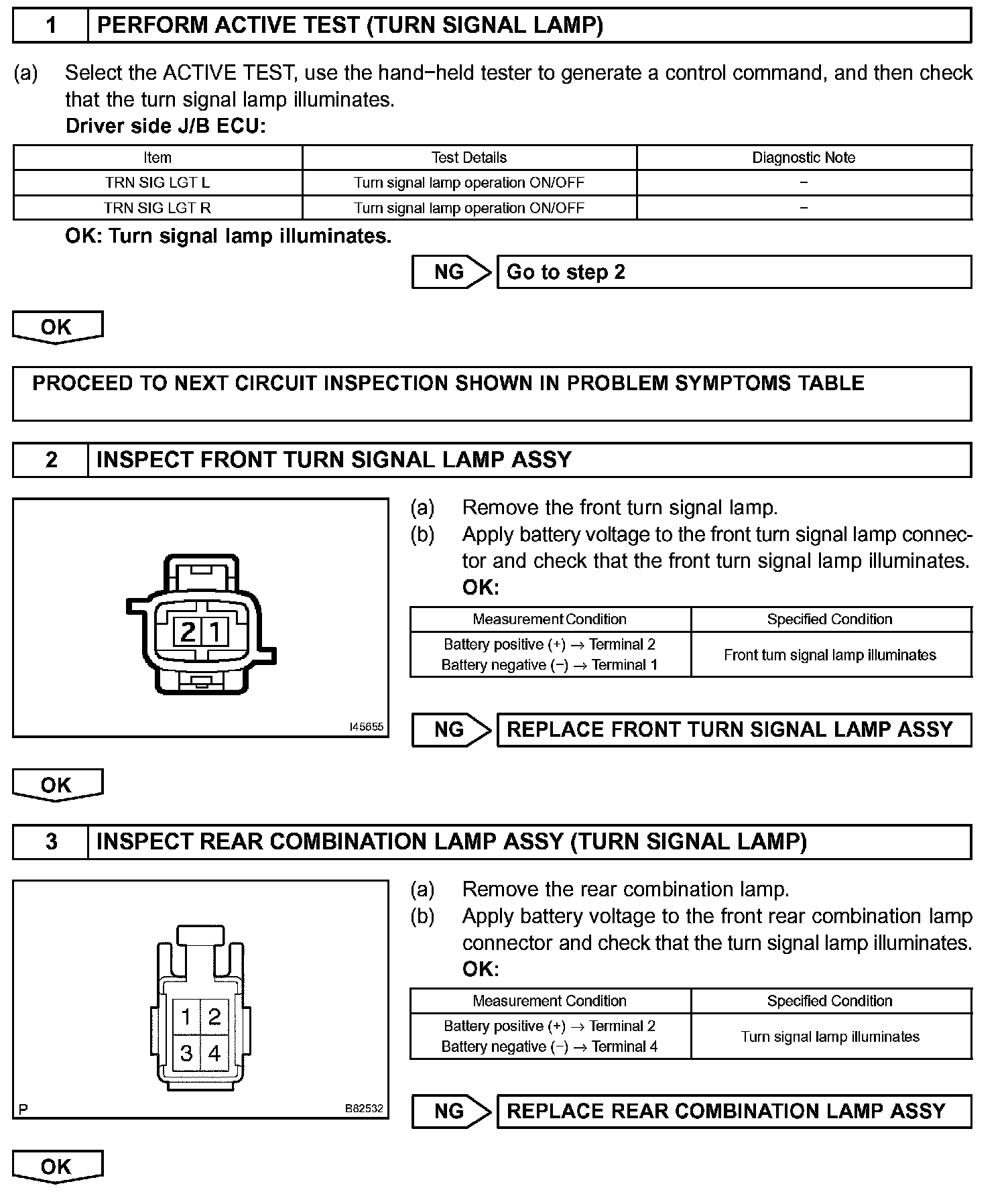

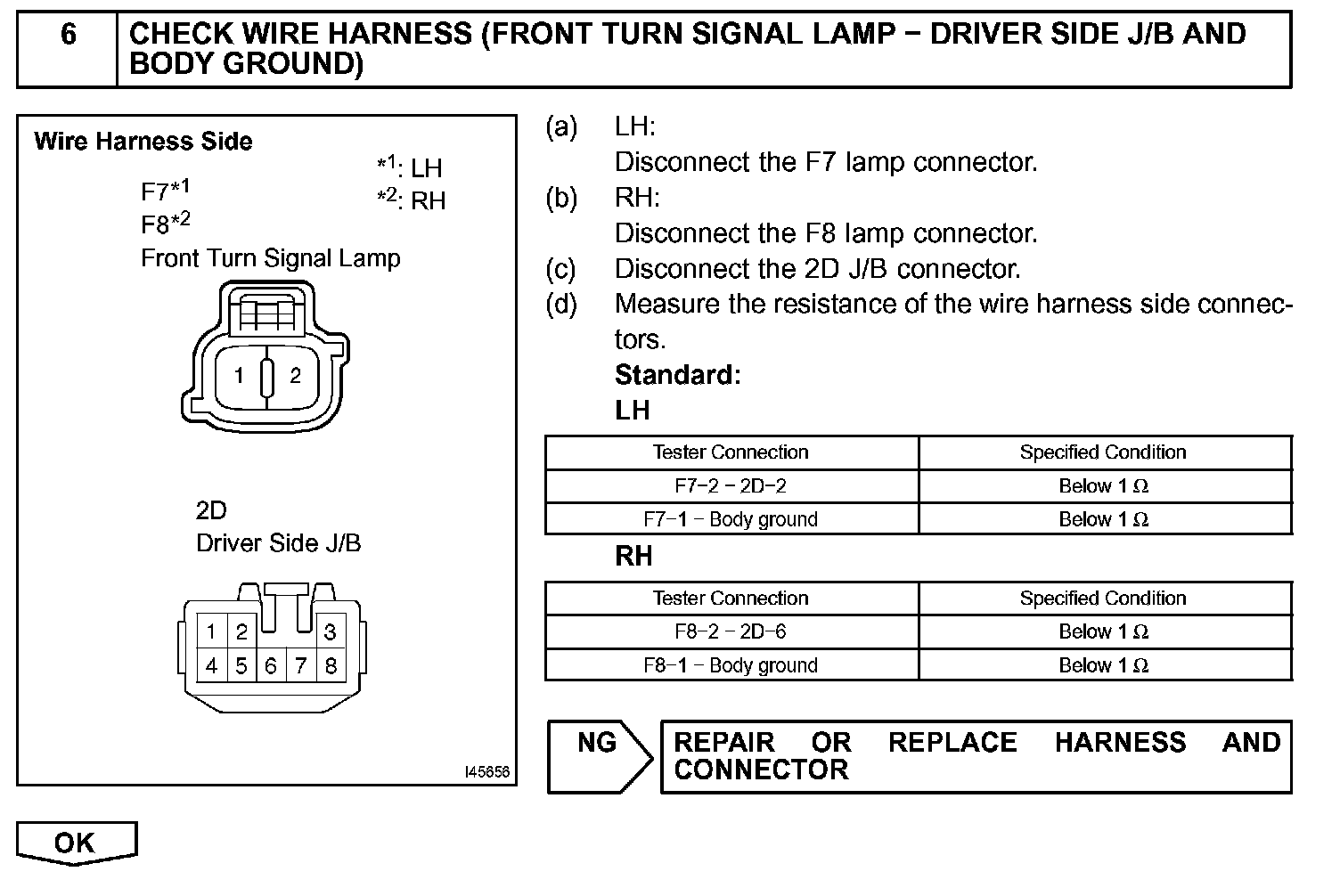

INSPECTION PROCEDURE
