Stop Lamp Switch Circuit

STOP LAMP SWITCH CIRCUIT

CIRCUIT DESCRIPTION

This circuit detects the conditions of the stop lamp switch.

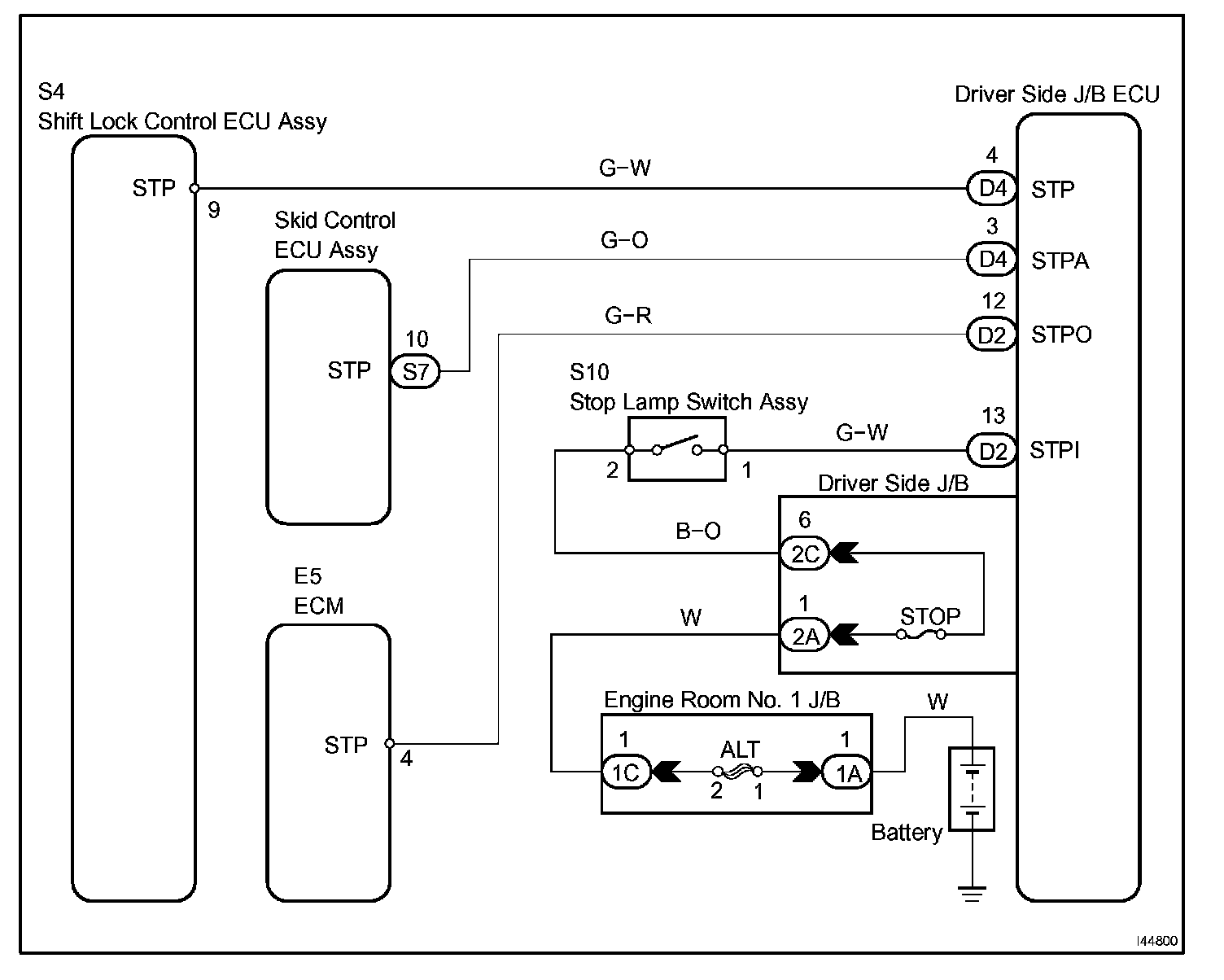

Wiring Diagram:

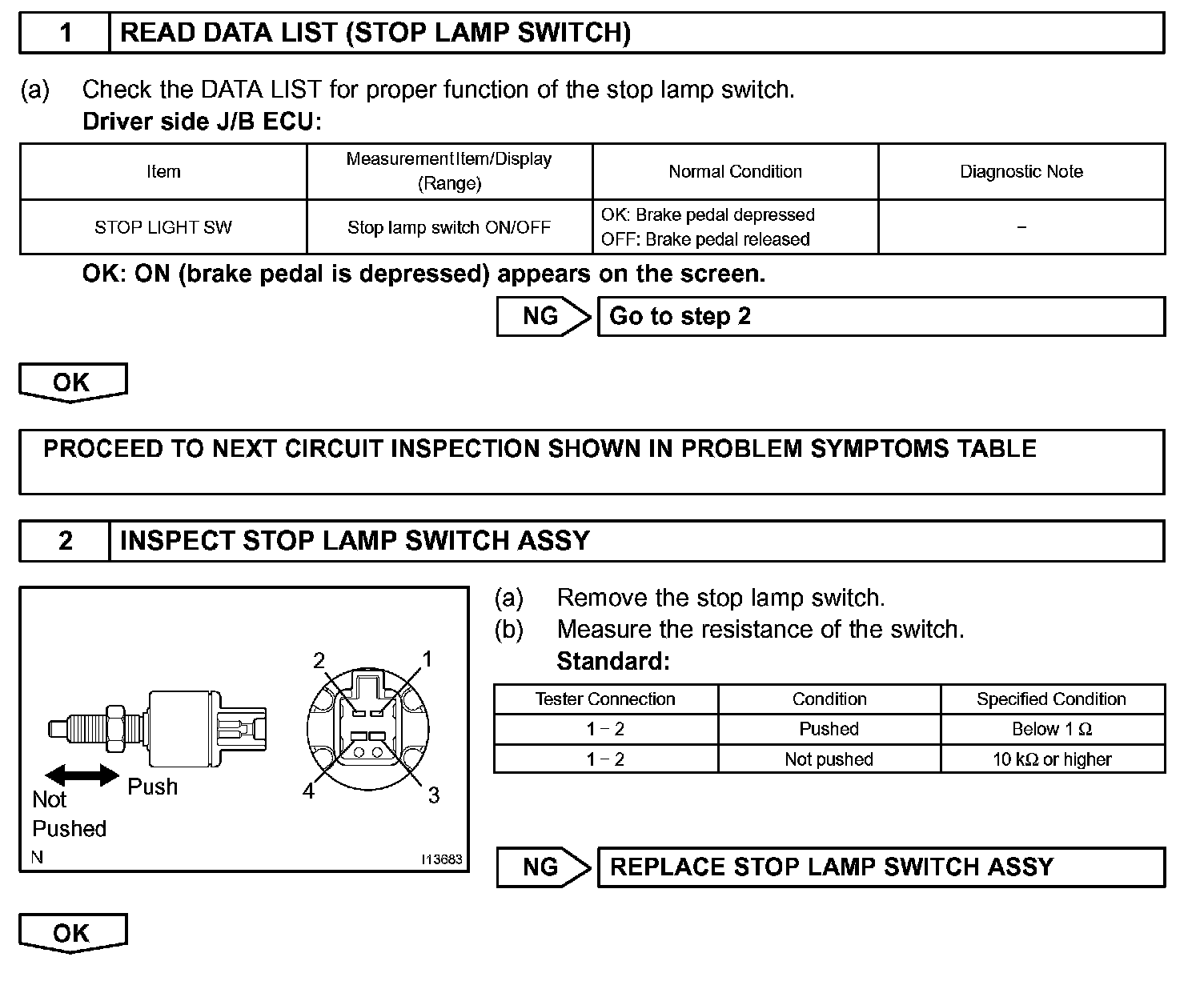

Step 1-2:

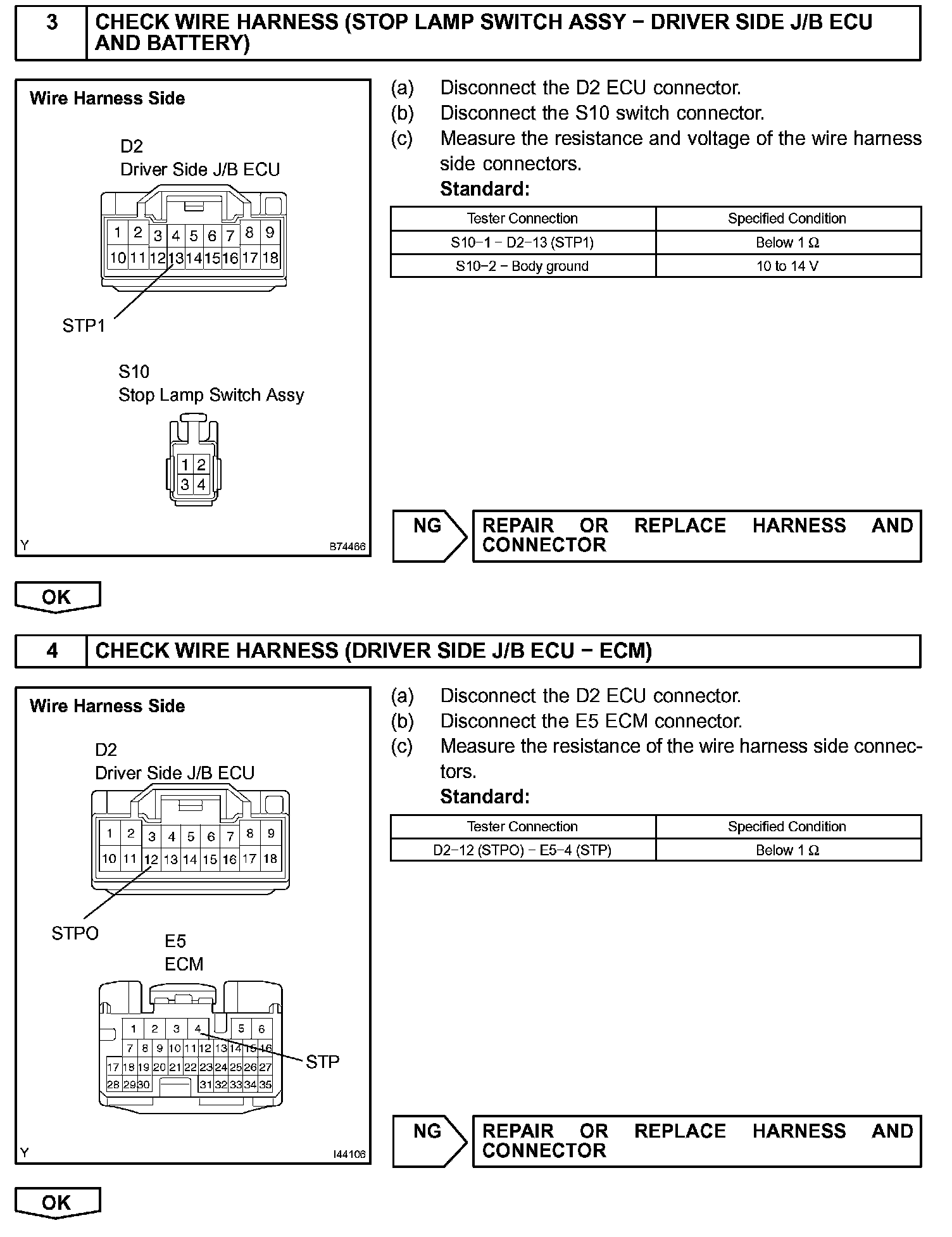

Step 3-4:

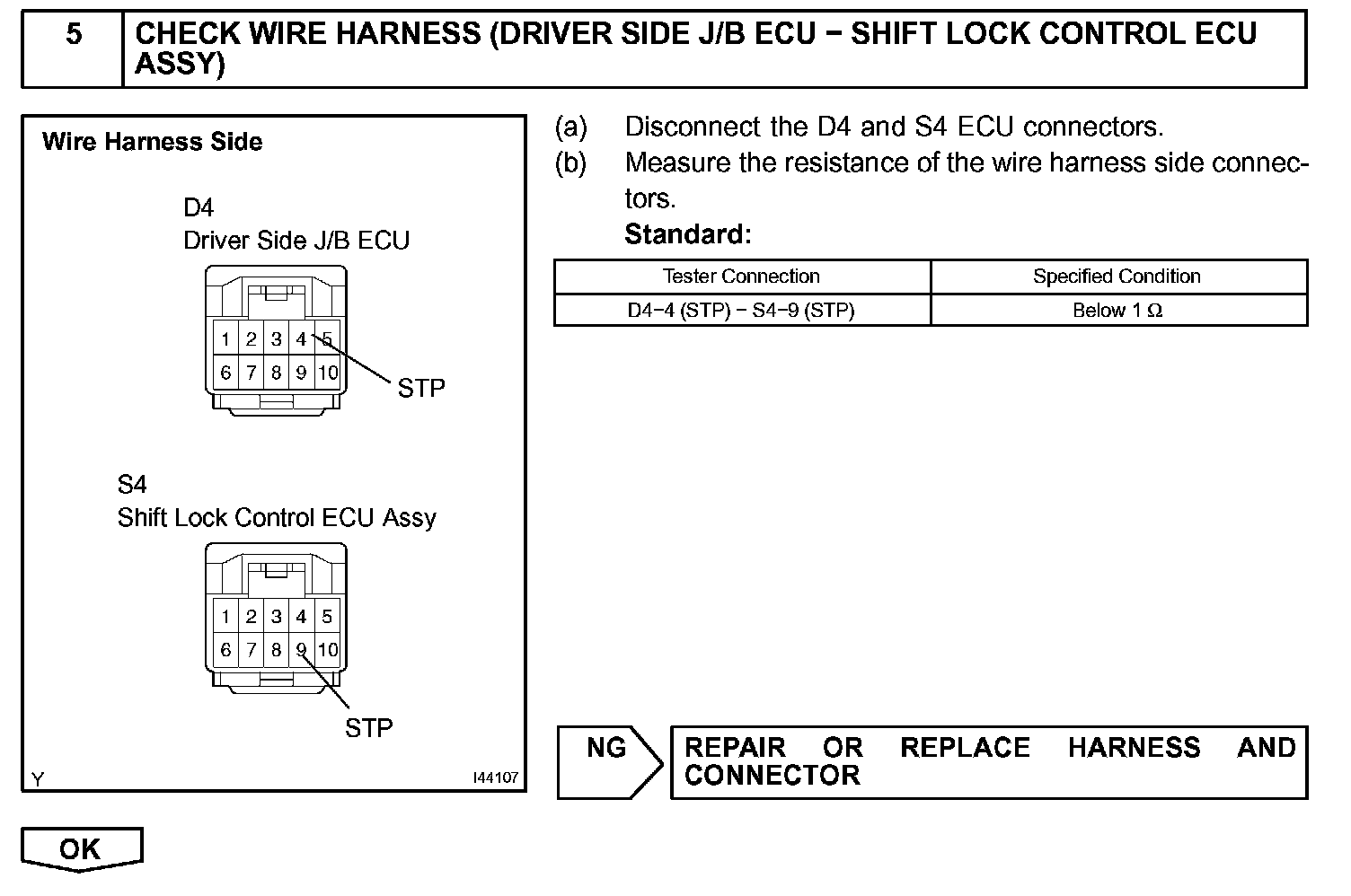

Step 5:

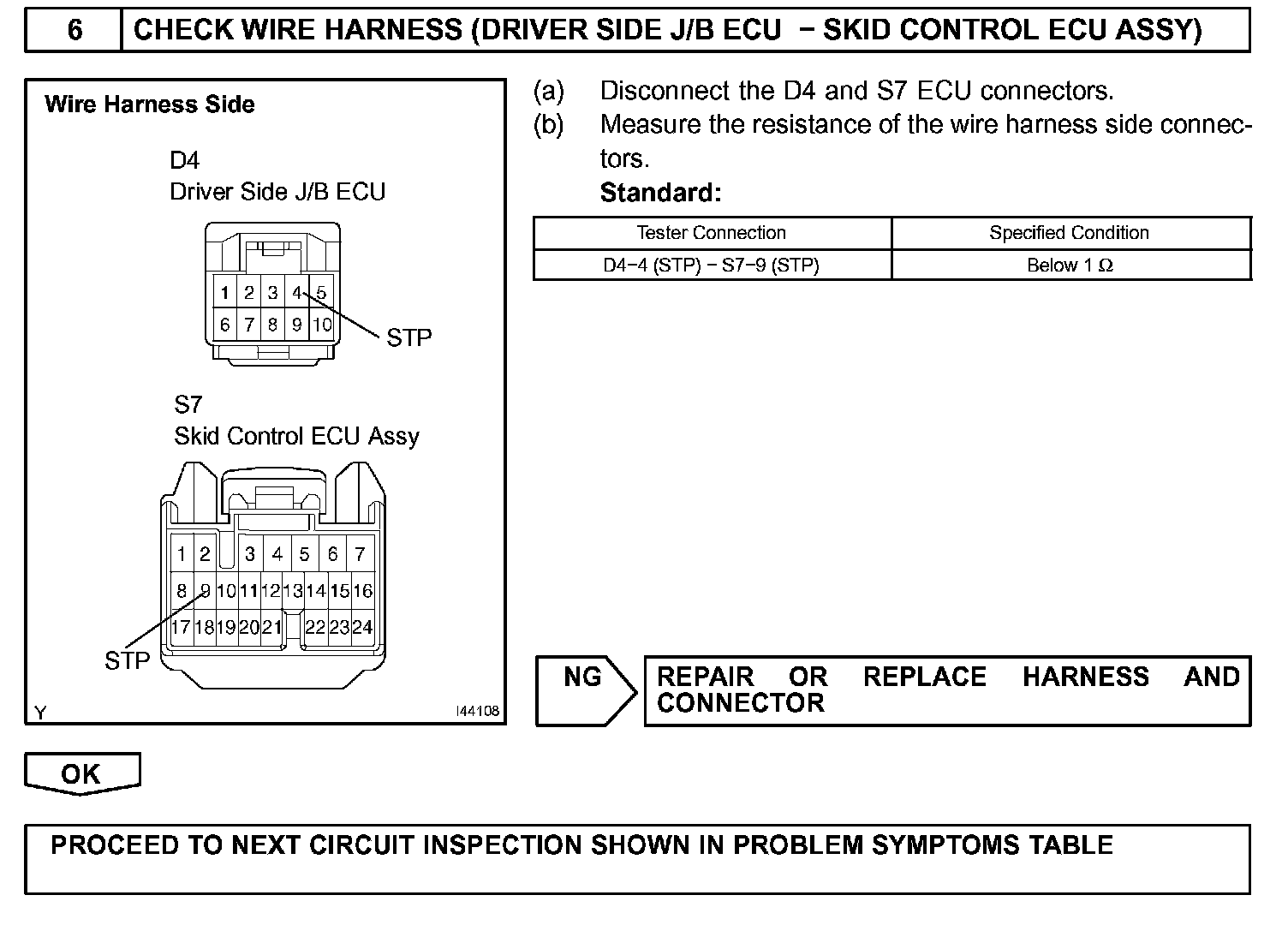

Step 6:

INSPECTION PROCEDURE
