Rear Side Marker Lamp Circuit

REAR SIDE MARKER LAMP CIRCUIT

CIRCUIT DESCRIPTION

The luggage room J/B ECU receives taillamp switch information from the combination switch, and illuminates the rear side marker lamp.

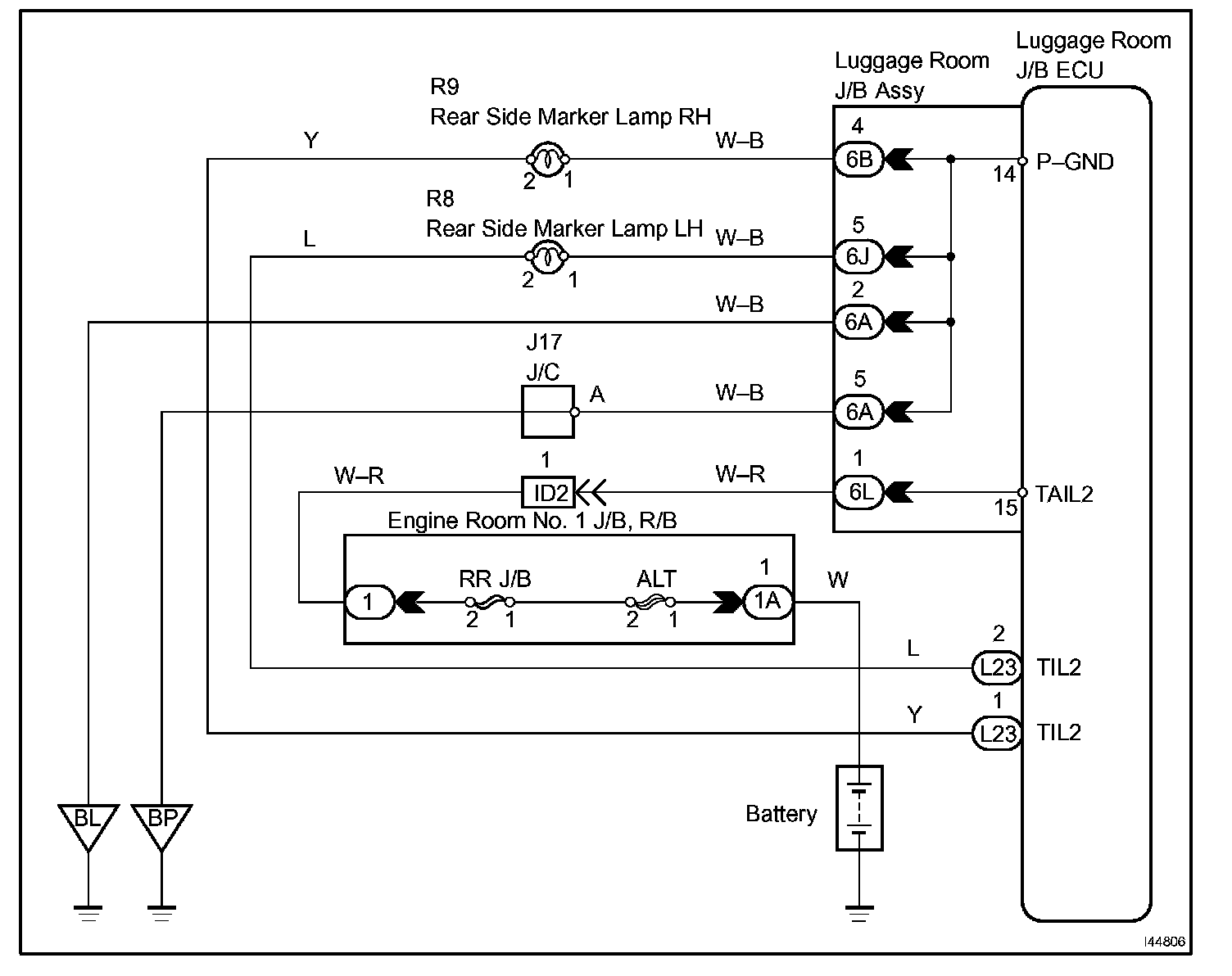

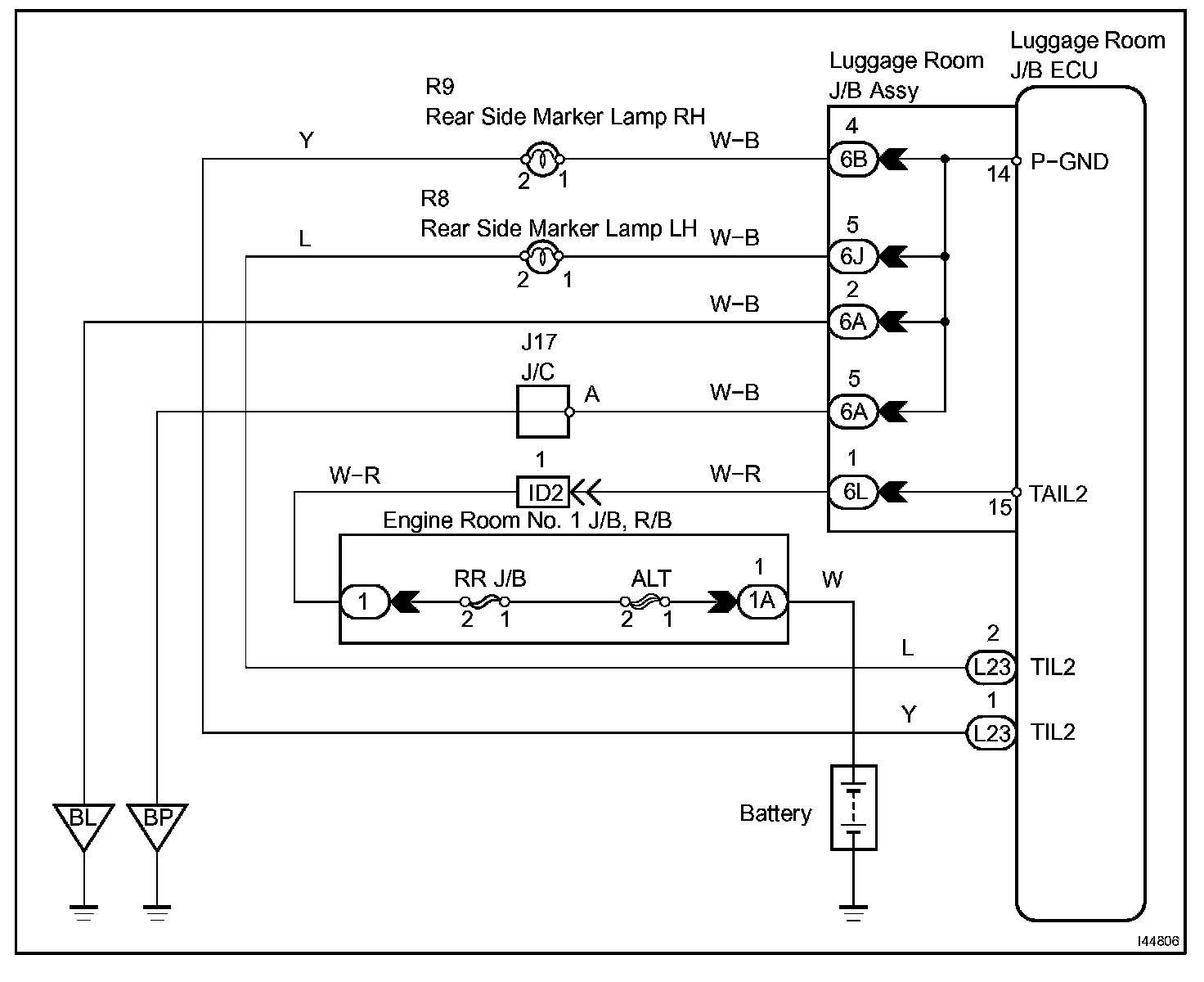

Wiring Diagram:

Step 1-2:

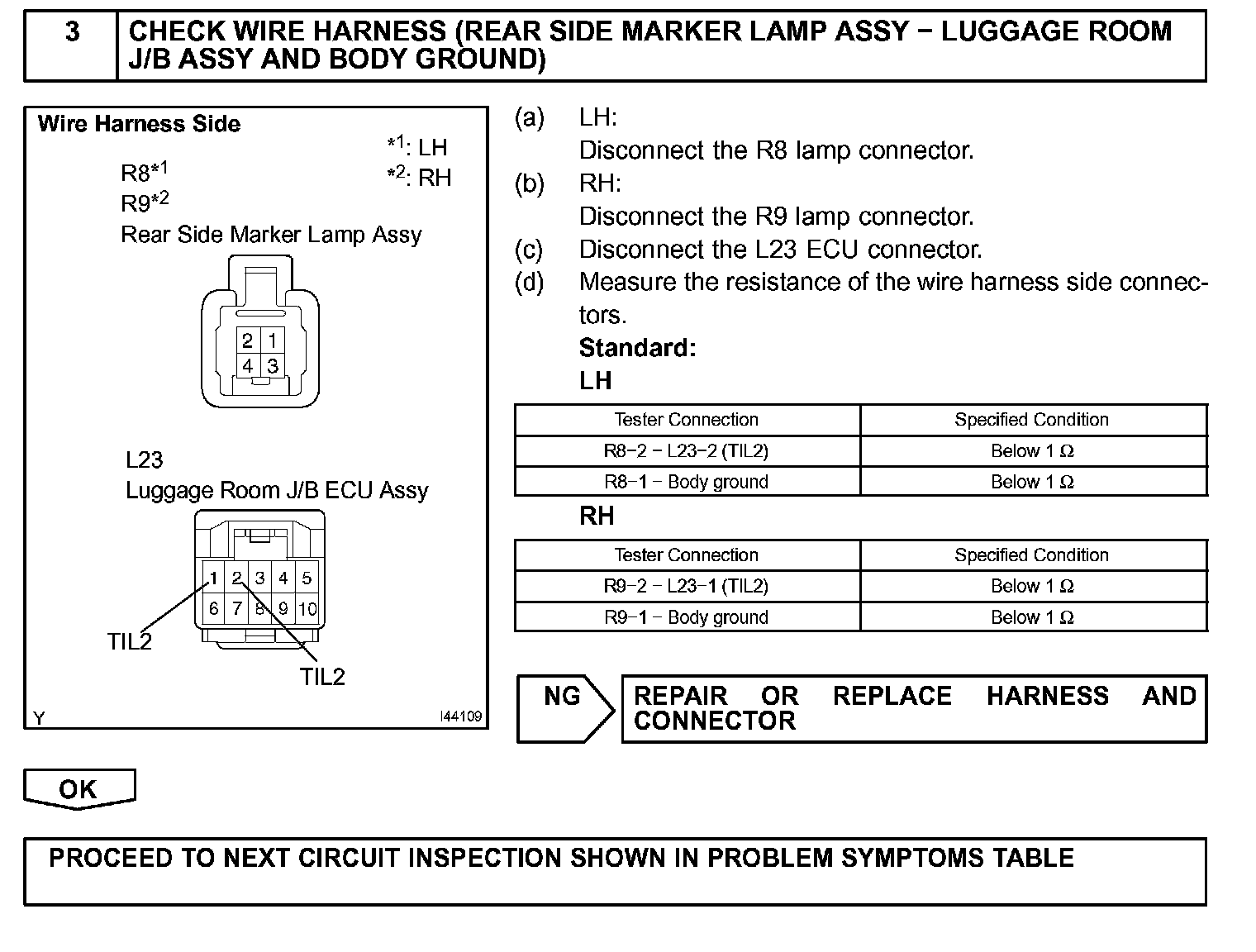

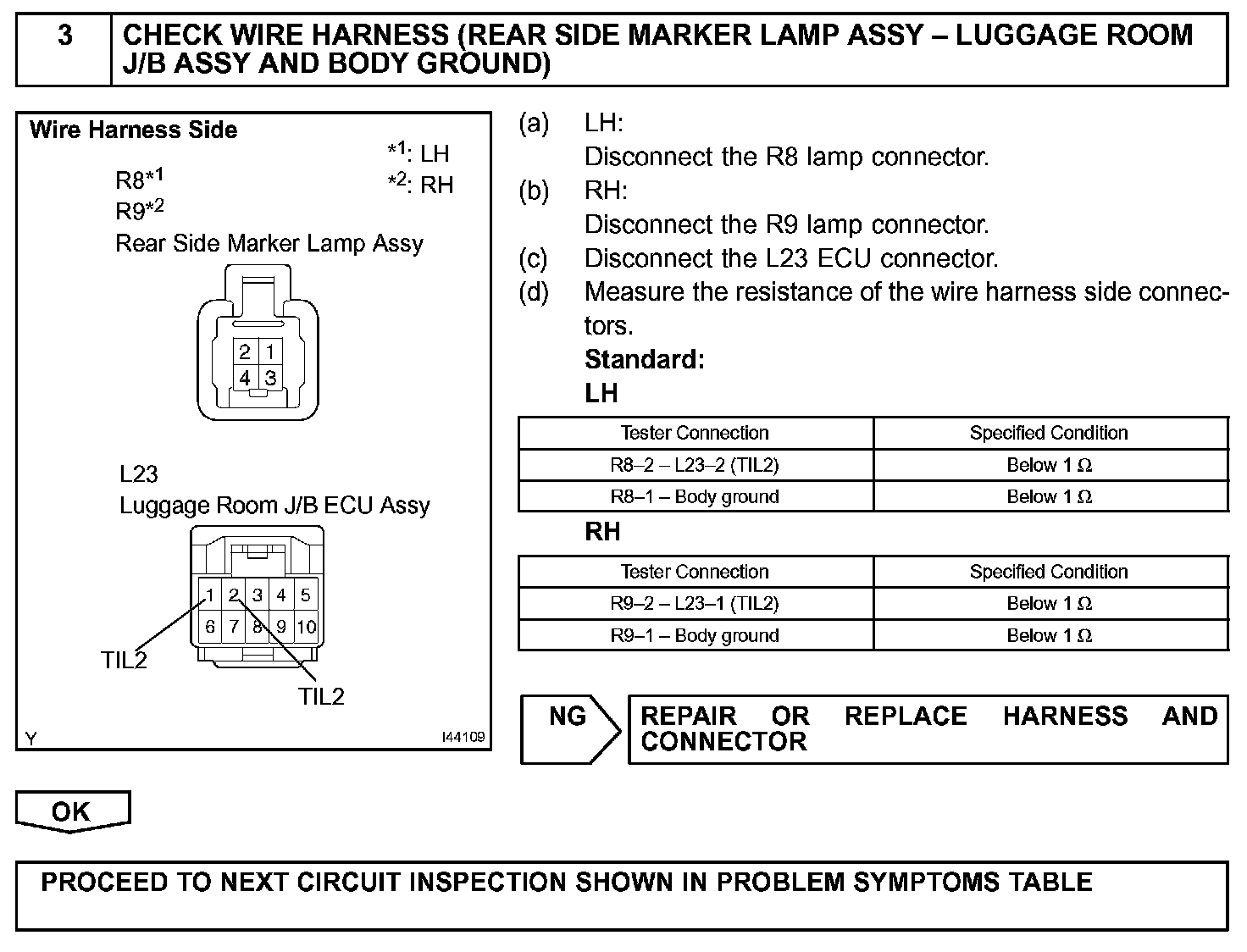

Step 3:

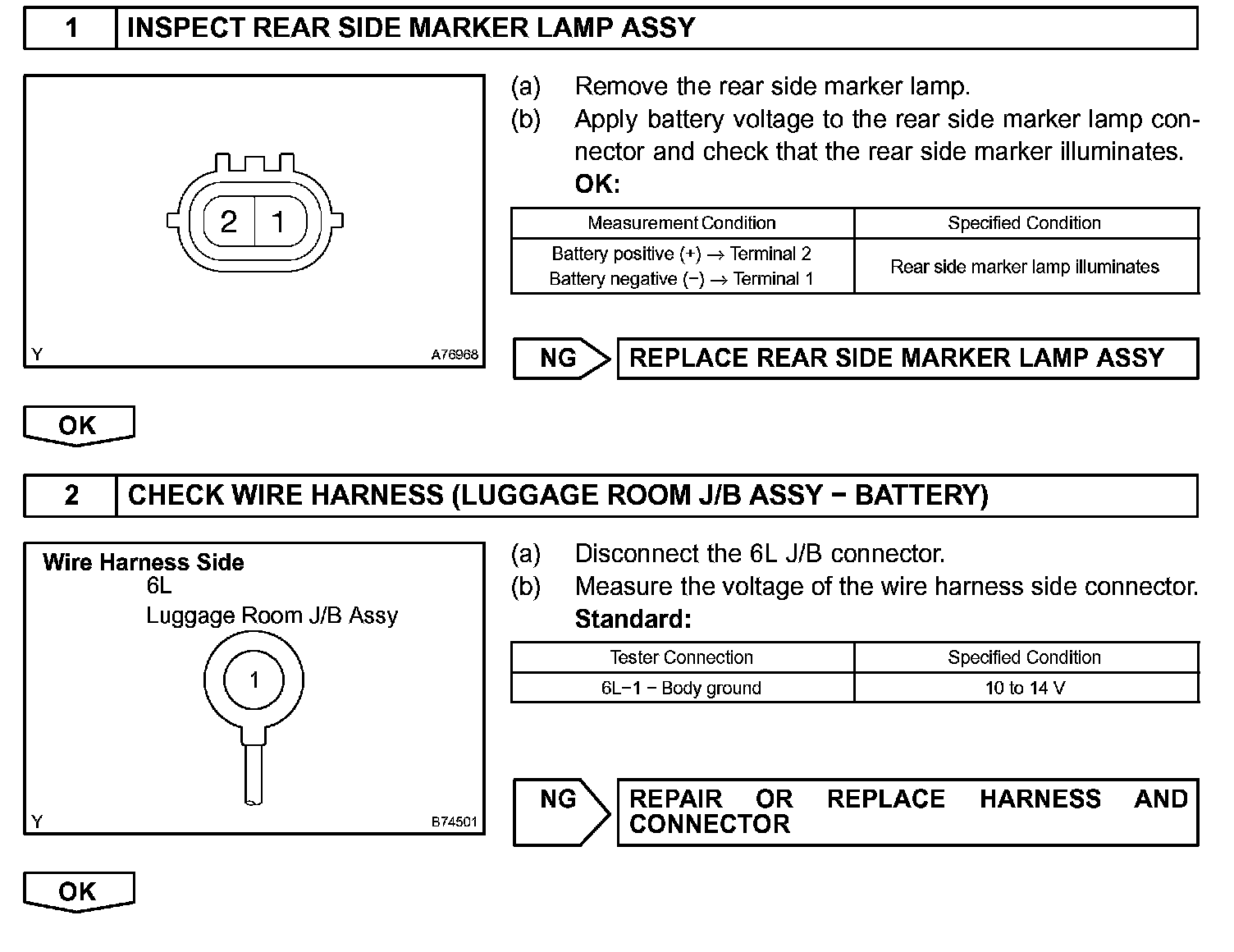

INSPECTION PROCEDURE
