License Plate Lamp Circuit

LICENSE PLATE LAMP CIRCUIT

CIRCUIT DESCRIPTION

When the lamp control switch TAIL signal is received from the luggage room J/B ECU, the license lamp illuminates.

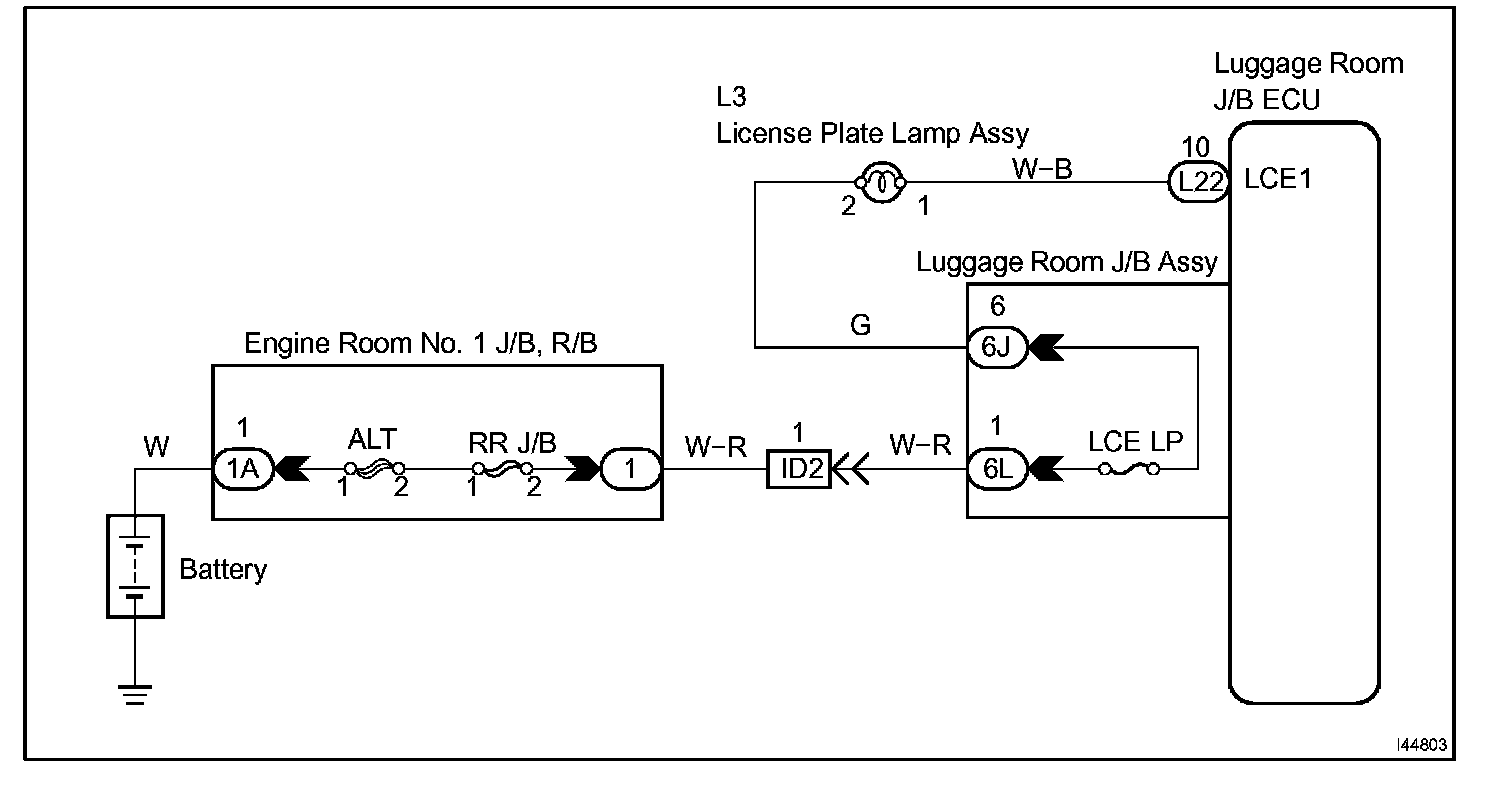

Wiring Diagram:






Step 1-2:

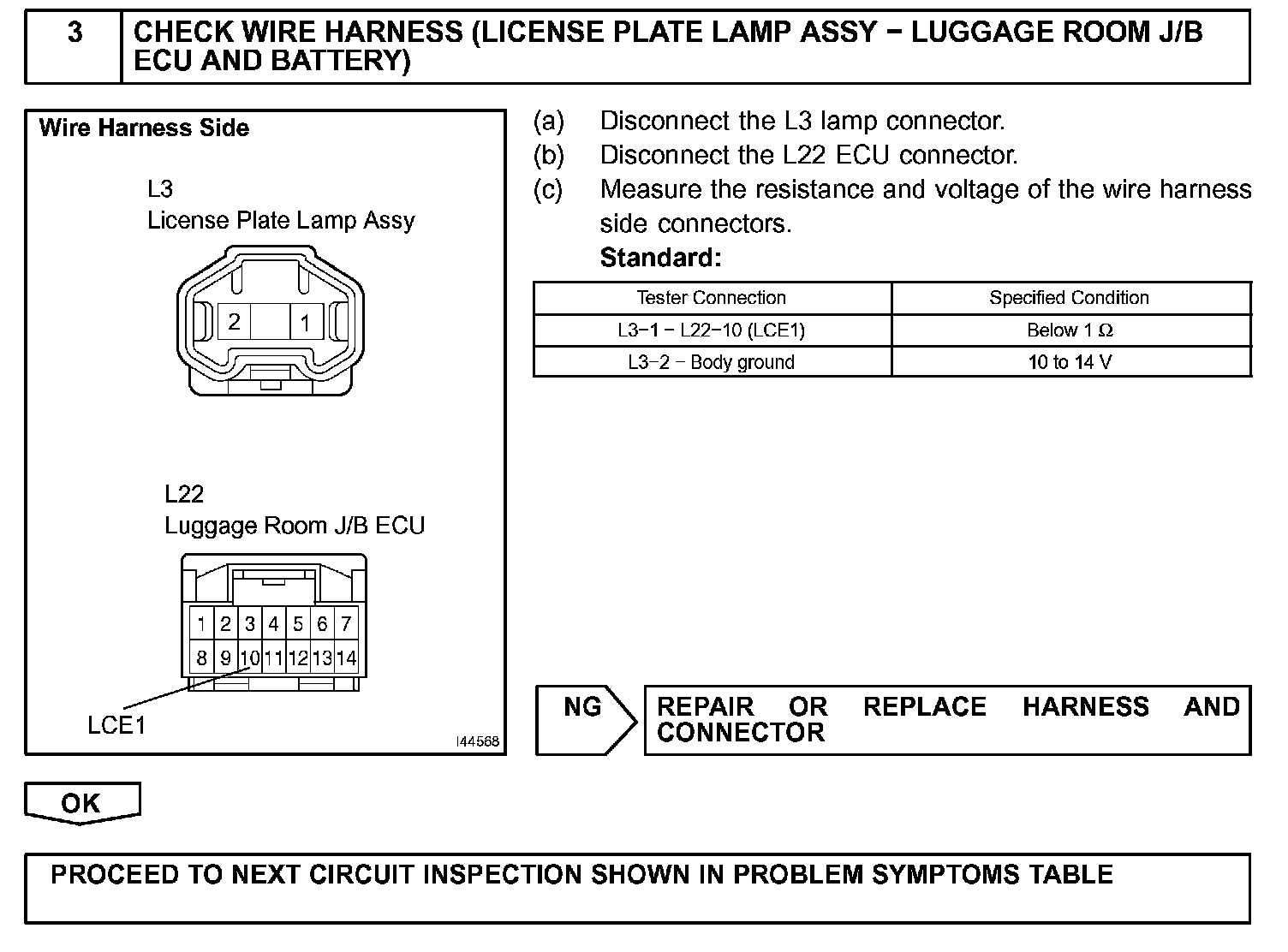

Step 3:

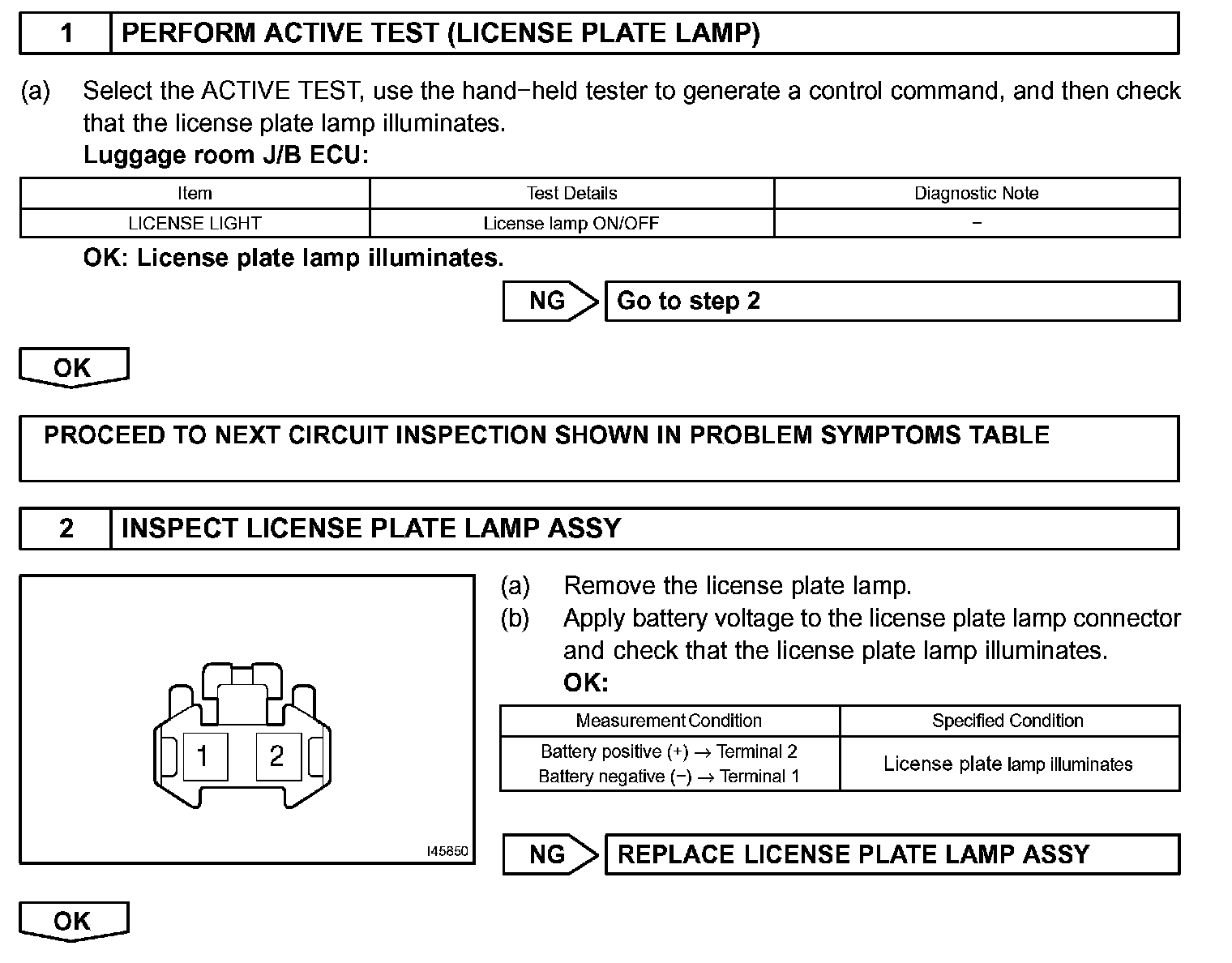

INSPECTION PROCEDURE
