Interior Lamp Circuit

INTERIOR LAMP CIRCUIT

CIRCUIT DESCRIPTION

When the curtesy signal is receiver from the door ECU or passenger side J/B ECU, the map lamp, vanity lamp, scuff plate lamp and key cylinder lamp illuminate

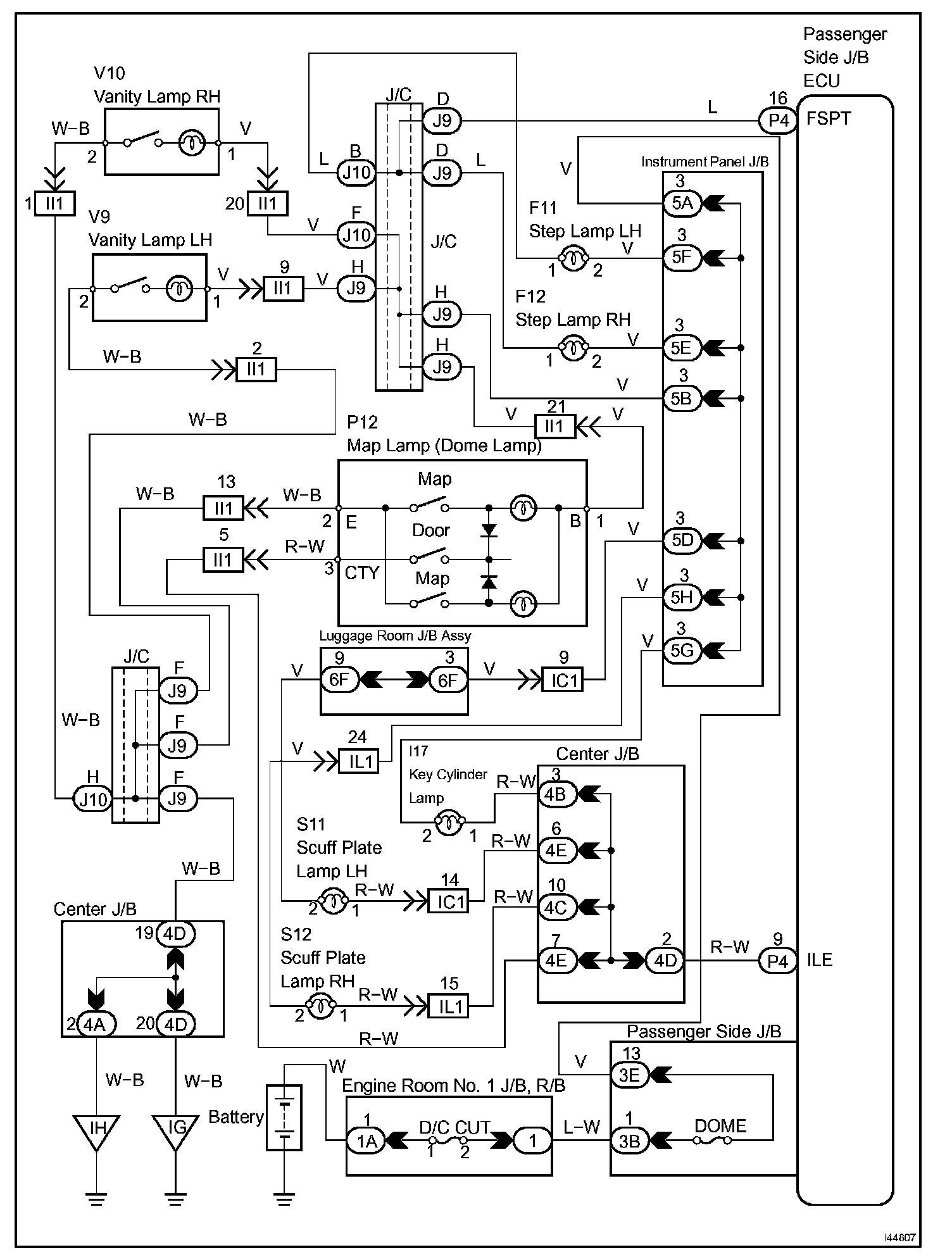

Wiring Diagram:

Step 1:

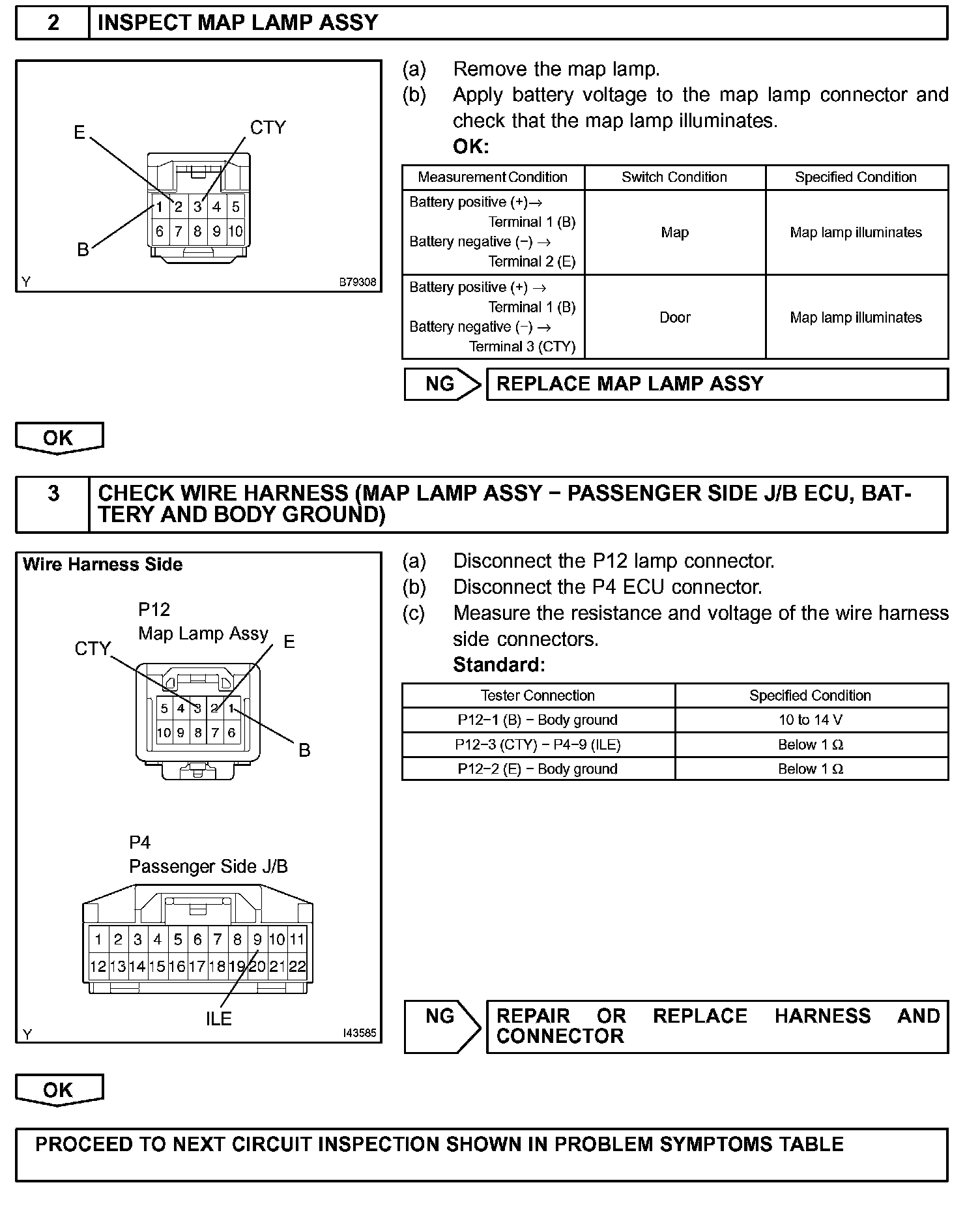

Step 2-3:

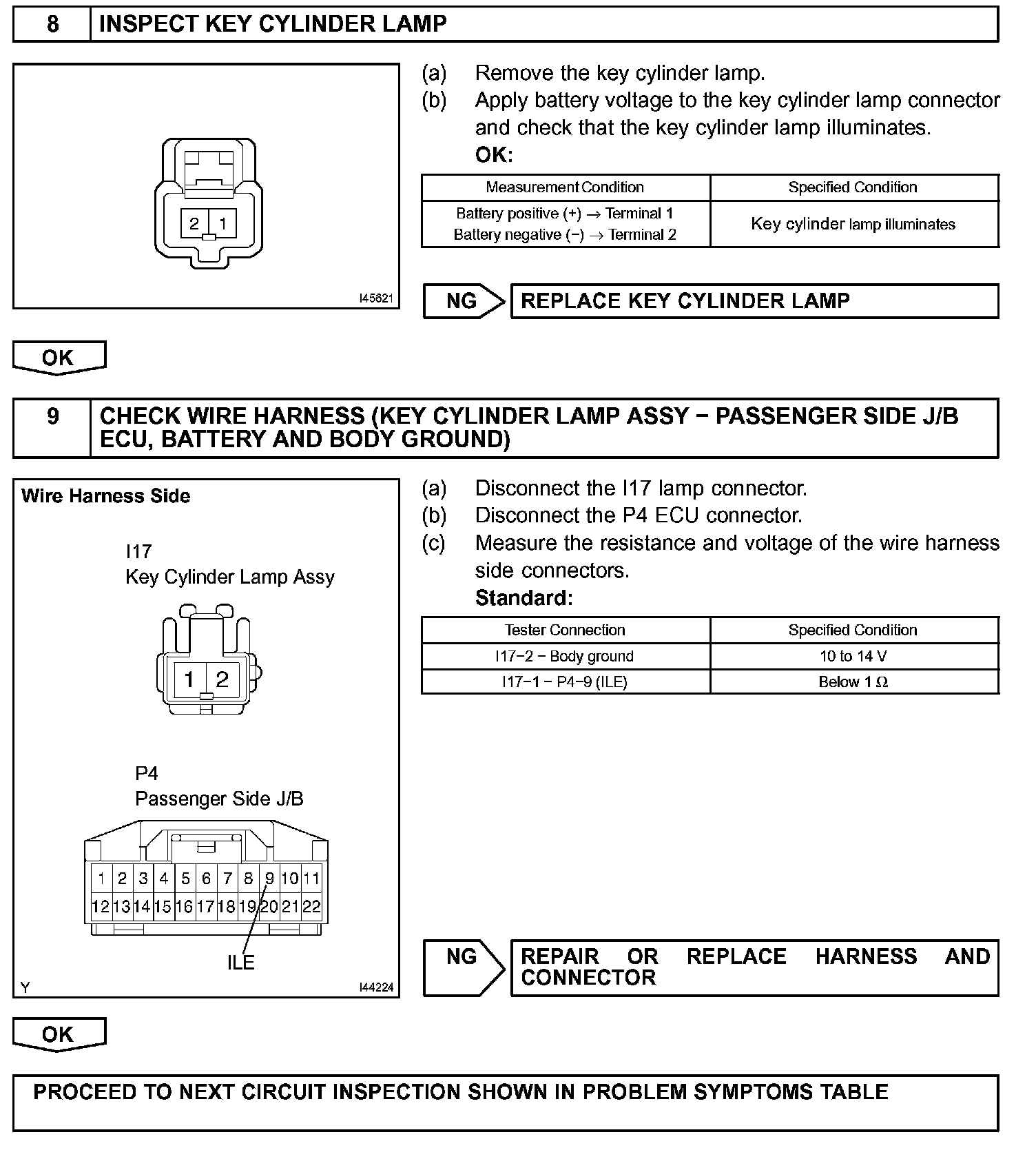

Step 4-5:

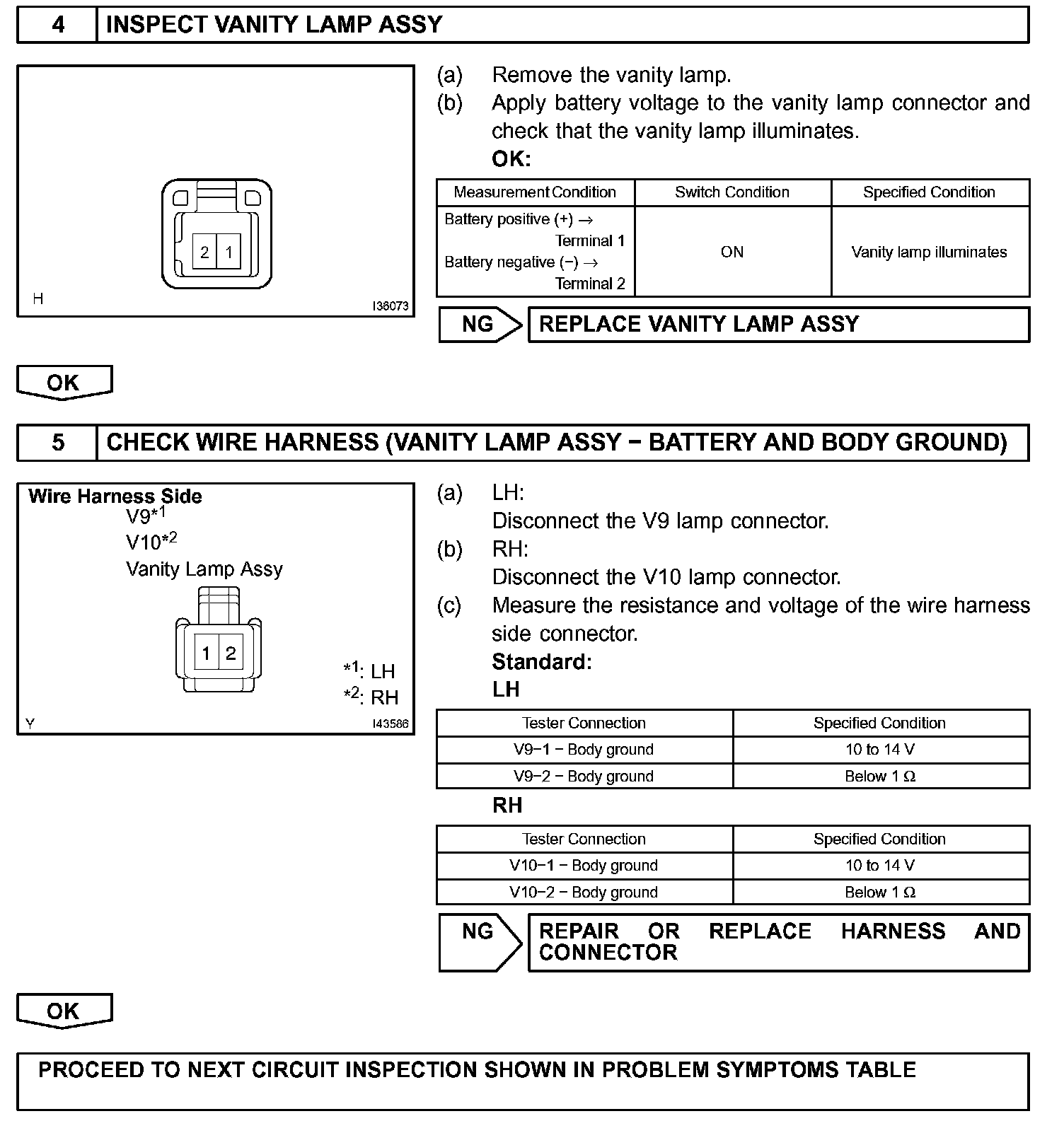

Step 6-7:

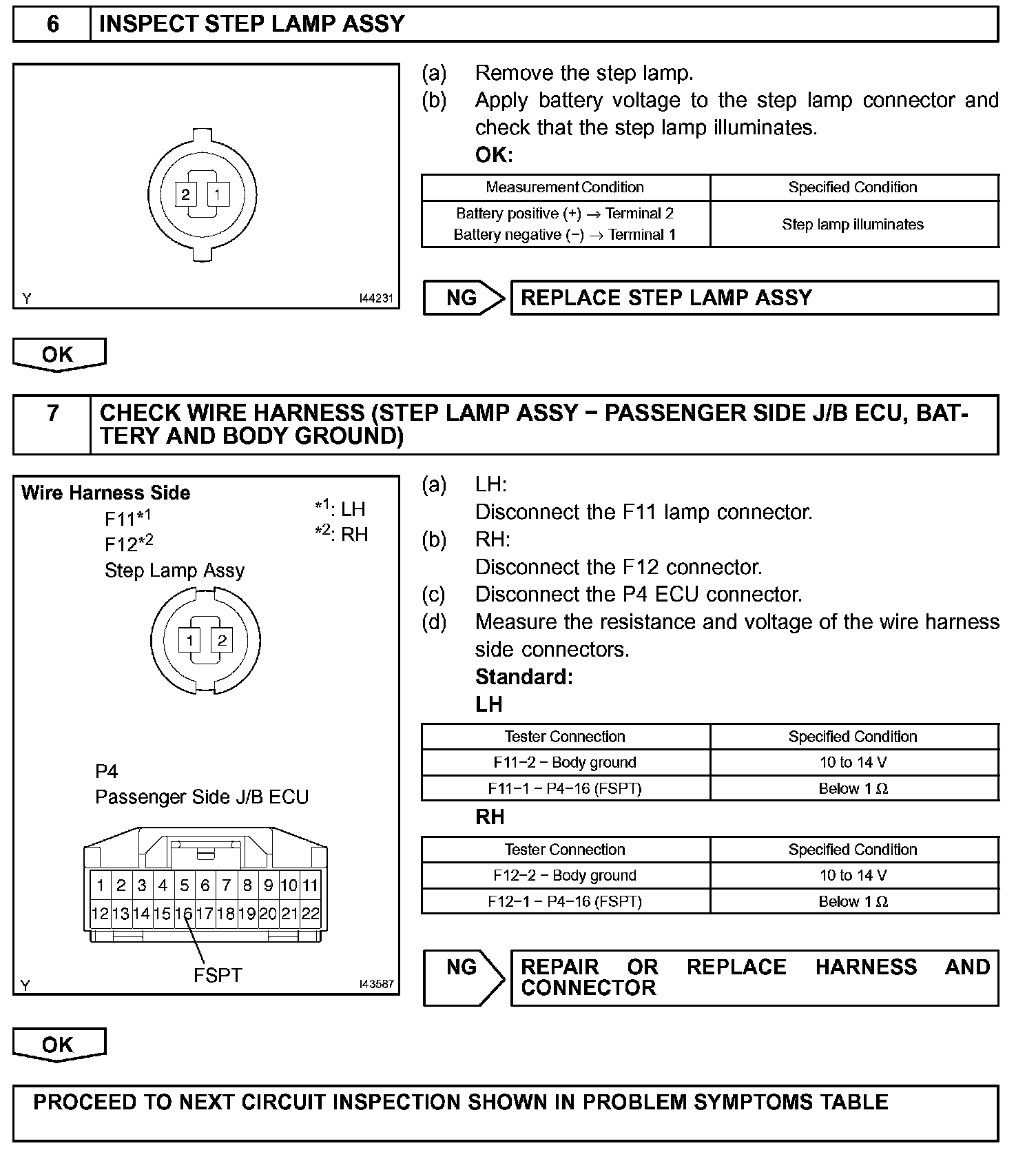

Step 8-9:

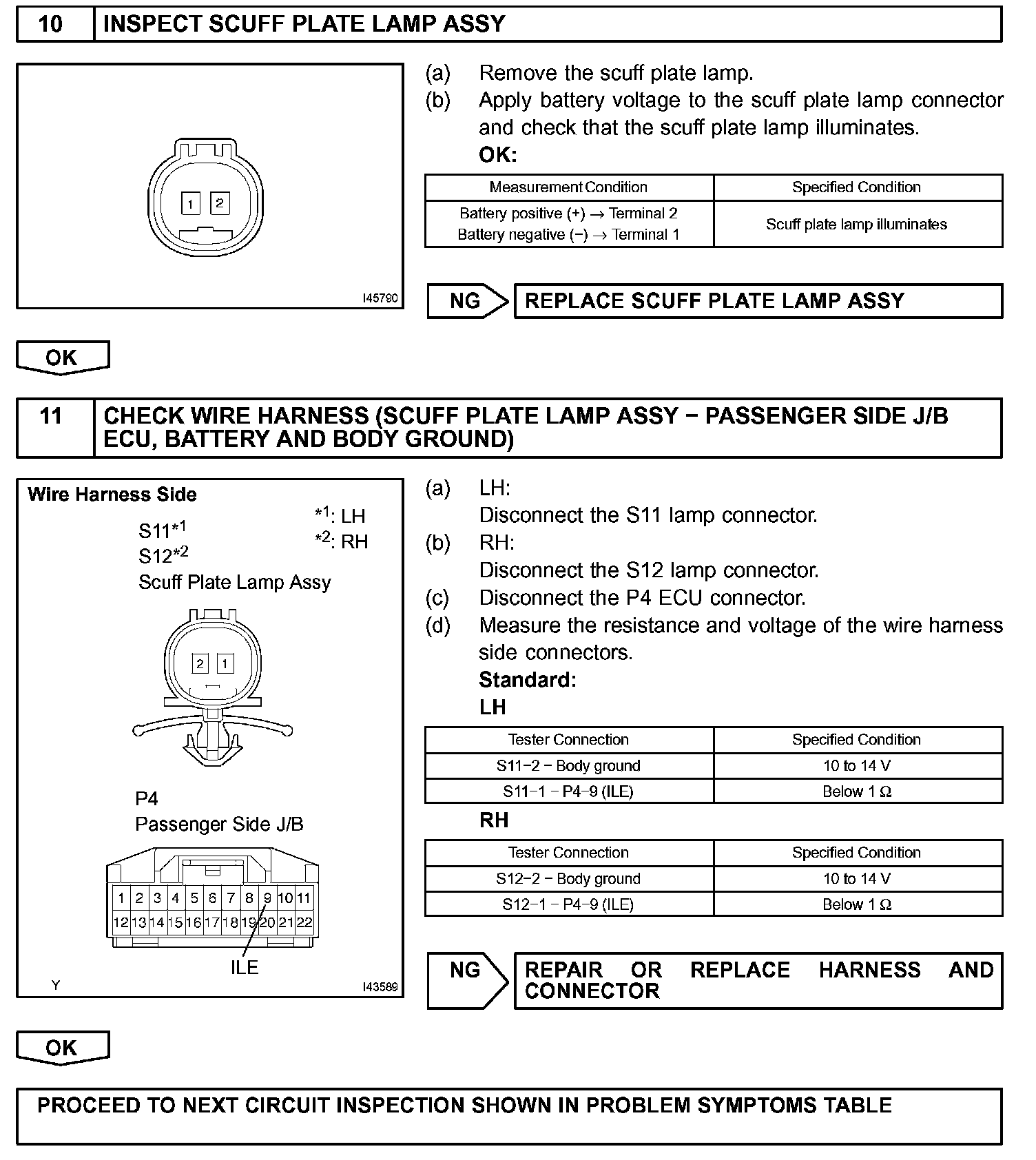

Step 10-11:

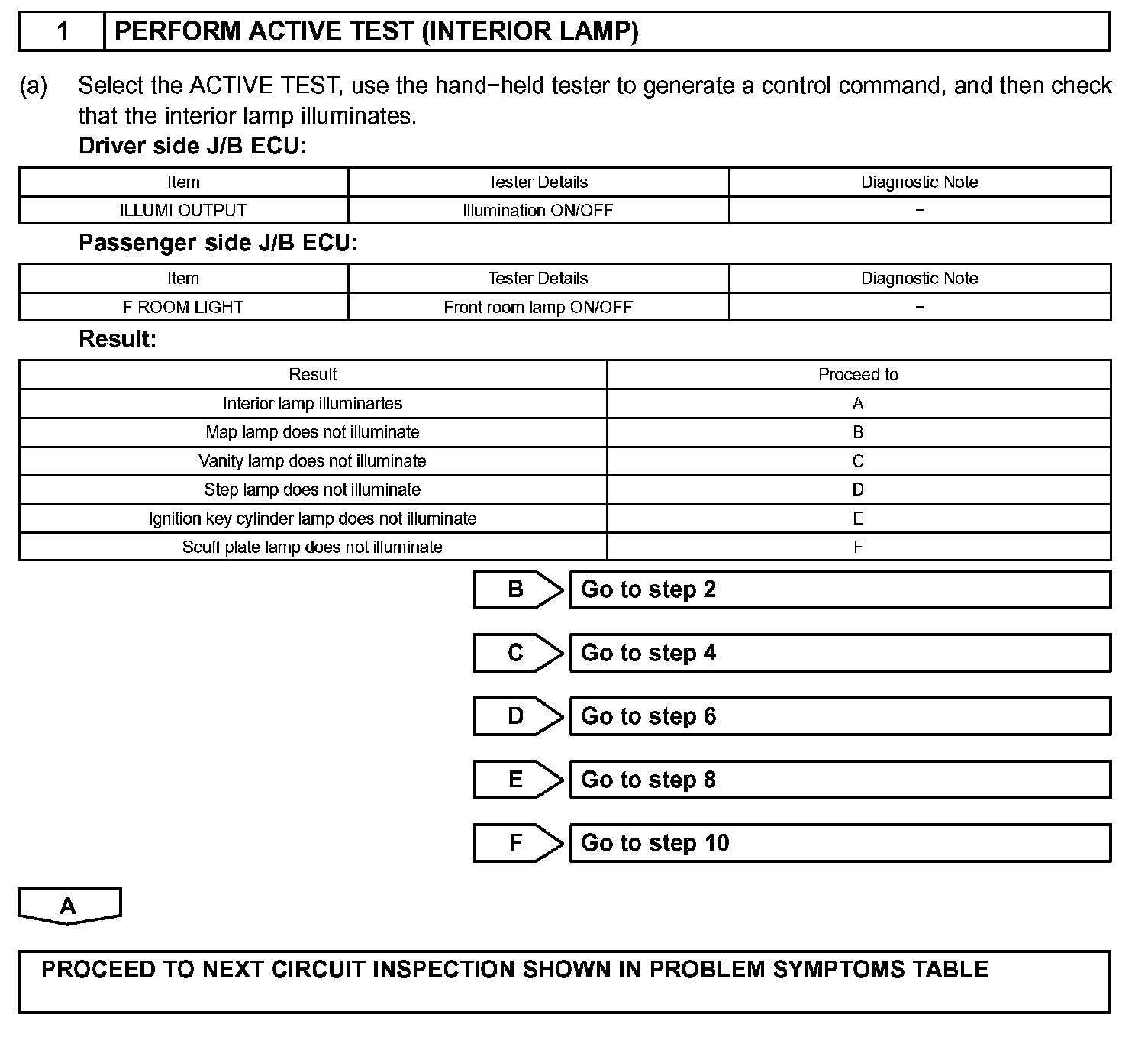

INSPECTION PROCEDURE
