Headlamp Circuit

HEADLAMP CIRCUIT

CIRCUIT DESCRIPTION

The front lamp ECU receives headlamp HI switch information from the combination switch, and illuminates the headlamps.

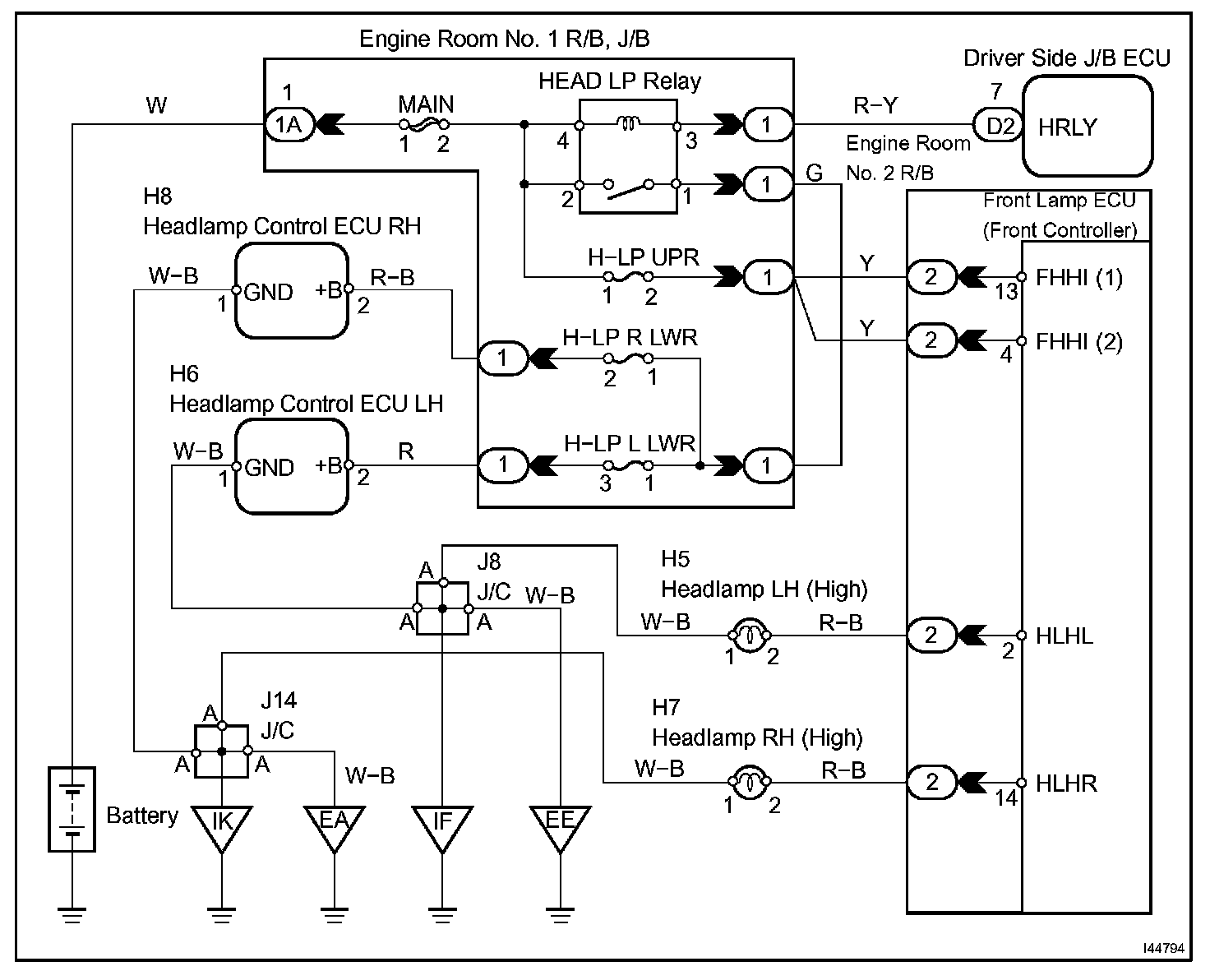

Wiring Diagram:

Step 1-2:

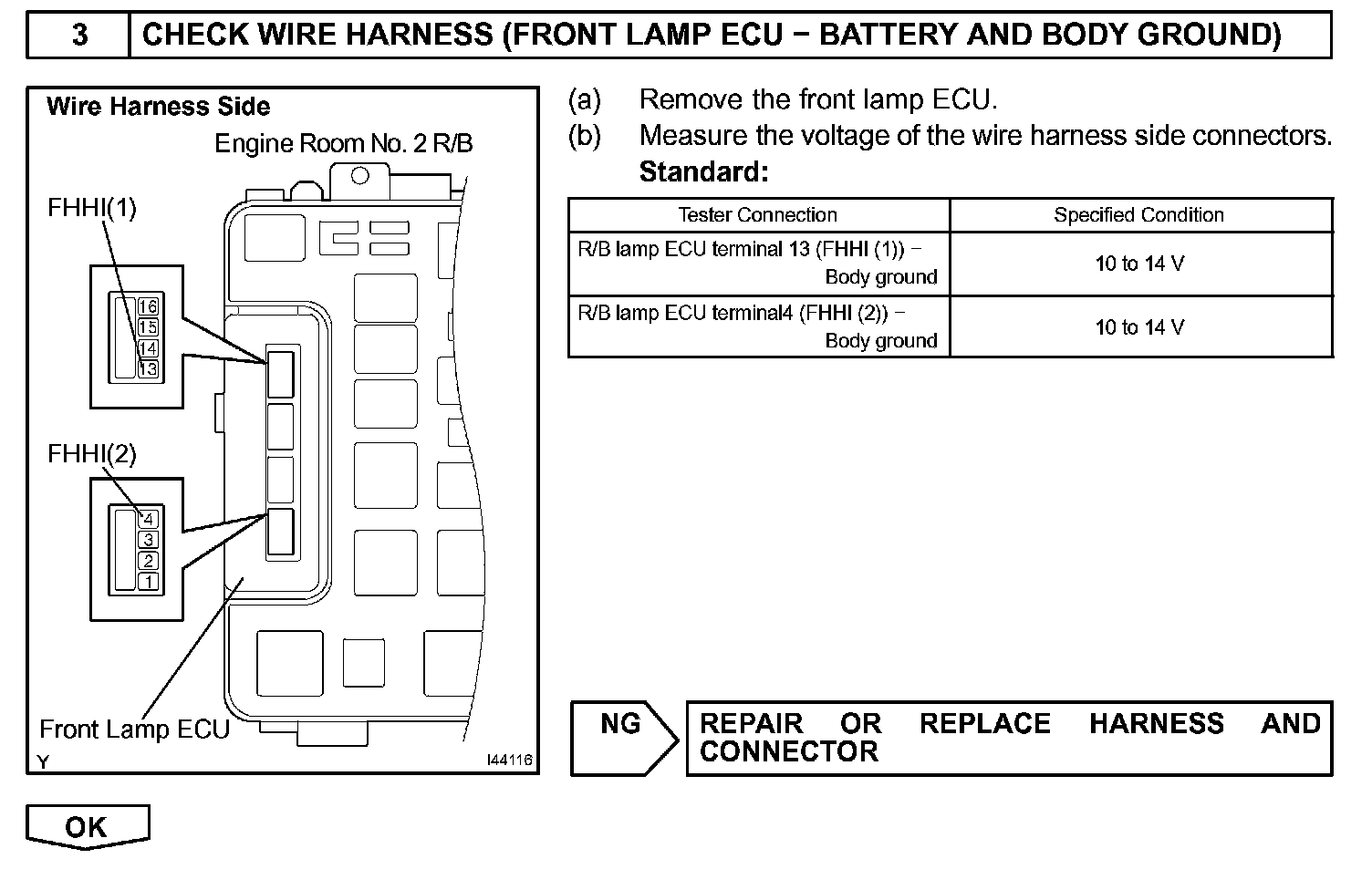

Step 3:

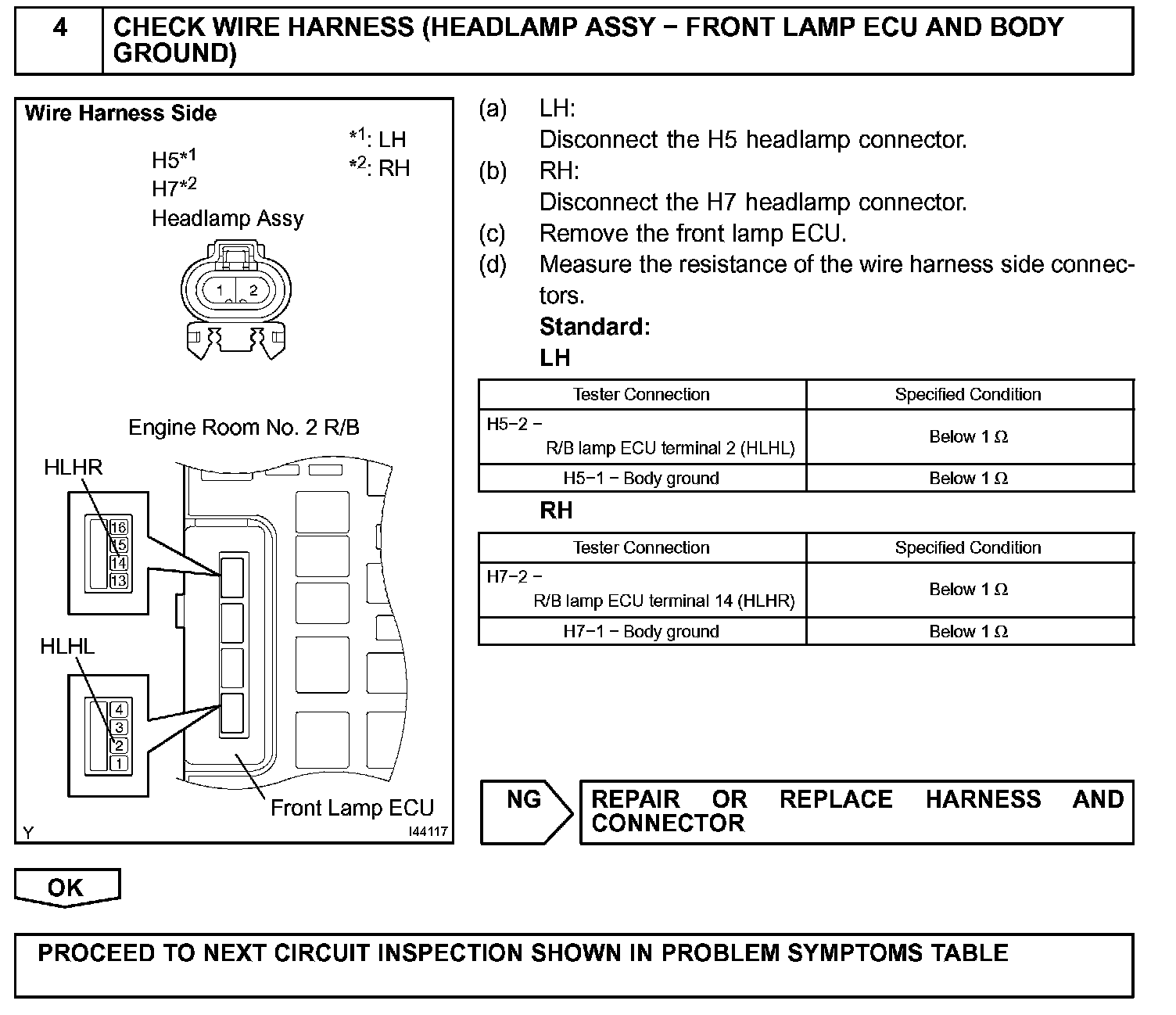

Step 4:

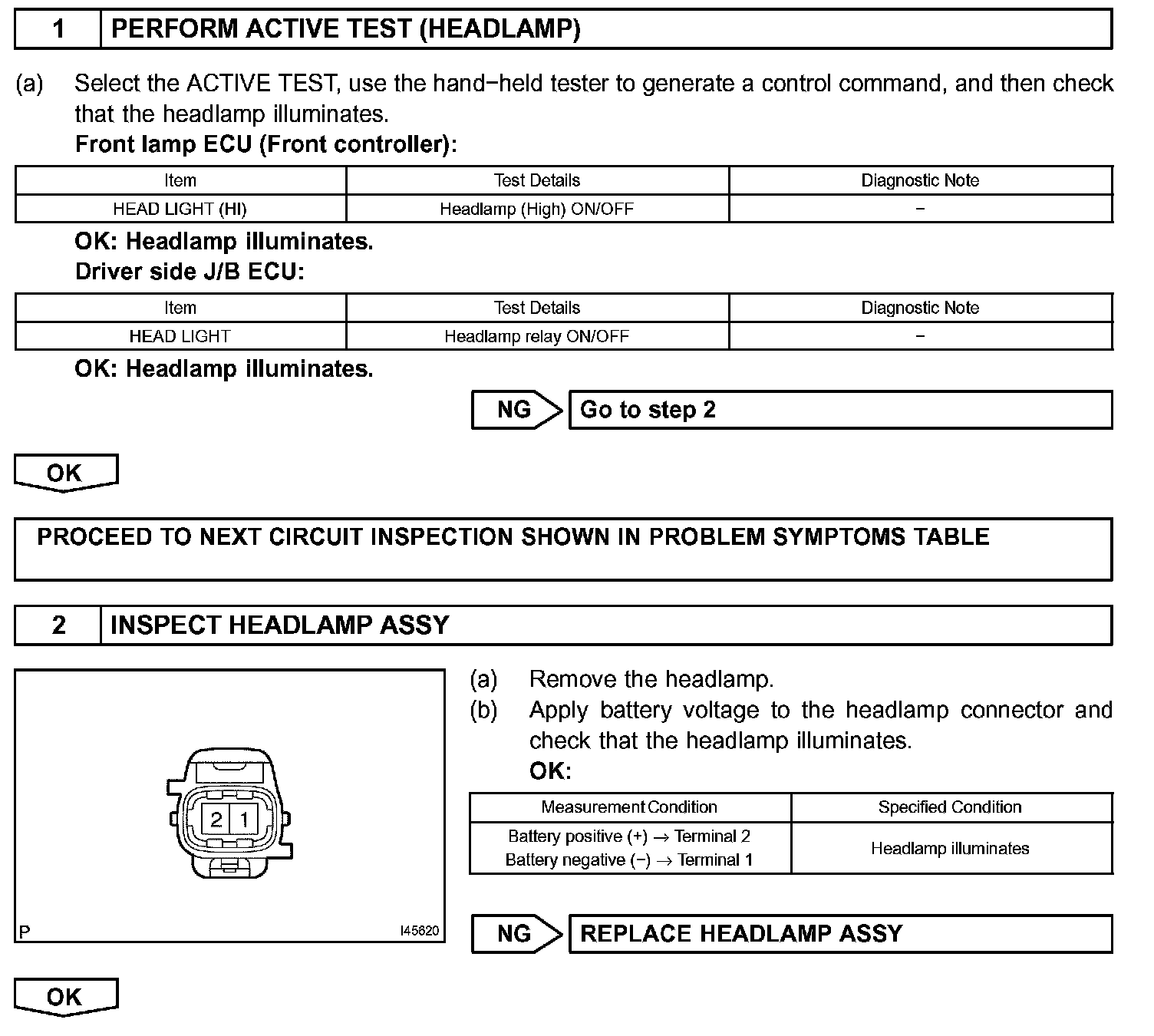

INSPECTION PROCEDURE
